LC/UPC Fiber Optic Connector

Product Model

LC/UPC Connector

Product Description

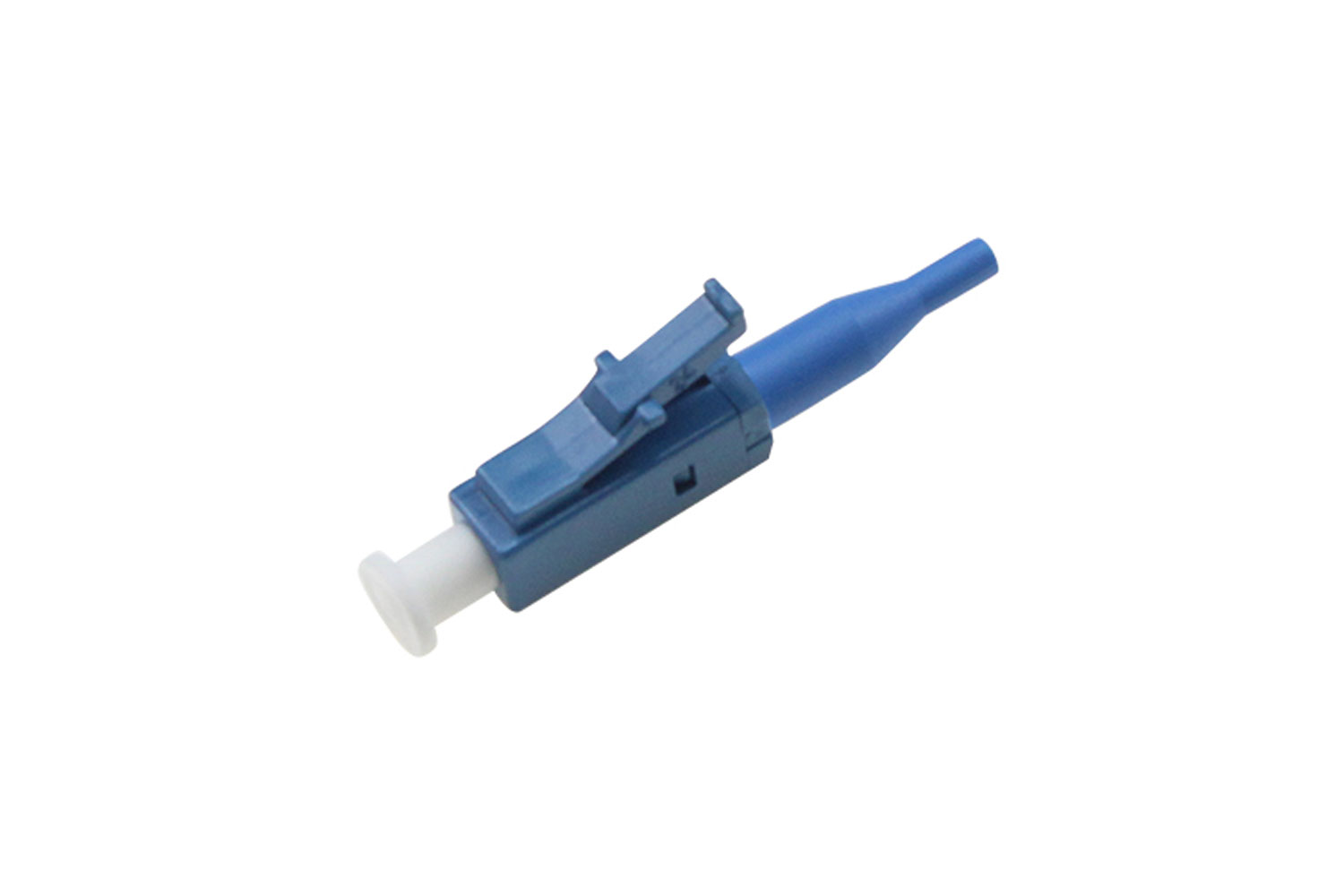

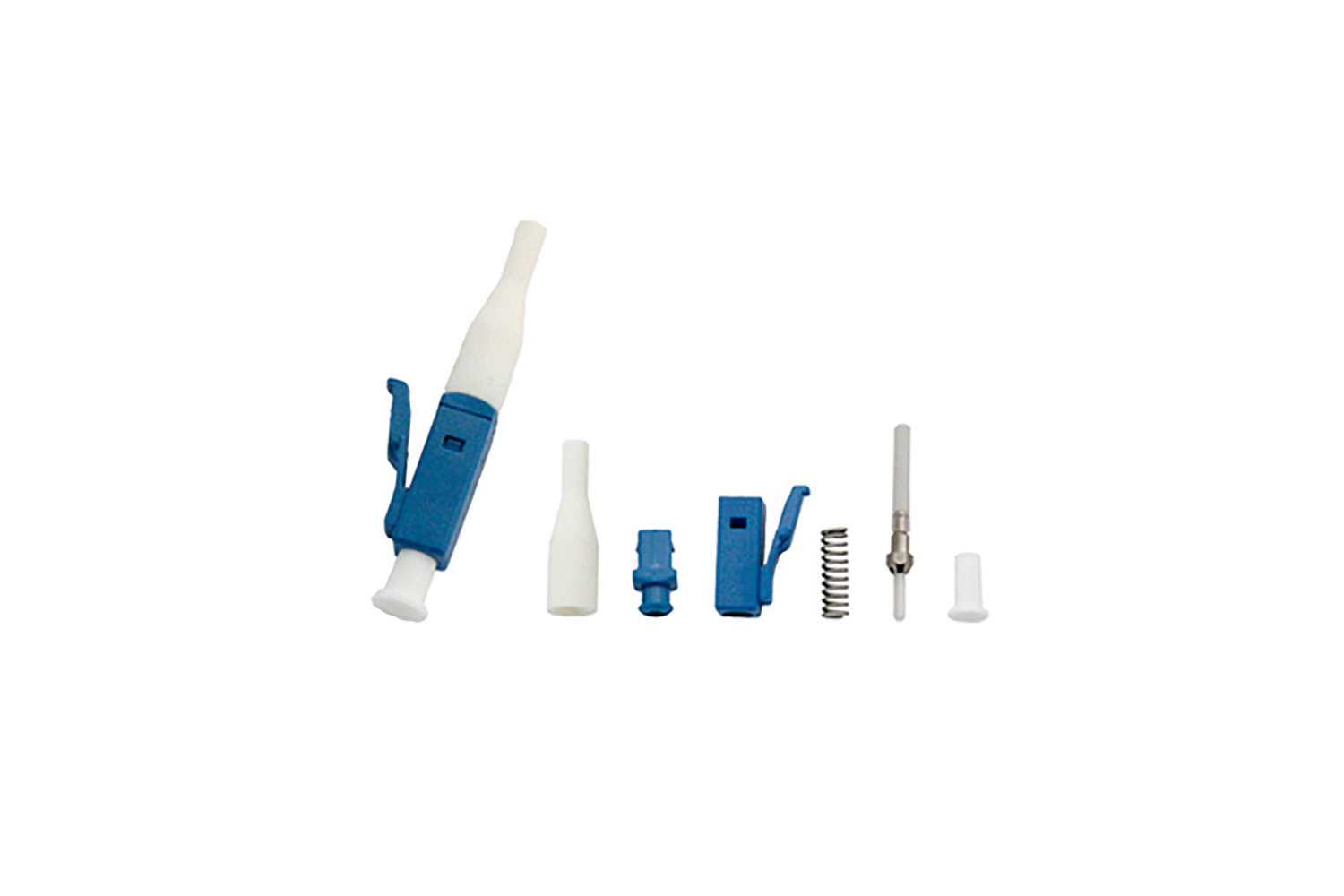

LC Fiber Optic Connector was the first small form factor connector on the market. The use of a high performance 1.25mm ferrule gives the connector extremely high performance characteristics. LC Fiber Optic connector is comprised of a Polymer body and a Ceramic ferrule/spring/crimp barrel assembly plus a crimp over sleeve and rubber boot. This connector is suitable for 0.9mm, 2 and 3mm cable. The connector is precision made and manufactured to demanding specifications. The combination of a Ceramic ferrule with polymer housing provides consistent long-term mechanical and optical performance. The LC has been designed to meet the need for a small optical fiber connector that uses half the space of the SC connector. It features a latched lever mechanism to provide secure ma-ting into the adaptor. The duplex version which is two simplex connectors with a clip, plugs into an adaptor with the same footprint as the SC connector.

Features

Features:

  • High quality ceramic components and Material
  • End-face geometry requirement complies to Telcordia GR-326-CORE
  • 100% tested on optical performance (Insertion Loss & Return Loss)
  • Simplex, duplex and higher core densities
  • 900 micron, 2mm, 3mm cable applications
Dimension
Connector Ferrule Ceramic
Alignment Sleeve Ceramic
Connector Body UL 94V-0 rated Thermoplastic to meet standard flammability ratings
Crimp Insert/Crimp Tube Nickel-Plated Brass/Thermoplastic Elastomer Polymer
Dust Cap Nylon or PVC
Strain Relief Boot Flame retardant (UL-Rated 94-V0) polymer
Connector Style SC, FC, ST, LC, MTRJ,
Polish PC, UPC, APC
Capillary Diameter Tolerance 126 ± 0.5μm(Single Mode), 127 ± 0.5μm (Multimode)
Ferrule Diameter 2.5 ± 0.001mm(FC,SC,ST),1.25± 0.001mm (LC)
Accessory
  1. Connector type : SC,LC,FC,ST,MTRJ
  2. Polish: UPC ,PC,APC
  3. Mode:Singlemode,Multimode
  4. Fiber Count: Simplex or Duplex
  5. Connector boot diameter: 0.9mm,2.0mm or 3.0mm
