SC/APC Fiber Optical Connector

Product Model

SC/UPC Connector

Product Description

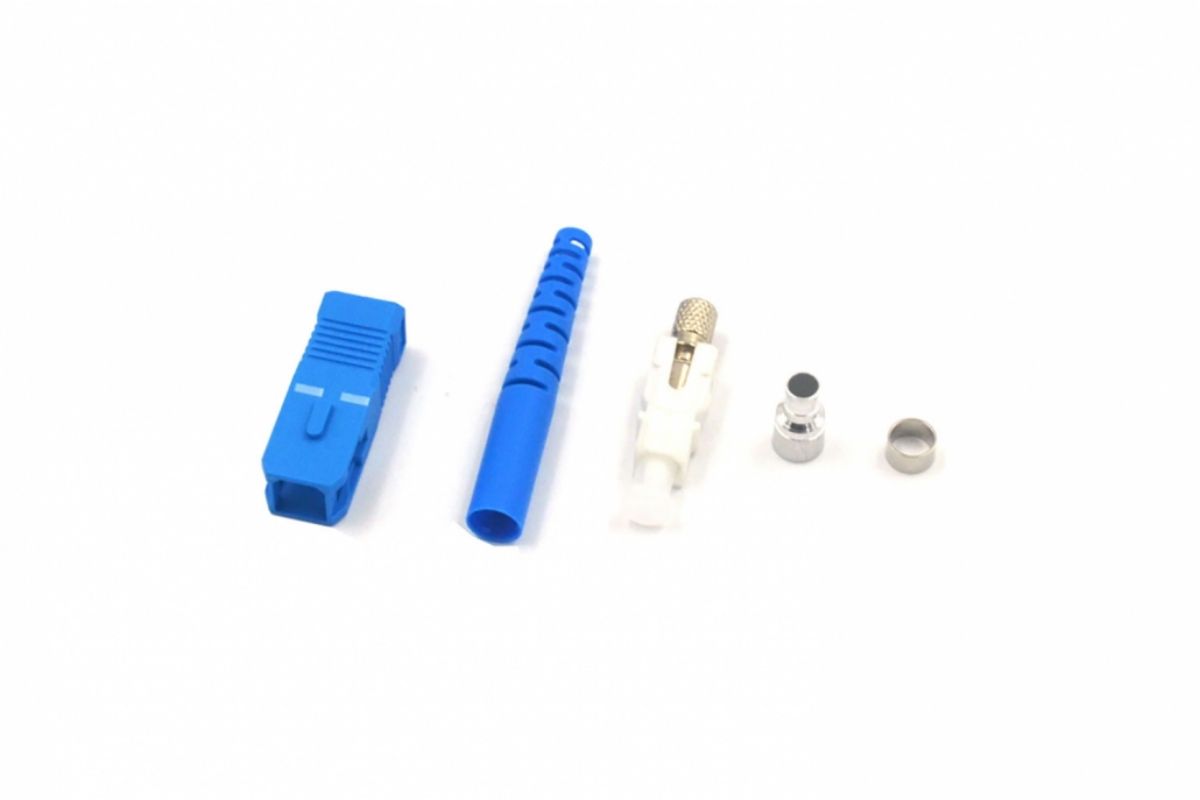

SC Fiber Optic Connector is a push pull type, gives an audible click when mates into its adaptor and can be tuned in 4 positions to provide the lowest insertion loss. It comprises of a body with ceramic ferrule/spring/crimp barrel assembly plus a crimp over sleeve and rubber boot. These connectors are suitable for, 0.9mm and 2-3mm cables. The connector is precision made to demanding specifications. The combination of a ceramic ferrule with precision polymer housing pro-vides consistent long-term mechanical and optical performance.

Features:

  • High quality ceramic components and Material
  • End-face geometry requirement complies to Telcordia GR-326-CORE
  • 100% tested on optical performance (Insertion Loss & Return Loss)
  • Simplex, duplex and higher core densities
  • 900 micron, 2mm, 3mm cable applications
