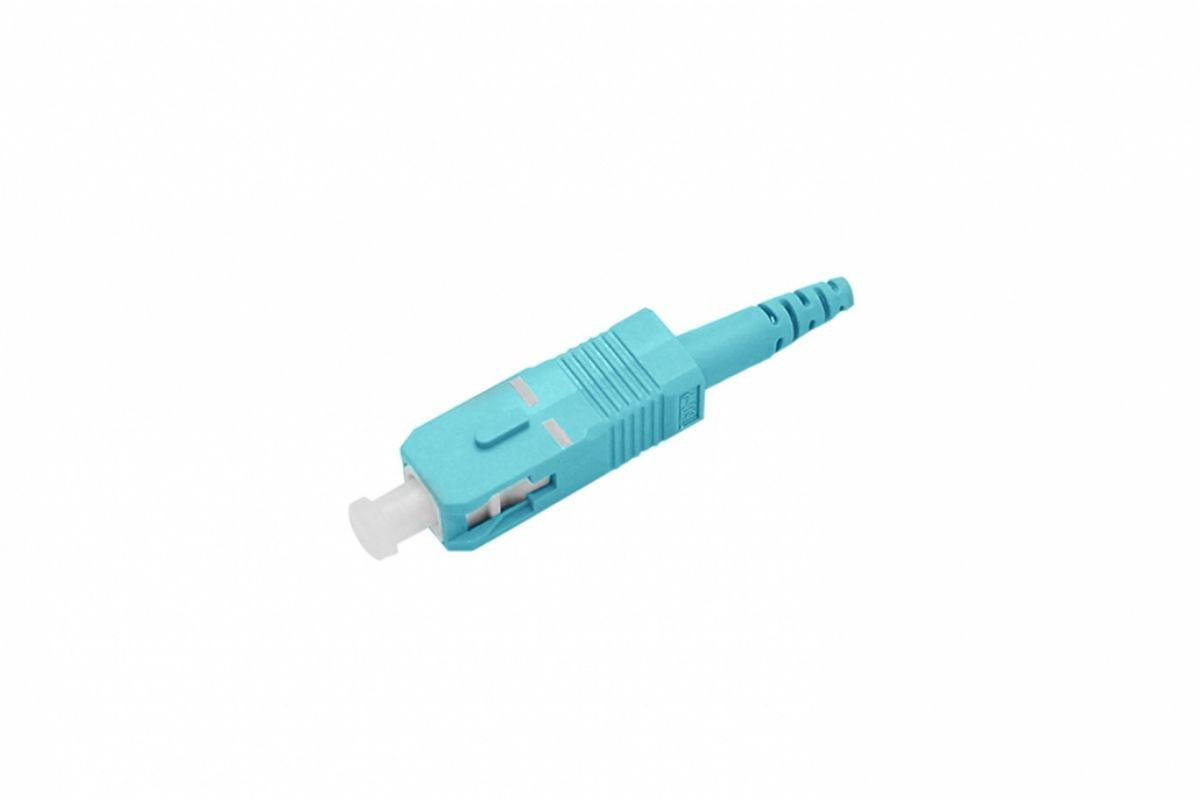

SC OM3 Fiber Optical Connector

Product Model

SC OM3 Connector

Product Description

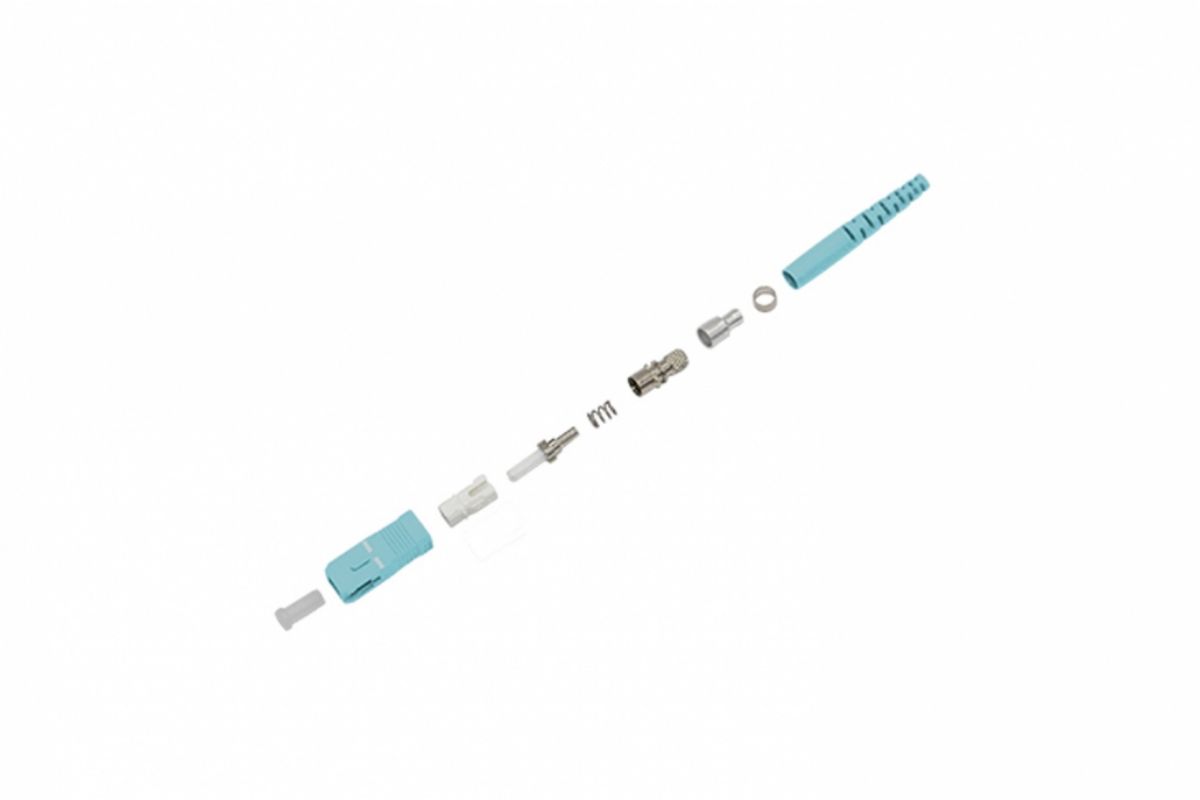

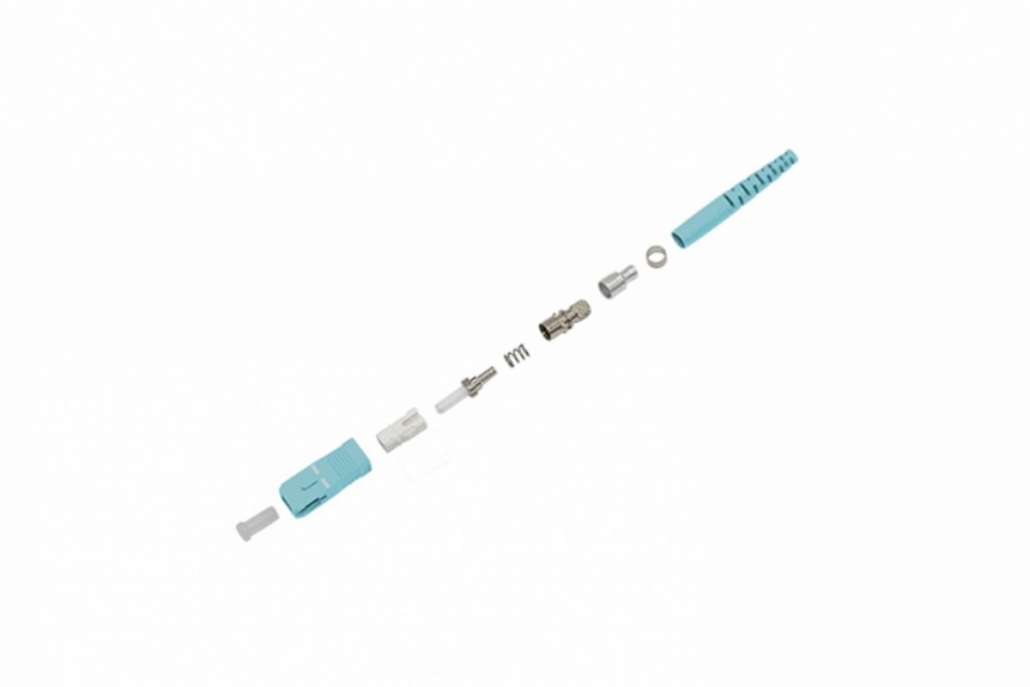

SC Fiber Optic Connector is a push pull type, gives an audible click when mates into its adaptor and can be tuned in 4 positions to provide the lowest insertion loss. It comprises of a body with ceramic ferrule/spring/crimp barrel assembly plus a crimp over sleeve and rubber boot. These connectors are suitable for, 0.9mm and 2-3mm cables. The connector is precision made to demanding specifications. The combination of a ceramic ferrule with precision polymer housing pro-vides consistent long-term mechanical and optical performance.

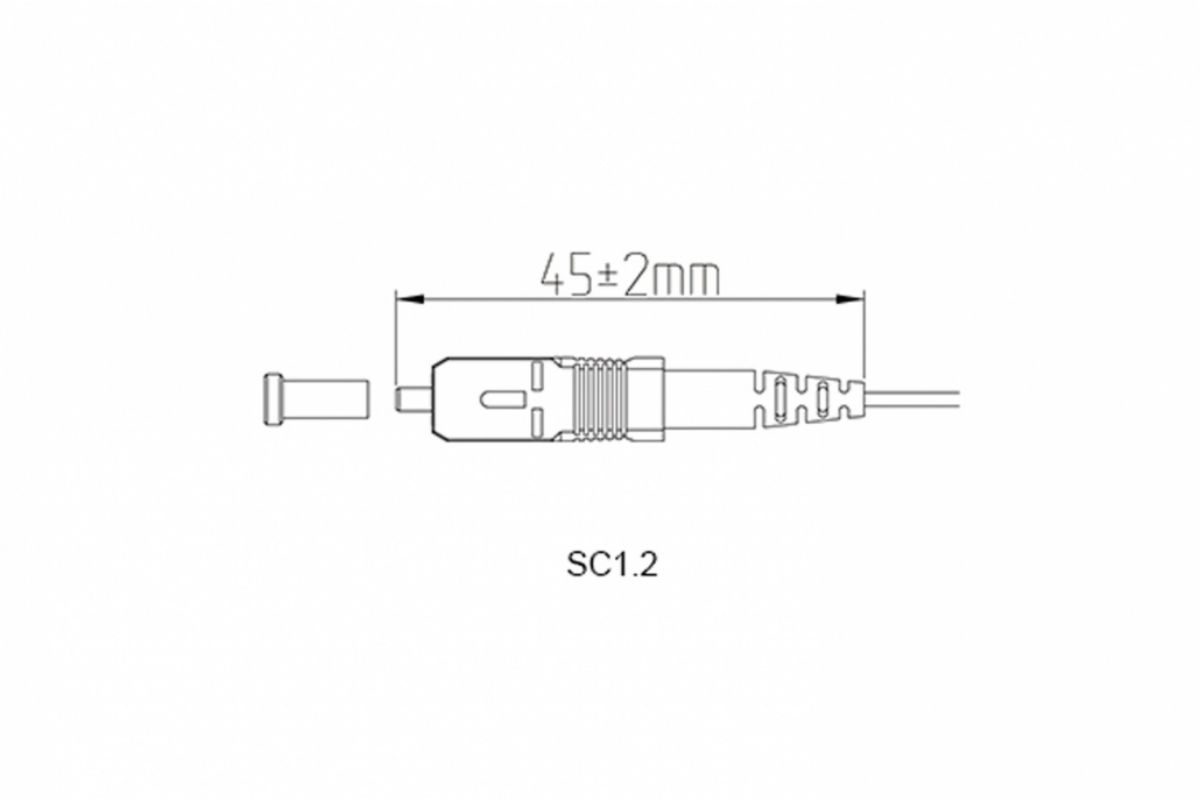

parameter SC 1.2mm Connector
SM MM
PC UPC APC PC
Insertion loss ≤0.25dB ≤0.25dB ≤0.25dB ≤0.25dB
Return loss ≥50dB ≥55dB ≥60dB
operating wavelength 1310nm, 1550nm 850nm, 1300nm
Ferrule Concentricity ≤1um ≤4um
