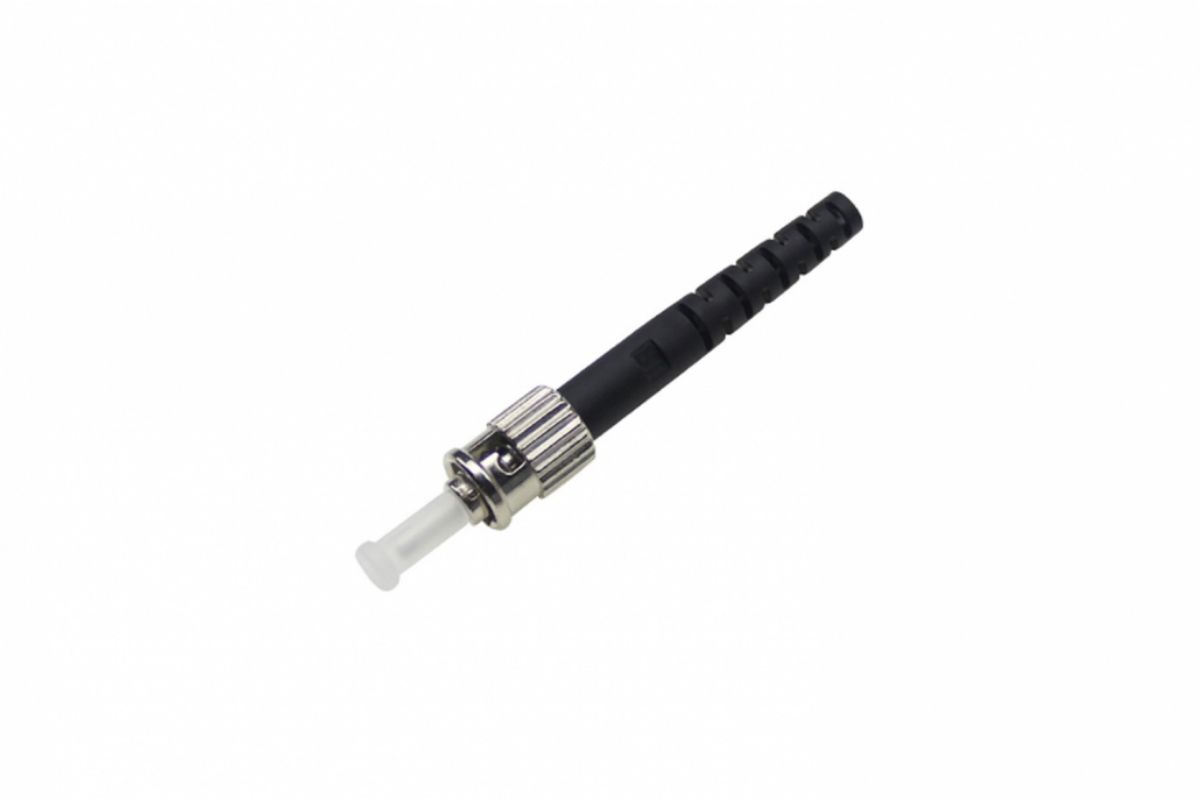

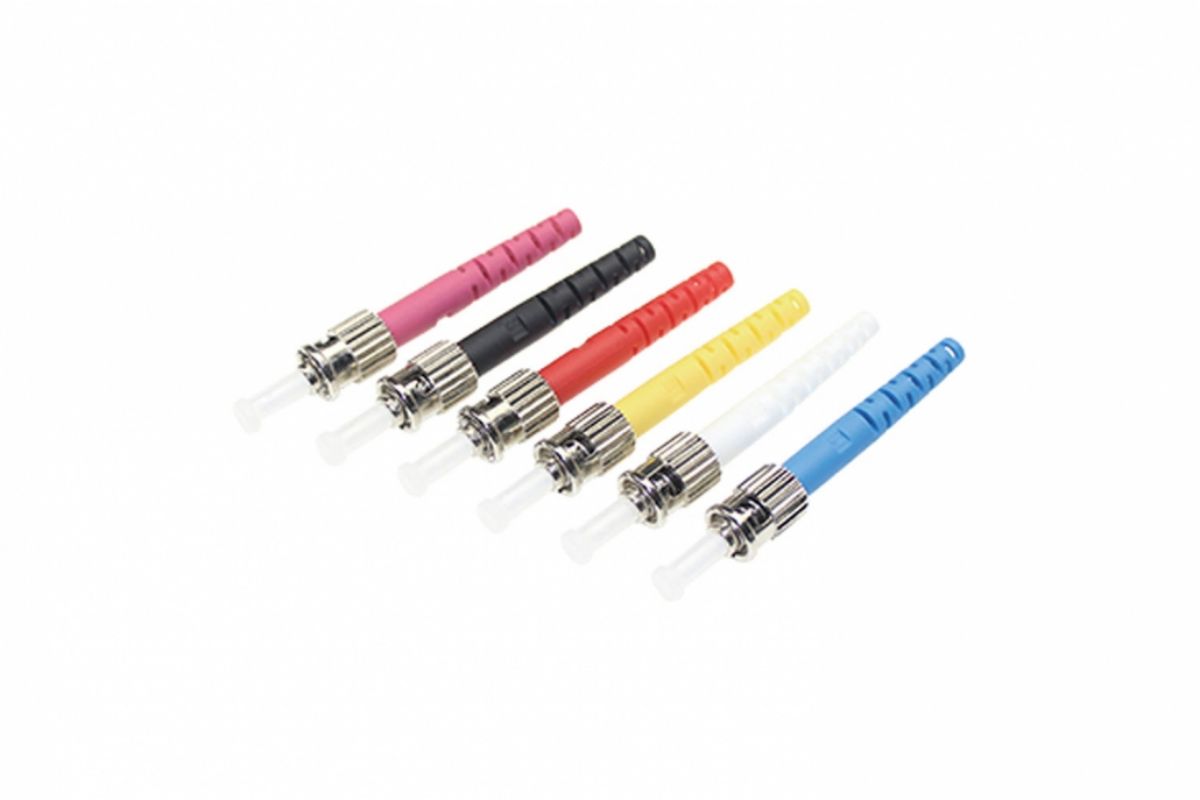

ST Black Fiber Optical Connectors

Product Model

ST Connector

Product Description

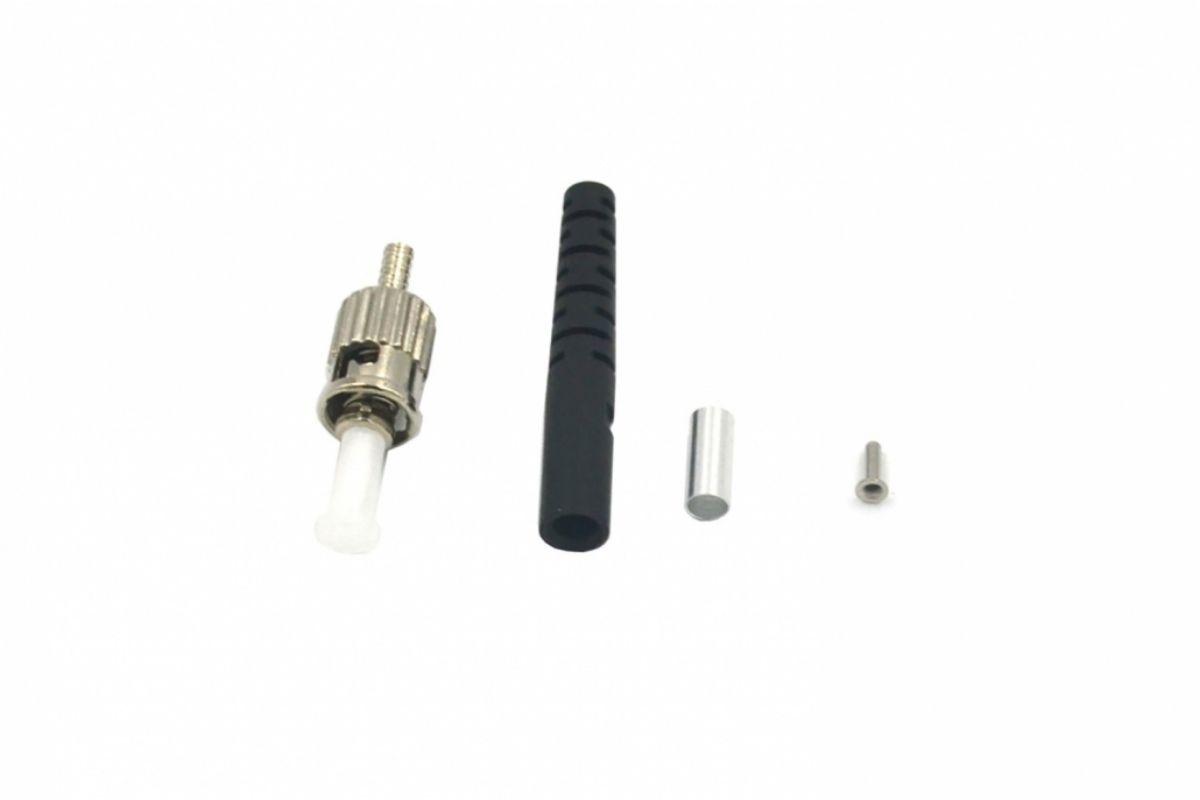

ST Fiber Optic Connector features a bayonet locking mechanism to reduce the risks of accidental disconnection of fiber connections. This connector is comprised of a Nickel plated Brass body and a Ceramic ferrule/spring/crimp barrel assembly plus a crimp over sleeve with rubber boot. These connectors are suitable for 0.9mm and 2-3mm cables. The connector is precision made and manufactured to demanding specifications. The combination of a Ceramic ferrule with precision metal housing provides consistent long-term mechanical and optical performance.

Features

Features:

High quality ceramic components and Material
End-face geometry requirement complies to Telcordia GR-326-CORE
100% tested on optical performance (Insertion Loss & Return Loss)
Simplex, duplex and higher core densities
900 micron, 2mm, 3mm cable applications

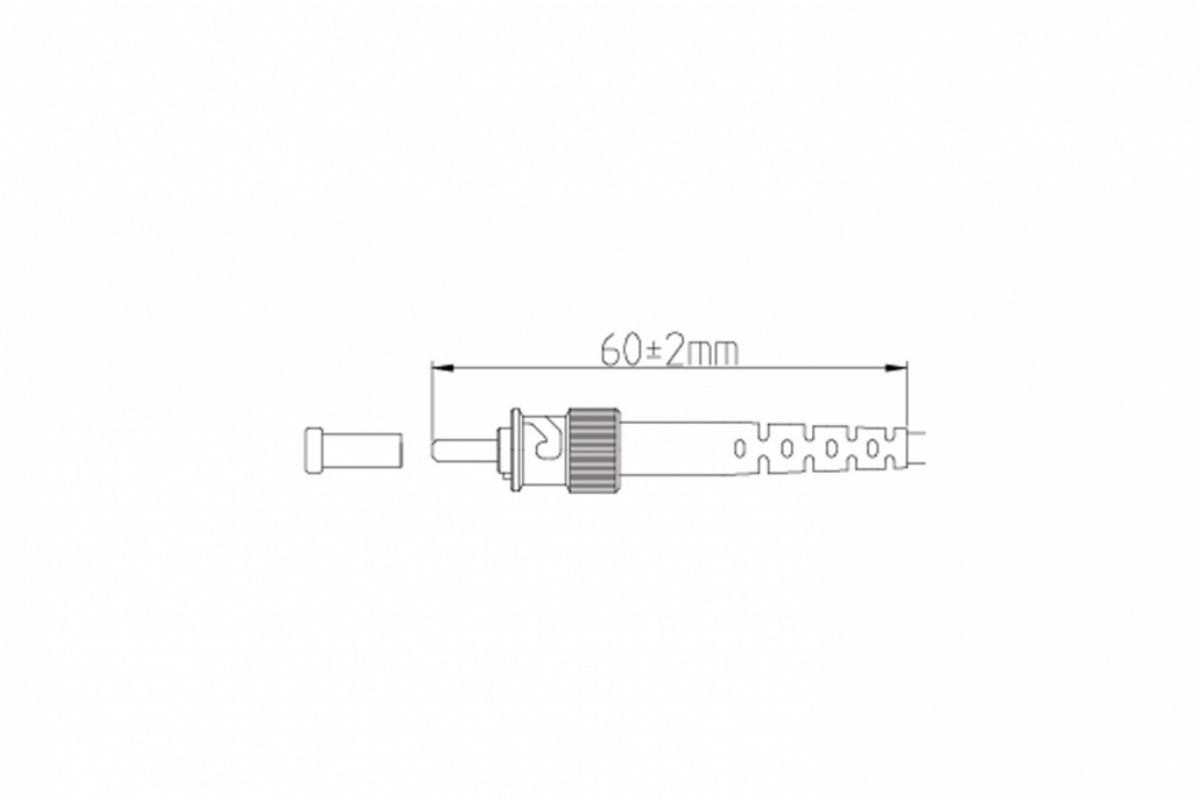

Dimension

parameter	ST 2.0mm/3.0mm Connector
	SM			MM
	PC	UPC	APC	PC
Insertion loss	≤0.25dB	≤0.25dB	≤0.25dB	≤0.25dB
Return loss	≥50dB	≥55dB	≥60dB	/
operating wavelength	1310nm, 1550nm			850nm, 1300nm
Ferrule Concentricity	≤1um			≤4um
