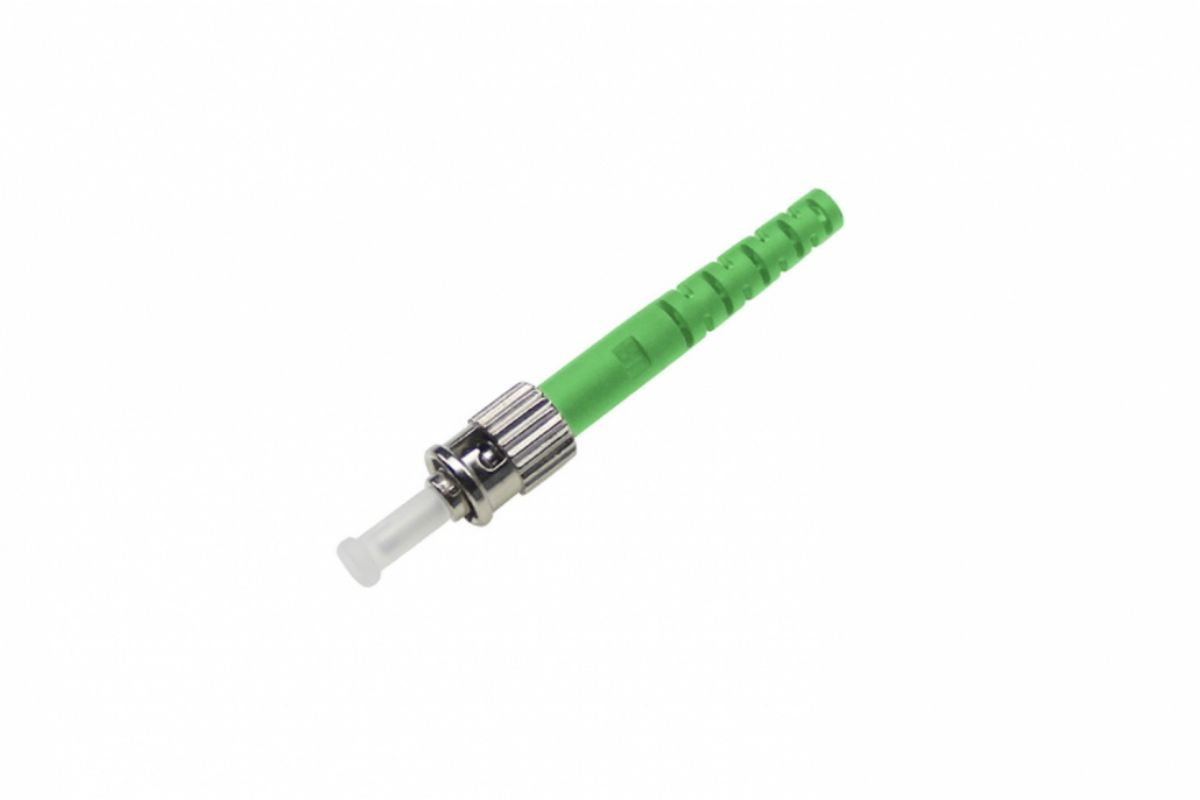

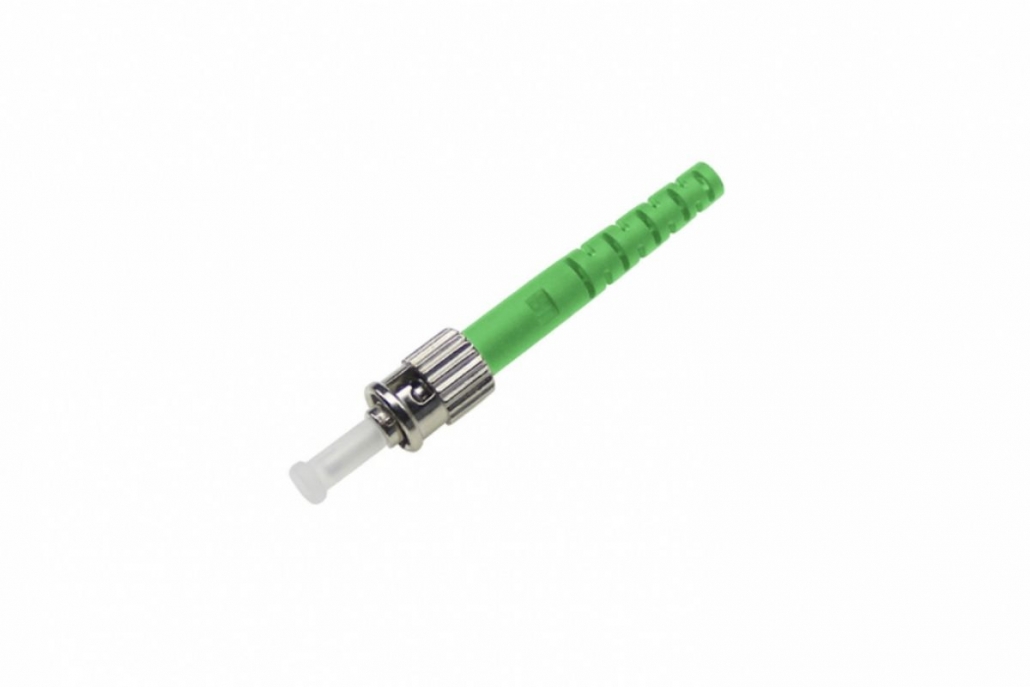

ST/APC Fiber Optical Connectors

Product Model

ST  APC

Product Description

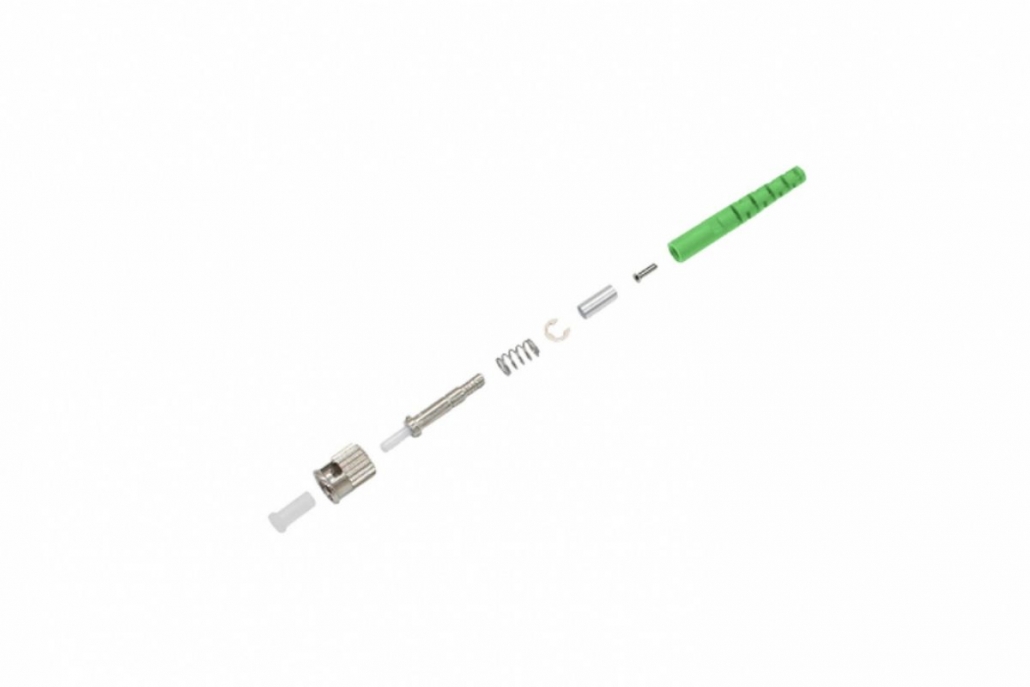

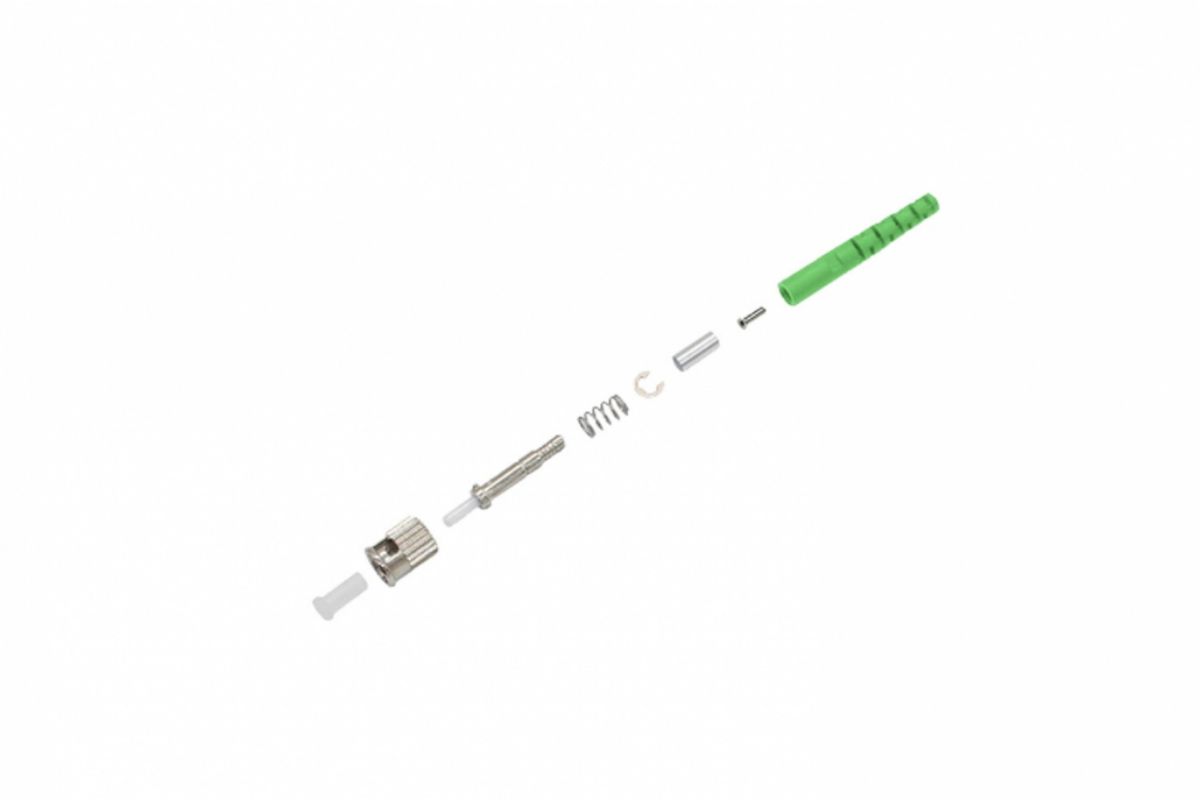

ST Fiber Optic Connector features a bayonet locking mechanism to reduce the risks of accidental disconnection of fiber connections. This connector is comprised of a Nickel plated Brass body and a Ceramic ferrule/spring/crimp barrel assembly plus a crimp over sleeve with rubber boot. These connectors are suitable for 0.9mm and 2-3mm cables. The connector is precision made and manufactured to demanding specifications. The combination of a Ceramic ferrule with precision metal housing provides consistent long-term mechanical and optical performance.

Features

Features:

  • High quality ceramic components and Material
  • End-face geometry requirement complies to Telcordia GR-326-CORE
  • 100% tested on optical performance (Insertion Loss & Return Loss)
  • Simplex, duplex and higher core densities
  • 900 micron, 2mm, 3mm cable applications
Dimension

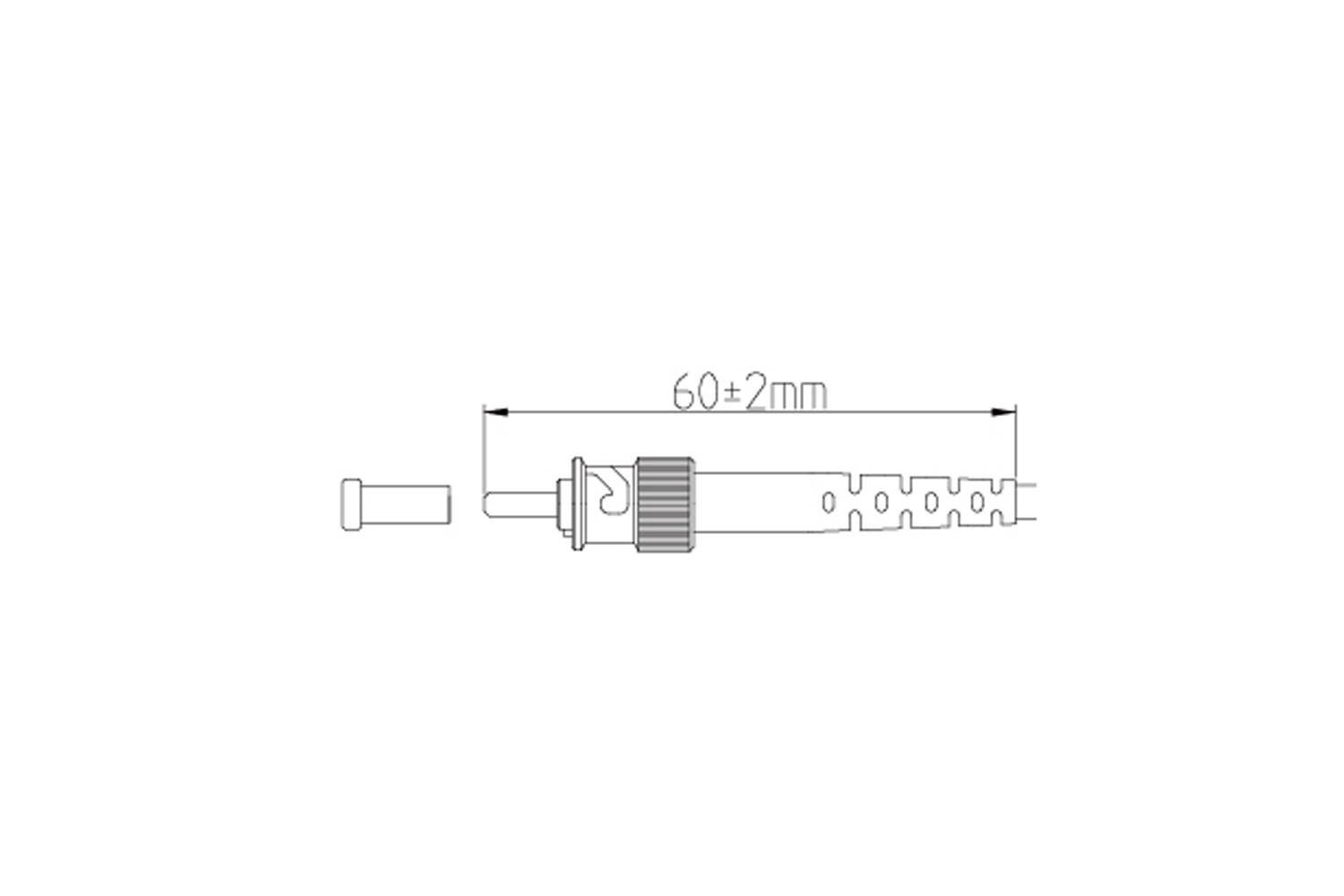

Product Dimension:

parameter ST 2.0mm/3.0mm Connector
SM MM
PC UPC APC PC
Insertion loss ≤0.25dB ≤0.25dB ≤0.25dB ≤0.25dB
Return loss ≥50dB ≥55dB ≥60dB /
operating wavelength 1310nm, 1550nm 850nm, 1300nm
Ferrule Concentricity ≤1um ≤4um
Accessory

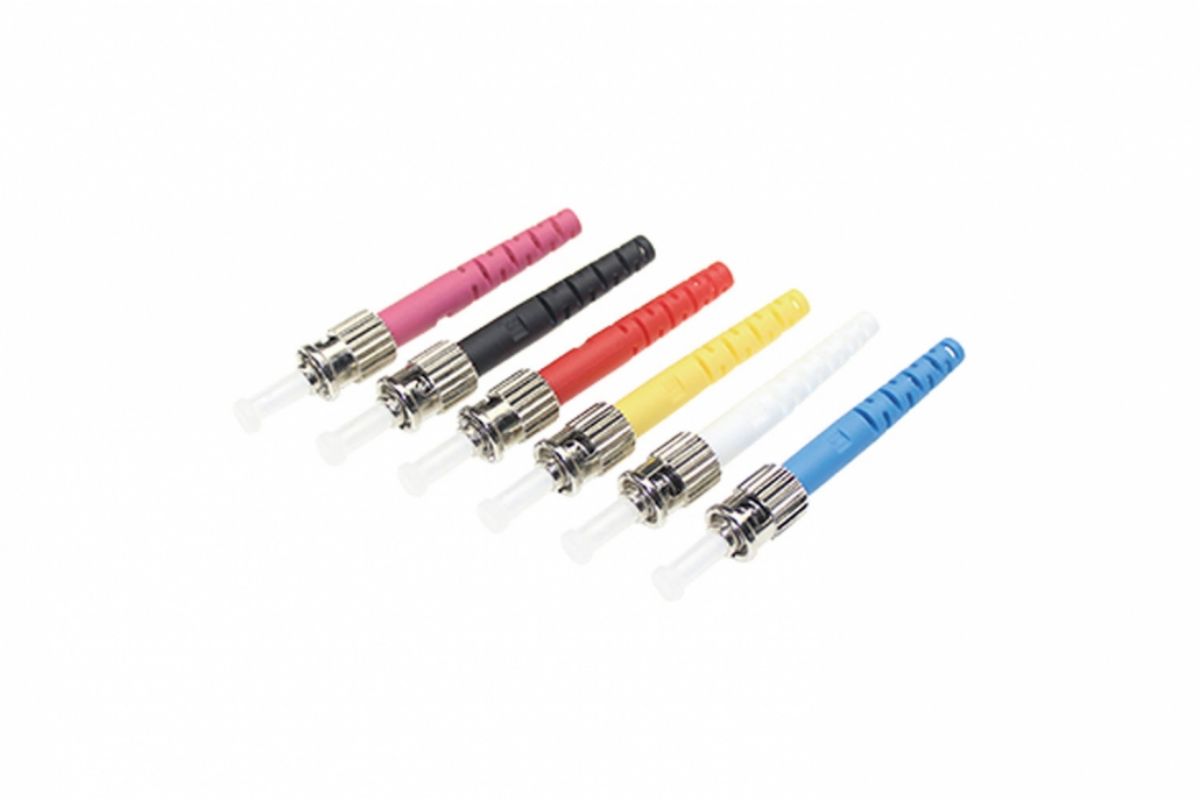

ST Connector (2)
