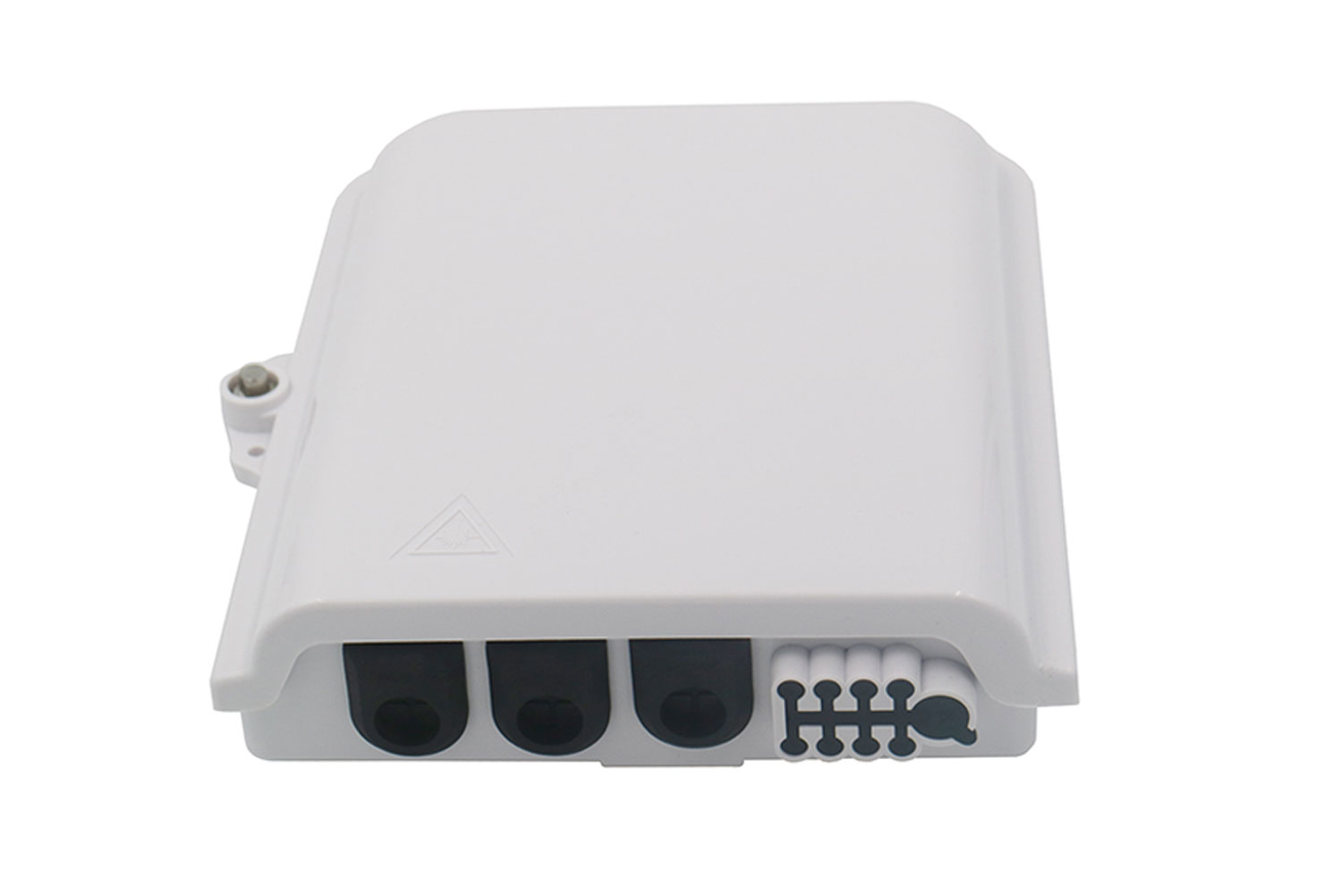

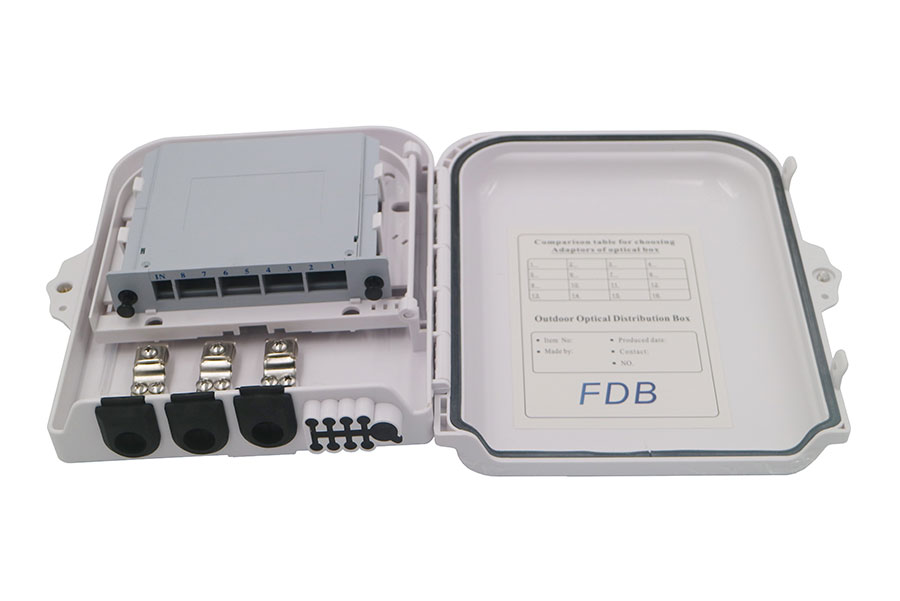

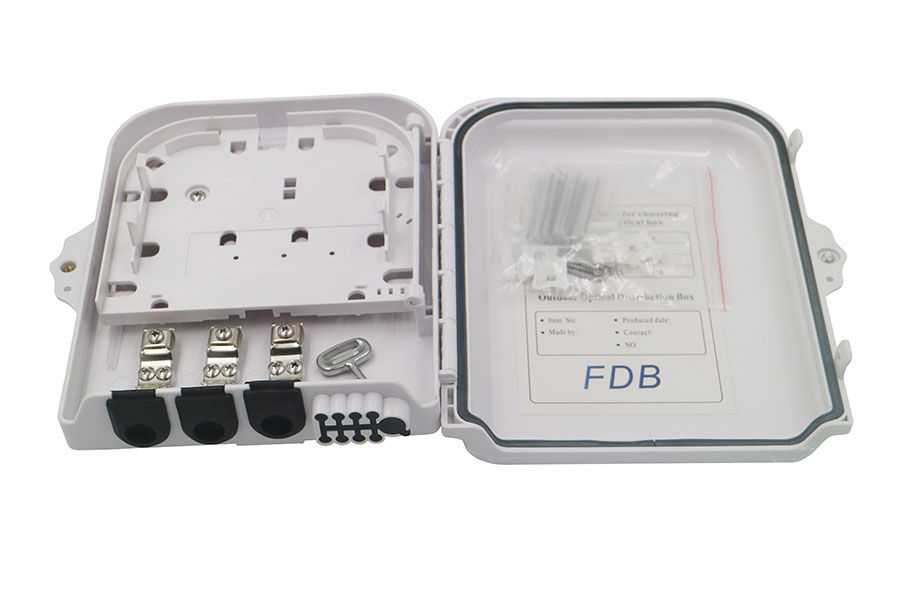

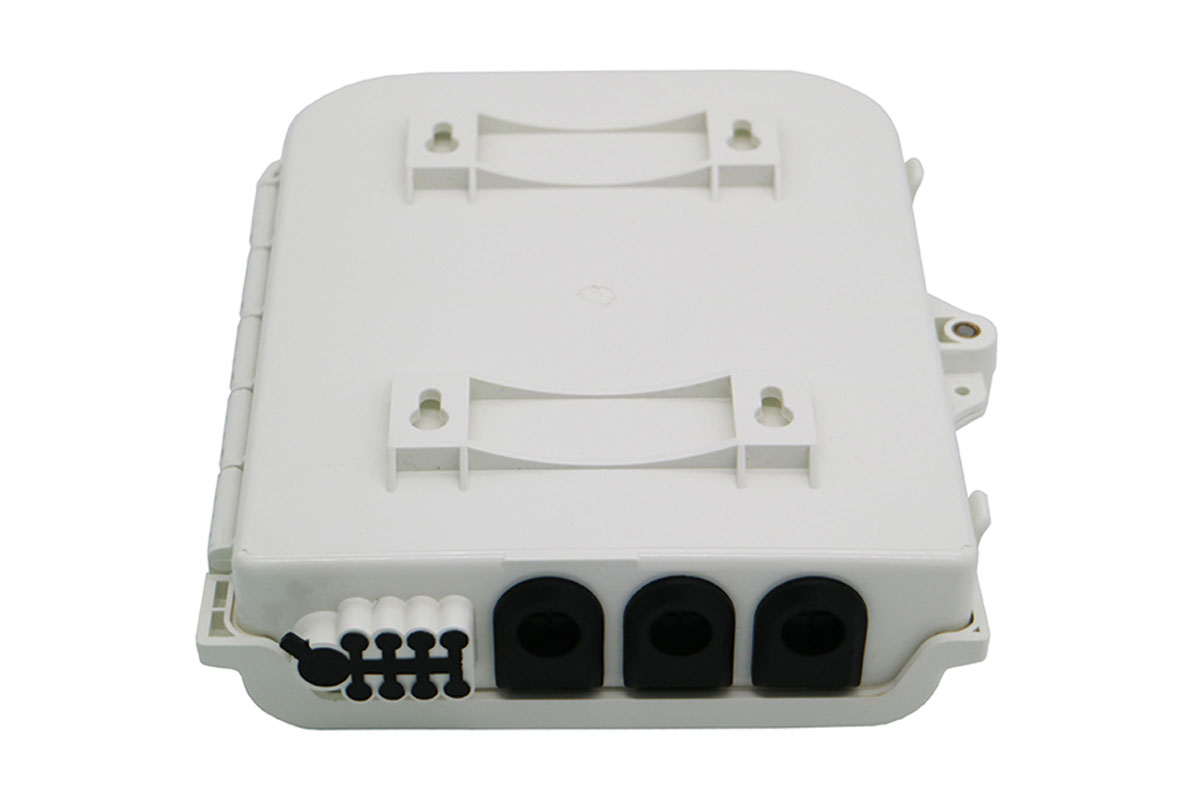

Optical Distribution Box 8 Core FTTH Terminal Box With LGX Box PLC Splitter

Product Model

 SP-1602-8B-3

Product Description

SP-1602-8B-3 fiber access termination box is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features

Features:

  1. Water-proof design with IP-66 Protection level.
  2. Integrated with splice cassette and cable management rods.
  3. Manage fibers in a reasonable fiber radius condition.
  4. Easy to maintain and extend the capacity.
  5. Fiber bend radius control more than 40mm.
  6. Suitable for the fusion splice or mechanical splice.
  7. 1*8 Splitter can be installed as an option.
  8. Efficient cable management.
  9. 8 ports cable entrance for drop cable.
Application

Application:

  • Suitable for Pigtail, ribbon and bunch cable connect distribution
  • Used for wall-mounted applications
  • Used in FTTH, Telecommunications, CATV ect.
Specification

Specification:

Material Size Max Capacity Weight Color
PC+ABS 227*118*54.5 SC 8 ports LC 16 ports PLC 1×8(SC) 0.6kg White
