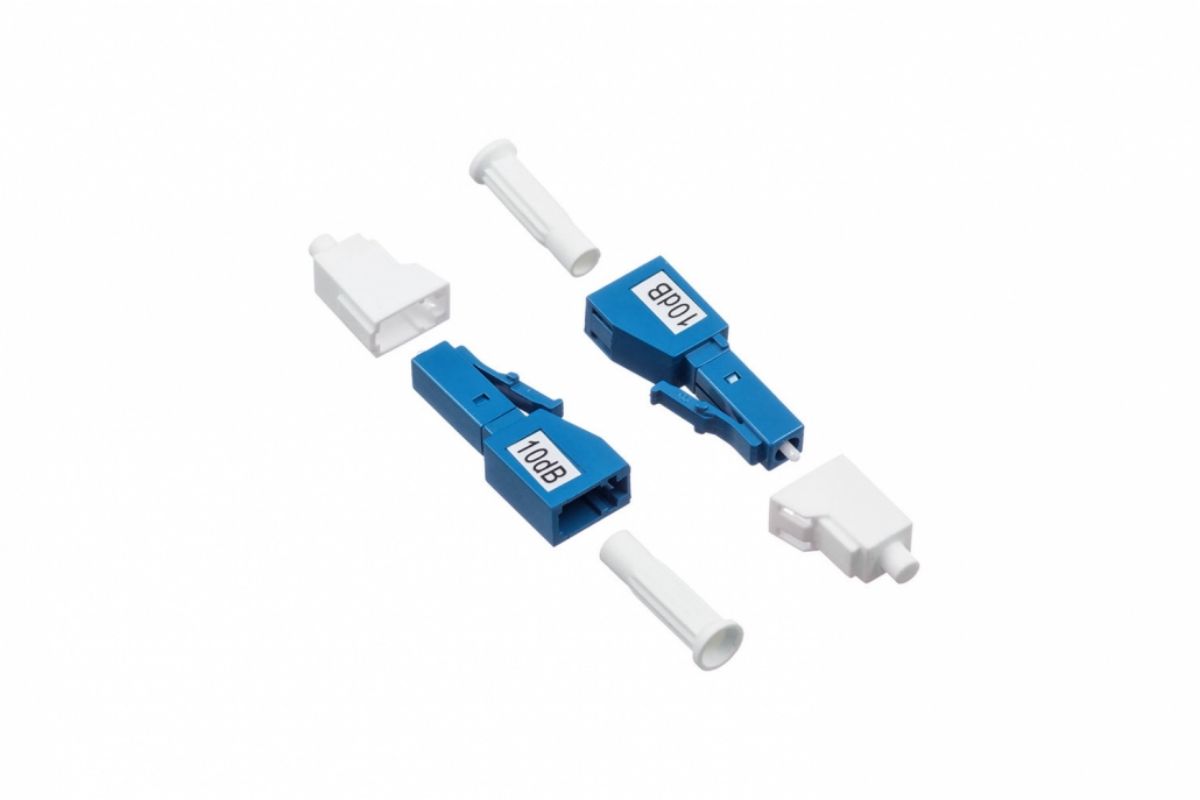

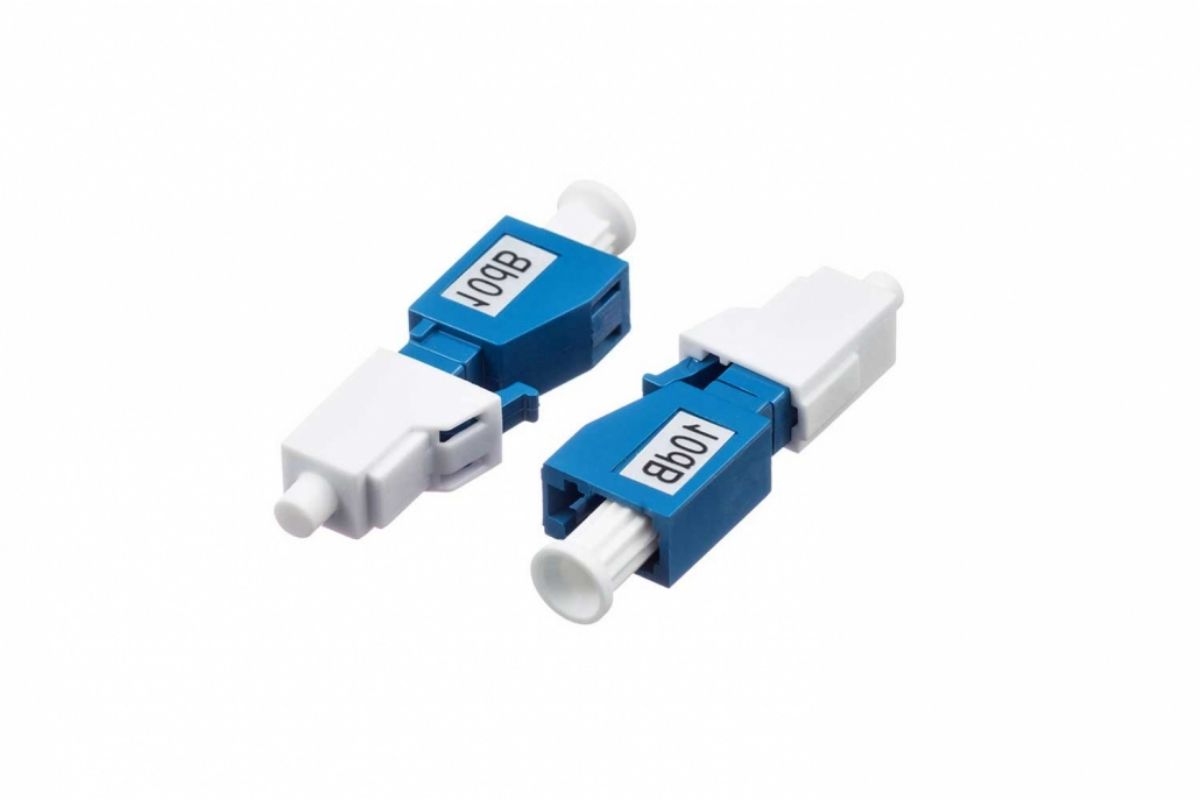

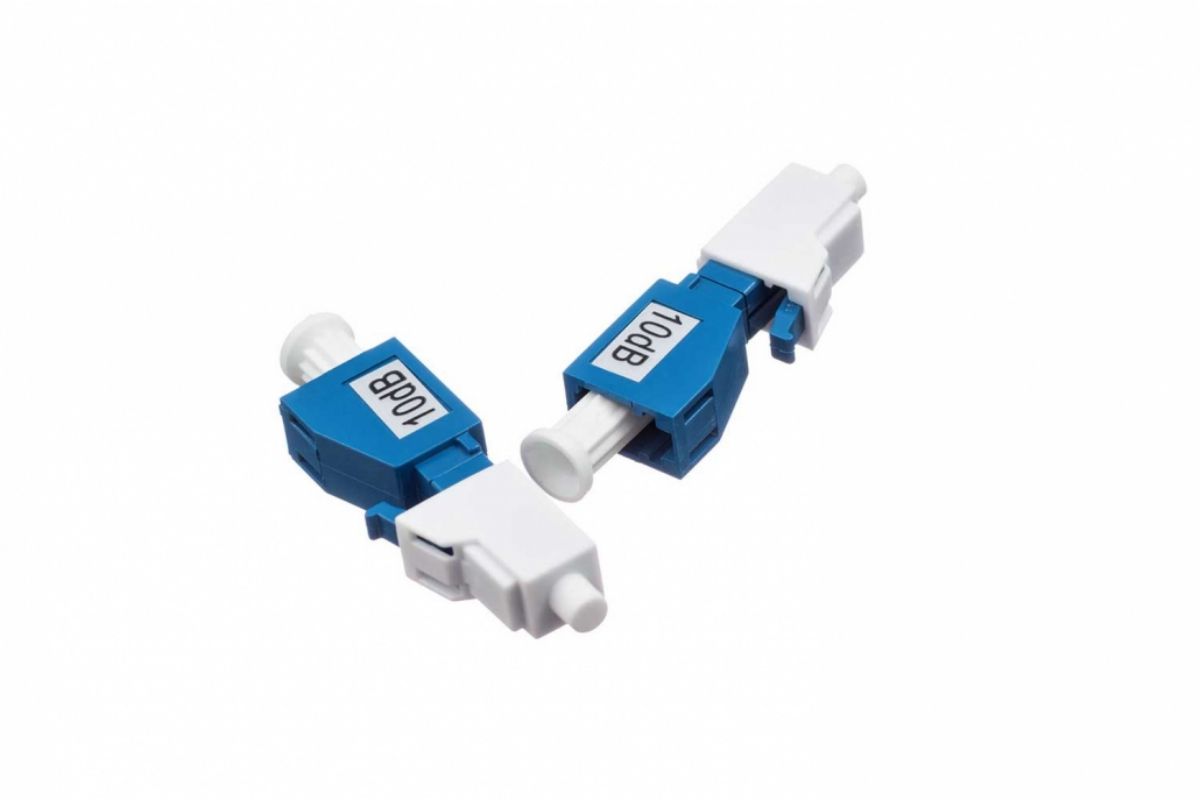

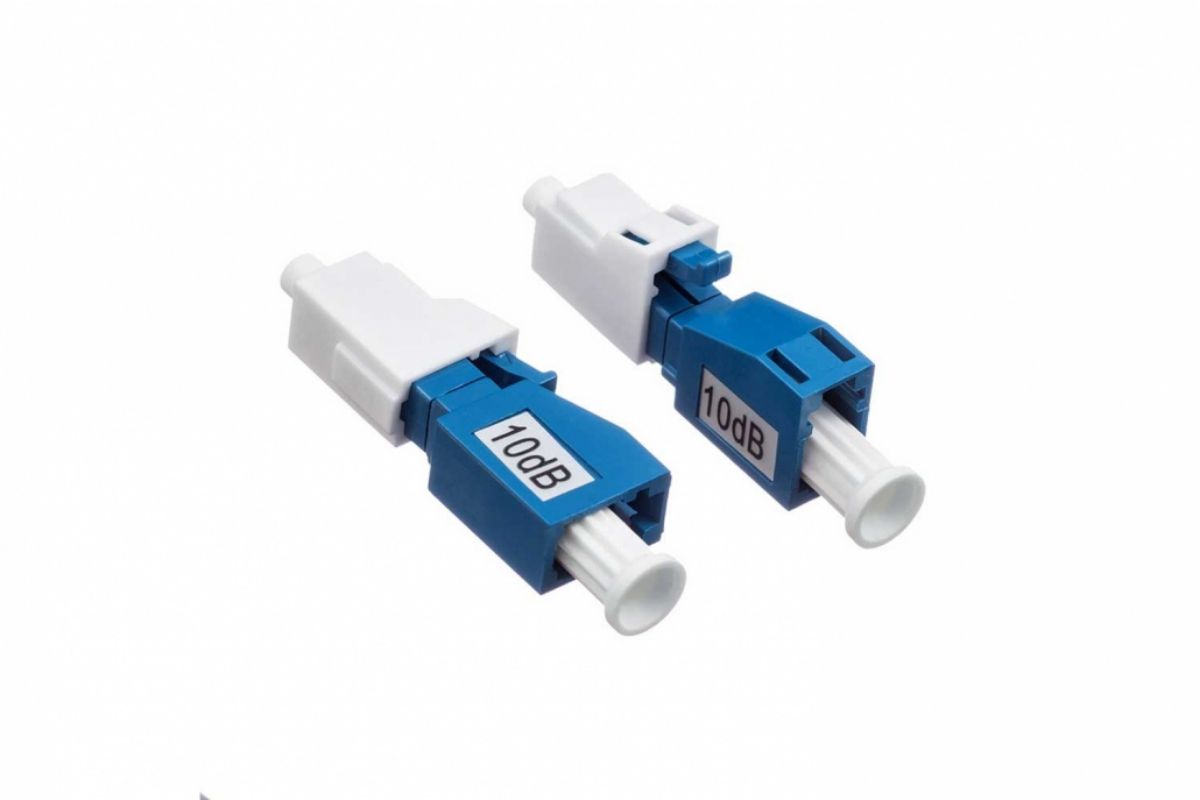

LC/UPC Singlemode Female-Male Fiber Attenuators 10dB

Product Model

LC/UPC male-female Attenuators

Product Description

LC/APC Plug in type optical Attenuators
LC/APC single mode fiber attenuators are commonly used in fiber optic communications to the the power level of a fiber cable by controlling the amount of signal loss that is passed through the signal. LC/APC single mode fiber optic attenuators can also be used on a more permanent basis in order to match the signal with a transmitter and receiver’s specific power levels.Commonly used attenuation range is from 1dB to 20dB.

Features

Metal ion doped fiber
High-power light source durability
Wavelength independence
Attenuation levels ranging from 1dB to 25dB
1310nm, 1550nm and 1310/1550nm dual wave lengths

Dimension

Fiber Connector	FC/UPC	Connector Gender	Fixed Female to Female
Transfer Mode	Singlemode	Attenuation	1~25dB
Operating Wavelength(nm)	1260~1650(SM)	Attenuation Accuracy	1~5dB±0.5,6-10dB ±0.7，>10dB±1.0
Return Loss	≥55dB	Max Optical Input Power	200mW
Operating Temp Range	-40~75℃	Polarization Dependent Loss	≤0.2dB
Storage Temp Range	-40~80℃	Humidity	95%RH

Accessory

Spring Optical Communication is one of the largest and best fc singlemode bullhead fiber attenuators manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized fc singlemode bullhead fiber attenuators in stock with our factory. Also, free sample is also available if necessary.
