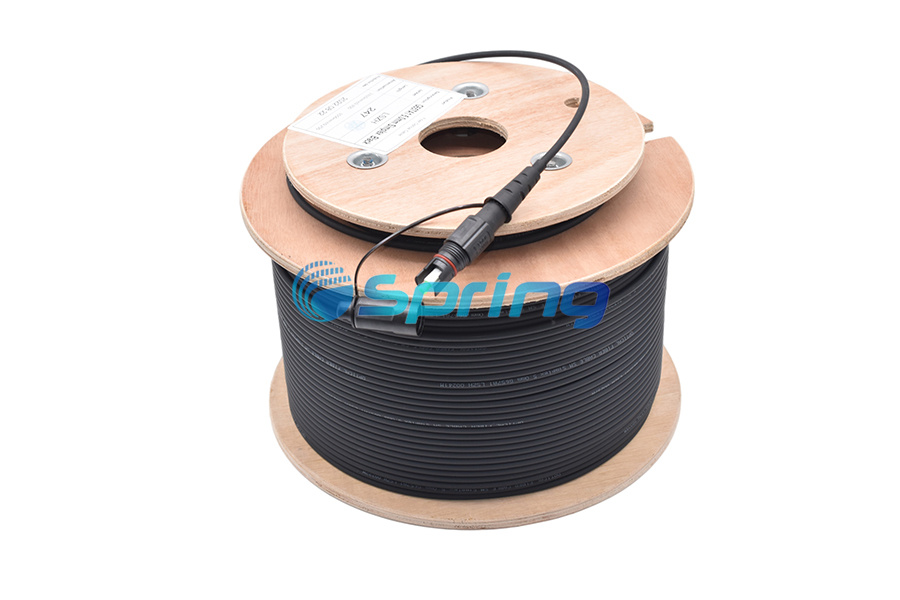

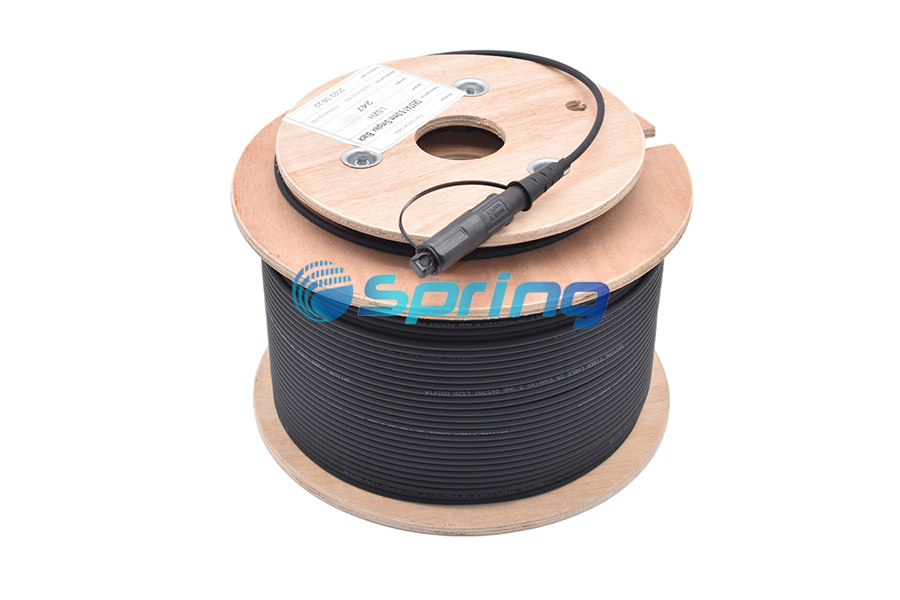

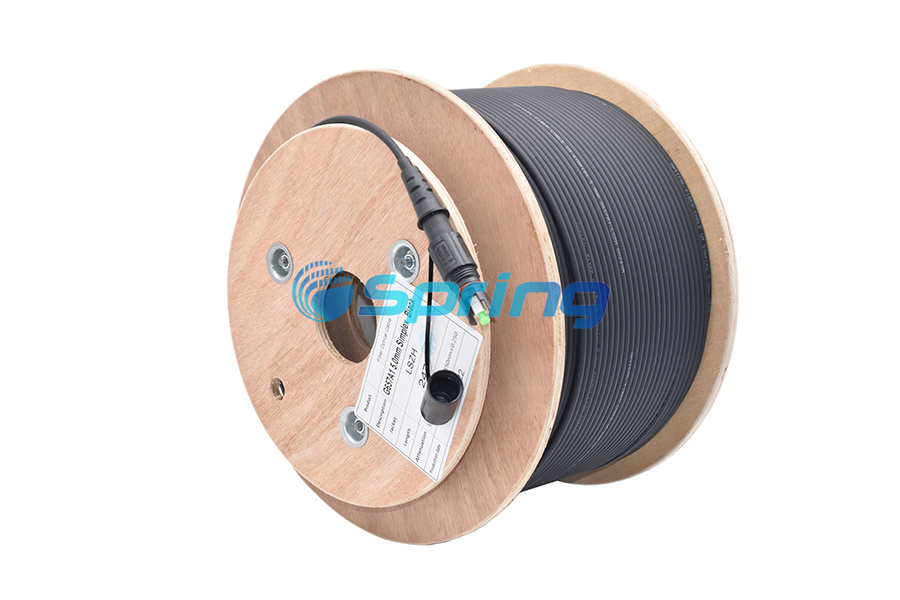

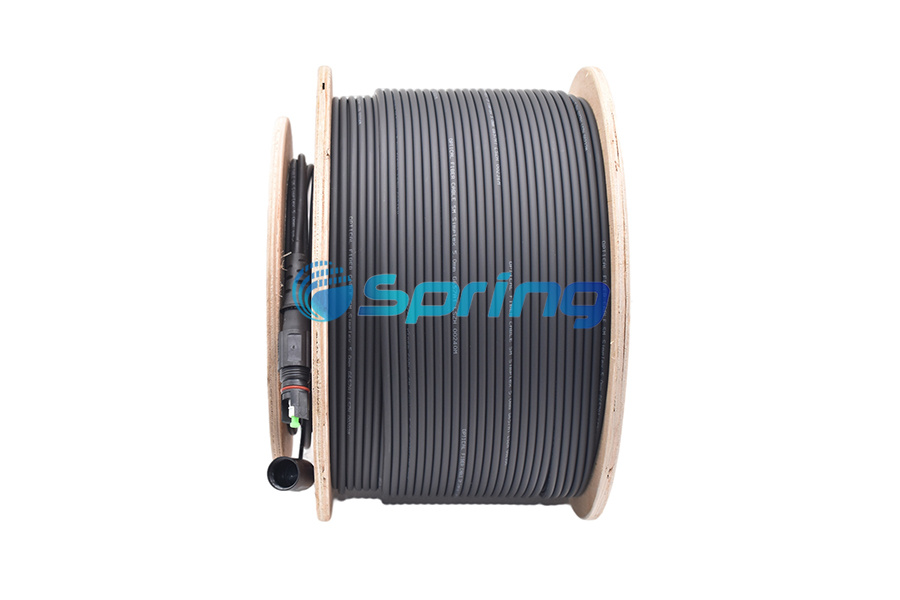

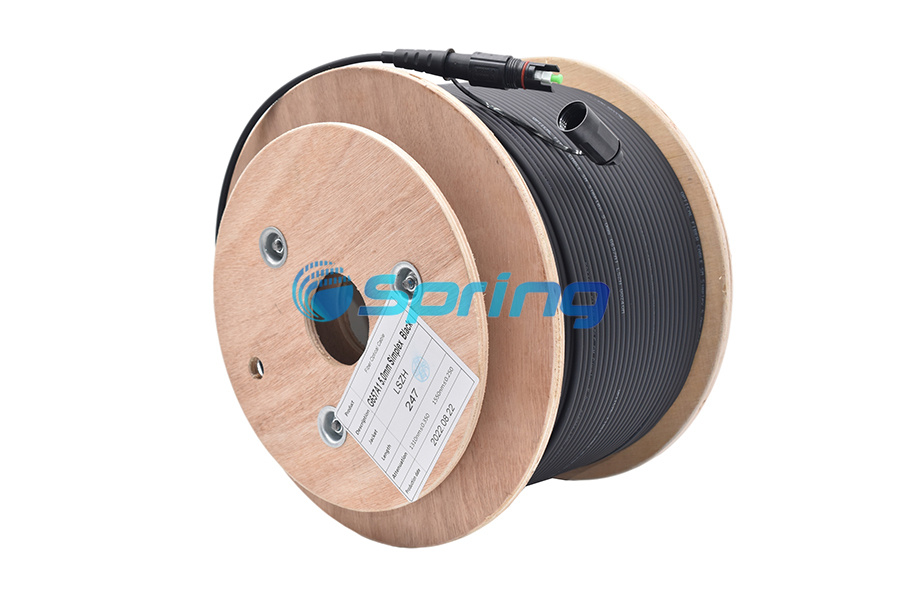

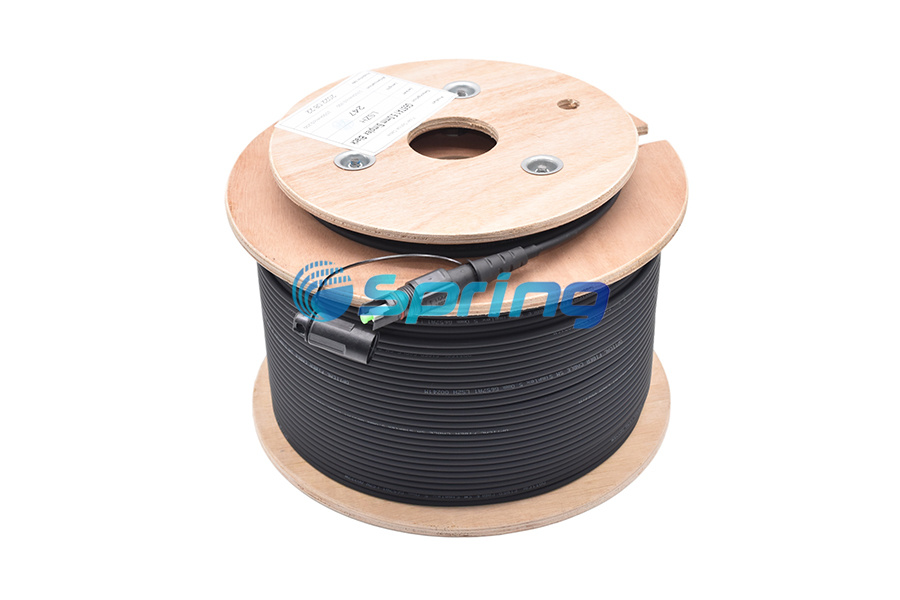

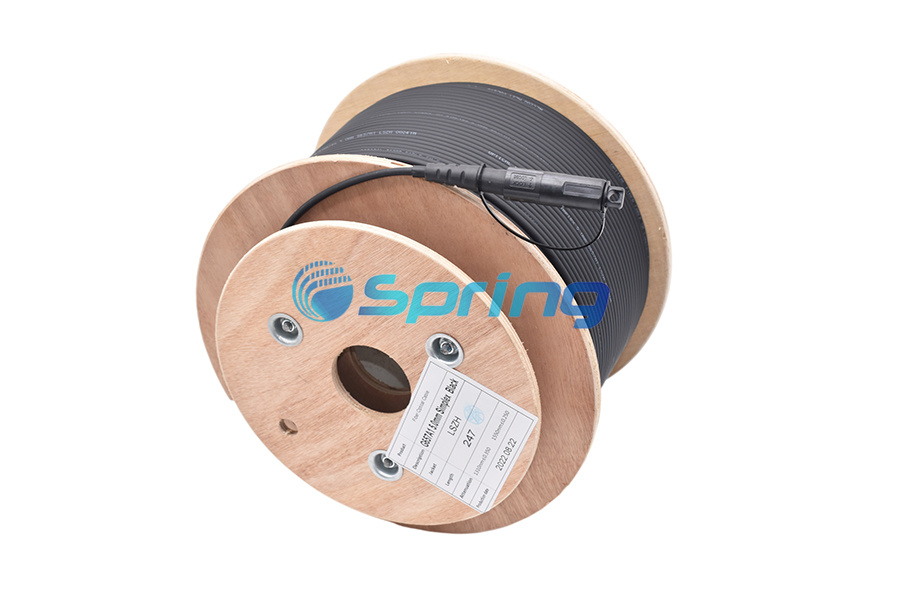

Pre-connectorized Hardened SC/APC SST Tonable Drop Cables With Locate Wire

Product Description

Pre-connectorized Hardened SC/APC SST Tonable Drop Cables with Locate Wire provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The hardened connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the hardened connector provides an ideal solution for direct burial, conduit, or aerial installations.

Features

Features:

Compatible with Corning-OptiTap and H-Connector

Cable length 100ft, 200ft, 300ft, 500ft, 1000ft or customized

Factory terminated for high performance

Available with one or both ends connectorized

Hybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip

Available in dielectric or toneable

Designed for aerial, direct-buried or duct installation

IP-68 water and dust protection

-40℃~85℃ operating temperature

Specification

Specifications:

Product Name	SST Tonable drop cable with locate wire
Cable Type	Tonable cable flat wire tracer wire
Cable Diameter	4.5*9.8mm drop FTTH
Applications	Aerial,Direct Buried,Duct
Termination	Both end terminated or one end terminated

Specifications – Connector A
Reflectance, Typical	-65 dB
Insertion Loss, Typical	≤ 0.15 dB
Connector Type	SC/APC OptiTap Compatible connector(H Connector)

Specifications – Connector B
Reflectance, Typical	-65 dB
Insertion Loss, Typical	≤ 0.15 dB
Connector Type	SC/APC OptiTap Compatible connector(H Connector)

Optical Characteristics
Fiber Type	Single-mode
Fiber count	1F
Fiber Category	G652D or G657A
Wavelengths	1310 nm / 1550 nm
Maximum Attenuation	0.35 dB/km / 0.25 dB/km
