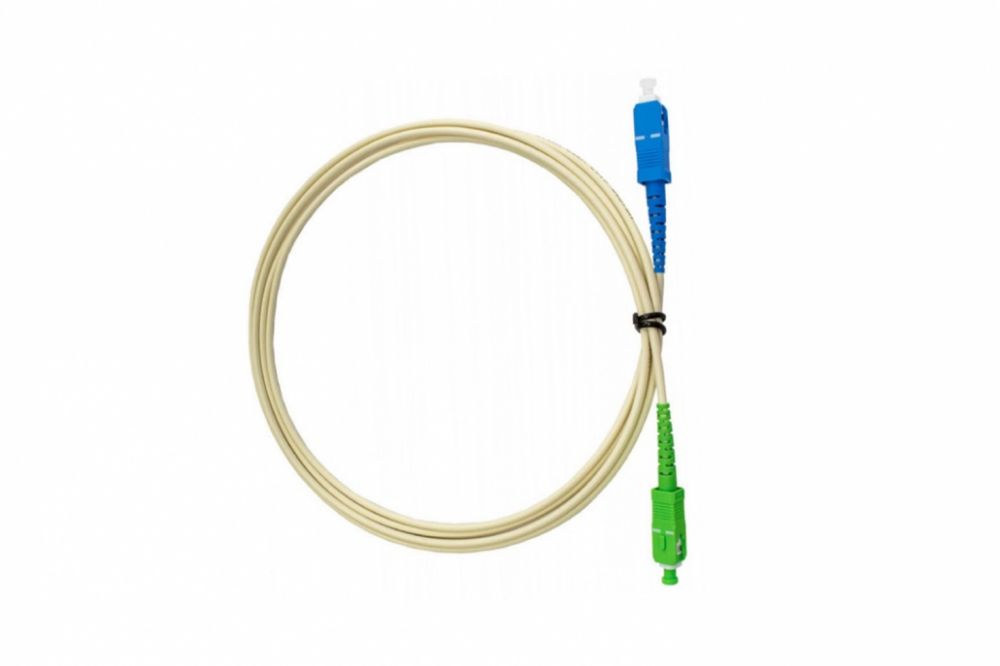

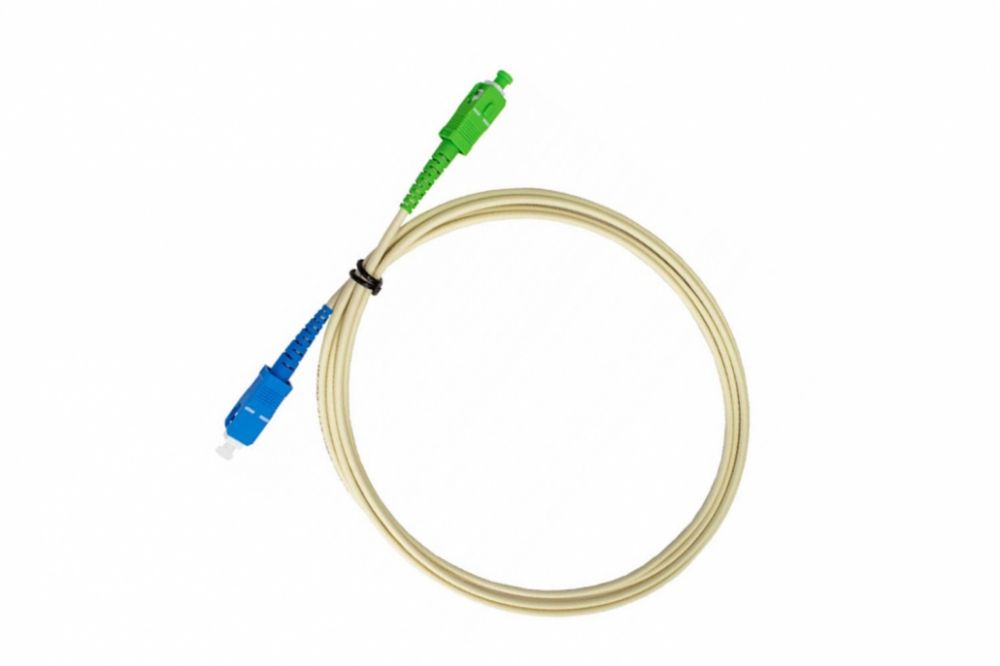

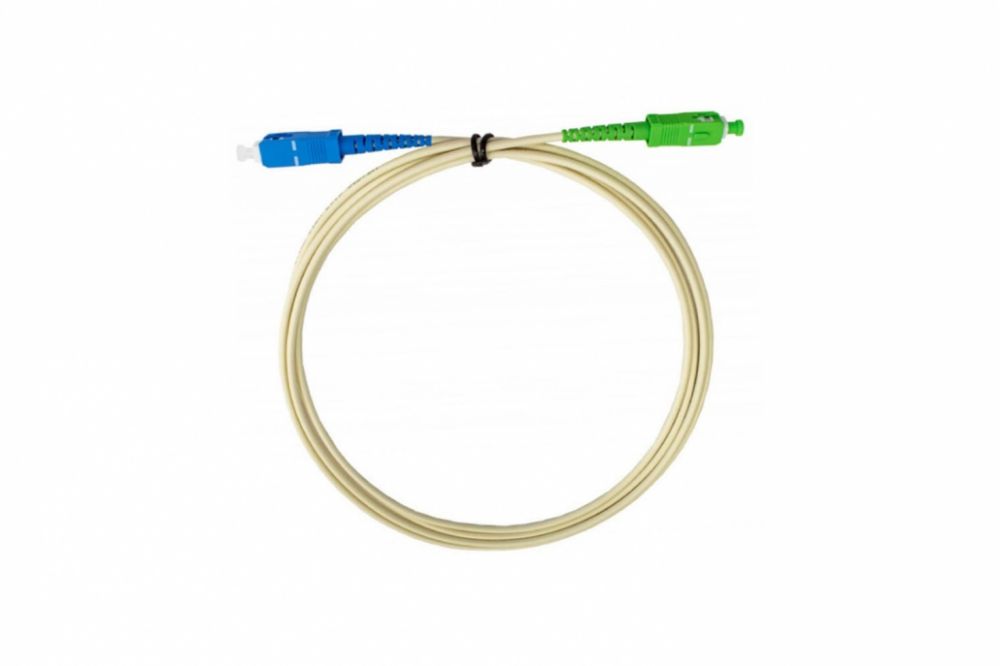

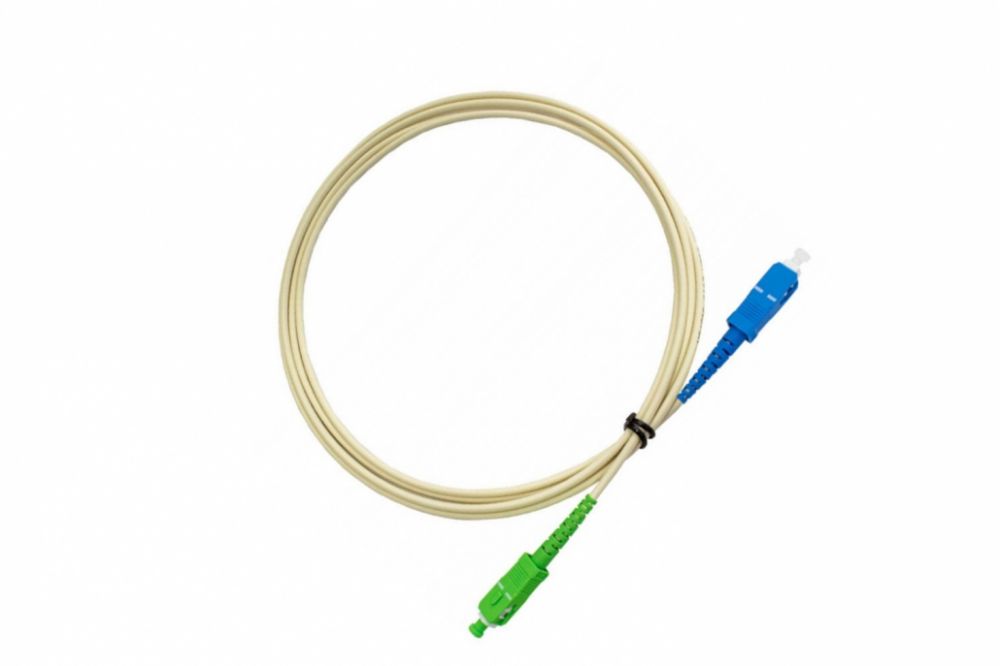

SC/APC-SC/UPC SM SX Ivory white 3.0mm 3 meter patch cords

Product Description

The fiber optic patch cord is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.

It is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

Features
  • Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation
  • The box has a pothook, which is convenient to install and dismantle
  • The splice tray could be piled one upon another, flexible to turn; the curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray
  • The box is of unique structure, reasonable layout, and has adequate room for operation
  • Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly
  • The indoor type is of excellent seal performance, which could prevent water from entering effectively
  • Can be installed with LC adapter
  • Up to 12 cores splice capacity
  • Sliding design
Specification
Type Standard, Master
LC, SC, ST, FC, MU, DIN, D4, SC/APC, FC/APC, LC/APC, MU/APC
Style
Duplex MTRJ/Female, MTRJ/Male
9/125 SMF-28 or equivalent ( Singlemode ) OS1
Fiber Type 62.5/125 (Multimode) OM1

50/125, (Multimode) OM2
50/125, (Multimode) OM3
50/125, (Multimode) OM4

50/125, (Multimode) OM5
Simplex, Duplex (Zipcord)
Cable Type Φ3.0mm, Φ2.0mm, Φ1.8mm
 Φ1.6mm
Φ0.9mm

OFNP, OFNR, PVC, LSZH.
Polishing Manner UPC, APC
≤ 0.1dB (For Singlemode Master)
Insertion Loss ≤ 0.25dB (For Singlemode Standard)
≤ 0.25dB (For Multimode)
Tested by JDS RM 3750
UPC ≥ 50dB
Return Loss SPC ≥ 55dB
(For Singlemode) APC ≥ 60dB (typ.65dB)
Tested by JDS RM3750
Repeatability ±0.1dB
Operating temperature -400C to 850C
Geometry Ferrule End face Radius
7mm ≤ R ≤ 12mm (For APC)
Requirement
 10mm ≤ R ≤ 25mm (For Standard)
(For Singlemode)
  Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard)

Undercut -50nm ≤ U ≤ 50nm

Tested by DORC ZX-1
Application

*Telecommunication networks, Gigabit Ethernet

*CATV, Video, Multimedia

*Active device termination, Premise installations

*Industrial, Military
