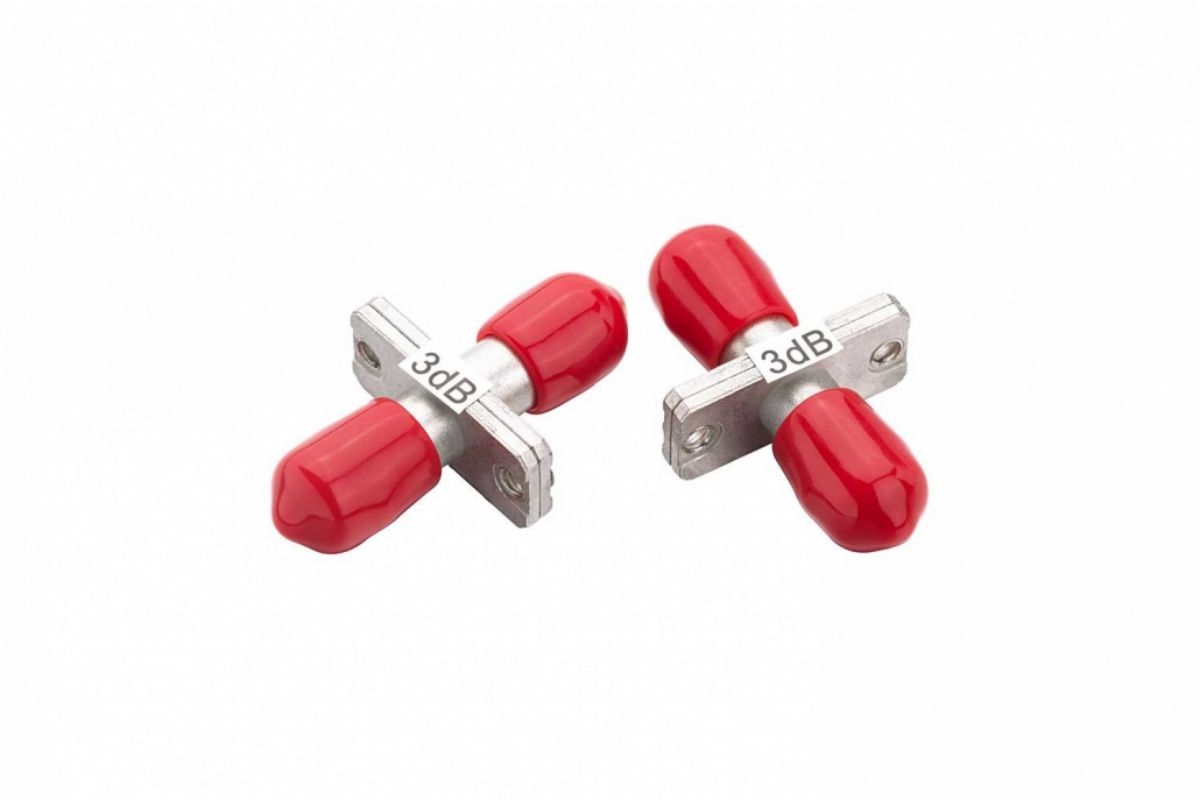

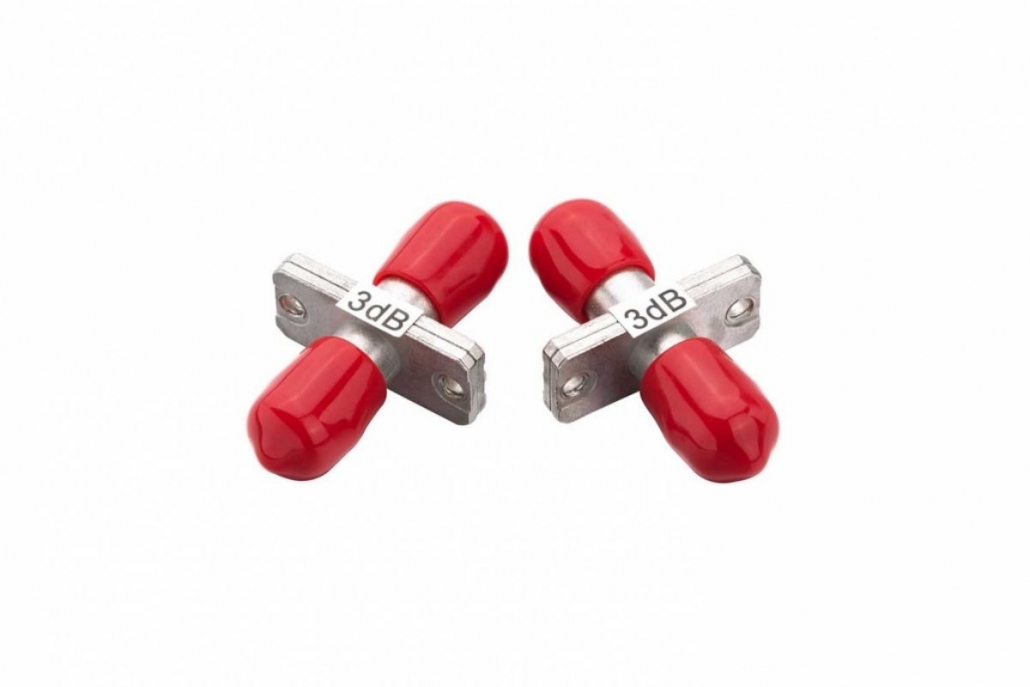

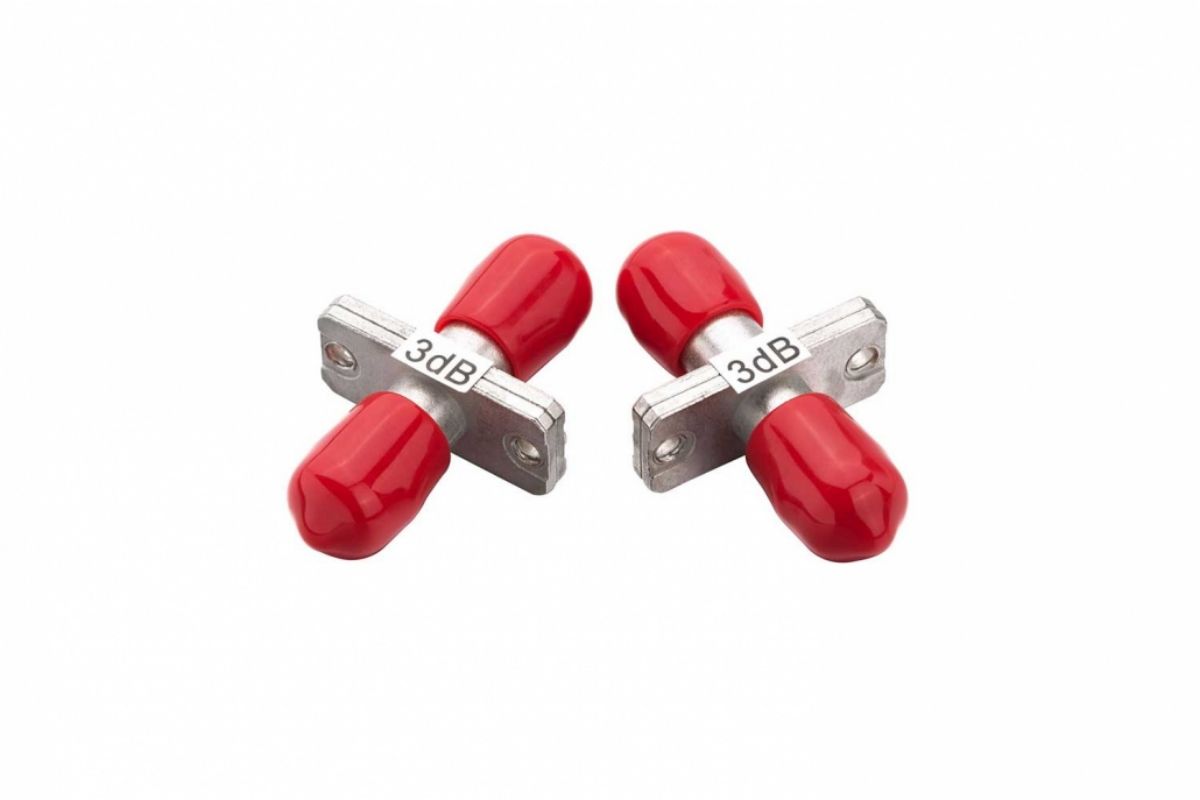

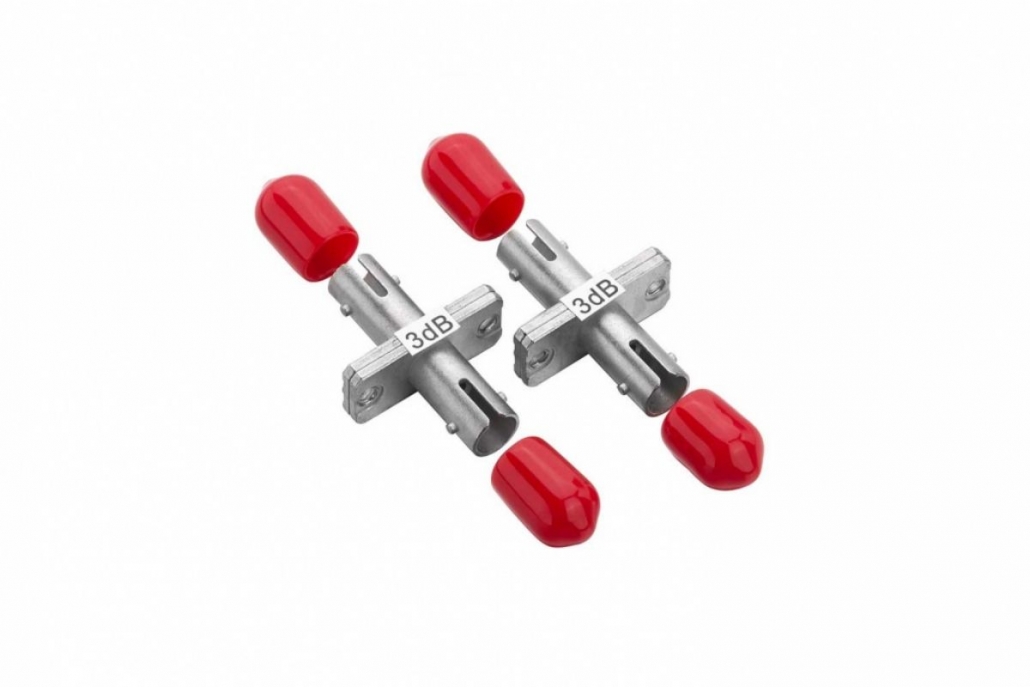

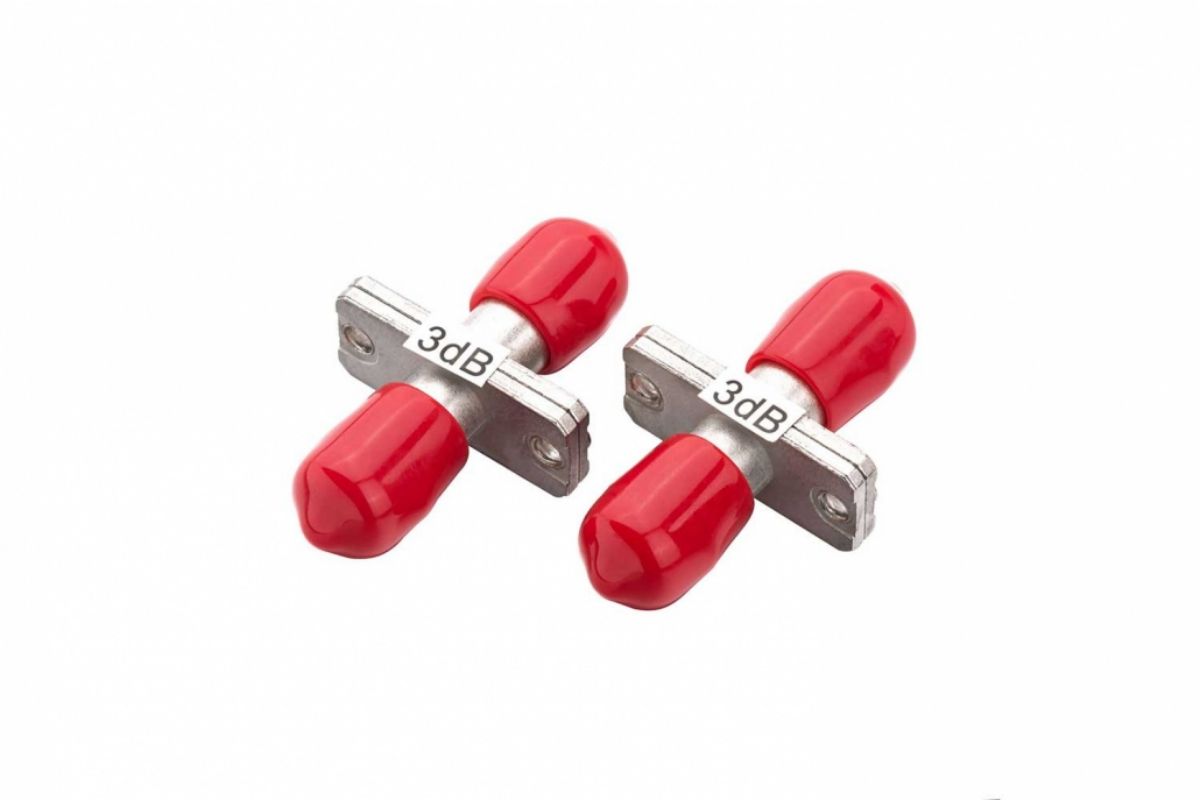

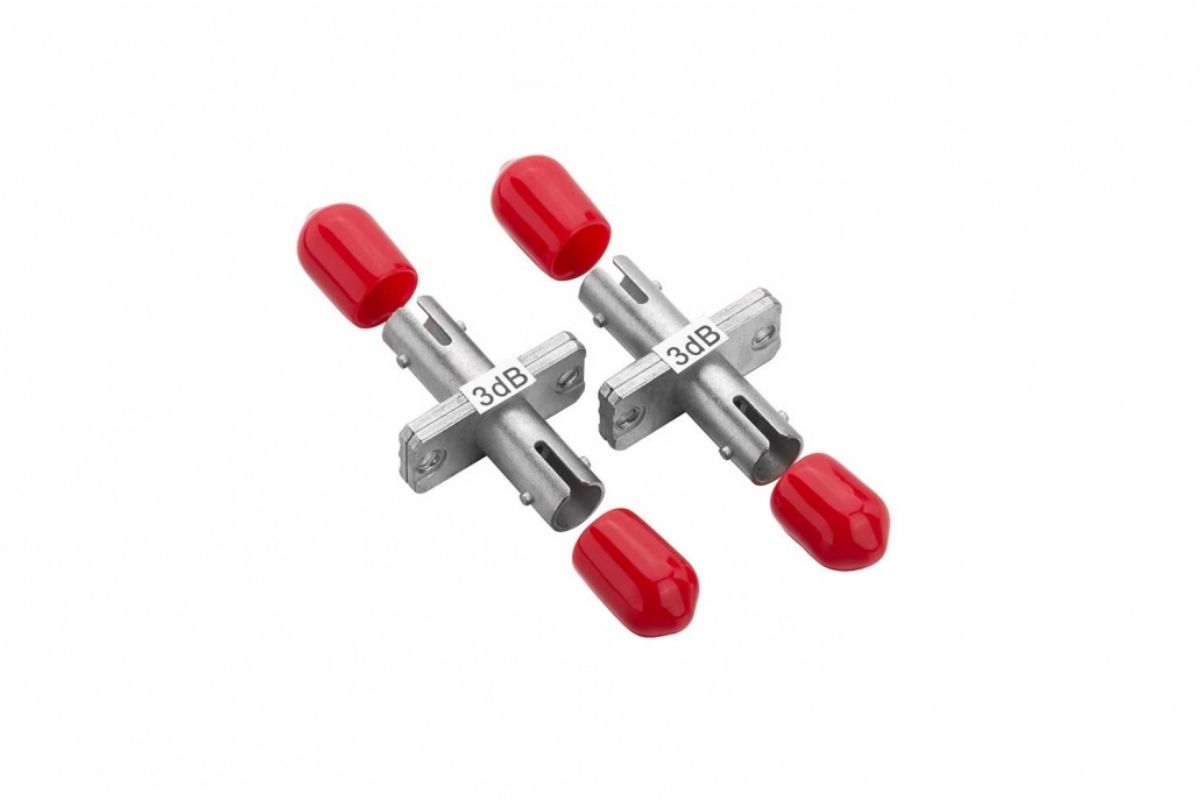

ST Singlemode Bullhead Fiber Optical Attenuators 3dB

Product Model

ST Attenuators

Product Description

The female to female type of fiber optic attenuators enables them to accept standard FC type fiber optic connectors on each side of the bulkhead.Bulkhead Female to Female Attenuators are ideal for use in fiber optic patch panels,instrument from panels and other applications that require a fixed level of attanuation and easy connectivity.

Features

Features:

Fiber Optic Communication Systems
Local Area Networks (LAN)
DWDM Equipment

Dimension
Fiber Connector FC/UPC Connector Gender Fixed Female to Female
Transfer Mode Singlemode Attenuation 1~25dB
Operating Wavelength(nm) 1260~1650(SM) Attenuation Accuracy 1~5dB±0.5,6-10dB ±0.7,>10dB±1.0
Return Loss ≥55dB Max Optical Input Power 200mW
Operating Temp Range -40~75℃ Polarization Dependent Loss ≤0.2dB
Storage Temp Range -40~80℃ Humidity 95%RH
Accessory

Spring Optical Communication is one of the largest and best fc singlemode bullhead fiber attenuators manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized fc singlemode bullhead fiber attenuators in stock with our factory. Also, free sample is also available if necessary.
