FTTA Mini SC NAP Box 16 Core Optical Fiber Distribution Box

Product Model

SP-1602-16R

Product Description

Distribution Box – The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Features

Features:

Total enclosed structure.
Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution all in one.

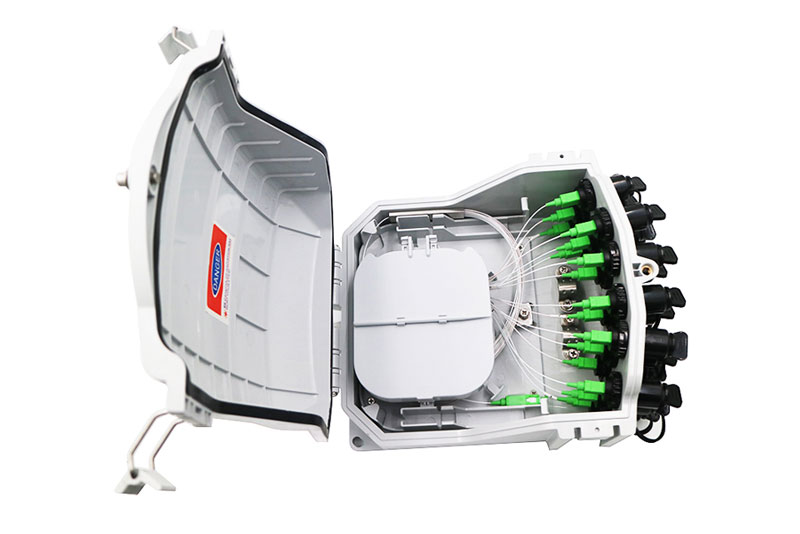

Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.

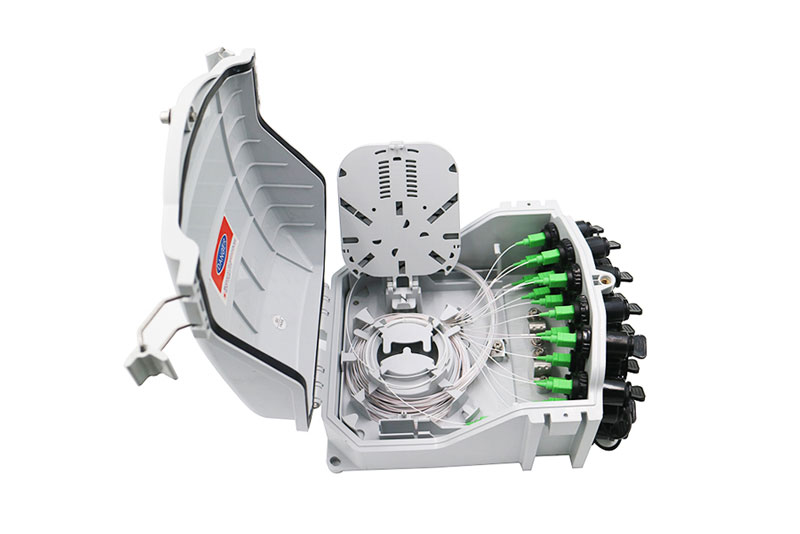

Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.

Specification

Specification:

Material	PC+ABS

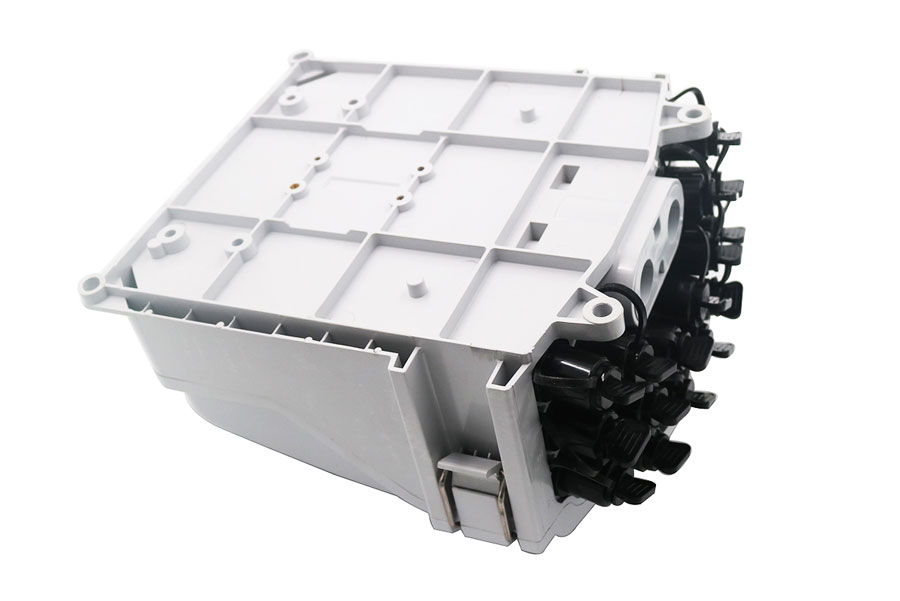

Dimension (Pic 1) ABC(mm)	208241117mm
Max Capacity	16 ports SC
Input cable diameter(mm)	Max 18mm
Color	Grey
Working temperature	-40℃～+85℃
Relative humidity	≤85%（+30℃）
Atmospheric pressure	70KPa～106Kpa

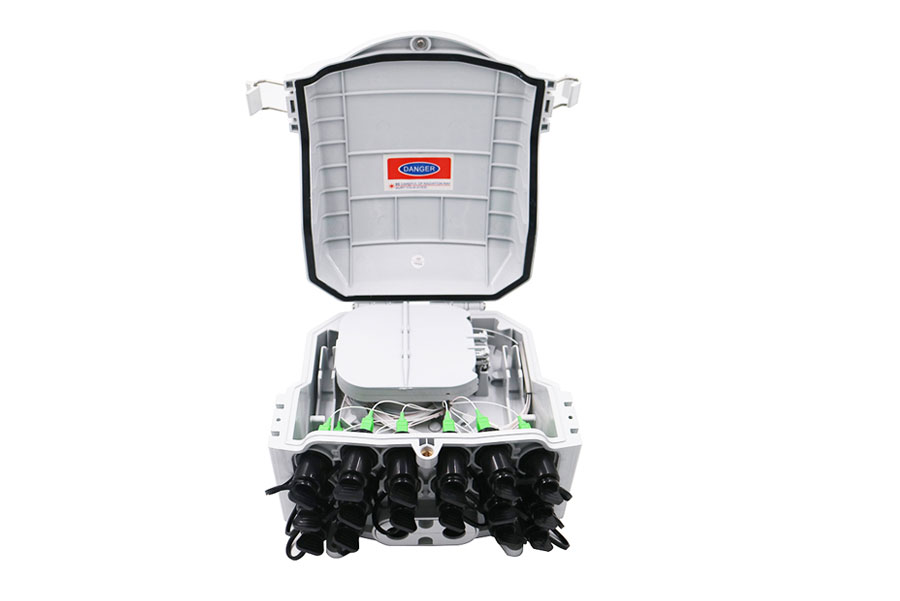

Installation Size(Pic 2) (mm)	DEF	179212126
	G*H	21*52

Thunder-proof technical datasheet:

The insulation resistance between the grounding device and the metal parts of the box is no less than 2MΩ/500V（DC）；IR≥2MΩ/500V
The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V（DC）/min, no puncture，no flashover；U≥3000V

Accessories:

Users’ Manual*1
Key*1
Accessories Bag * 1
Pole Ring*1(Option)

Installation

Installation：

Wall-mounted installation

Drill 3 holes into the wall based on the installation size，place the expansion bolt Φ7.5*40，place the box to match up the holes and use bolt to fasten.
