Mini SC NAP Distribution Box 16 Core Optical Termination Box

Product Model


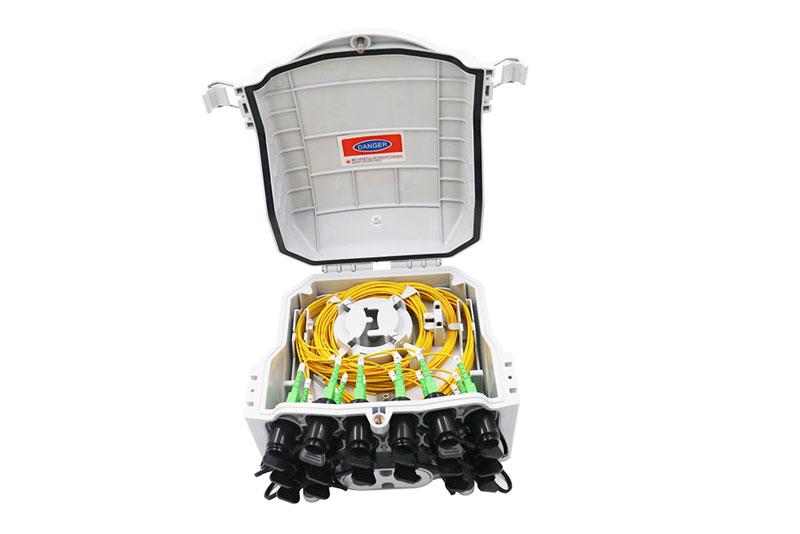

Product Description

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



  1. Total enclosed structure.
  2. Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
  3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution all in one.
  4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
  5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
  6. Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.


Material PC+ABS

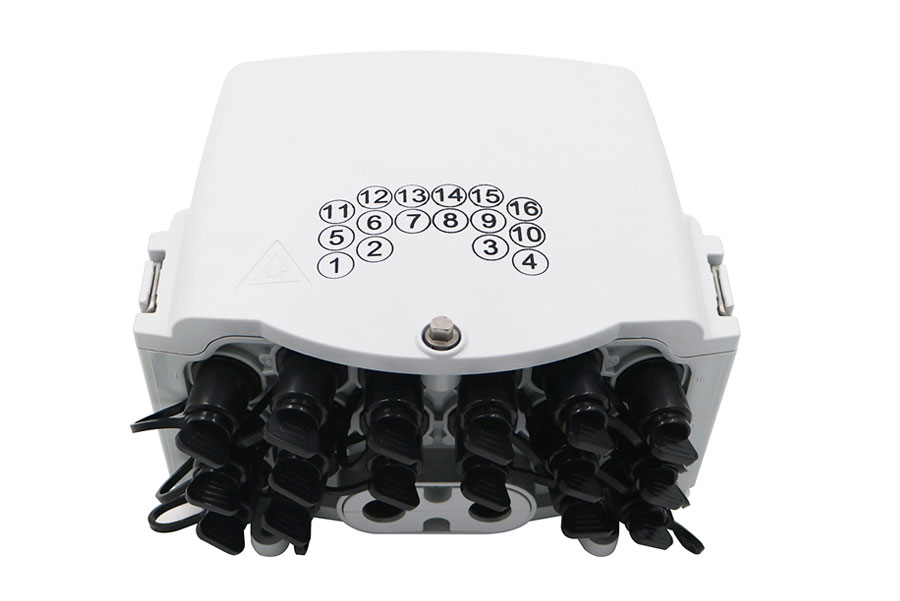

Dimension (Pic 1) A*B*C(mm) 208*241*117mm

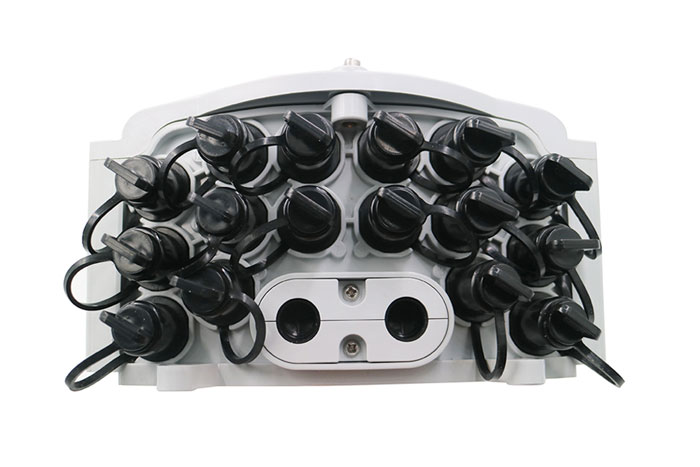

Max Capacity 16 ports SC
Input cable diameter(mm) Max 18mm
Color Grey
Working temperature -40℃~+85℃
Relative humidity ≤85%(+30℃)
Atmospheric pressure 70KPa~106Kpa

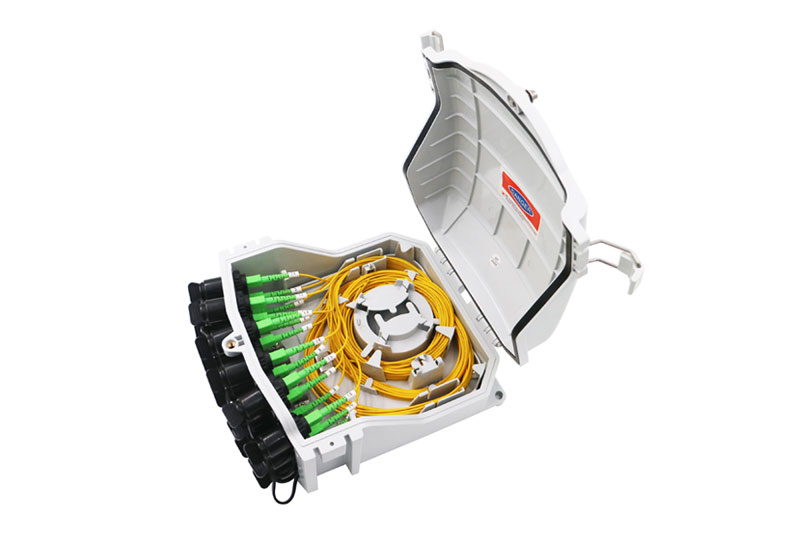

Installation Size(Pic 2) (mm) D*E*F 179*212*126
G*H 21*52


Thunder-proof technical datasheet:

  1. The insulation resistance between the grounding device and the metal parts of the box is no less than 2MΩ/500V(DC);IR≥2MΩ/500V
  2. The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V


  • Users’ Manual*1
  • Key*1
  • Accessories Bag * 1
  • Pole Ring*1(Option)


  1. Wall-mounted installation

Drill 3 holes into the wall based on the installation size,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.

Installation 1

  1. Pole-mounted installation

Fix 1 set of the pole ring to the telecom pole.

Installation 2

3. Fiber connector installation:

Installation 3

Rotate the arrow part of fiber connector counterclockwise and take out the dust cap

Installation 4

The arrow part of fiber connector is above, insert fiber connector into the socket and then rotate the arrow part clockwise.
