48Port SC Fiber Optic ODF Unit

Product Model


Product Description

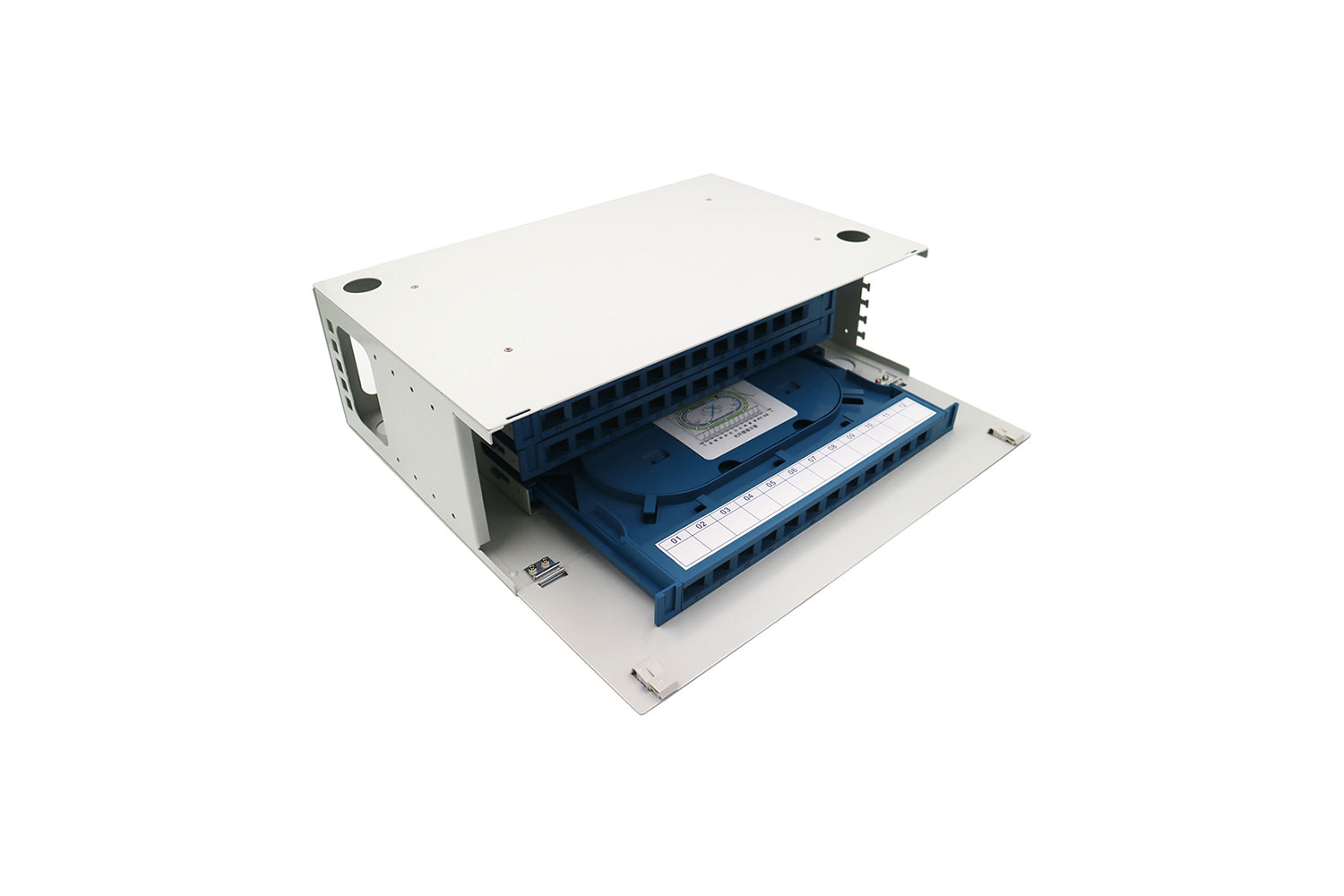

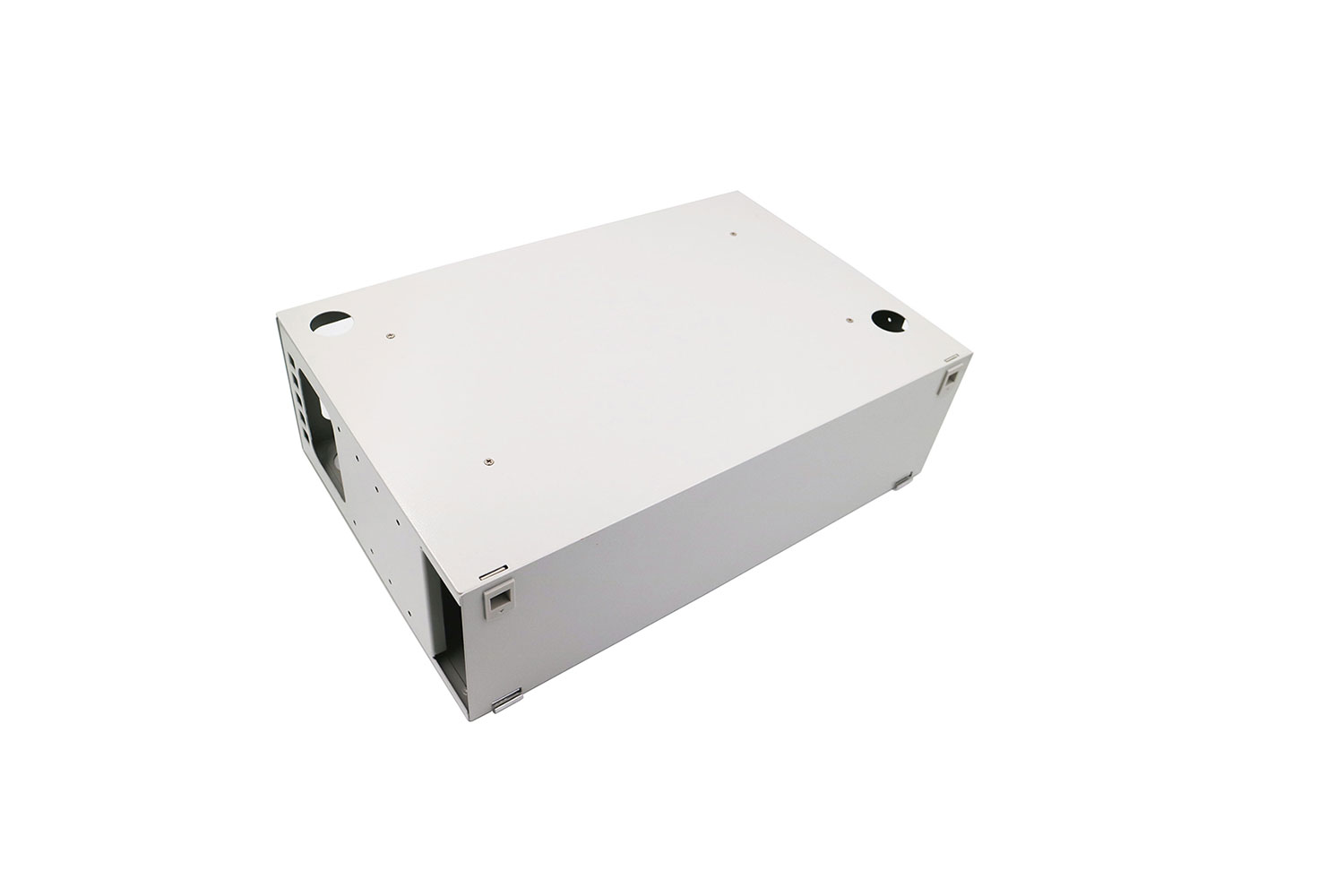

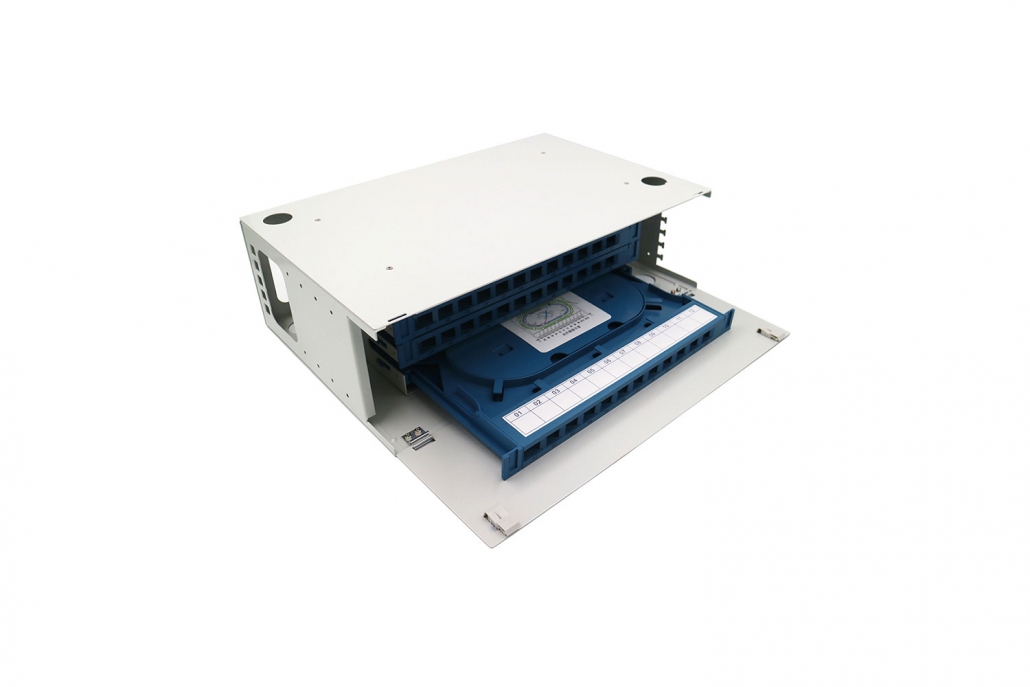

48Cores ODF optical fiber distribution frame is standard 19 inch chassis, capacity 48Cores, It is high density, all modular design. This unit box make fiber splicing, fiber cable storage, cable distribution in one set, each fused distribution module can be individually extracted, satisfy the need of on and off the frame operation.

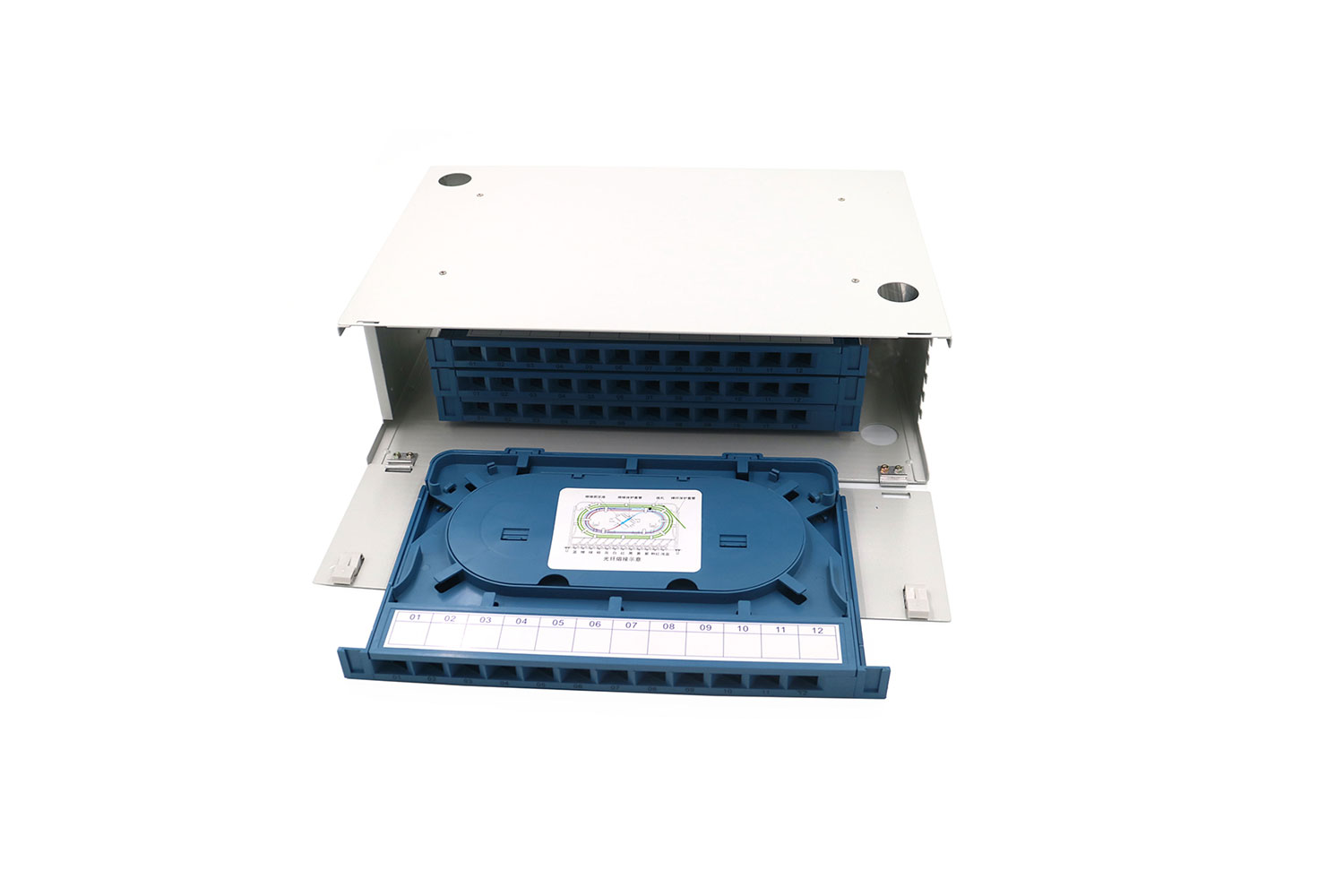

Large capacity optical distribution frame also are good operation, fused distribution module can be installed FC, SC,ST, LC and many other adapters, and is suitable for common fiber optic pigtails and ribbon pigtail, equipped with 12 core integrated fiber melting unit tray, can be directly welded.

  1. Features
  2. Environment temperature: -5 ~+45°C
  3. Relatively humidity:≤85% (+30°C)
  4. Atmospheric pressure:70~166 KPa
  5. Connector attenuation (Interchangeable and repeat): ≤0.5dB
  6. Insertion loss: ≤ 0.3dB
  7. Return loss: APC ≥ 60dB; UPC ≥ 50dB; PC ≥ 45dB
  8. Pressure between high voltage protection place and distribution frame: ≥ 3000V (DC), 1min no breakdown, no arc
  9. Isolation resistance between high voltage protection place and distribution frame: ≥ 100MΩ/ 500V (DC)

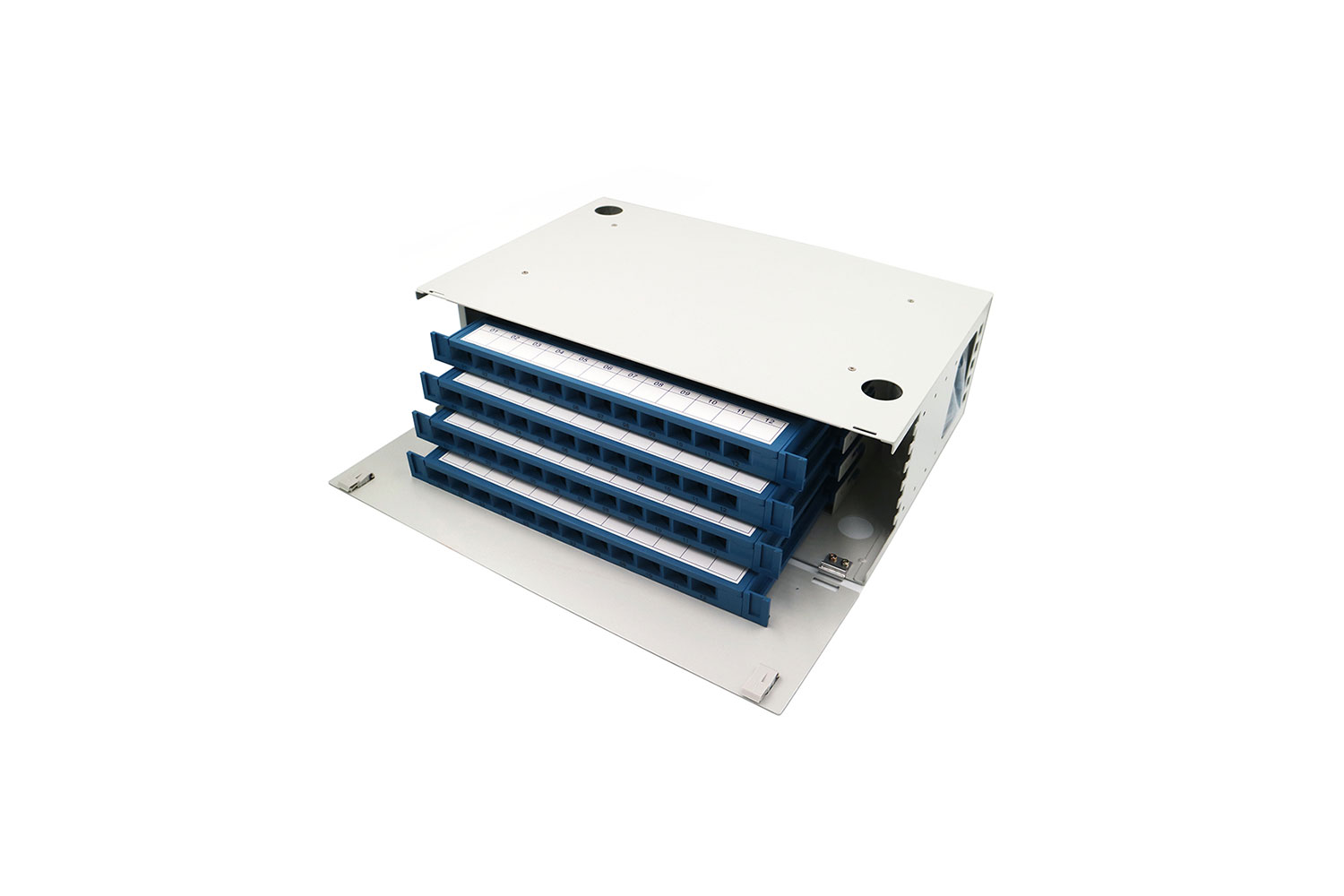

  10. By cascading 12 port splice integration module, configurable 12-144 core, 12 core per tray
  11. Clamping FC/SC/ST/LC adapter, the adapter was 30 degrees arrangement, ensure the jumping fiber bending radius≥40mm, but also can avoid the laser burns eyes.
