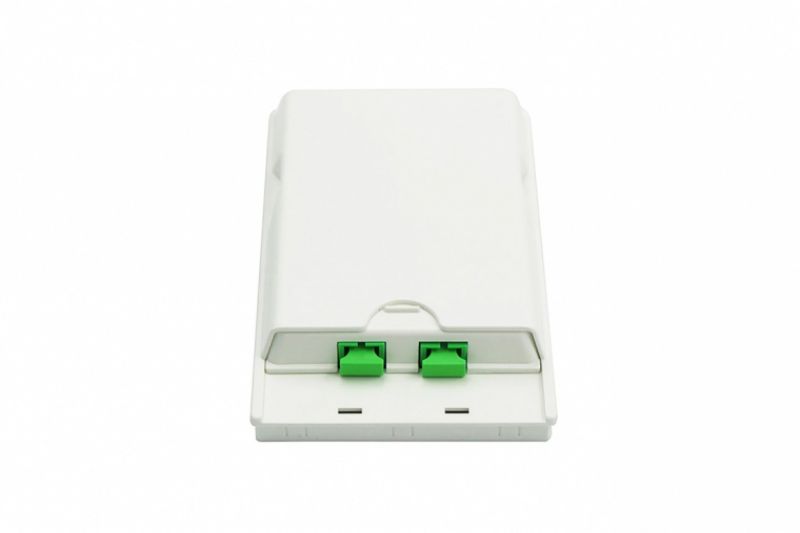

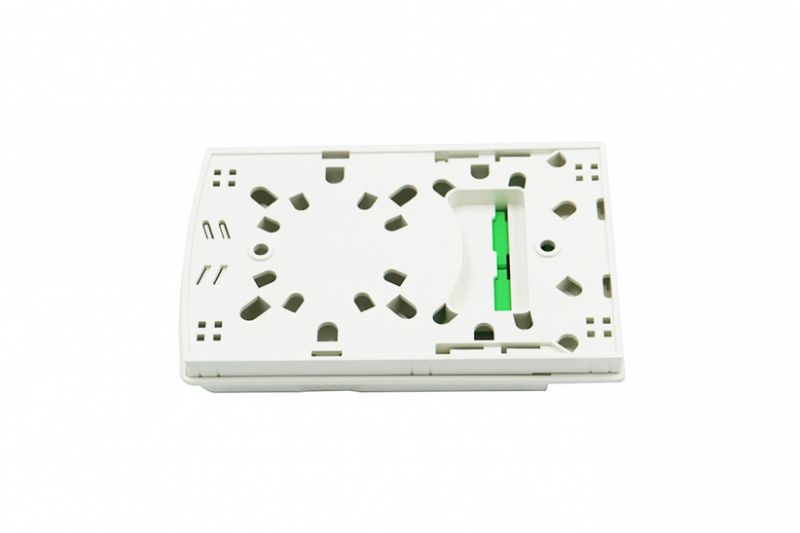

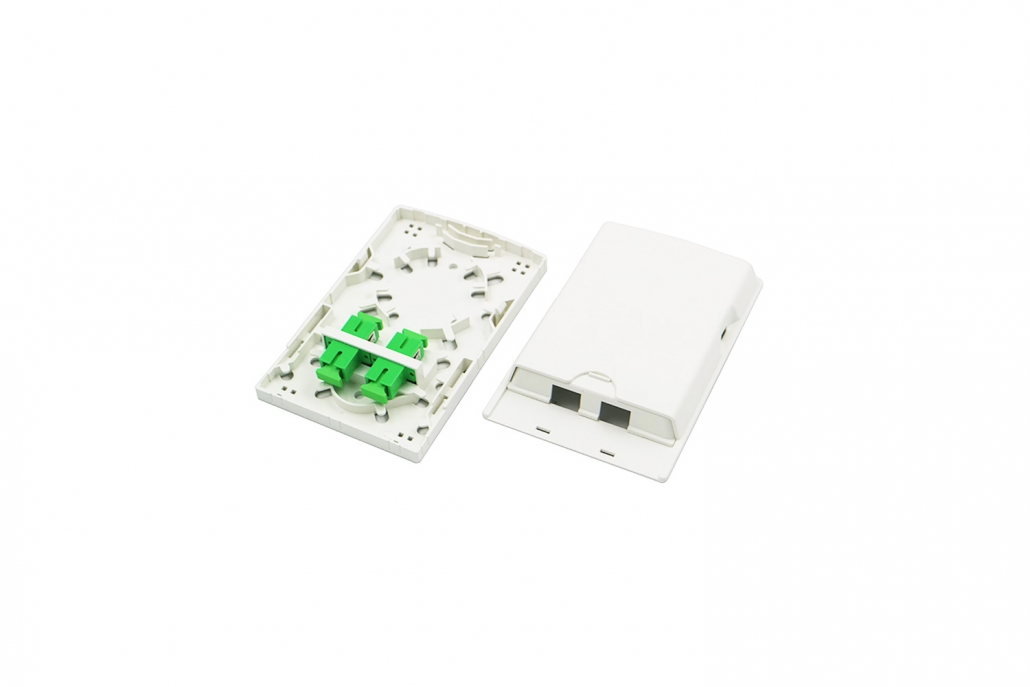

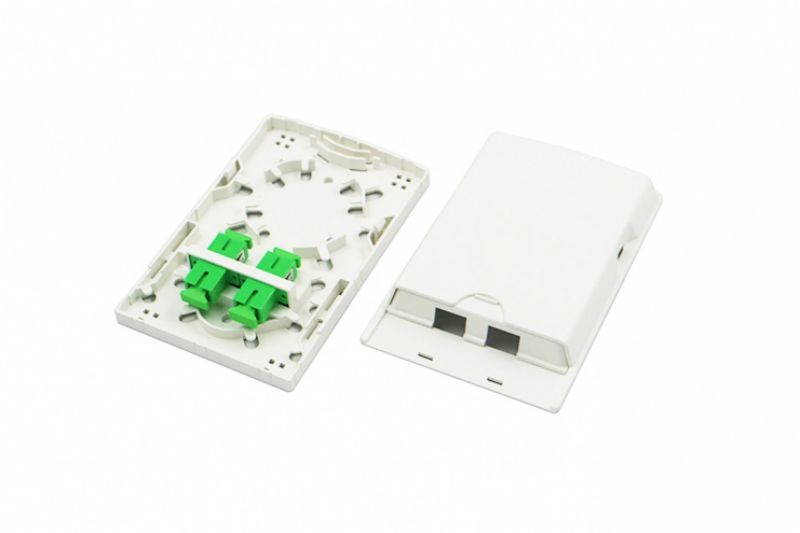

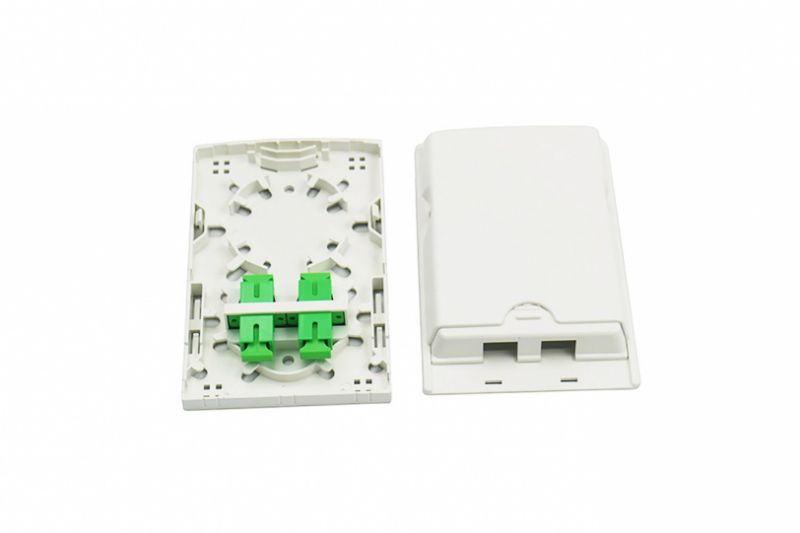

Wall mounted Face plate Fiber Rosette Box 2 Port Terminal Box

Product Model

SP-1601-2G

Product Description

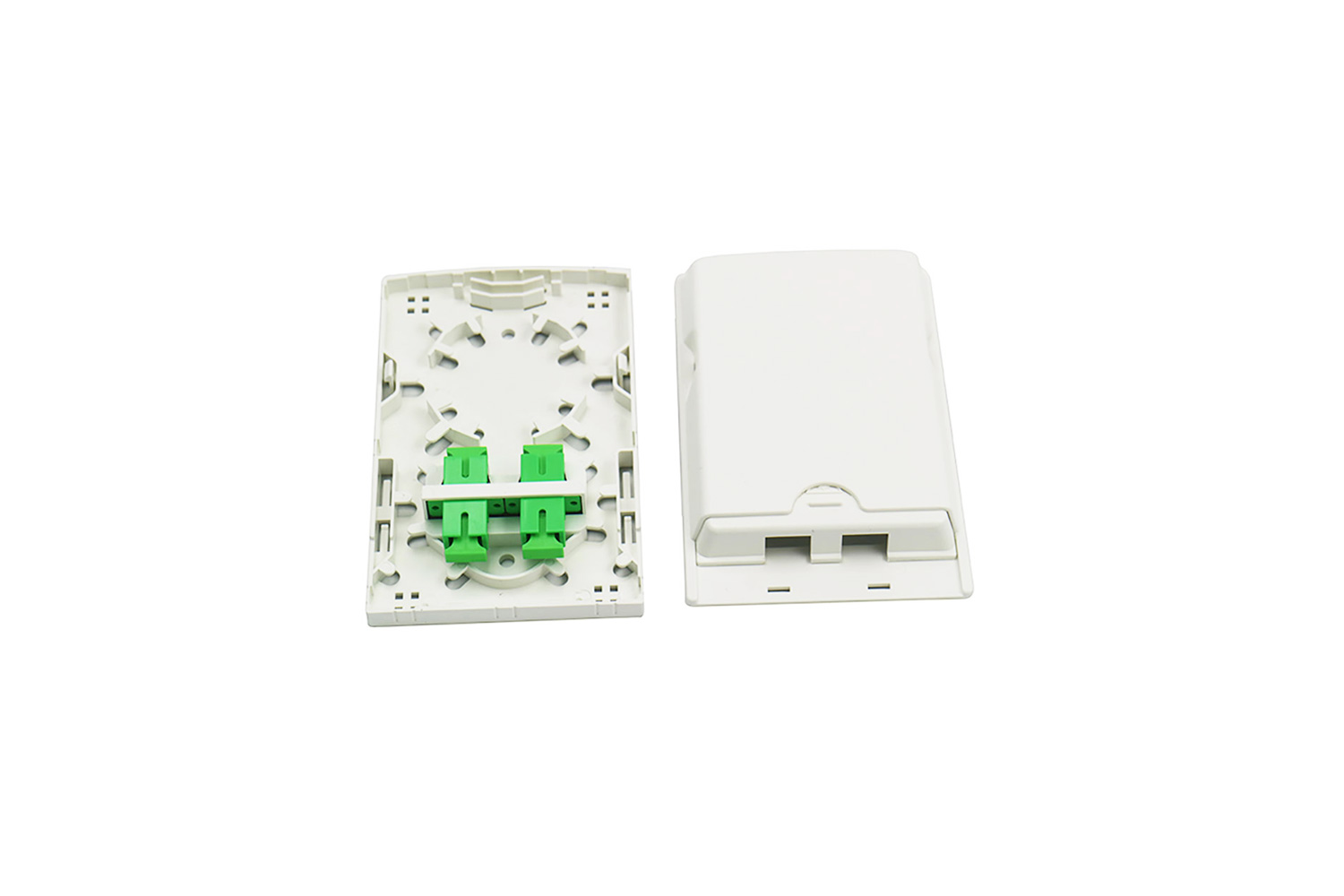

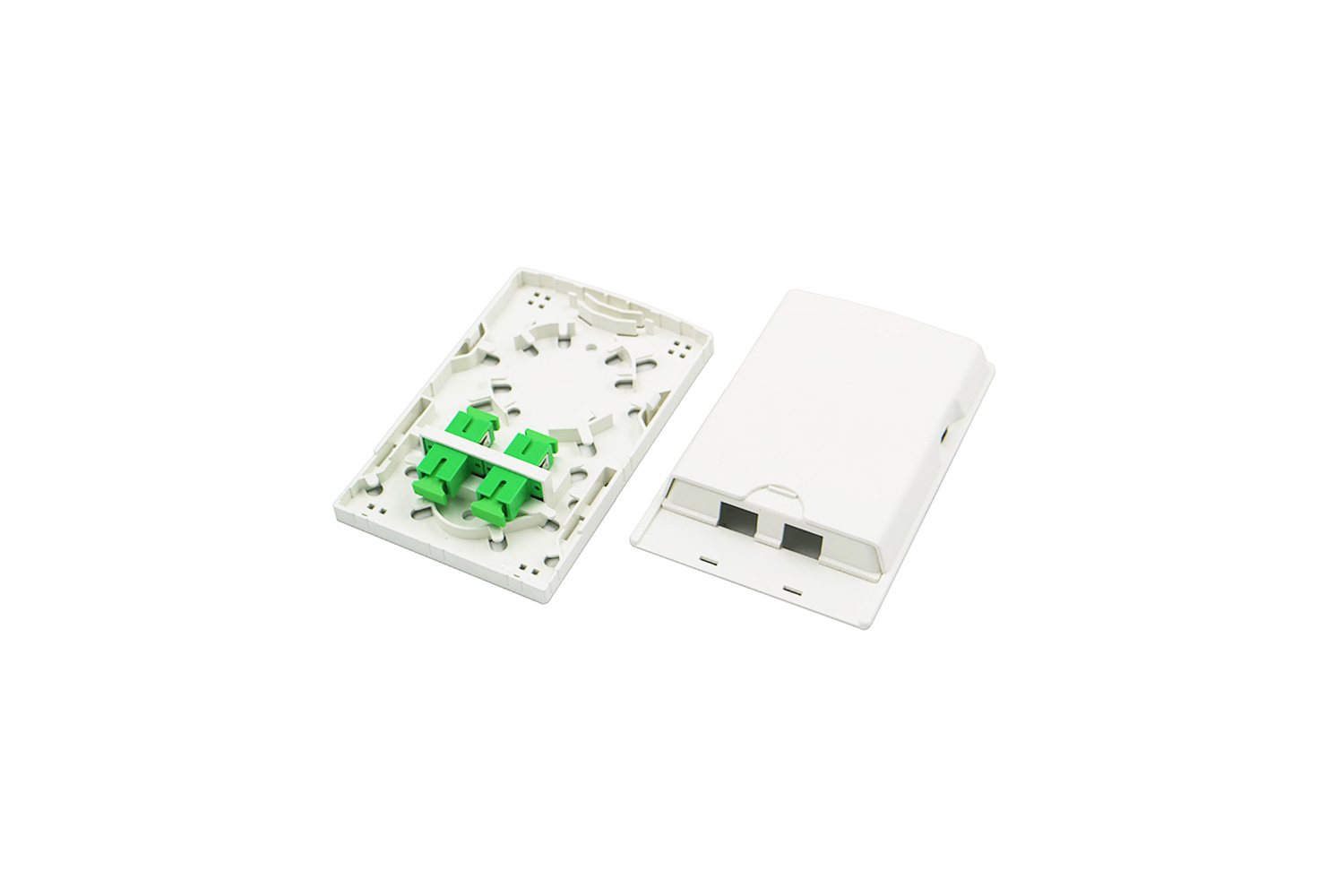

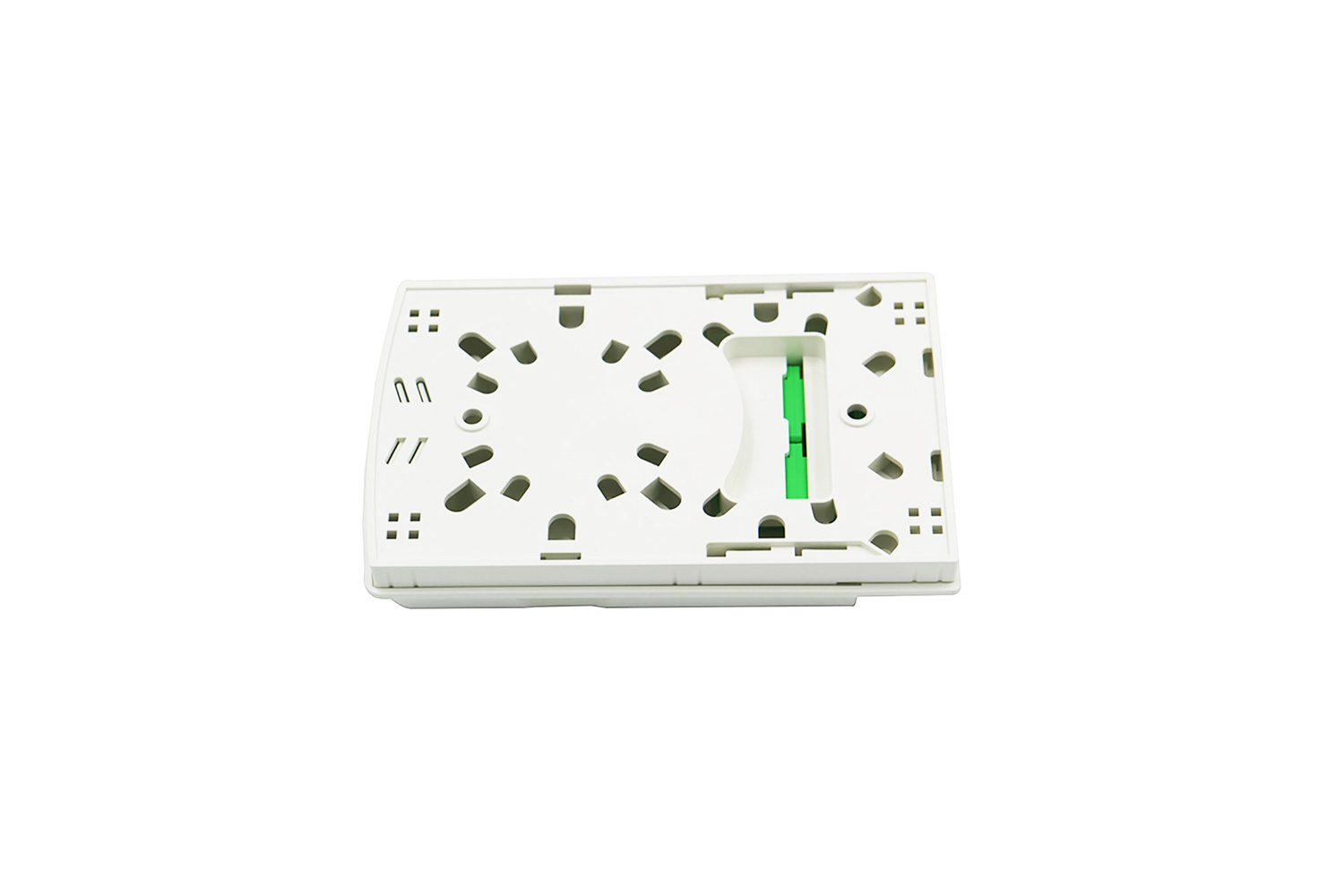

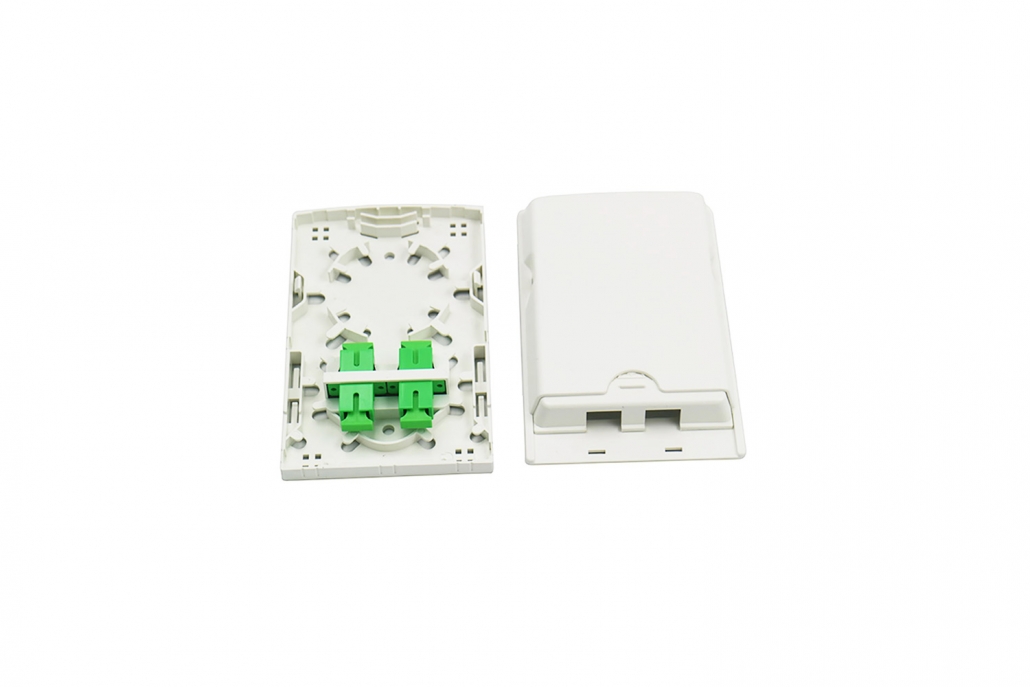

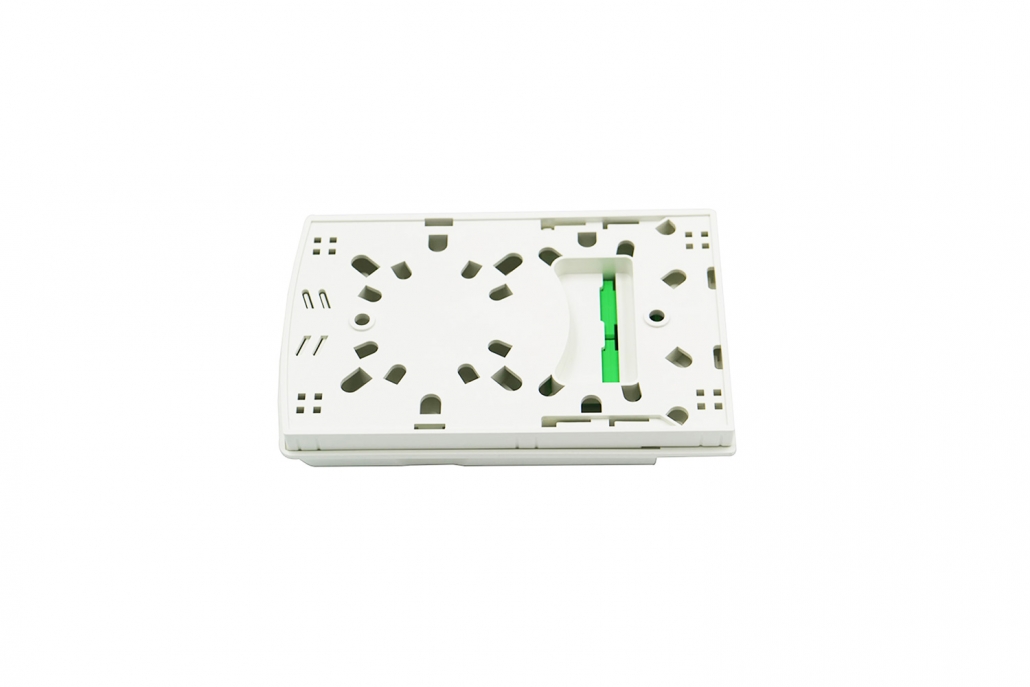

SP-1601-2G fiber rosette box is able to hold up to 2 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber termination, storage and cable connection in one solid protection box.

Features

Features:

Dust-proof design with IP-45 Protection level.
Integrated with cable termination and management rods.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Suitable for the wall mounted installation.
Embedded type surface, easy for installation and removal.
2 port cable entrance for drop cable or patch cable.

Specification

Specification:

Application	3.0×2.0mm Drop Cable or Indoor Cable
Fiber Cladding Diameter	125um(G652D&G657A)
Fiber Diameter	250um&900um
Fiber Type	Single Mode(SM) & Multi Mode(MM)
Tensile Strength	>50N
Connecting Adaptor	SC & LC
Insertion Loss	<0.2dB
Return Loss	>50dB(UPC), >60dB(APC)
Bending Radius(mm)	> 15
Operation Temperature	-40~60(°C)
Storage Temperature	-40~85(°C)
