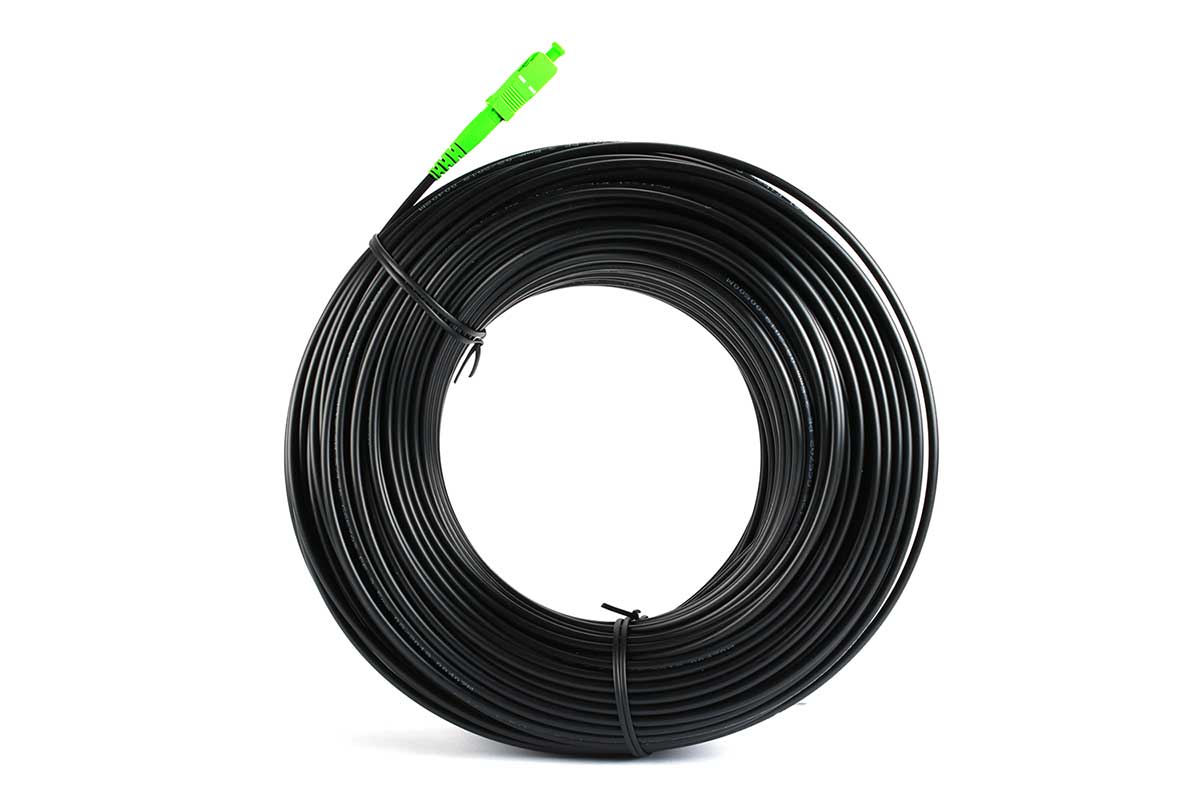

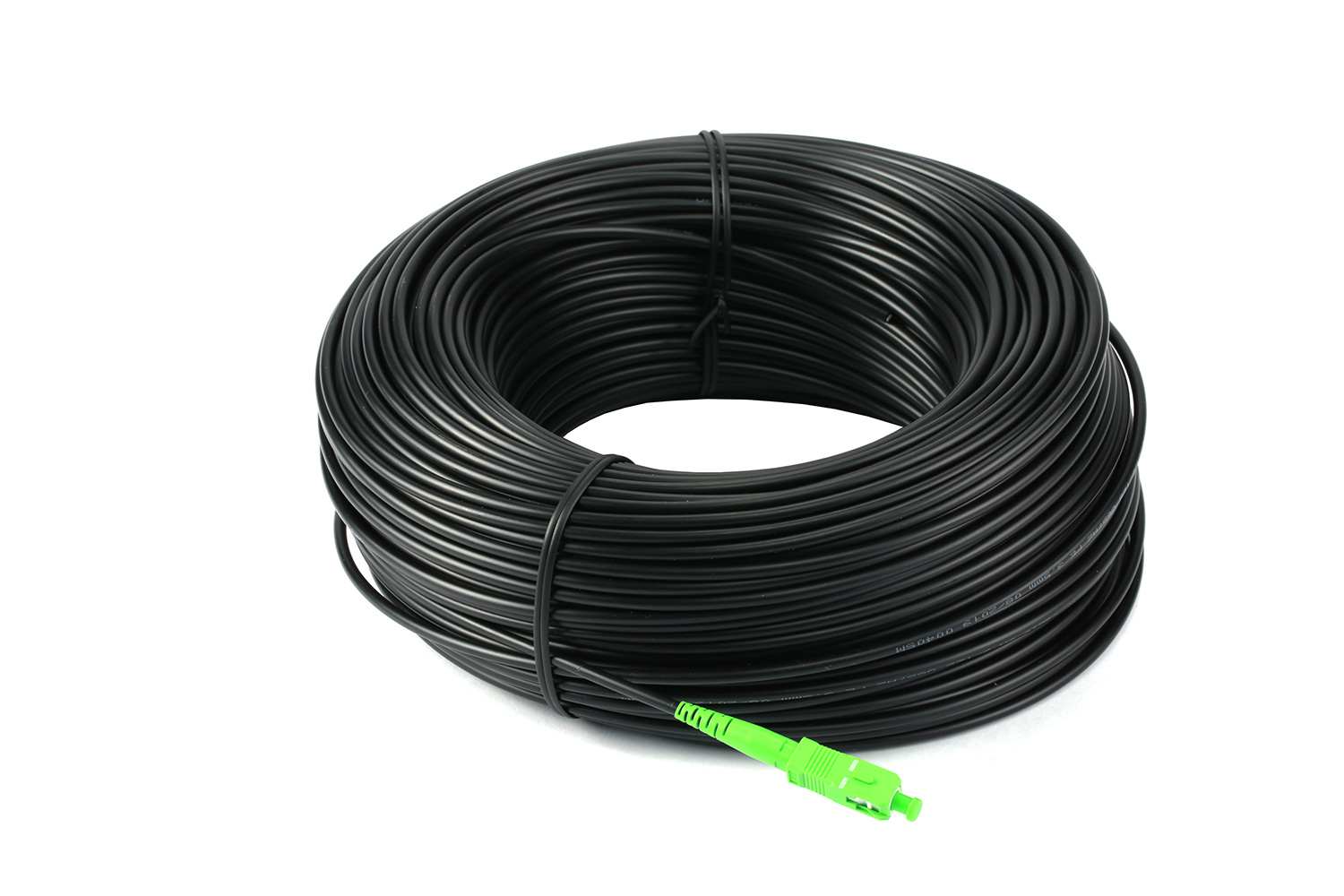

Fiber SC/APC Fiber Optical Pigtails 3.5mm

Product Description

We spring optic can product Fiber Outdoor Exterior Pigtails ,inside 1.9mm inner white LSZH sheath, outer jacket is PE Material, it can be used indoor and outdoor . And outer black 3.5mm jacket can be stripped more easily if customer need use inside 1.9mm cable to connector with patch panels, terminal box and make splicing installation .The fiber we used G657A2 fiber. For this type pigtail length always 20M,30M,40M,60M,80M,100M,120M,2KM.

Features
Low Insertion Loss and High Return Loss
Good Exchange Ability
Good Durability
High Temperature
StabilityStandard: Telcordia GR-326-CORE
Specification
item value
Model Number SC/APC Fiber Optical Pigtails 3.5mm
Type Fiber Optic Cable
Fiber Mode Single mode or Multimode
Connector Style SC,FC,ST,LC,MU,E2000,DIN
Polish or Ferrule Interface Type PC,APC,UPC
Jacket Materials PE Material
Outer Jacket Color Black
Outer Jacket Diameter(mm) 3.5±0.1
Inner Jacket Diameter(mm) 1.9±0.1
Maximum Tensile Load (Long term) 150N
Application

Fiber to the point (FTTX)

Fiber to the home (FTTH)

Passive optical networks(PON)

Local area networks (LAN)

Cable television (CATV)

Test equipment
