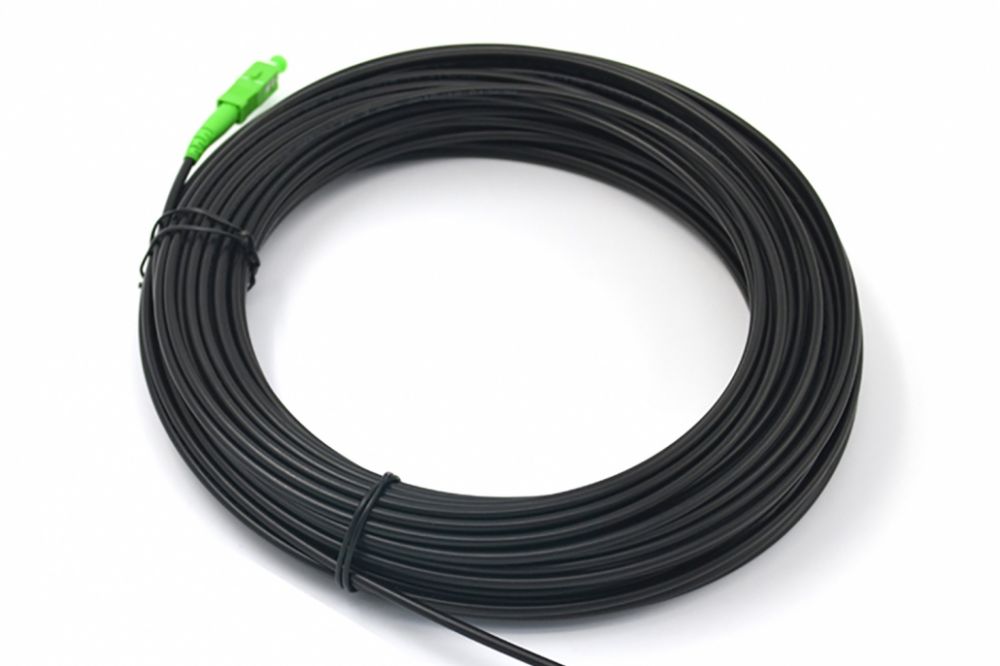

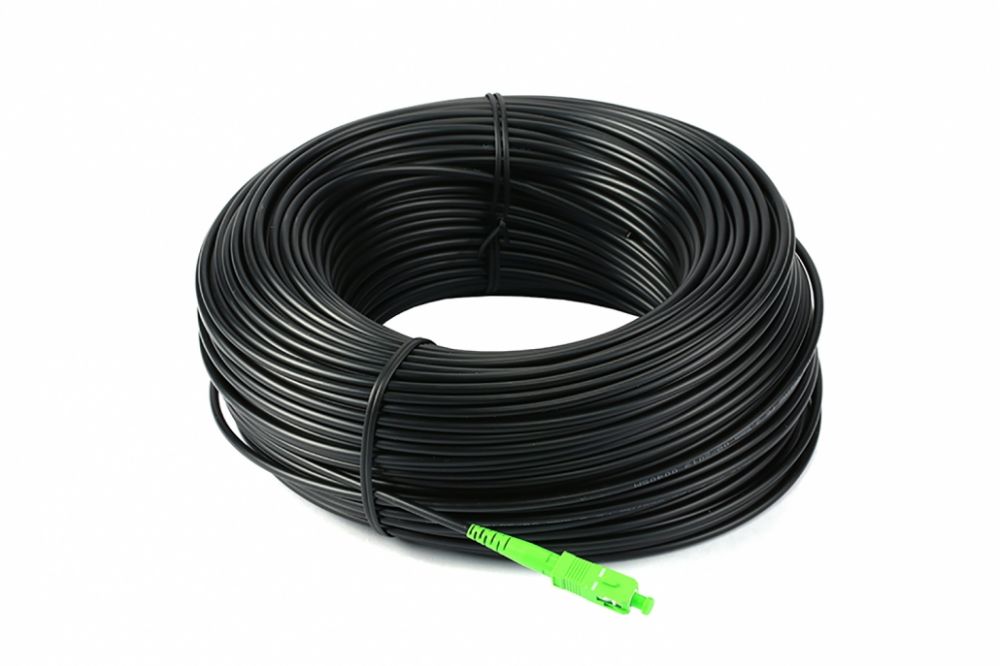

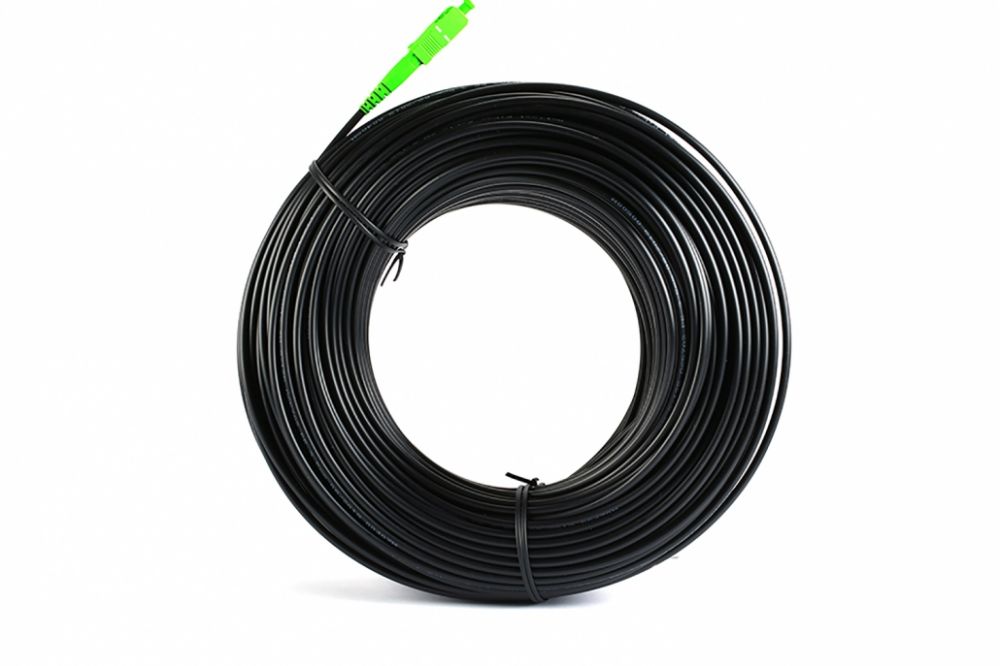

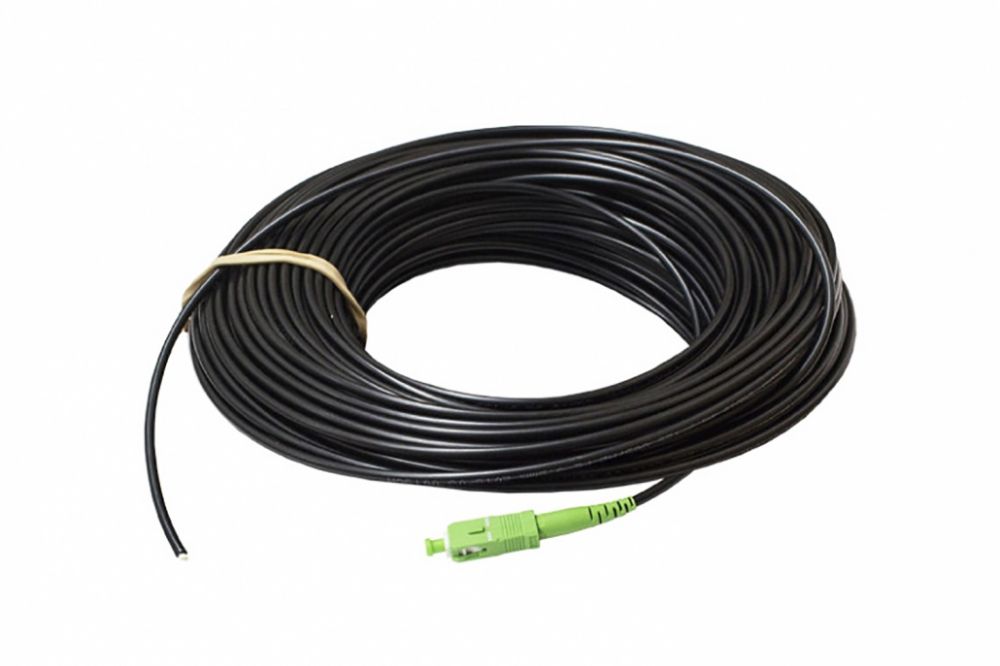

Pigtail SC/APC Fiber Optical Pigtails 3.5mm

High performance Pigtail SC/APC  Fiber Optical Pigtails 3.5mm

Product Description

We spring optic can product Fiber Outdoor Exterior Pigtails ,inside 1.9mm inner white LSZH sheath, outer jacket is PE Material, it can be used indoor and outdoor . And outer black 3.5mm jacket can be stripped more easily if customer need use inside 1.9mm cable to connector with patch panels, terminal box and make splicing installation .The fiber we used G657A2 fiber. For this type pigtail length always 20M,30M,40M,60M,80M,100M,120M,2KM.

Features
  • Low Insertion Loss and High Return Loss

    Good Exchange Ability

    Good Durability

  • High Temperature Stability

    Standard: Telcordia GR-326-CORE

Specification

Fiber Mode

Single mode or Multimode

Fiber Count

1

Connector Style

SC,FC,ST,LC,MU,E2000,DIN

Polish or Ferrule Interface Type

PC,APC,UPC

Cable Lengths

Custom Lengths

Jacket Materials

PE Material

Outer Jacket Color

Black

Inner Jacket Color

White

Outer Jacket Diameter(mm)

3.5±0.1

Inner Jacket Diameter(mm)

1.9±0.1

Storage Temperature

-20°C to 60°C

Installation Temperature

-5°C to 50°C

Operating Temperature

-20°C to 60°C

Crush(N/100mm)

1000

Maximum Tensile Load (Long term)

150N

Minimum Tensile Load (Short term)

400N
Application

CATV

Telecommunication Networks

Local Area Networks (LANS)

Data Processing Networks

Test Equipment

Wide Area Networks(WANS)
