Fiber Optic Patch Cords
Fiber Optic Patch Cords SC APC Fiber Optic cable Optic Patch Cords Optic Patch Cords

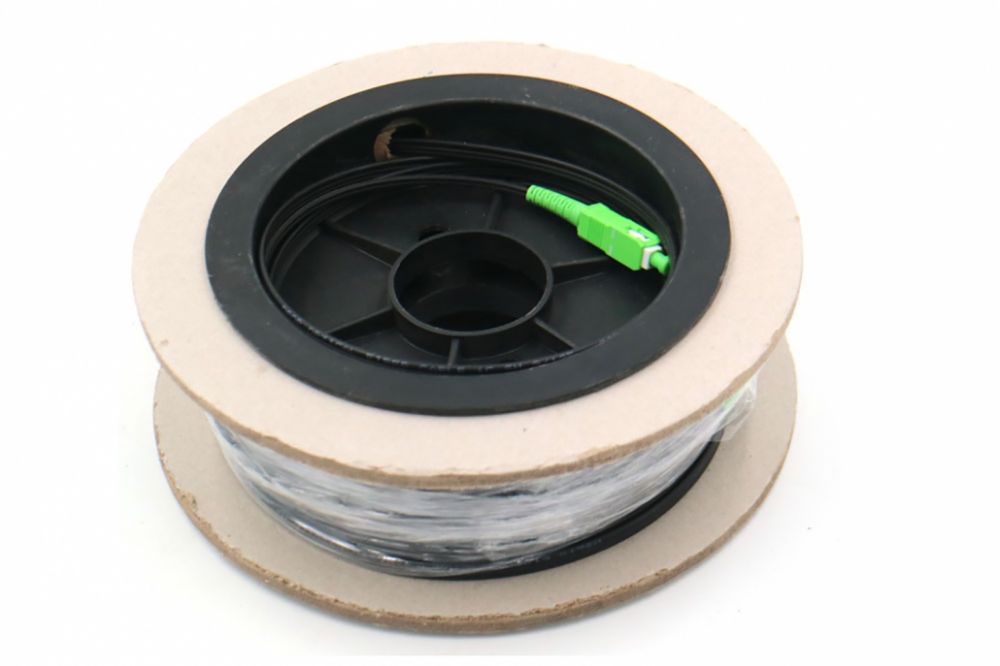

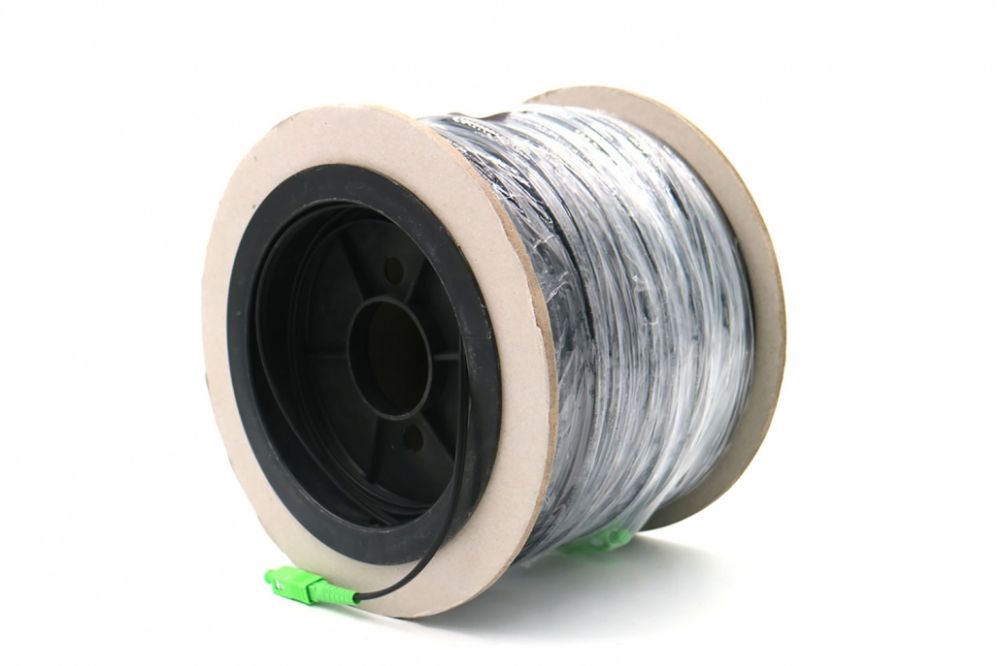

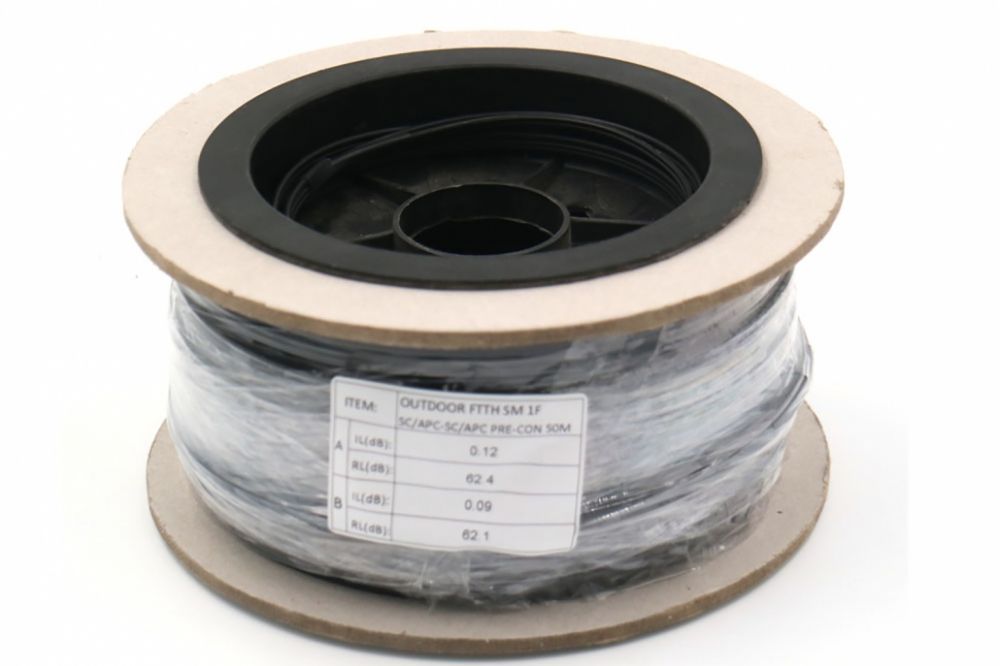

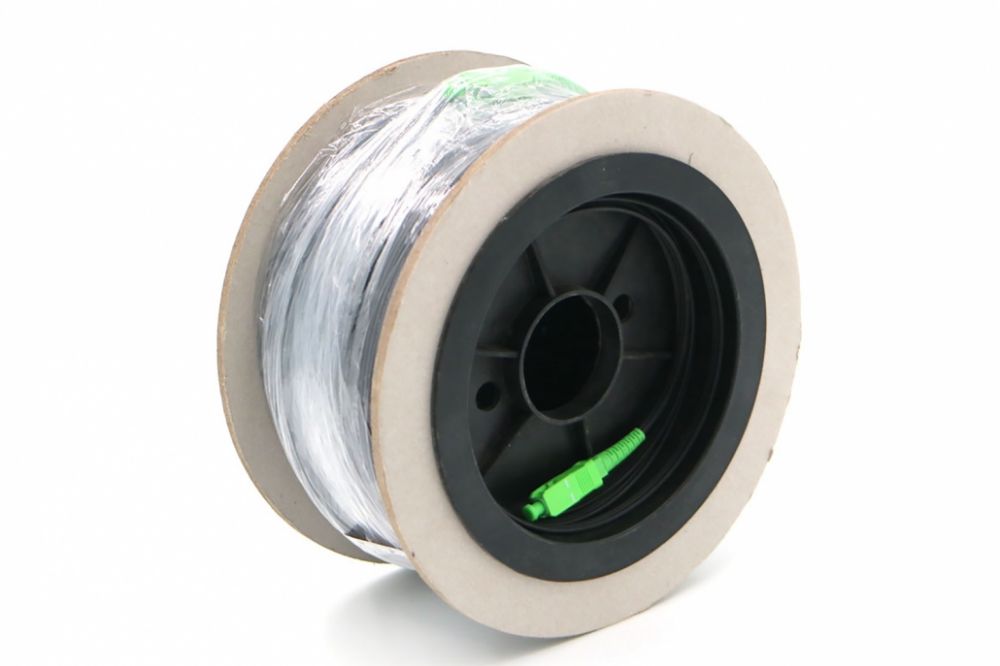

15m/50m/75m Outdoor Flat Drop Cable SC APC Fiber Optic Patch Cords with small reel roll

Product Model

FTTH indoor cables

Product Description

Our Fiber Optic Patch Cord is FTTH indoor cables are used inside buildings or houses. In the center of the cable is the optical communication unit, with the two parallel non-metical enhanced FRP/Metal/KFRP as the strength member, and surrounded with the LSZH jacket.
Indoor use FTTH cables have the same function of the common indoor fiber cables, but it does have some special features. FTTH indoor cables are small diameter, water-resistant, soft and bendable, easy to deploy and maintenance. Special indoor FTTH cables will also meet the requirement of thunder-proof, anti-rodent or waterproof.

Features

SC APC Fiber Optic Patch Cords with small reel roll

  • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
    Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
    Simple structure, light weight and high practicability
    Novel flute design, easily strip and splice, simplify the installation and maintenance
    Low smoke zero halogen and flame retardant sheath
Specification

  Items

Parameters

Cable diameter

2.0 x 5.0mm

Cable jacket material

LSZH or PVC

Cable type

SM:9/125

Wavelength

SM-1310nm, 1550nm

Insertion loss(dB)

≤0.3dB

Return Loss(dB)

≤-50dB

Operating temperature(℃)

-20 to +70

Storage Temperature(℃)

-20 to +80
Application

FTTH system
Indoor riser level and plenum level cable distribution
Interconnect between instruments, communication equipments

Download

SC APC Fiber Optic Patch Cords with small reel roll

Coming Soon
