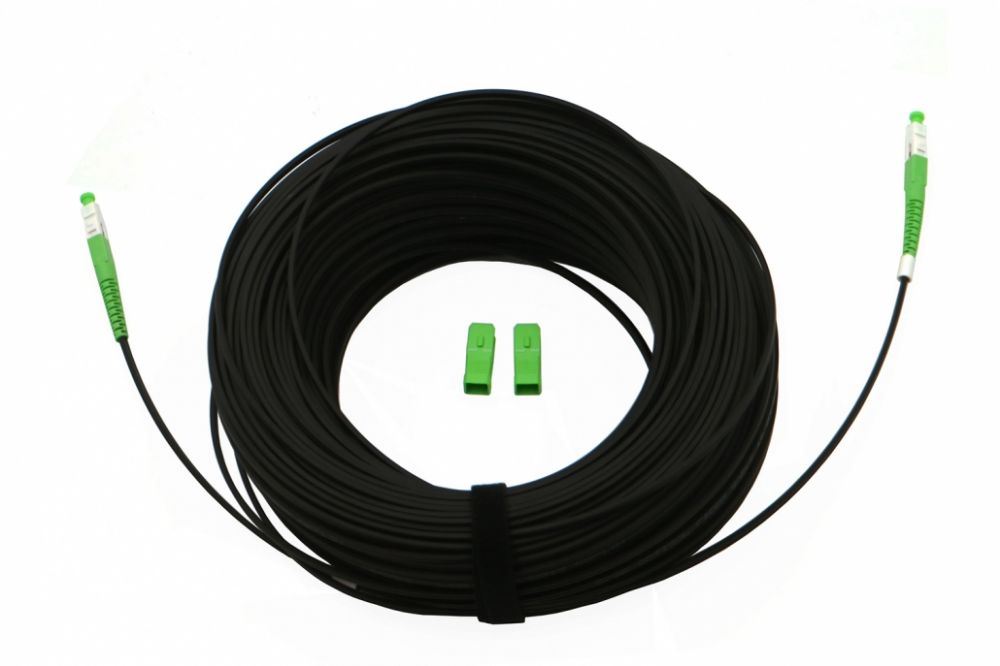

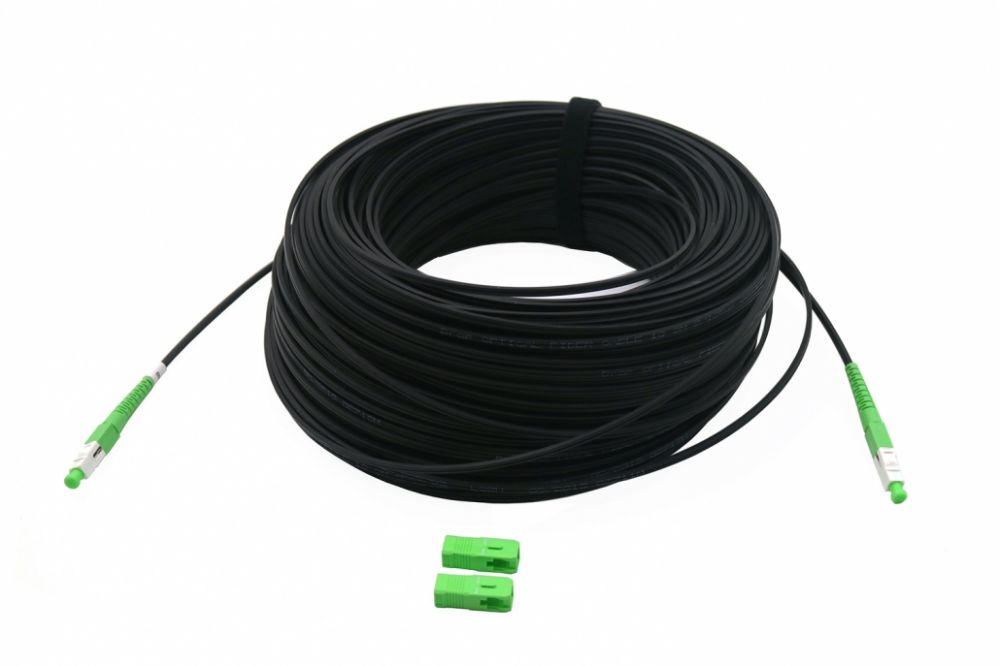

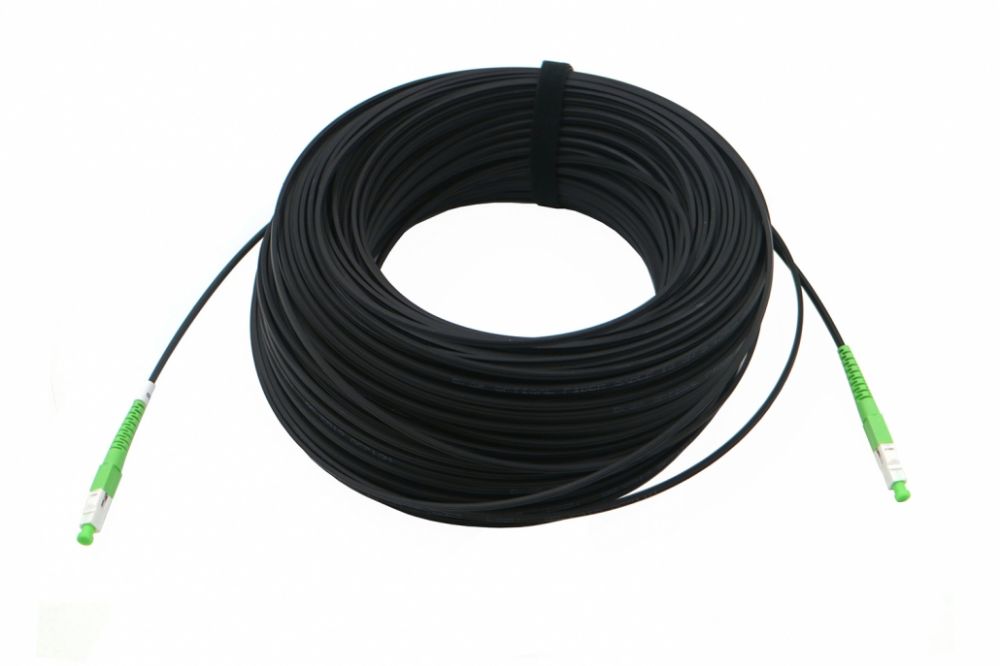

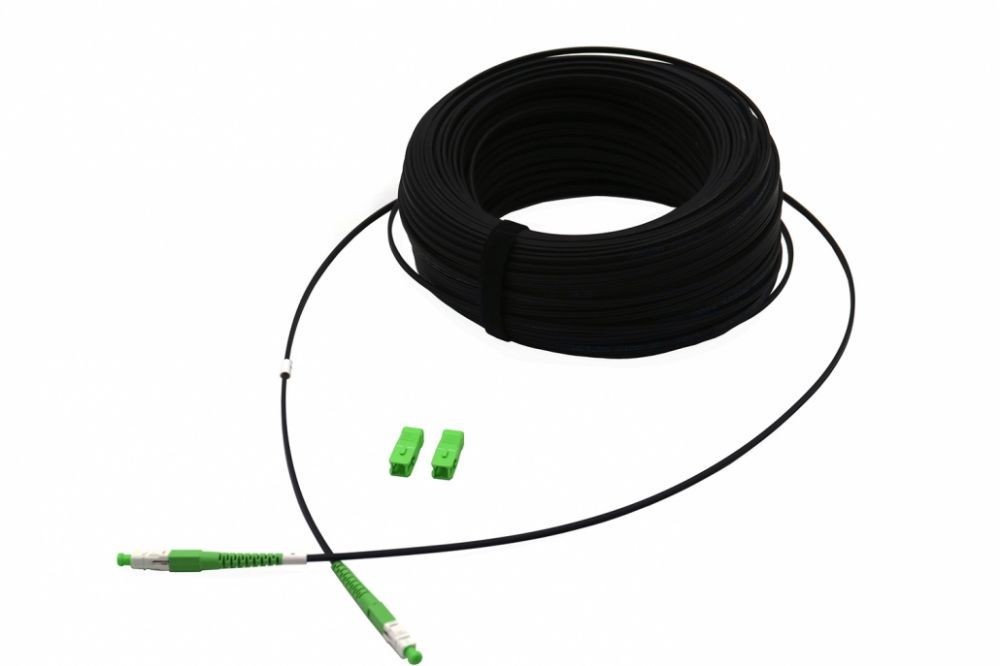

Indoor 1 core drop cable SC APC patch cords

Product Model

Low insertion Loss SC/APC -SC/APC Single mode Simplex FTTH Drop cable Patch cords/Jumper

Product Description

Indoor 1 core drop cable SC APC patch cords which use FTTH drop cable are the FTTH drop cable patch cord, the FTTH patch cord length is generally 3-300meters. The FTTH drop cable patch cord length can be customized, no need weld, direct installation, save labor cost, now it is widely used by worldwide major operators, and also gradually been widely used in optical fiber video monitoring installation.

Features

Indoor 1 core drop cable SC APC patch cords

FTTH SC APC Single Mode 9/125 Fiber Optic Drop Cable

Specification

Cable Count	Out sheath Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage temperature
Cable Count	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(℃)
1	3.0*6.0	8	600	200	1000	300	20D	10D	40

Optical Characteristics:
Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A,B,C)		B1.1:Conventional fiber
		G.652D		B2: Zero dispersion shifted
		G.655		B1.2 :Cut-off wavelength shifted
		G.657(A1,A2 ,B3)		B4: Main technical data for positive dispersion shifted single-mode fiber

Application

*Telecommunication subscriber loop
*Fiber to the home (FTTH)
*LAN/WAN
*CATV
