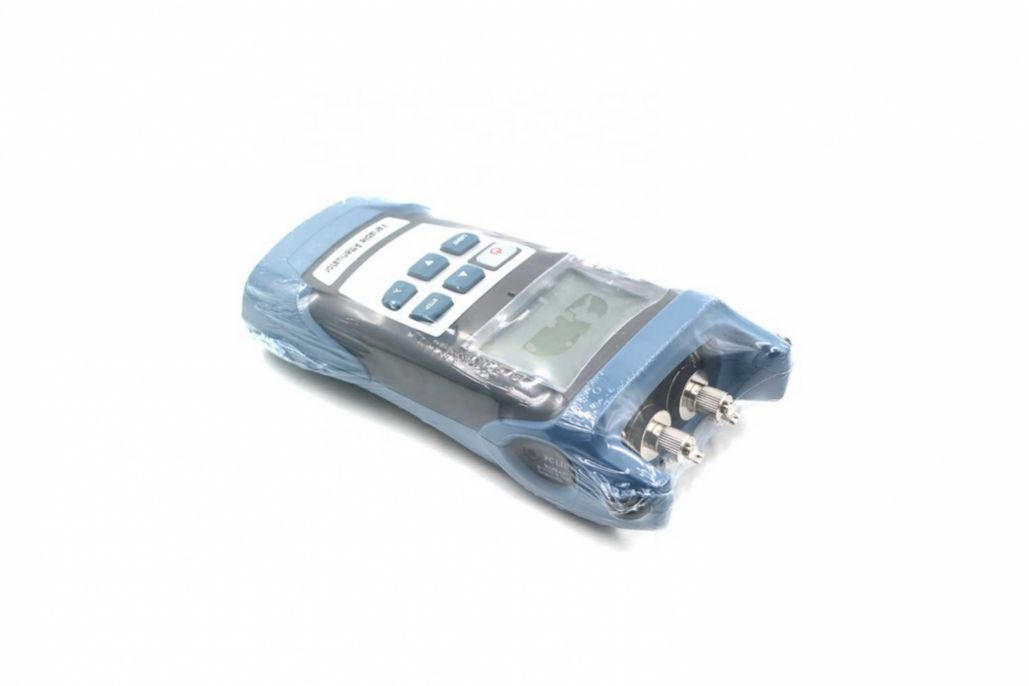

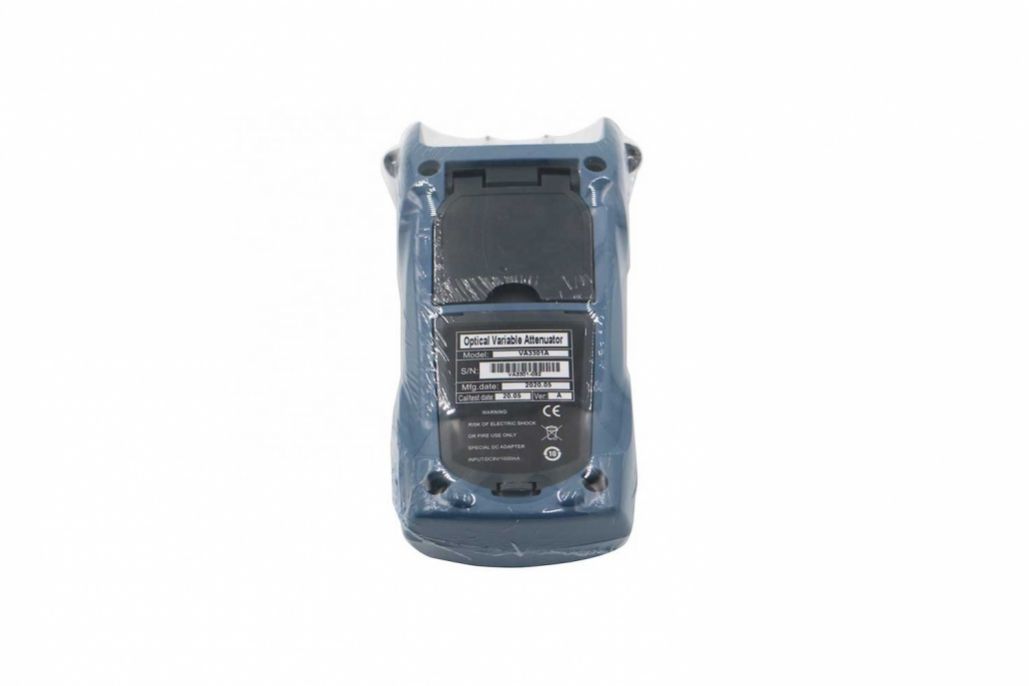

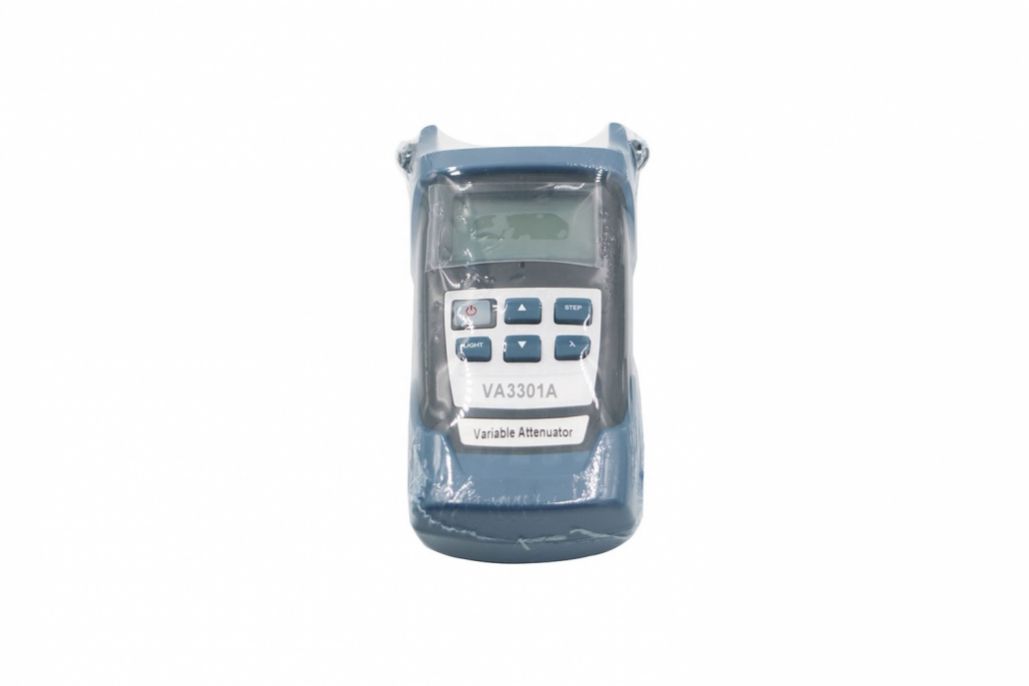

Fiber VA3301 Handheld Optical Variable Attenuator

Product Model

VA3301

Product Description

Handhold optical variable attenuator is used for continuously variable optical signal attenuation. As the attenuator is used in the laser system for the on-line testing, there, therefore VA3301 can be used in the digital system of communication devices (such as: PHD, SDH) and also in the system of adopting analog modulation (CATV)

Features

Features:

Stepwise attenuating by circumgyrated dial: attenuating step 0.05dB
Provide with the function of displaying dB and dBm attenuating value
Alternative function of 10 minutes Auto-off without operation
After off the instruments, the system will have the memorizing of the attenuating value and the attenuating step, in order to restore the system back to the previous shut down state when open the instruments next time

Specification

Application:
Telecom Maintenance
CATV Maintenance
Comprehensive cable construction system
Optical instruments research and development
Optical communication education and lab testing
Other optical project

Application

Model No	VA3301
Measurement Range（DB）	A	B
	0-30	0～60
Resolution	±5%
Operation temperature (℃)	-10～+60
Storage temperature (℃)	-25～+70
Auto power-off time (min)	10
Continuous working hours (h)	48
Dimensions (mm)	190×100×48
Power supply	Rechargeable lithium battery
Weight (g)	400
