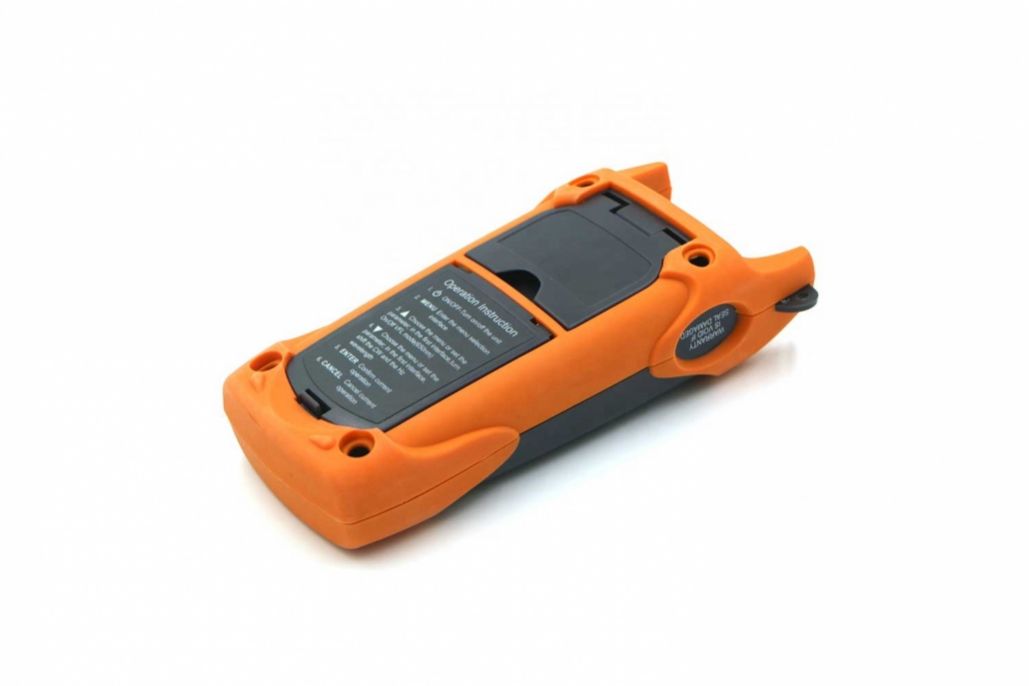

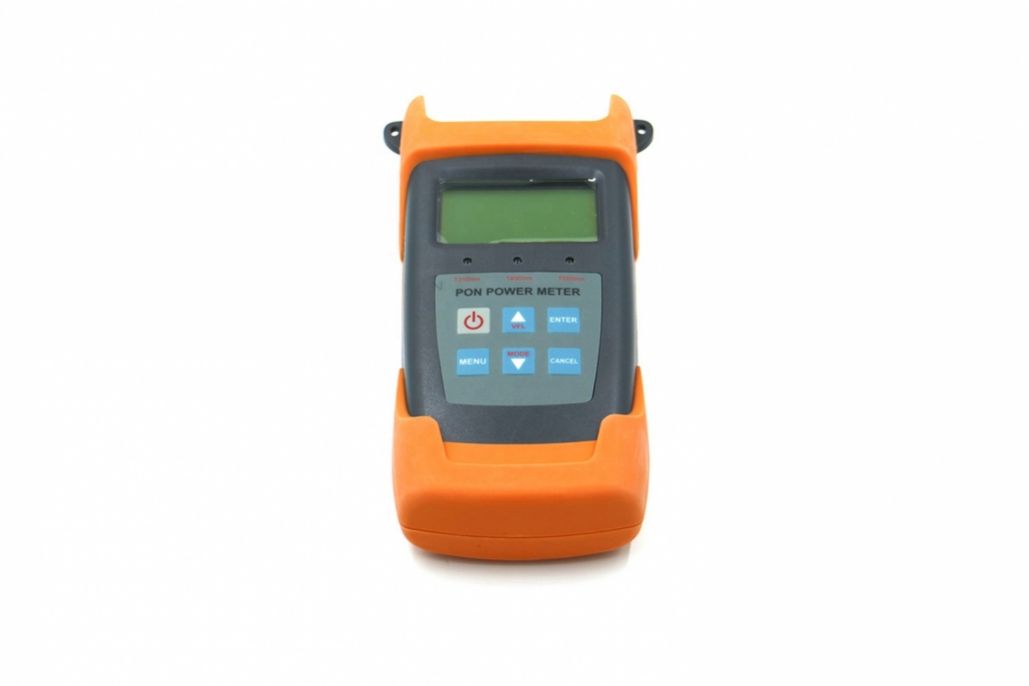

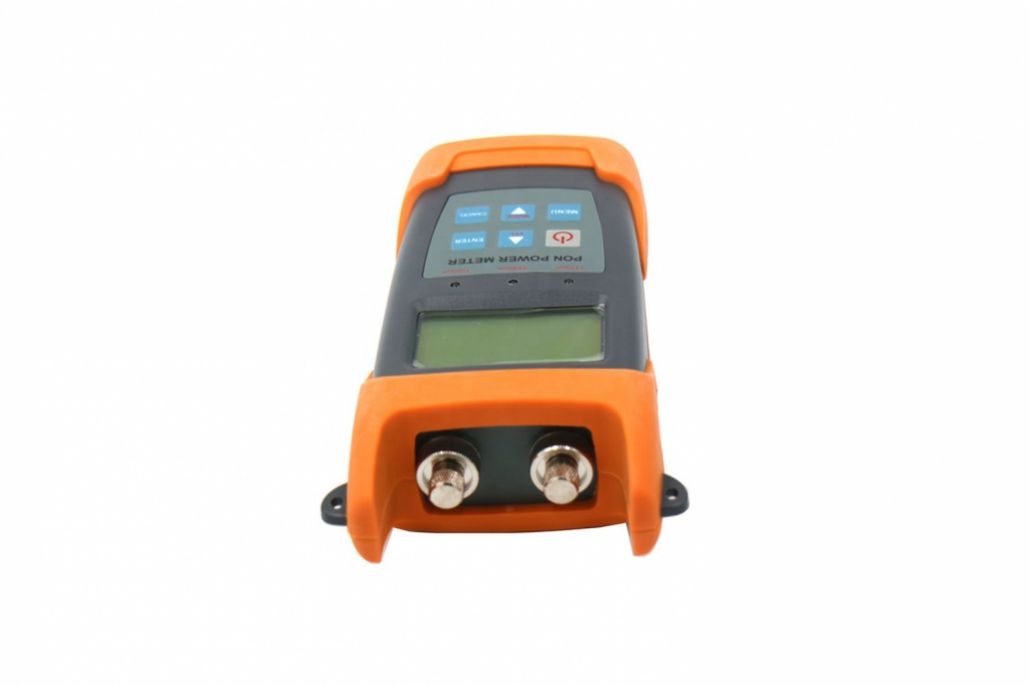

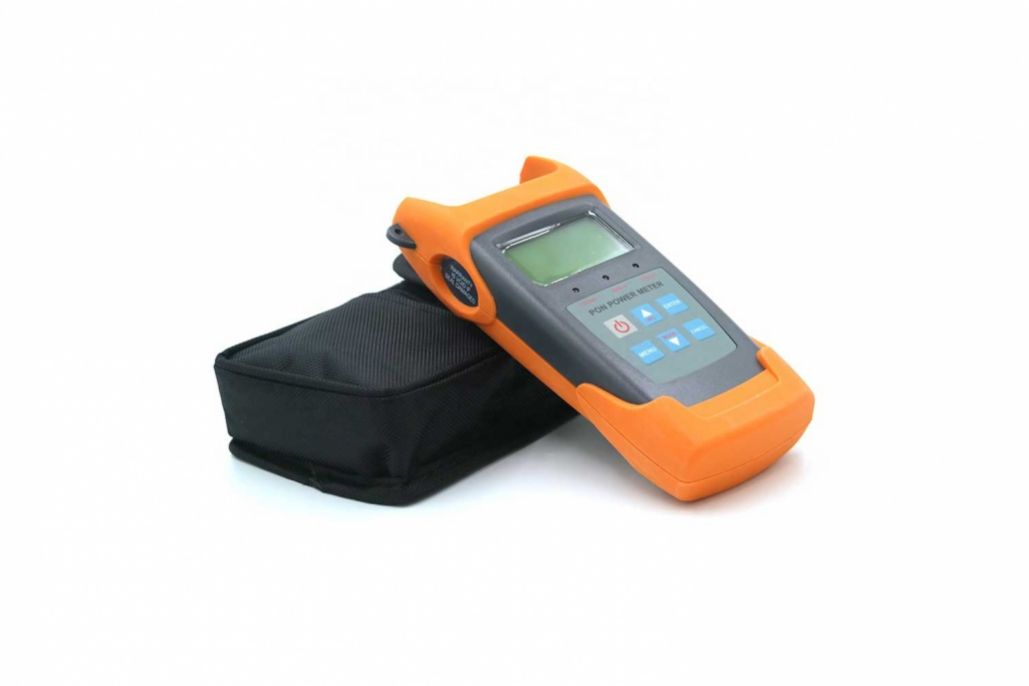

JW 3213 PON Optical Power Meter

Product Description

PON Optical Power Meter target at the FTTx application and maintenance. This power meter is able to simultaneously test and estimate the signals of the voice, data and video. It is an essential and ideal tool for the construction and maintenance of the PONprojects.

Features

Features:

It can experiment atVoice, data and video signal synchronous measurement and display on BPON/EPON/GPON.
Providing simultaneous measurement for all three wavelengths on the fiber (1490nm, 1550nm,1310nm )
Used in Burst mode measurement of 1310nm upstream.
Use the software connect with PC, setting the threshold, data transfer, and calibration the wavelength.
USB communication port enables data transfer to a PC.1000measurement items can be saved in PON power meter or computer for data review.
With optical power meter module,include850, 1300, 1310, 1490, 1550, 1625sixs(AP, A without 850nm wavelength). With visual fault locator module (PON and AV)
Optical power meter and VFL with one port. (only A)
Optional Chinese/English display.
Offers up to 10 different threshold sets in total,Three status LEDs represent different optical signal conditions of Pass, Warn and Fail respectively.
10 minutes Auto-off function can be activated or deactivated
Good key design,high sensitivity, greatly reducing the volume and weight of the tester.
Different models corresponding to different function, according to own use to choose.

Specification

Detector Type	InGaAs
Optical Connector	FC/SC/ST Interchangeable/2.5 universal adapter
Fiber Type	SM 9/125um
Measurement Unit	dB/dBm/xW
Resolution (dB)	0.01dB
Operation Voltage(V)	DC 3.3V～5.5V
Power Supply	3pc1.5V battery
Continuously Operation time (h)	PON：90h	PON：90h OPM：100h VFL：50h	PON：90h VFL：50h	PON：90h OPM：100h
Operation Temperature(℃)	-10℃～60℃
Storage temperature(℃)	-25℃～70℃
Weight(kg)	423g	425g	424g	424g

PON module:	PON Optical Power Meter	A	AV	AP
1310 upstream measurement
Pass Zone(nm)	1260nm～1360nm
Measurement Range(dBm)	-40dBm～+10dBm
Input power(max)	15dBm
Isolation@1490/1550(dB)	>40dB
Burst mode measurement error	<±0.5dB
1490 downstream measurement
Pass Zone(nm)	1470nm～1505nm
Measurement Range(dBm)	-40dBm～+10dBm
Input power(max)	15dBm
Isolation@1310/1550(dB)	>40dB
1550 downstream measurement
Pass Zone(nm)	1535nm～1570nm
Measurement Range(dBm)	-40dBm～+20dBm
Input power(max)	25dBm
Isolation@（1310/1490nm）	>40dB
Measurement Accuracy
Con-natural uncertainty(dB)	±0.5dB
Linearity(dB)	±0.1dB
Passing through insertion Loss(dB)	<1.5dB

Application

Normal Optical Power Meter Module
Normal Optical Power Meter	PON Optical Power Meter②	A	AP
Measurement Accuracy
Con-natural uncertainty(dB)	None	±0.5dB
Linearity(dB)		±0.1dB
Measurement Range(dBm)		-70dBm～+6dBm
General Information
Measurement Unit	None	dB/dBm
Resolution (dB)		0.01dB
Calibration Wavelength(nm)		1300/1310/ 1490/1550/1625		850/1300/1310/ 1490/1550/1625
Detector Type		InGaAs
Optical Connector		FC/SC/ST Interchangeable/2.5 universal adapter

VFL Module
VFL	PON Optical Power Meter③	A	AV
Output power	None	>0.5mW
Wavelength		650nm
Optical Connector		FC/SC/ST Interchangeable/2.5 universal adapter
Fiber Type		SM/MM
