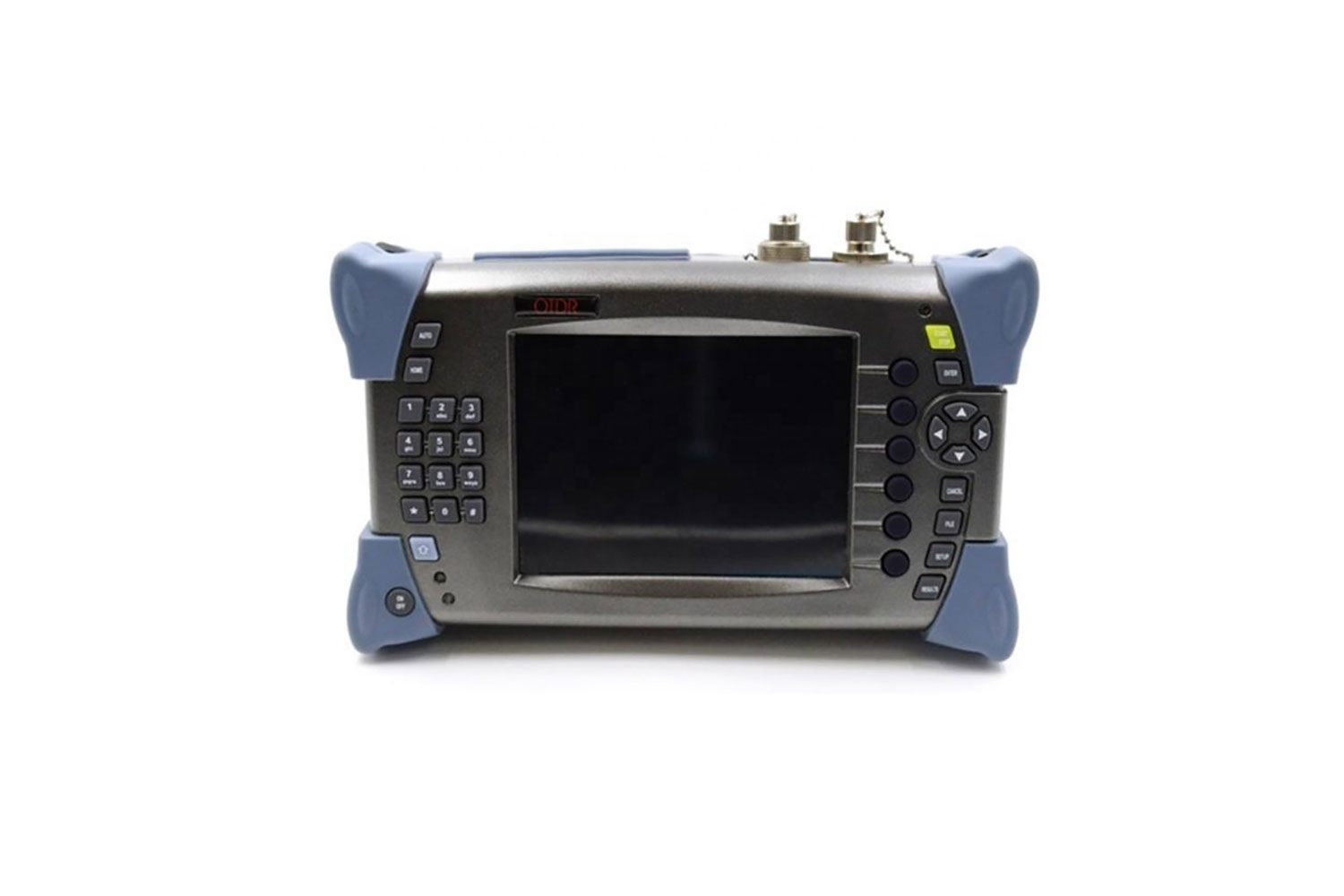

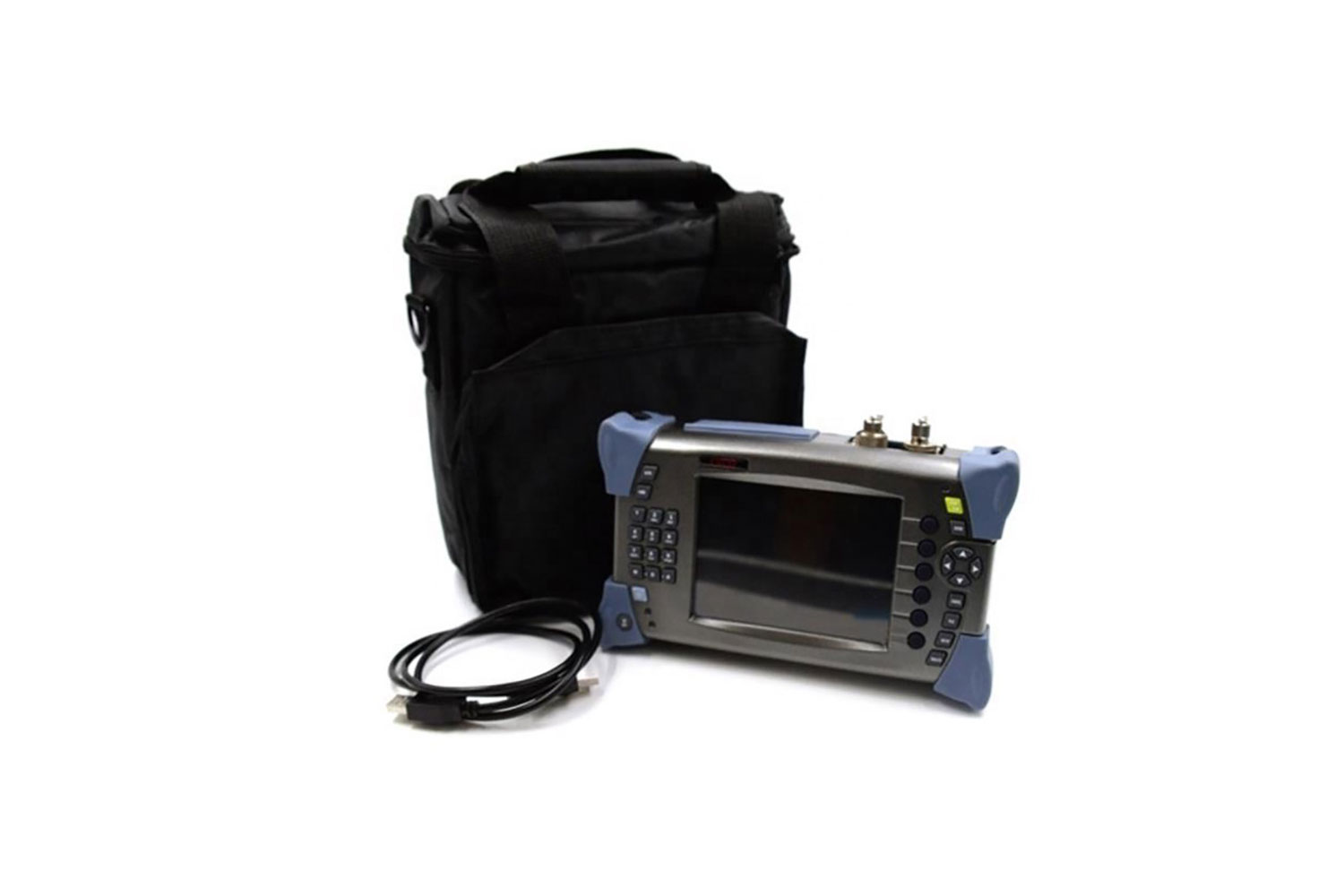

OTDR-2000 Optical Time Domain Reflector With VFL

Product Model

OTDR-2000

Product Description

It is the latest FTTx optical fiber cable-based test instrument. It has light weight, elegant appearance, small size, easiness of installation and maintenance, high-capacity built-in battery. It provides multiple built-in test wavelengths and optical testing functions like visual fault locator (VFL). As a new product specially designed for FTTx network testing, it provides site technicians with the highest performance and upgrade services.
The OTDR has abundant external ports to externally connect USB and printers which allows data communication with PCs by two different USB ports. Test results can be stored internally and also on SD card via the SD port. It makes use of a lithium battery with large capacity allowing for up to 8 hours of use, making it suitable for long-time outdoor work.

Features

Features:
* Tests can be started by a single key press
* 6m extra-short event dead zone
* Advanced anti-reflection color touchscreen LCD, ideal for outdoor use
* USB Ports (Host and Client): Transfer and Print data trace
* Visual Fault Locator (VFL) to inspect fibers.
* Lithium rechargeable battery support over 10 hours.
* Memory for 500 OTDR traces and possible data transfer to a PC
* Support auto test, manual averaging and manual real time test mode
* Online help function
* Multifunctional and Scalable

Specification
Main Functions:
1.Fast automatic test
2.Fast curve analysis
3.Powerful document management
4.Convenient VFL function
5.Manual test mode
6.Average test mode
7.Dead zone test mode
Application
Specification
Wavelength
1310nm, 1550nm
Mode
Single-mode
Dynamic Range
13/15dB
Measurement Range
50 – 60km
Event Dead Zone
0.8m/0.1 – 16m
Resolution
0.1m – 16m
Loss Threshold
0.01dB
Linearity
0.05dB
VFL Output Power
5mW
Pulse Width (Single-mode)
10ns~1024ns
Sampling Points
65k
Waveform Storage Capacity
1000 Frames
Range of Refractive Index
1.00000~2.00000
Range of Optical-cable Correction Factor
0.80000~1.0000
Display
Color TFT LCD, 5.1″, 640 x 480
Ports*
USB

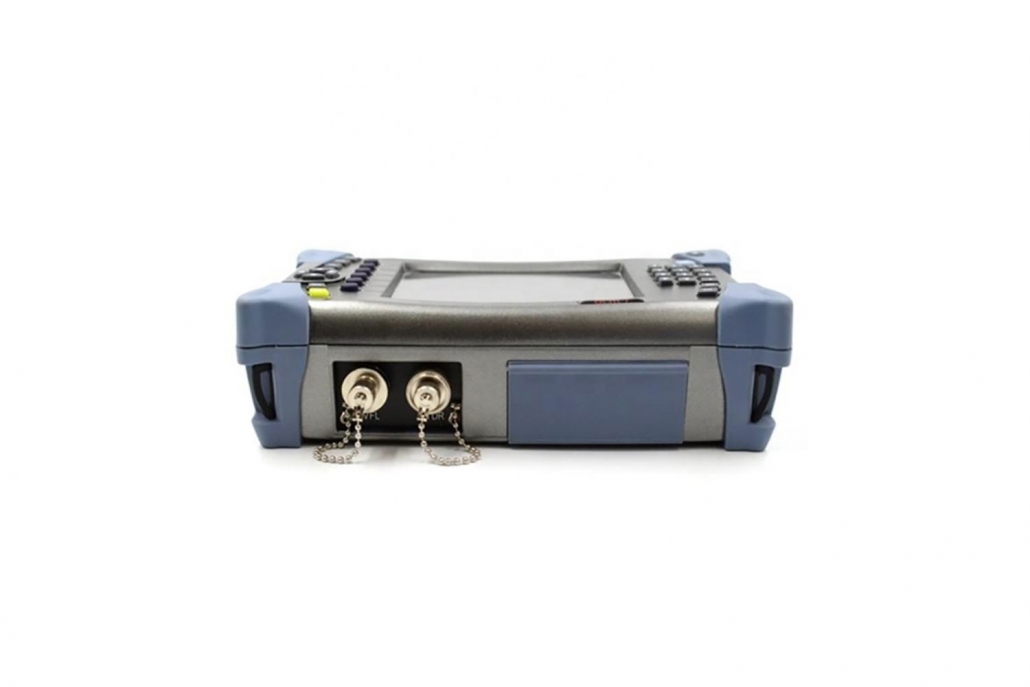

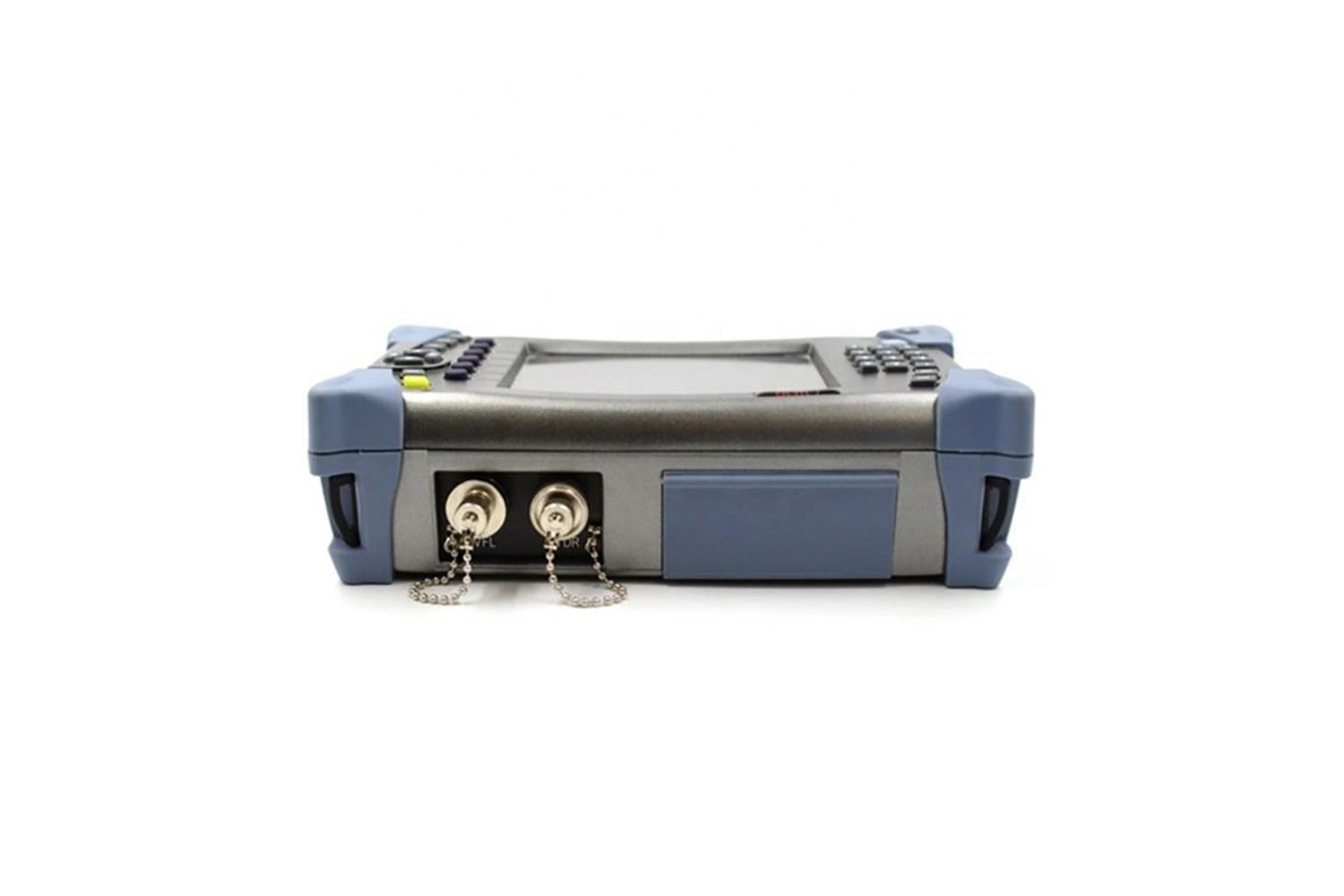

Optical Output Port
FC/PC
Power Supply

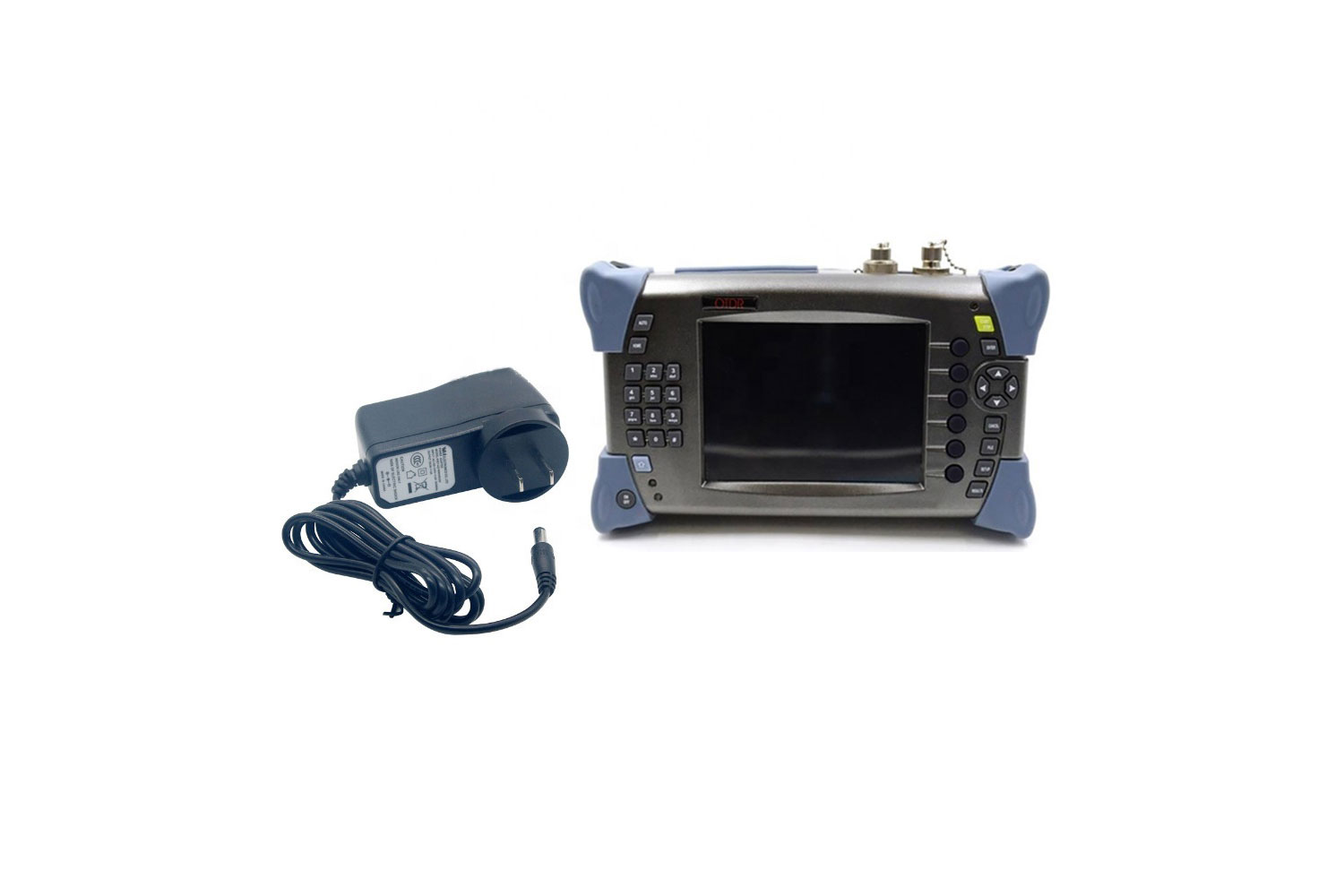

AC/DC Adapter: Input AC: 100V~240V(1.5A), Output DC: 9V(2A) Power Frequency: 50Hz~60Hz, Internal Lithium Battery: 7.4V, 3200mAh,
10 Hours of Operation
Operating Temperature
40 ~ 70°C
Width
215mm
Height
130mm
Depth
66mm
