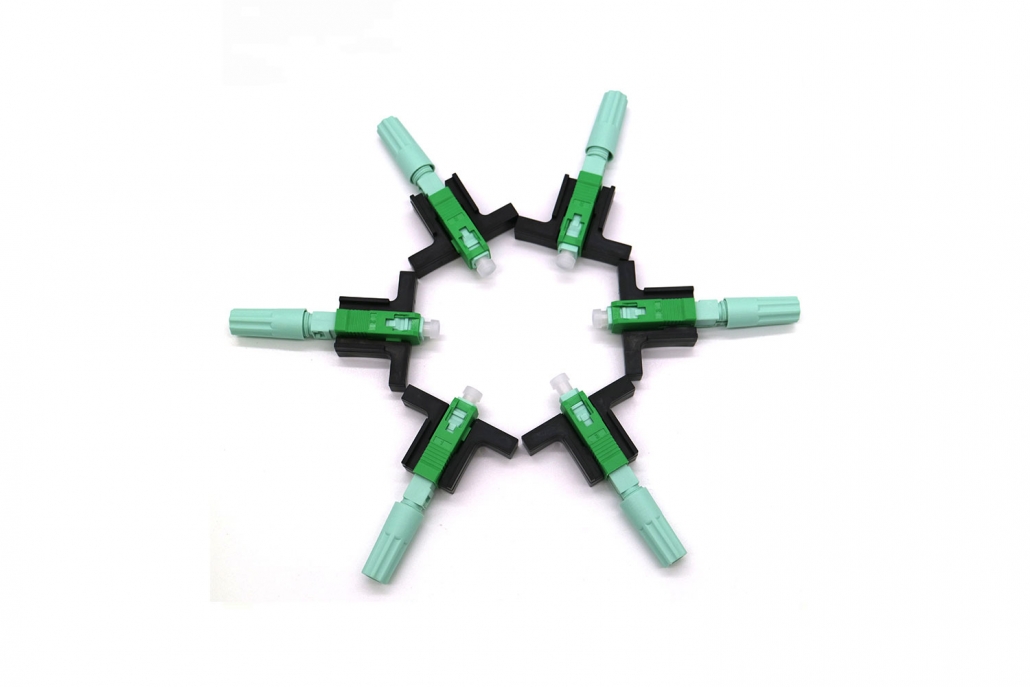

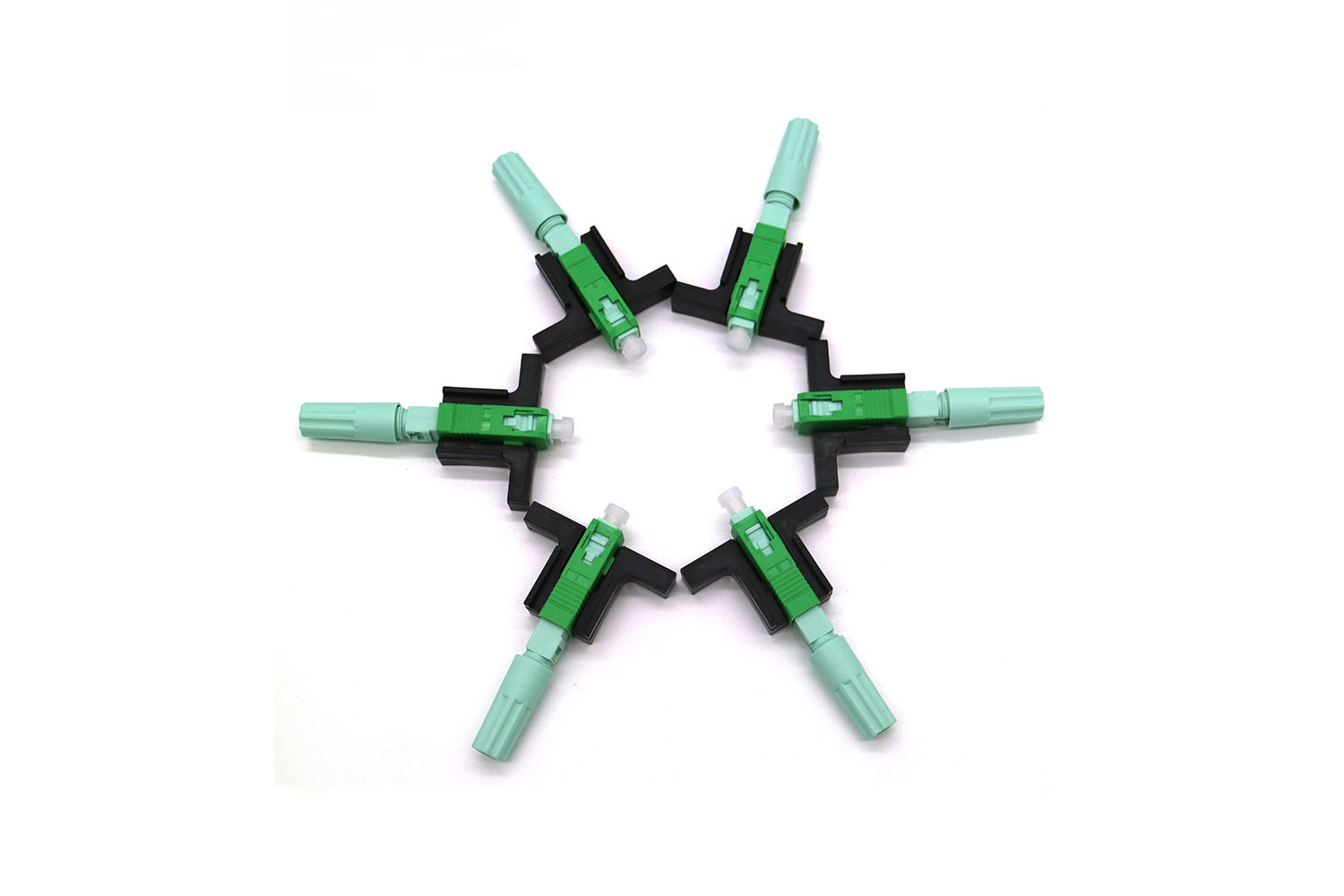

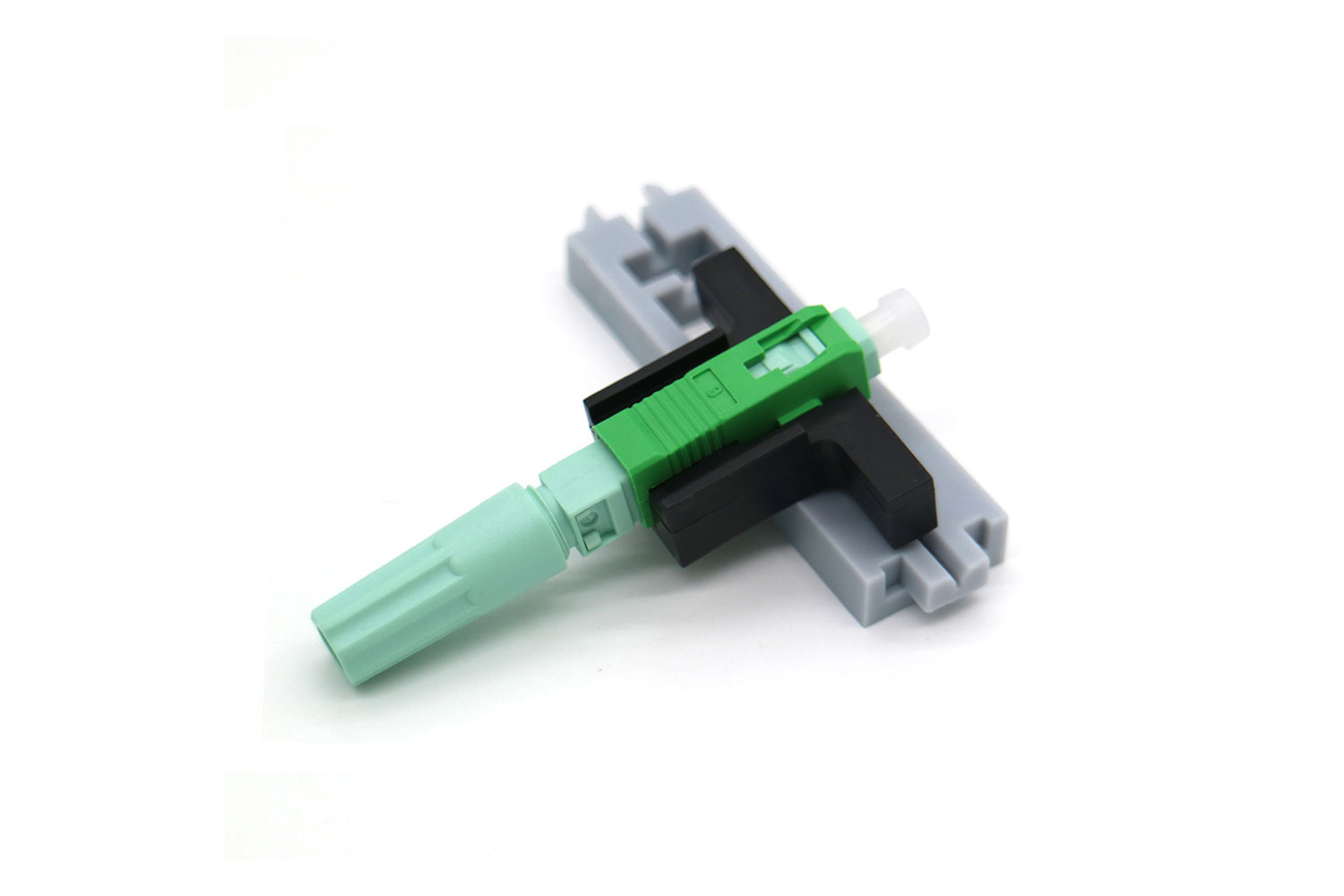

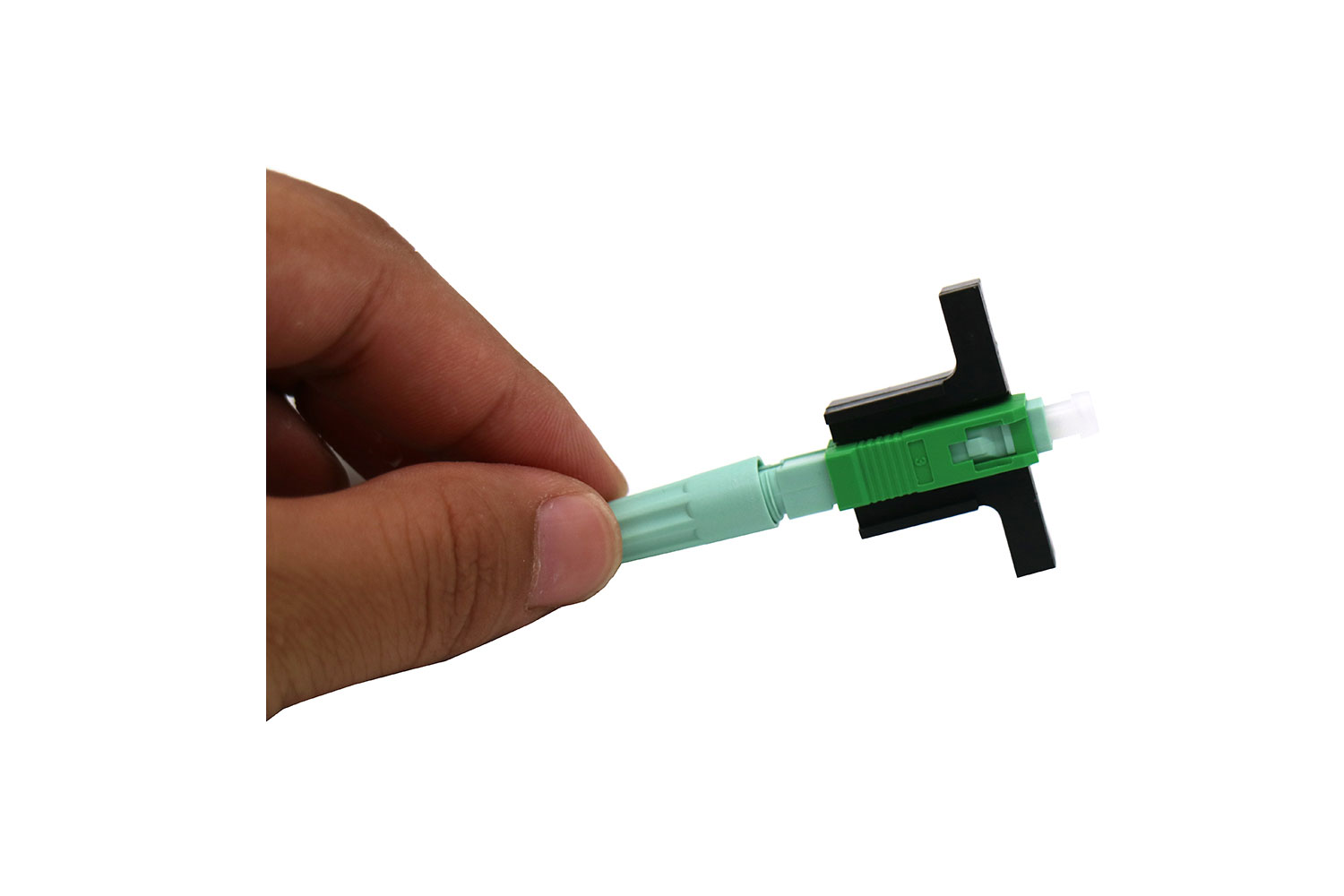

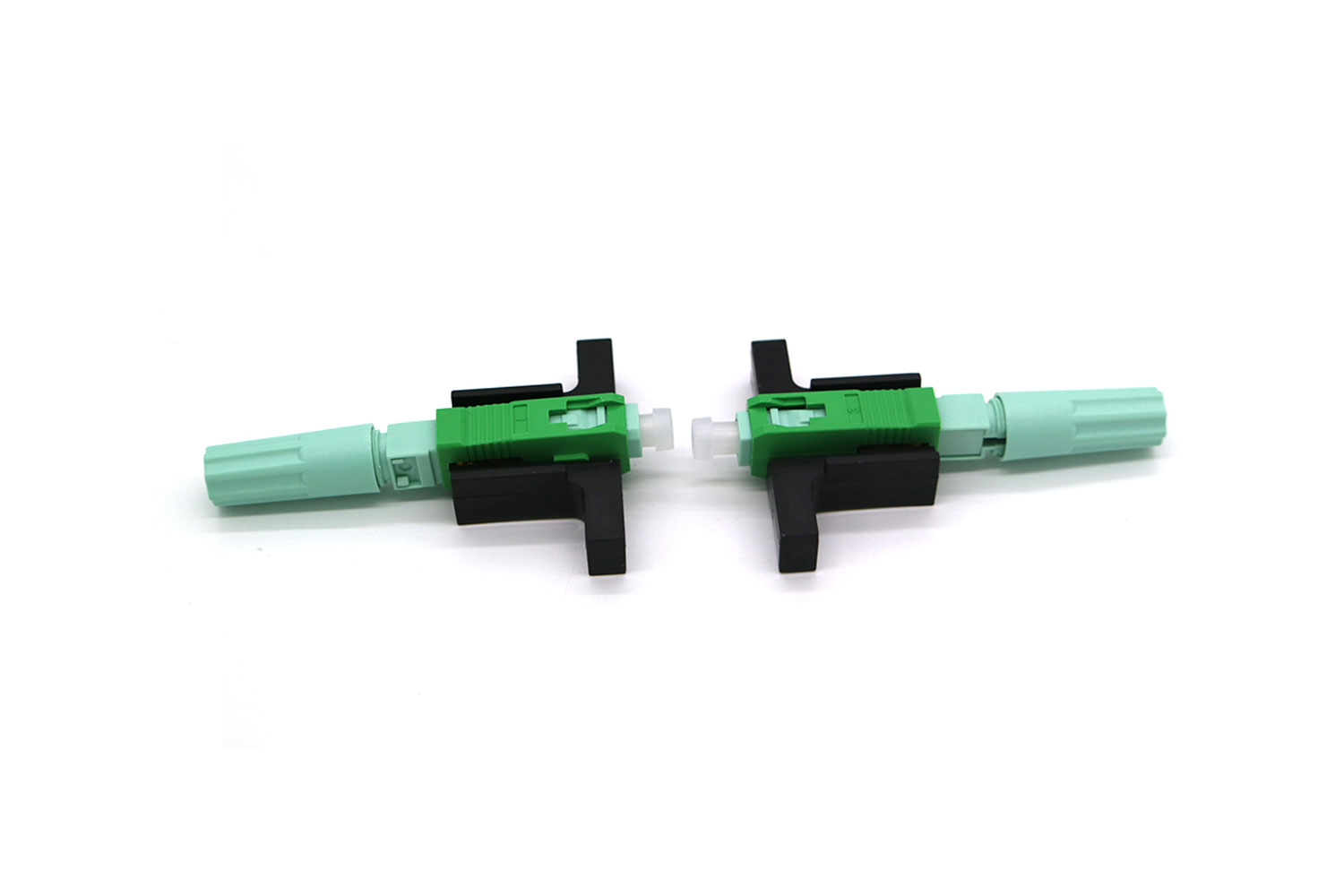

FTTH Field Mountable Fiber Optic SC/APC Fast Connector

Product Model

SP-3CS-SC/APC

Product Description

FTTH field Mountable fiber optic connector designed for FTTH. It is a new generation of fiber fast connectors used in assembly. It can provide Open flow and precast type, which optical and mechanical specification meets the standard optical fiber connector. It is designed for high quality and high efficiency for installation, the structure of the crimping position is a unique design.

Features:
1. Pre-terminated fiber in the ferrule, no epoxy, curing and polishing.
2. Stable optical performance and reliable environmental performance.
3. Cost effective and user friendly.
4. Low cost redesign,competitive price.
5. Thread joints for cable fixing.

Features

FTTH Field Mountable Fiber Optic SC/APC Fast Connector

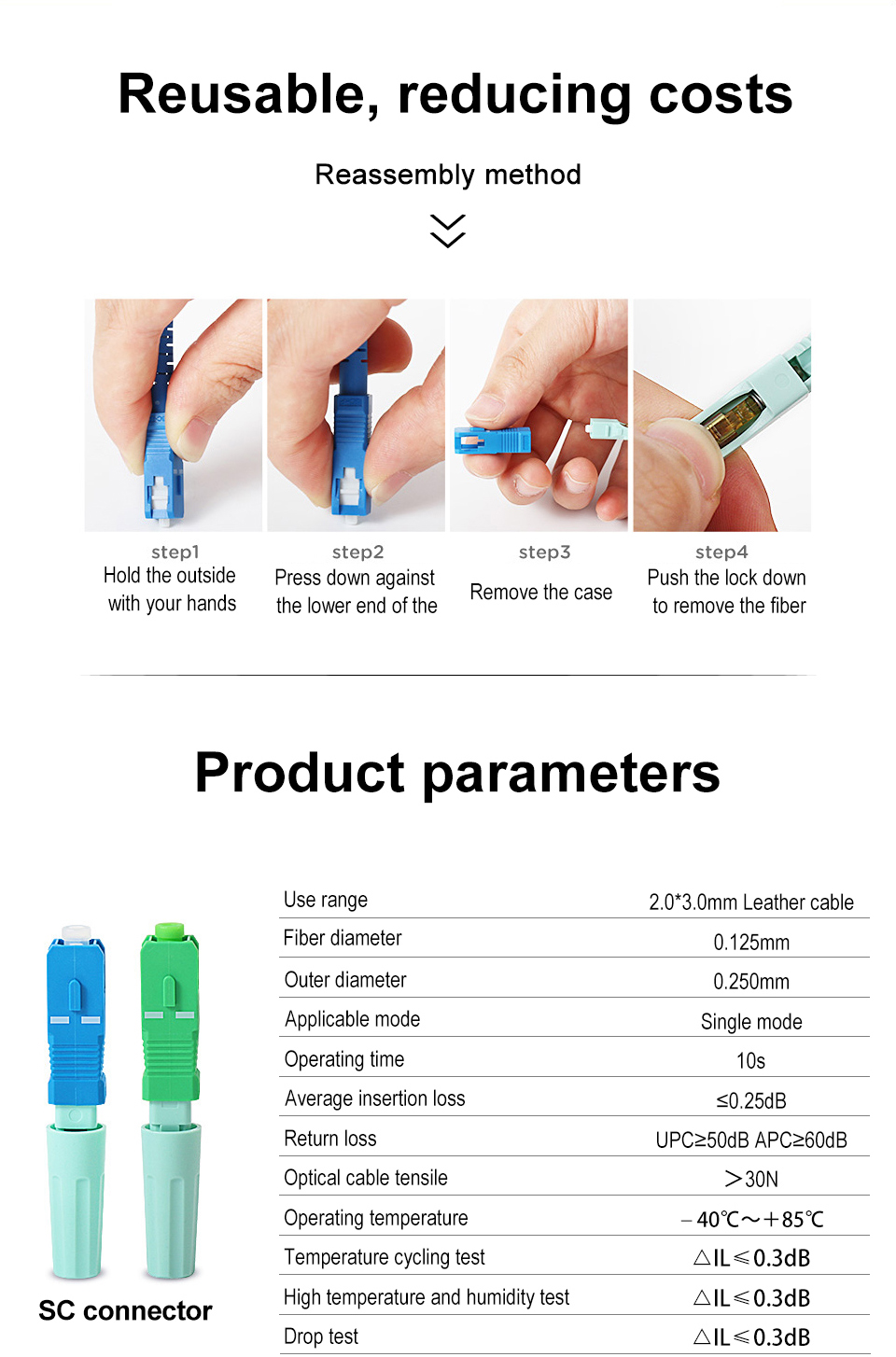

Specification
Item Specification
Insertion Loss Average≤0.2dB,Max≤0.4dB
Return Loss PC:≥40dB,APC:≥55dB
One-Time Assembly Yield ≥97%
Assembly Repeatability ≥5 times
Average Assembly Time ≤3minute
Life-Time ≥30years
Tensile Strength ≥30N(2.0×3.0 drop cable.)
Operation Temperature -40℃~+85℃
Application
Advantages:
1.Low Insertion Loss
2.Dual v groove design for high stability and reliability
3.Durable life
4.Easy installation
5.OEM service for accessories
Download

FTTH Field Mountable Fiber Optic SC/APC Fast Connector

Specification Download
