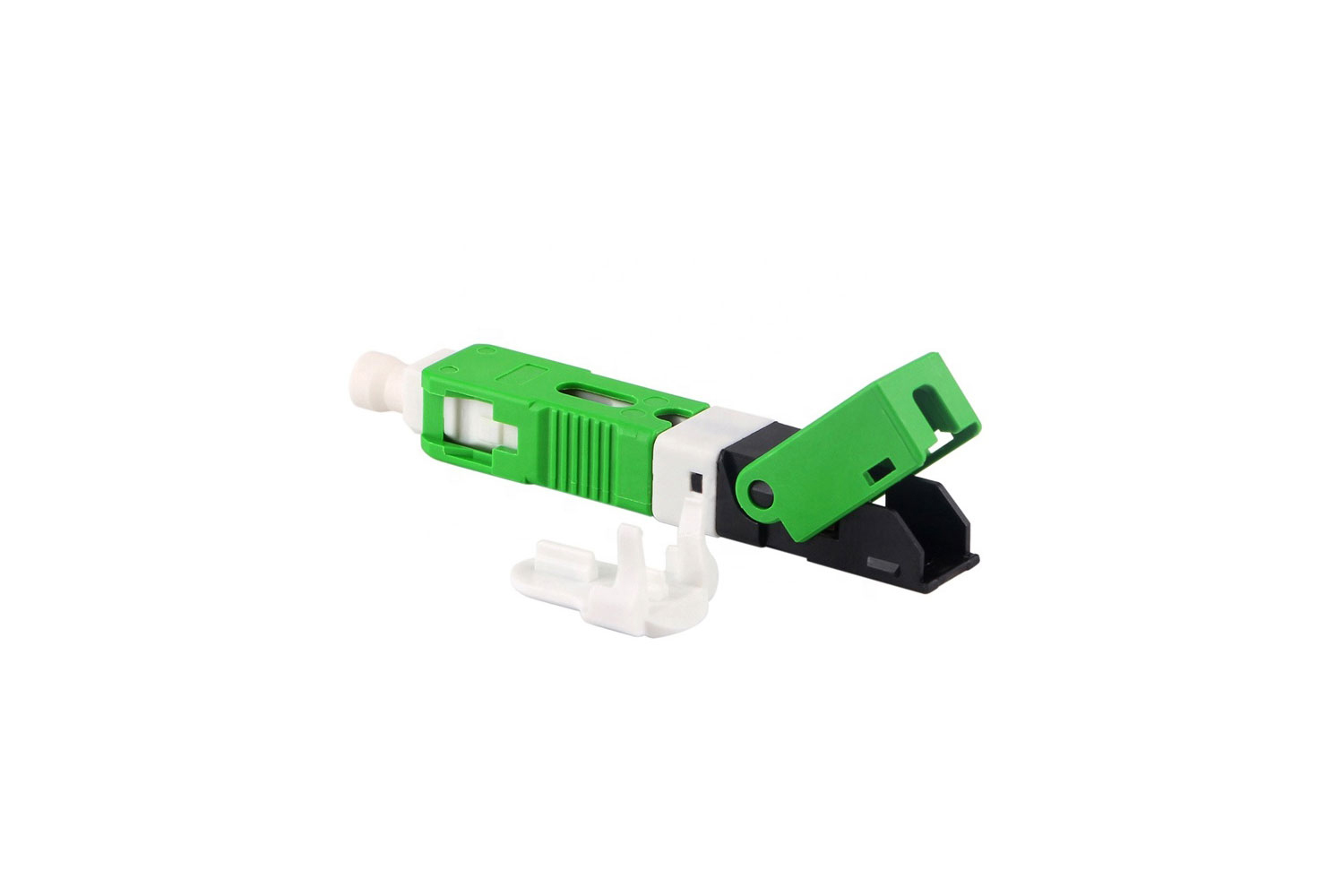

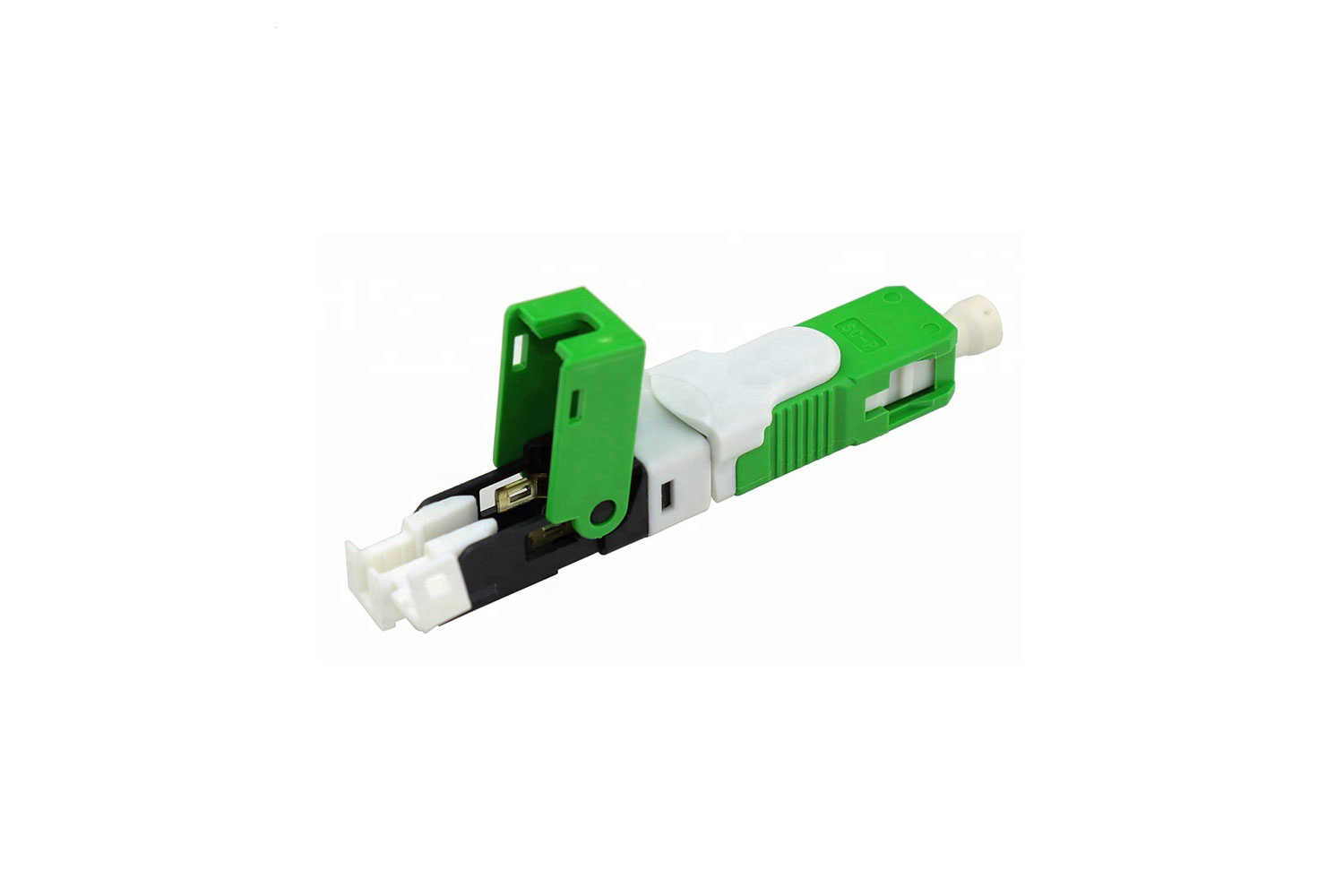

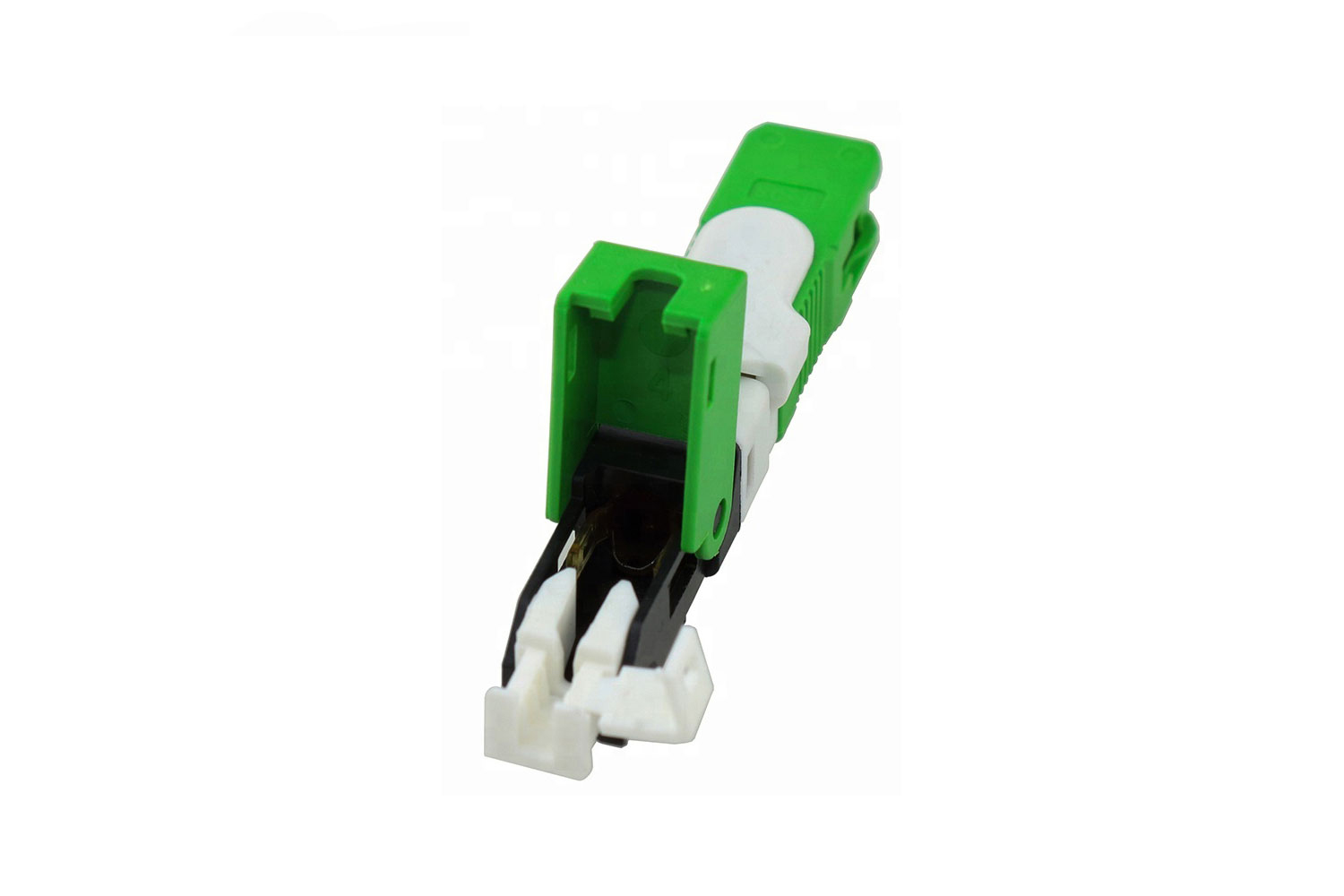

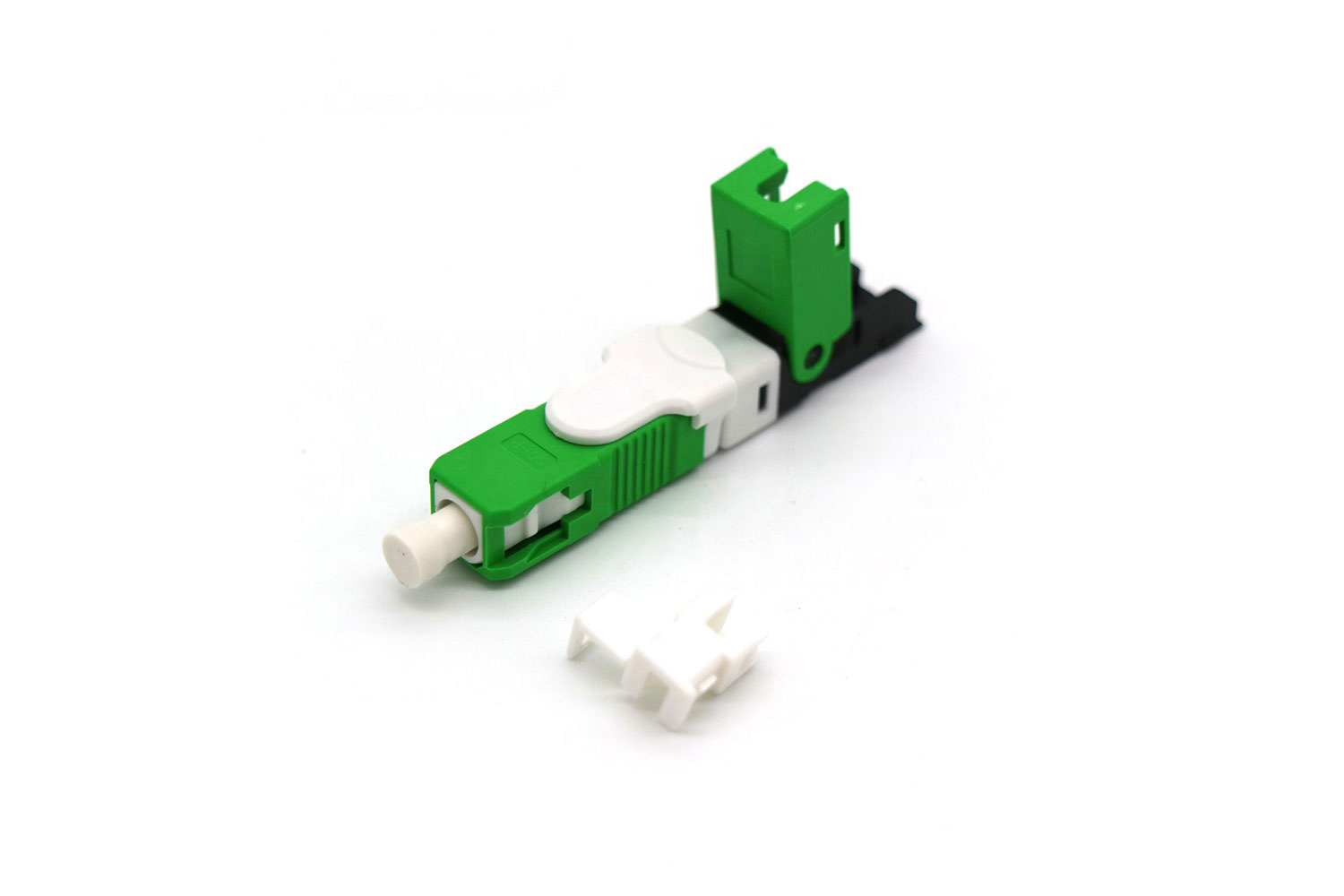

SC/APC FTTH Quick Connector Optical Fiber Fast Connector

Product Model

 SP-608-SC/APC

Product Description

This kind of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application. The SC type is available with 250/900um buffed fiber, 2.0mm,1.6mm x 2.0mm, 2.0mm x 3.0mm and 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mm x3.0mm cable diameter.

Features
  1. Comply with TIA/EIA Telcoria GR-326-Core and IEC 61754;
  2. Quick and easy fiber termination;
  3. RoHS compliant;
  4. Reusable termination capability up to 10 times;
  5. Easy to deploy fiber solution;
  6. High success rate of connections;
  7. Low Insertion & Back Reflection;
  8. No special tools required.
  9. OEM Printing, packing and label is okay.
  10. Cutting 250um fiber 20.85mm, 125um fiber 7.7mm
Specification

Item

Parameter

Cable Scope

3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable

Size:

51*9*7.55mm

Fiber Diameter

125μm ( 652 & 657 )

Coating Diameter

250μm

Mode

SM

Operation Time

about 15s(exclude fiber presetting)

Insertion Loss

≤ 0.3dB(1310nm & 1550nm)

Return Loss

≥ 50dB for UPC, ≥ 55dB for APC

Success Rate

>98%

Reusable Times

>5  times

Tensile Strength

>30 N

Temperature

-40 ~ +85 C

On-line Tensile Strength Test (20 N)

IL ≤ 0.3dB

Mechanical Durability(500 times)

IL ≤ 0.3dB

Drop Test(4m concrete floor, once each direction, three times total)

IL ≤ 0.3dB

Application
  • All finer interconnection;
  • Telecom distribution and Local Area Networks;
  • FTTH & FTTx;
  • Passive Optical Networks;
  • Broadband, CATV.
