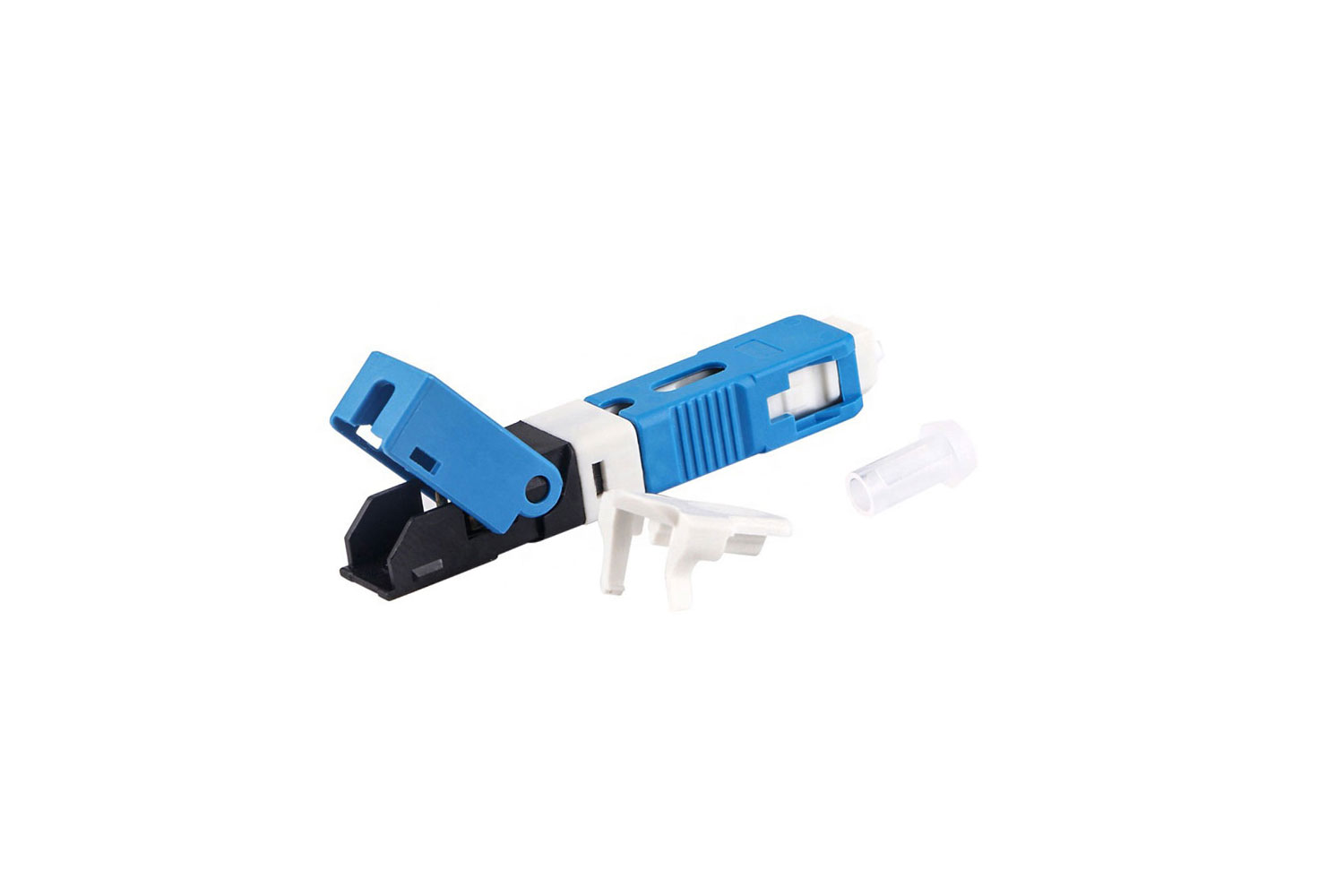

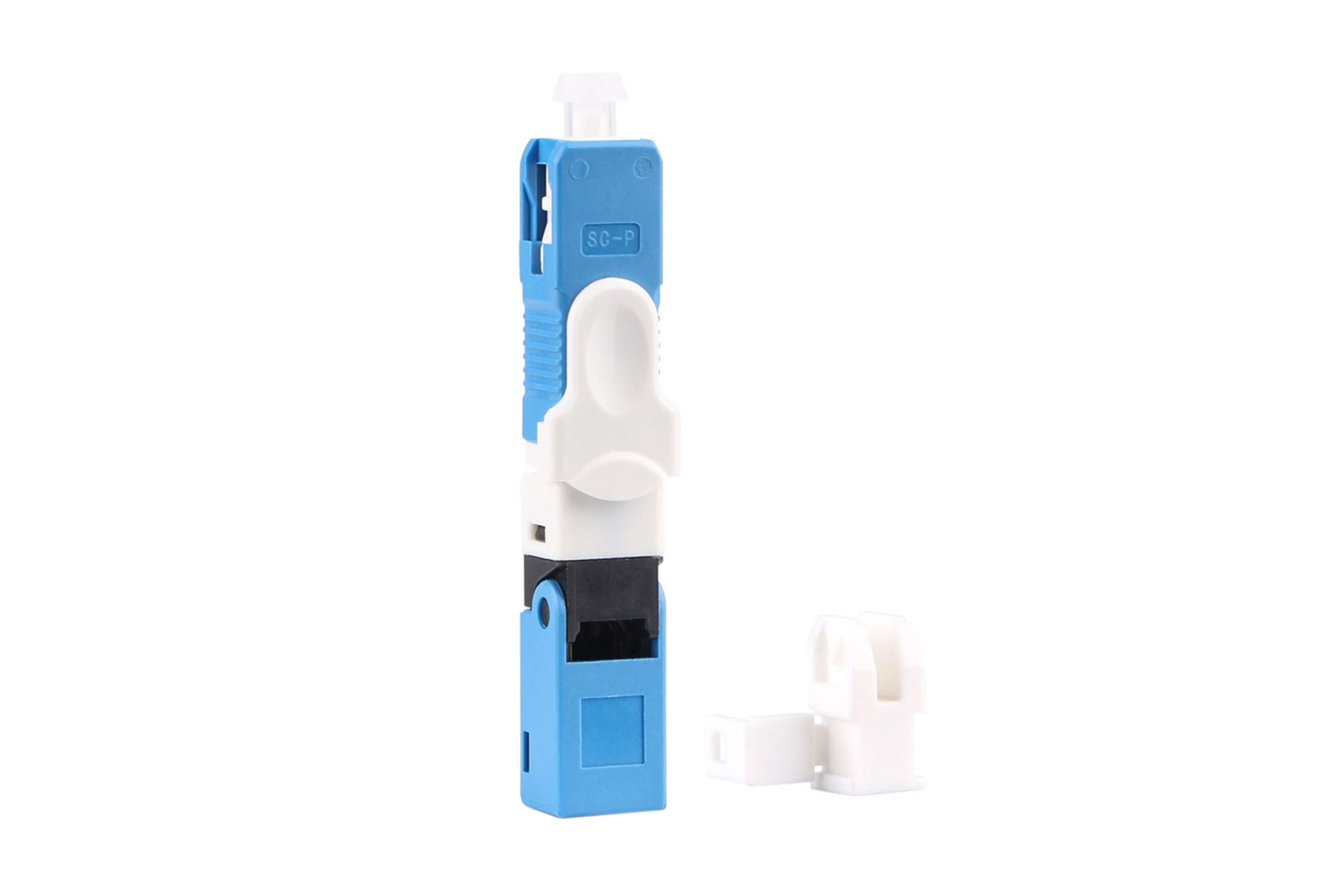

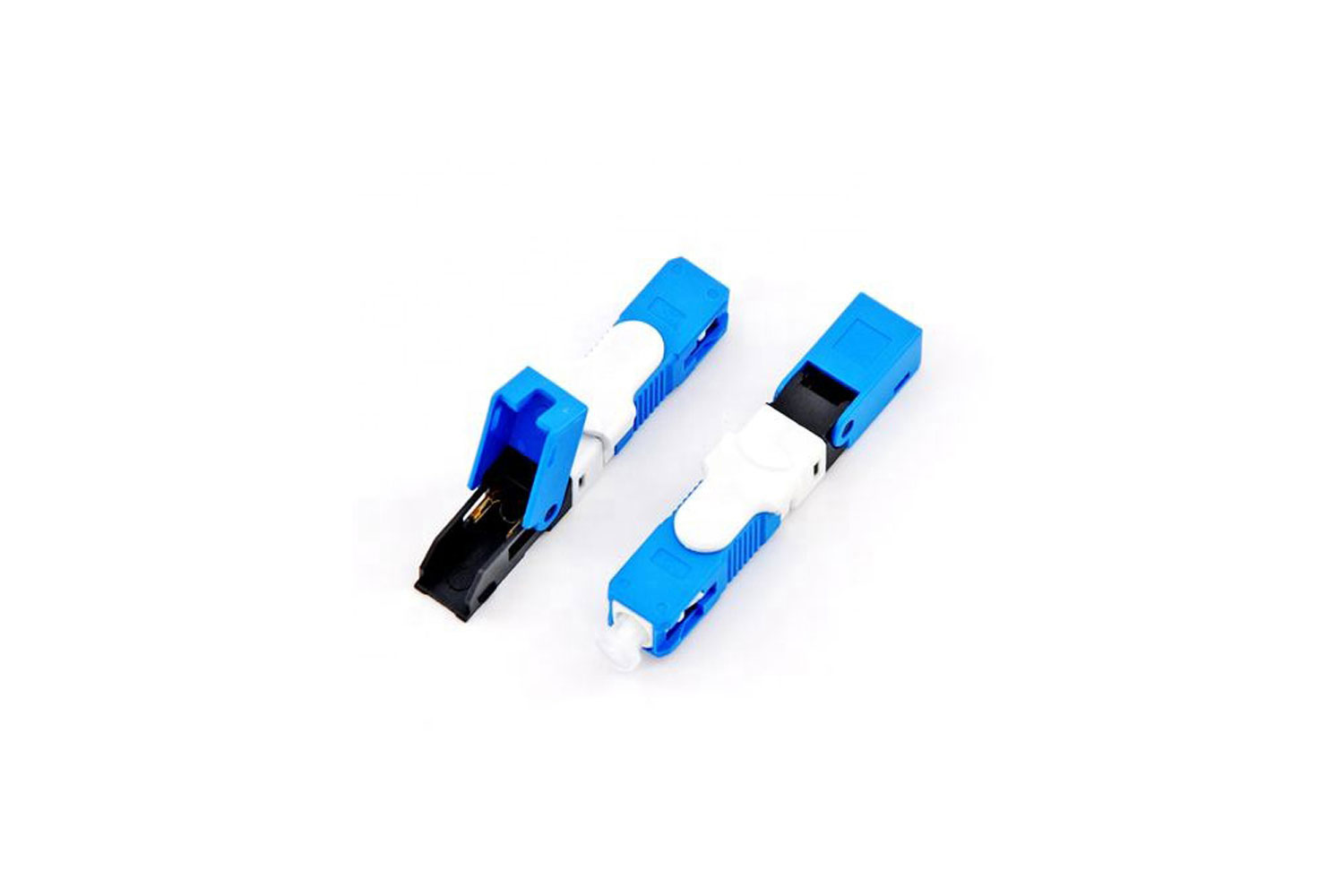

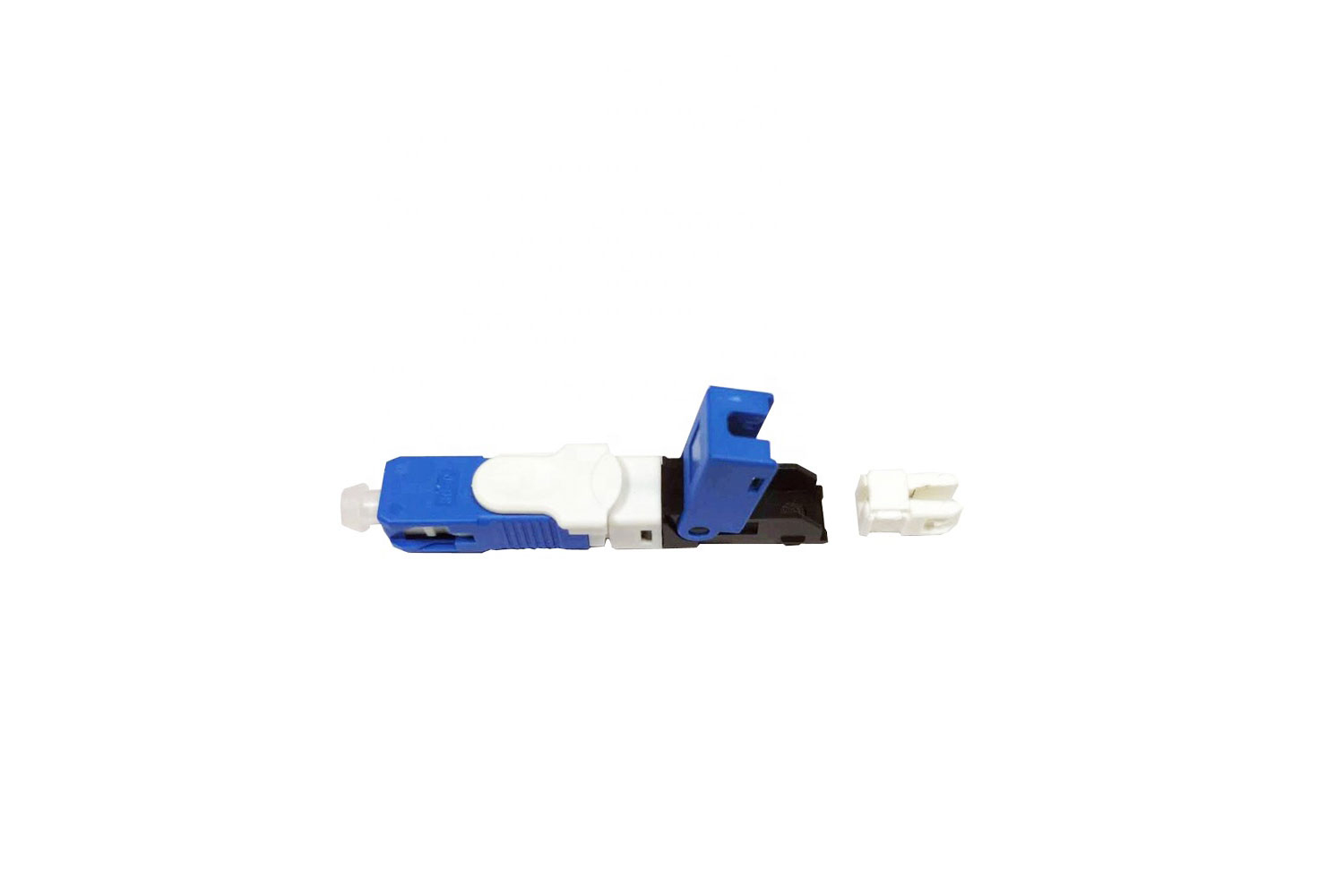

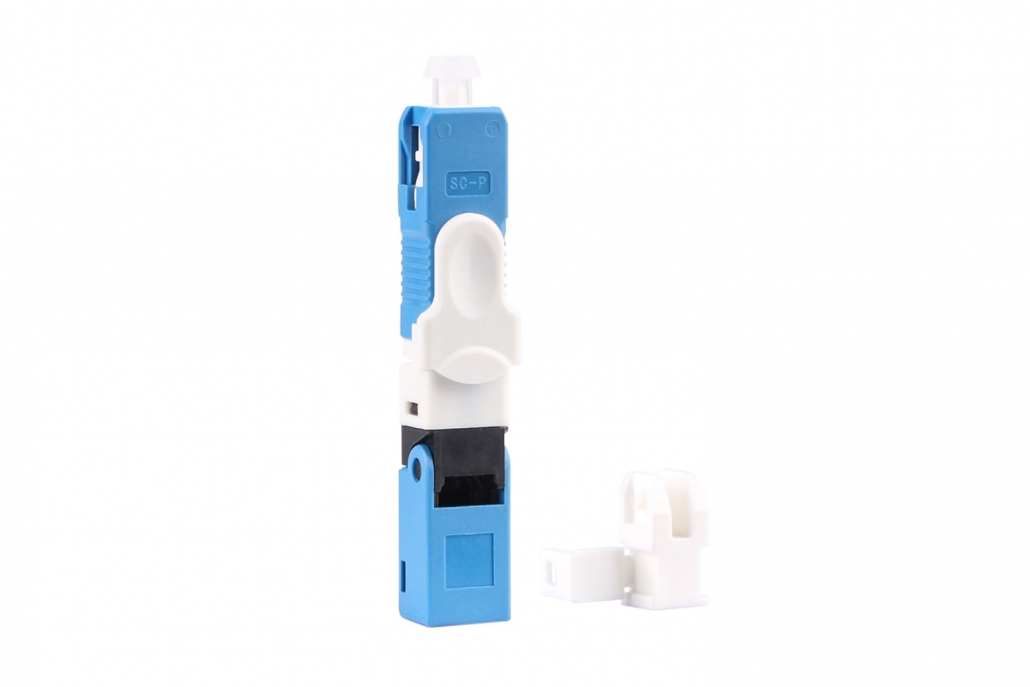

SC/UPC Fiber Optic Fast Connector New Look Quick Connector

Product Model

 SP-608 SC/UPC

Product Description

This kind of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application. The SC type is available with 250/900um buffed fiber, 2.0mm,1.6mm x 2.0mm, 2.0mm x 3.0mm and 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mm x3.0mm cable diameter.

Features
  1. Comply with TIA/EIA Telcoria GR-326-Core and IEC 61754;
  2. Quick and easy fiber termination;
  3. RoHS compliant;
  4. Reusable termination capability up to 10 times;
  5. Easy to deploy fiber solution;
  6. High success rate of connections;
  7. Low Insertion & Back Reflection;
  8. No special tools required.
  9. OEM Printing, packing and label is okay.
  10. Cutting 250um fiber 20.85mm, 125um fiber 7.7mm
Specification
Item Parameter
Cable Scope 3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable
Size: 51*9*7.55mm
Fiber Diameter 125μm ( 652 & 657 )
Coating Diameter 250μm
Mode SM
Operation Time about 15s(exclude fiber presetting)
Insertion Loss ≤ 0.3dB(1310nm & 1550nm)
Return Loss ≥ 50dB for UPC, ≥ 55dB for APC
Success Rate >98%
Reusable Times >5  times
Tensile Strength >30 N
Temperature -40 ~ +85 C
On-line Tensile Strength Test (20 N) IL ≤ 0.3dB
Mechanical Durability(500 times) IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total) IL ≤ 0.3dB
Application
  • All finer interconnection;
  • Telecom distribution and Local Area Networks;
  • FTTH & FTTx;
  • Passive Optical Networks;
  • Broadband, CATV.
