FTTH 2 Core Wall Mounted Outlets Fiber Optic Termination Box

Product Model

SP-1602-2E

Product Description

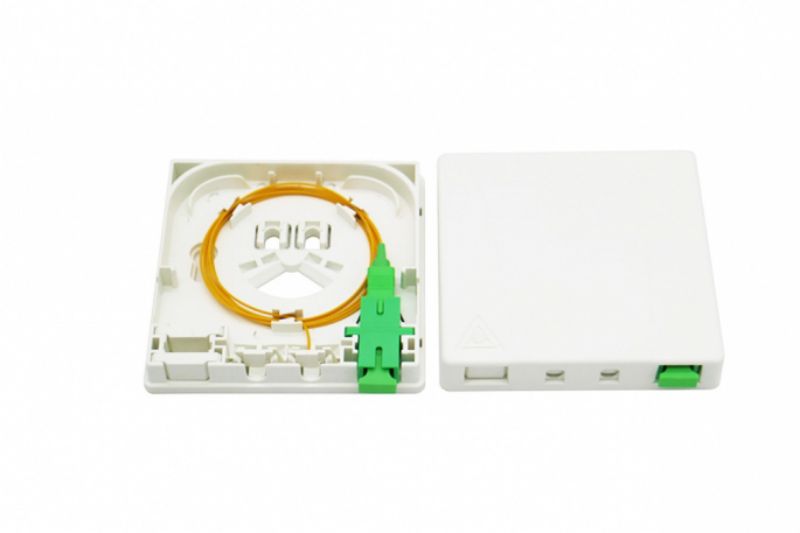

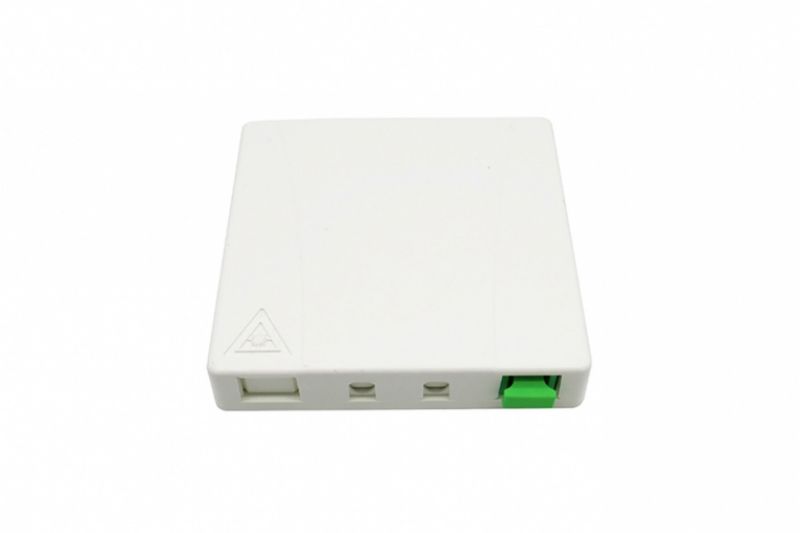

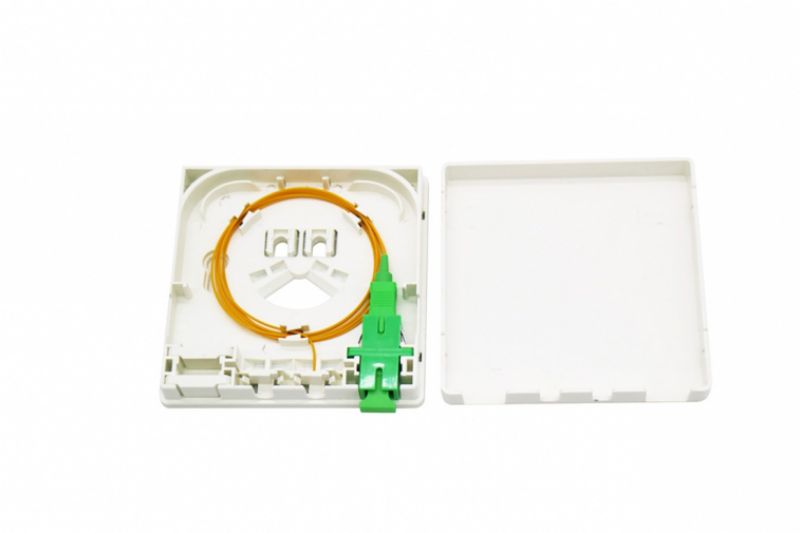

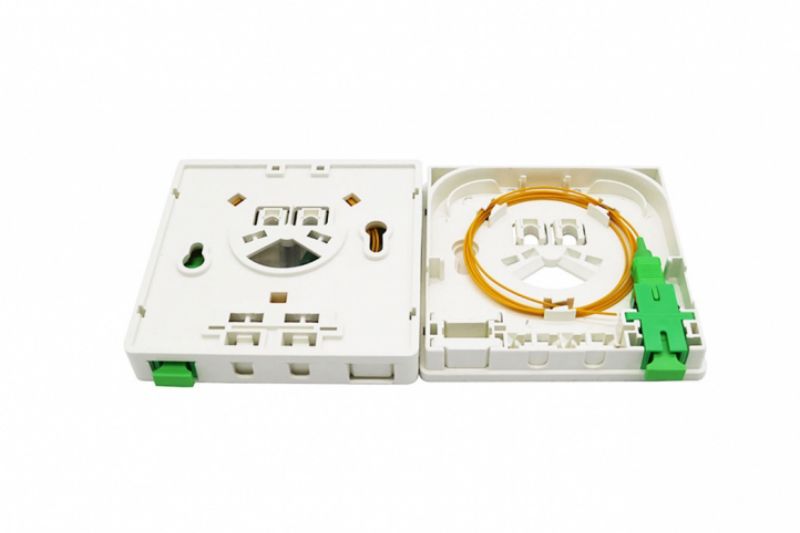

SP-1602-2E Fiber termination boxes wall mount outlets is able to hold up 2 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber splicing, termination, storage and cable connection in one solid protection box.

Features

Feature:

Small size, light weight, pleasant appearance
Cable entry and exit in front not at back, easy to operate and management
Set strengthen device and fiber optic cable mounting seat
May adapt SC/ LC duplex connectors
Optical fiber can be managed effectively
2pcs FTTH drop cable outports
Maximum fusion 2 fibers
Indoor wall mount

Specification

Specification:

Type	SP-1602-2E
Size(mm) WDH	909016
Material	PC+ABS
Cable Ports	SC 2ports, LC 4ports
Scope of Application	3.0*2.0mm drop cable or indoor cable
Max capacity of splice	4(single fiber)
Adapter type	SC Simplex Adapter; LC Duplex Adapter
Pigtail Type	SC/LC 0.9mm Pigtails
Color	White
