Product Model
SP-3CS-SC/UPC
Product Description

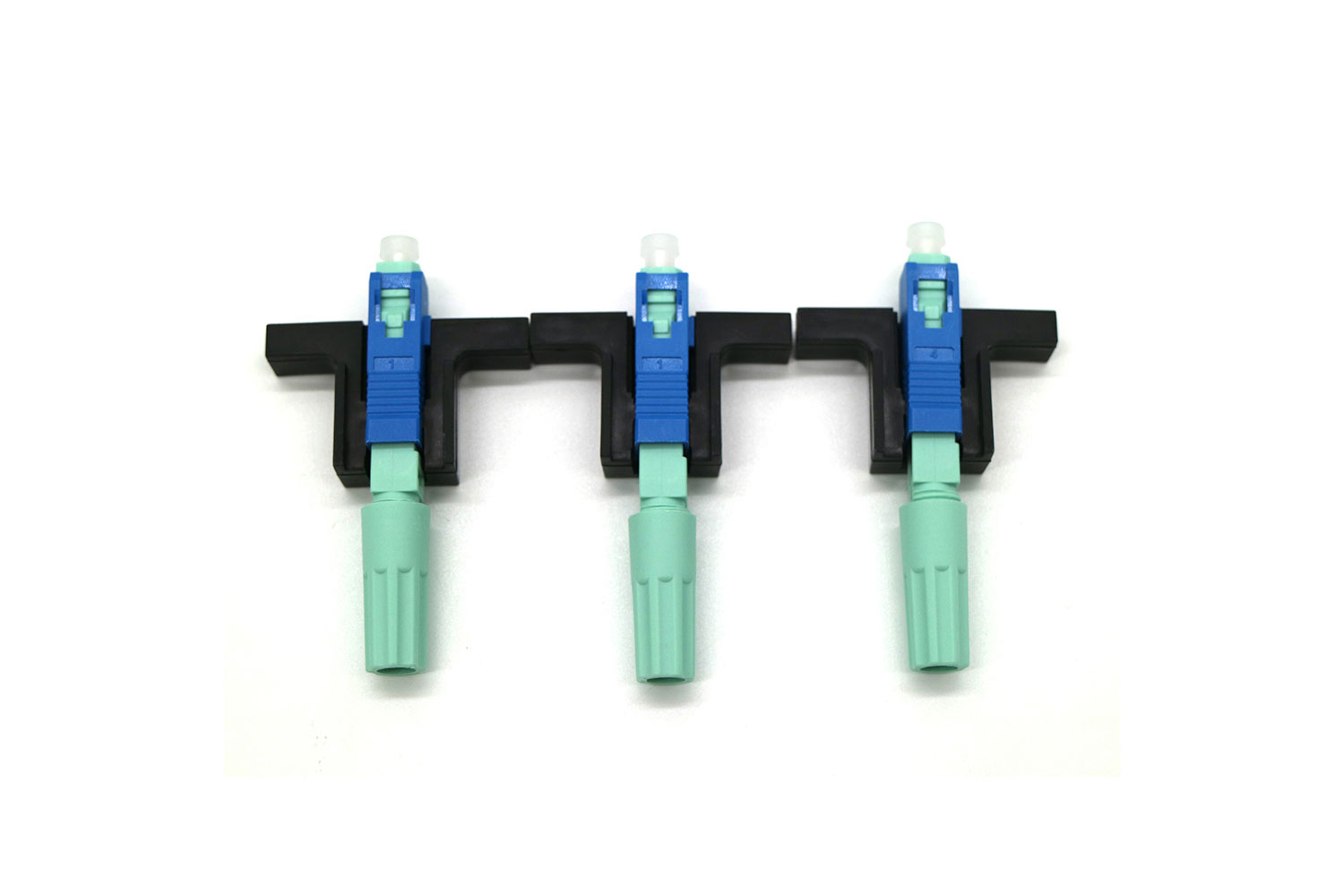

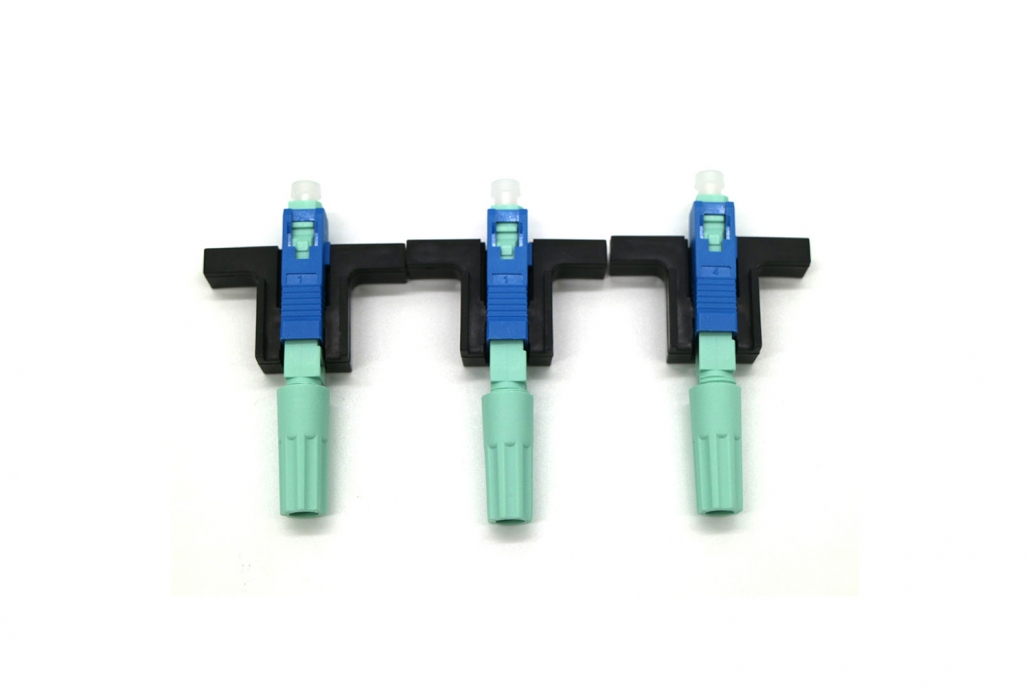

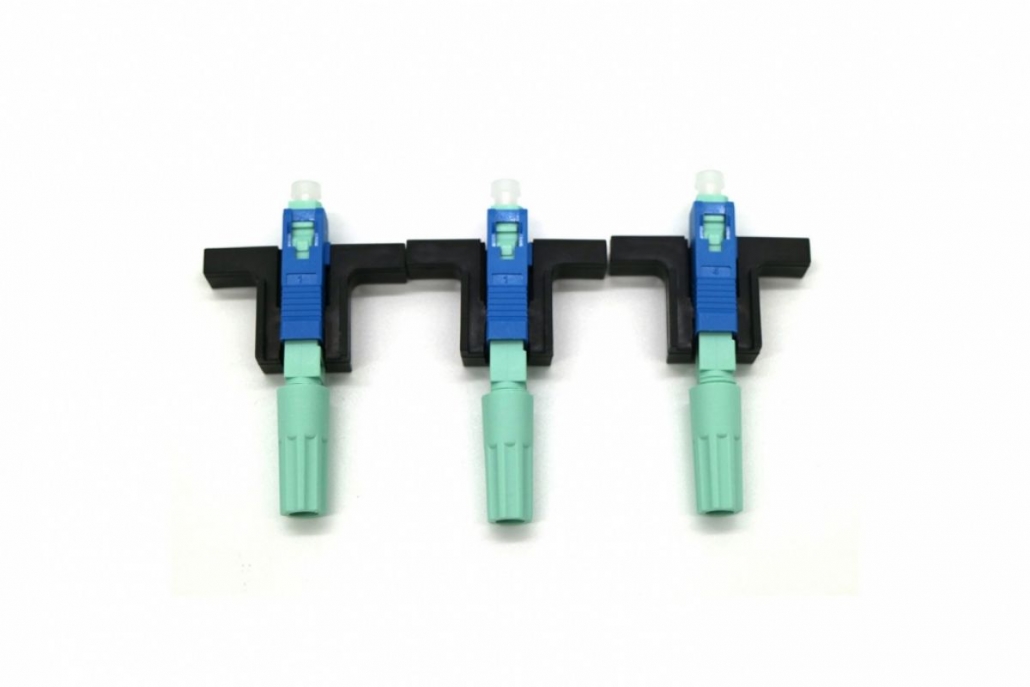

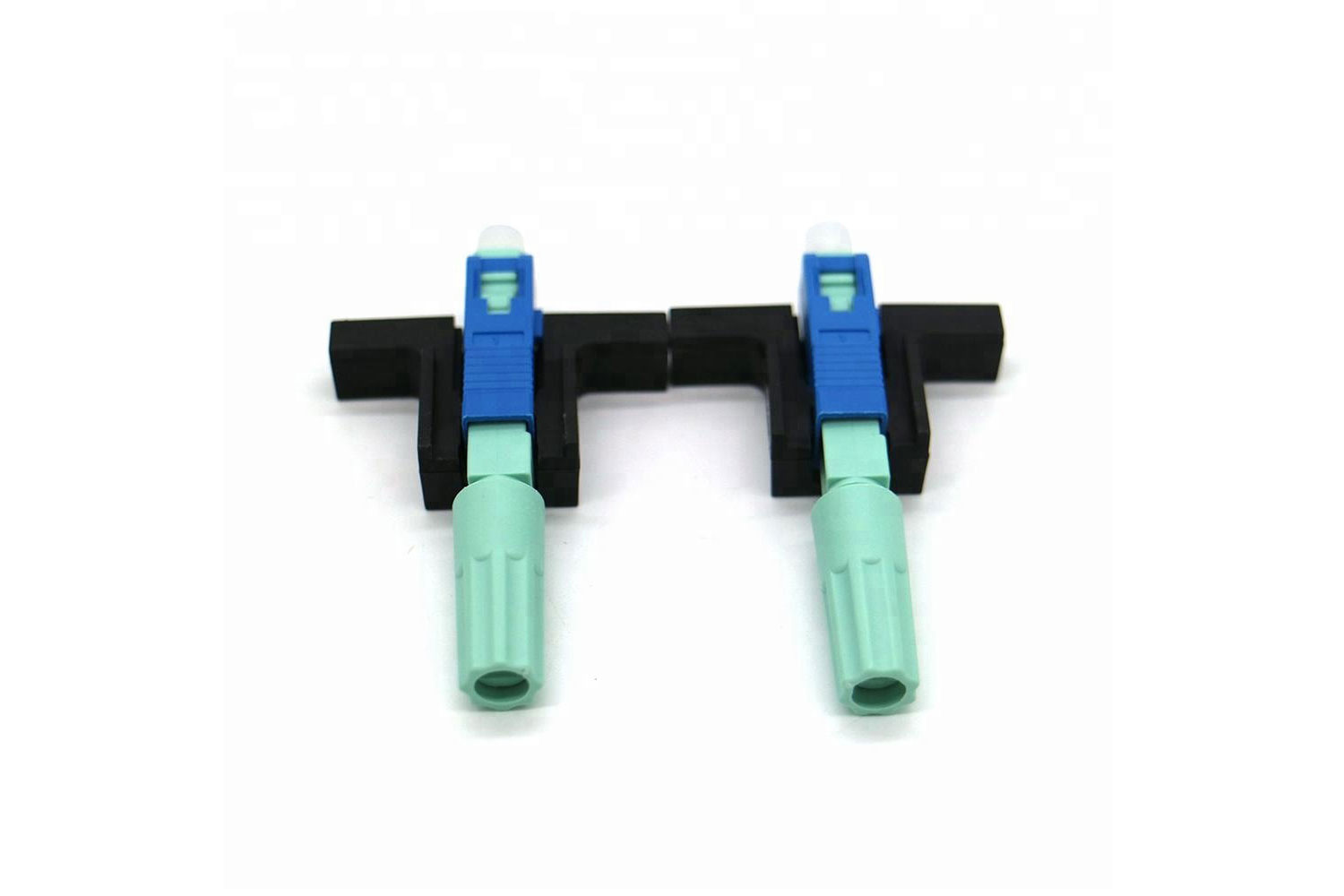

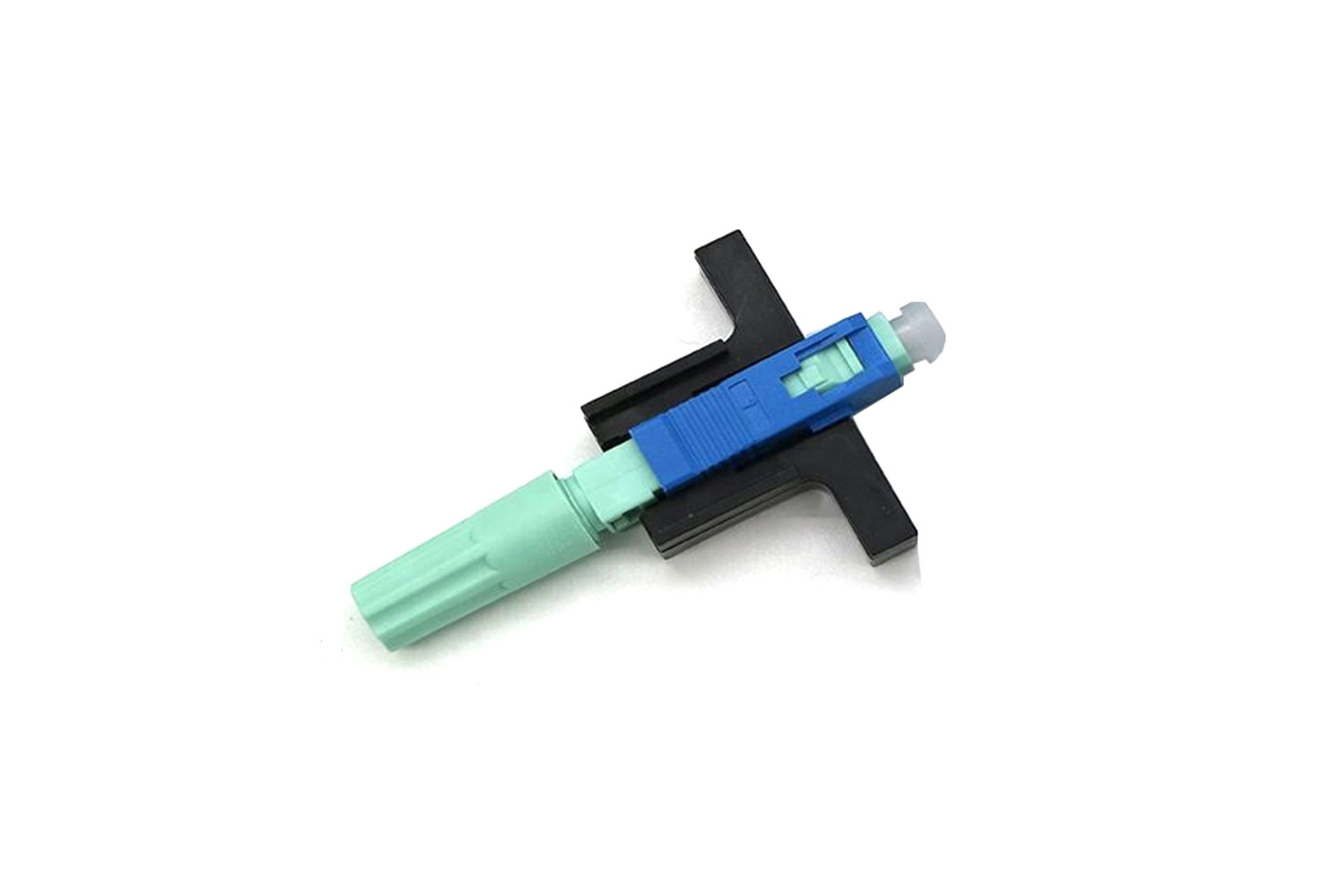

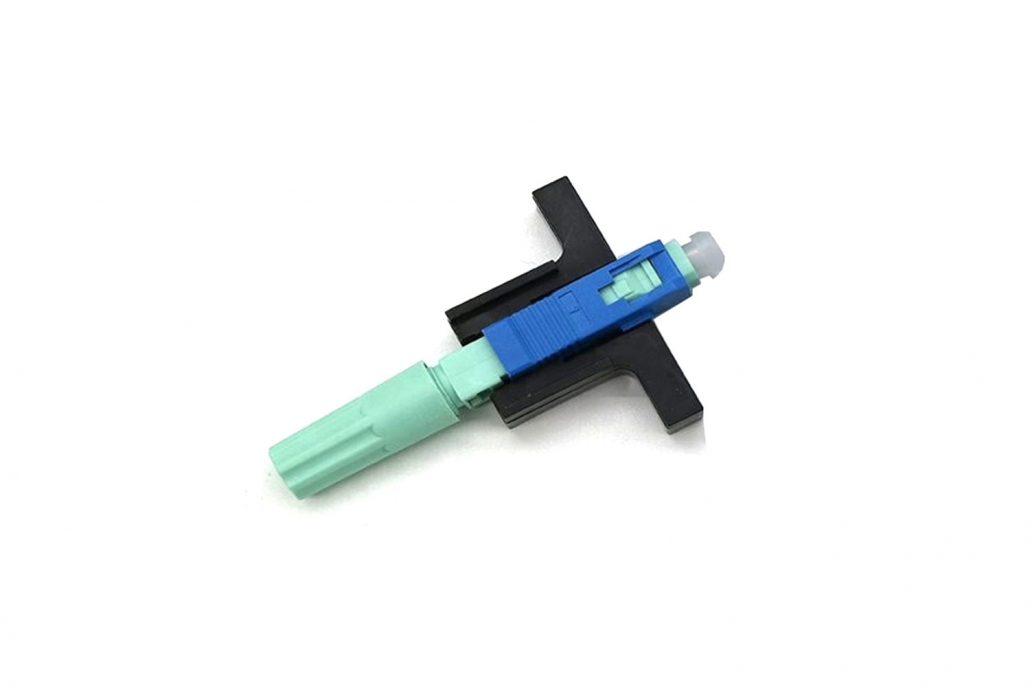

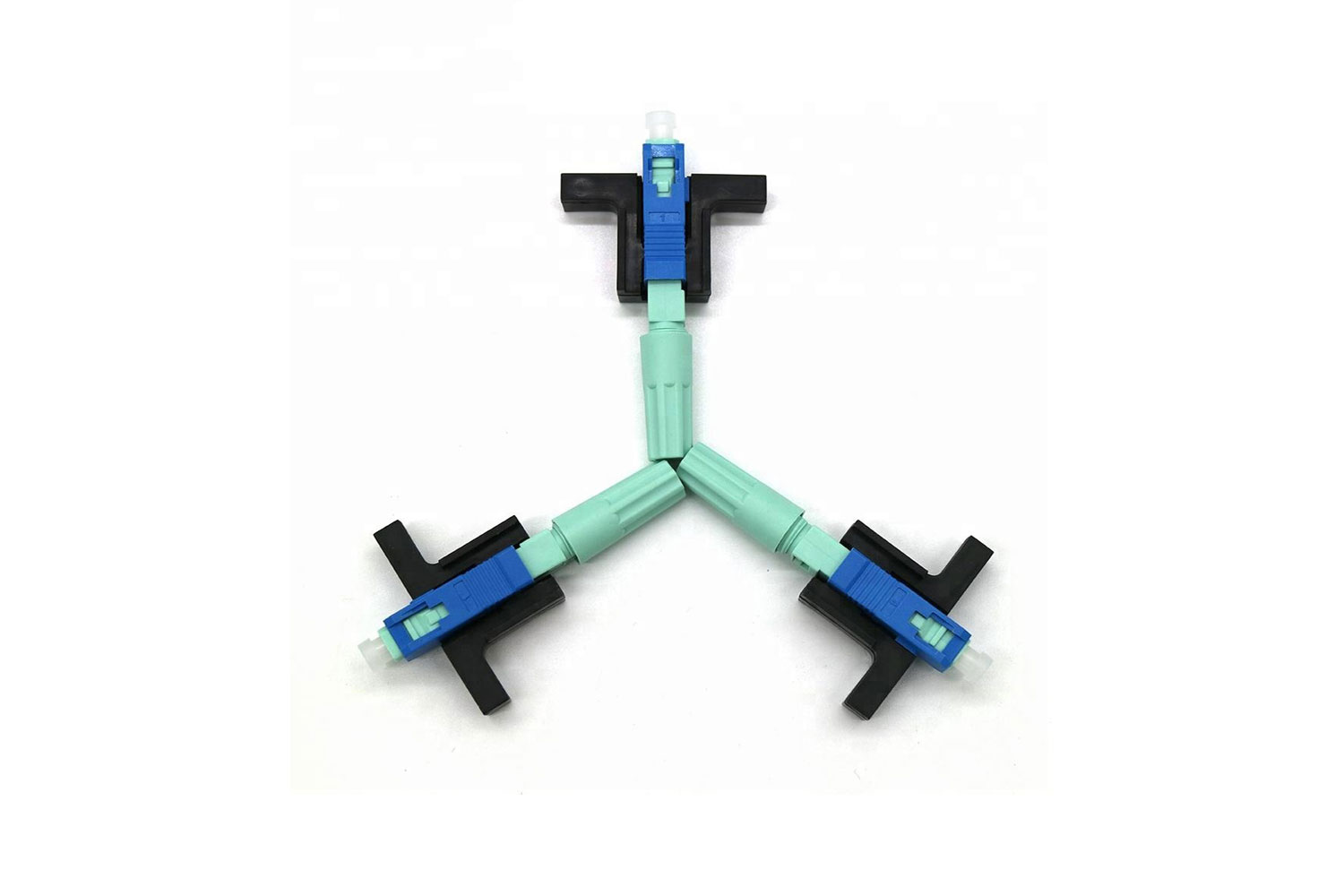

Fiber optic fast connector designed for FTTH. It is a new generation of fiber connector used in assembly. It can provide open flow and precast type, which optical and mechanical specification meets the standard optical fiber connector. It is designed for high quality and high eddiciency for installation, the structure of crimping position is a unique design.
| Item | Specification |
| Insertion Loss | Average≤0.2dB，Max≤0.4dB |
| Return Loss | PC：≥40dB，APC：≥55dB |
| One-Time Assembly Yield | ≥97% |
| Assembly Repeatability | ≥5 times |
| Average Assembly Time | ≤3minute |
| Life-Time | ≥30years |
| Tensile Strength | ≥30N（2.0×3.0 drop cable.） |
| Operation Temperature | -40℃~+85℃ |
| Advantages: |
| 1.Low Insertion Loss |
| 2.Dual v groove design for high stability and reliability |
| 3.Durable life |
| 4.Easy installation |
| 5.OEM service for accessories |
