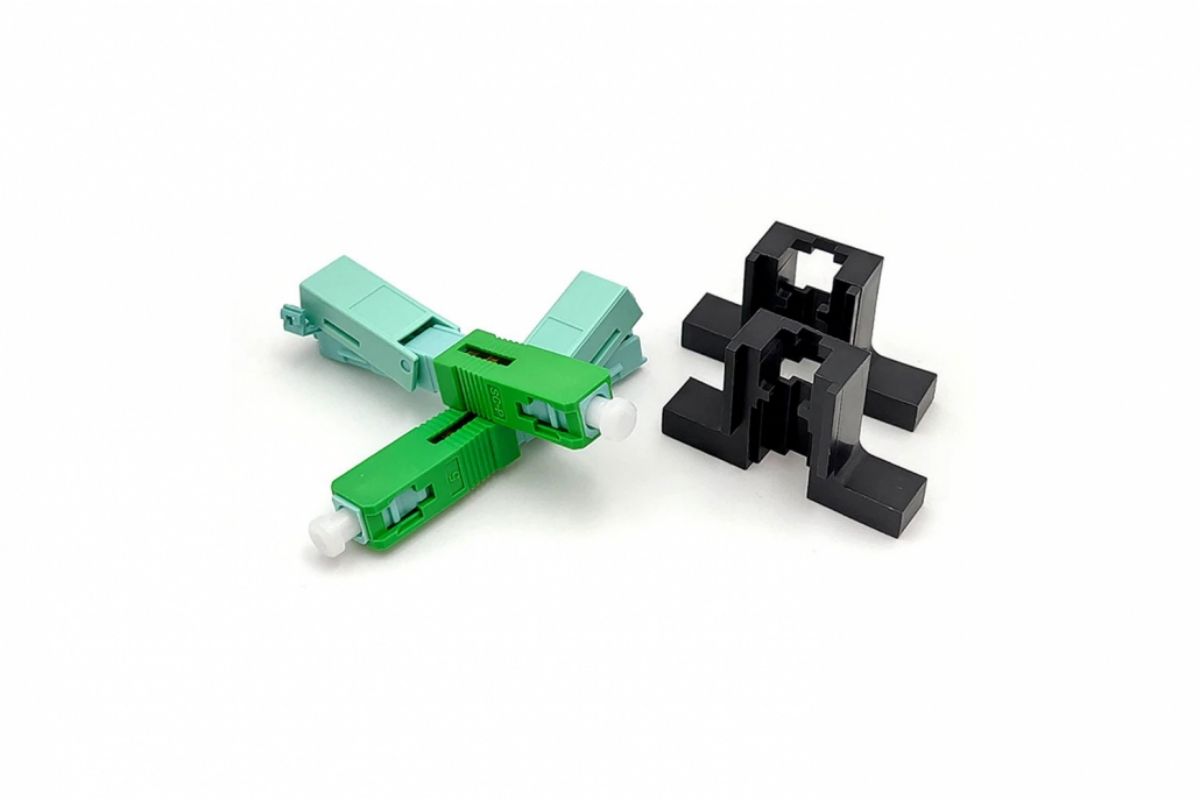

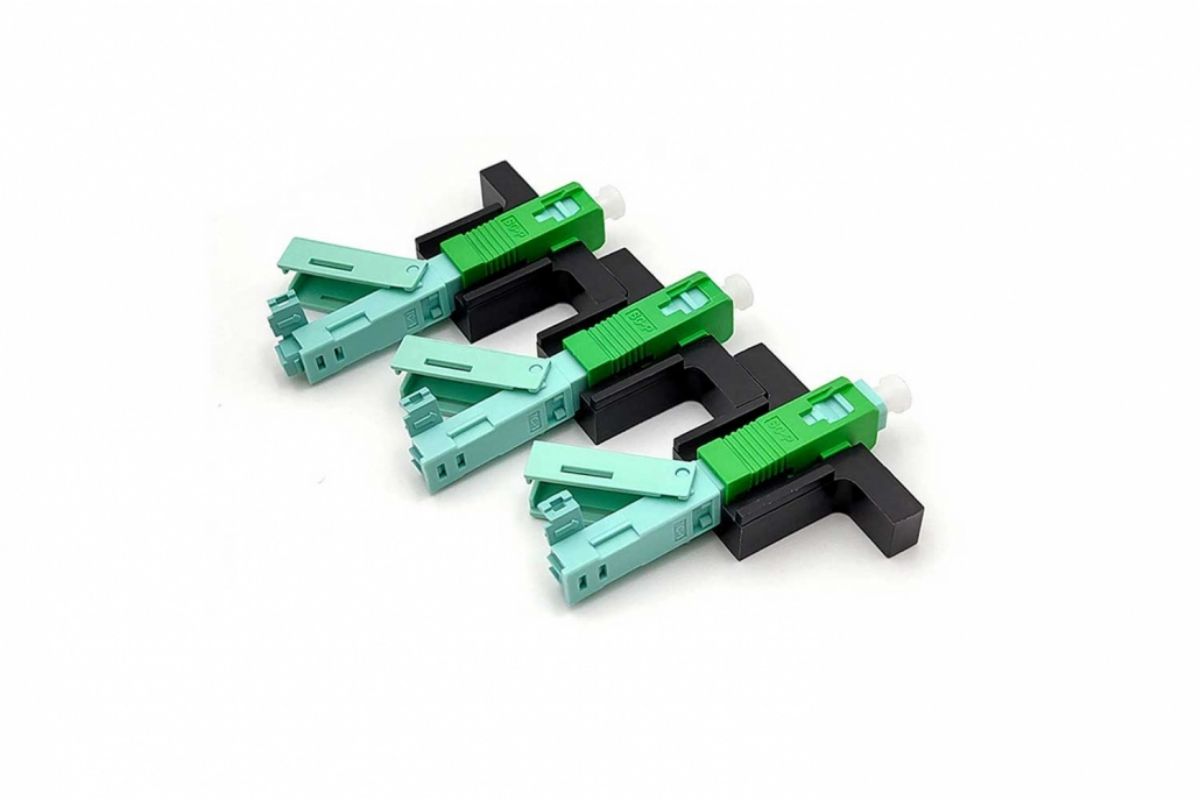

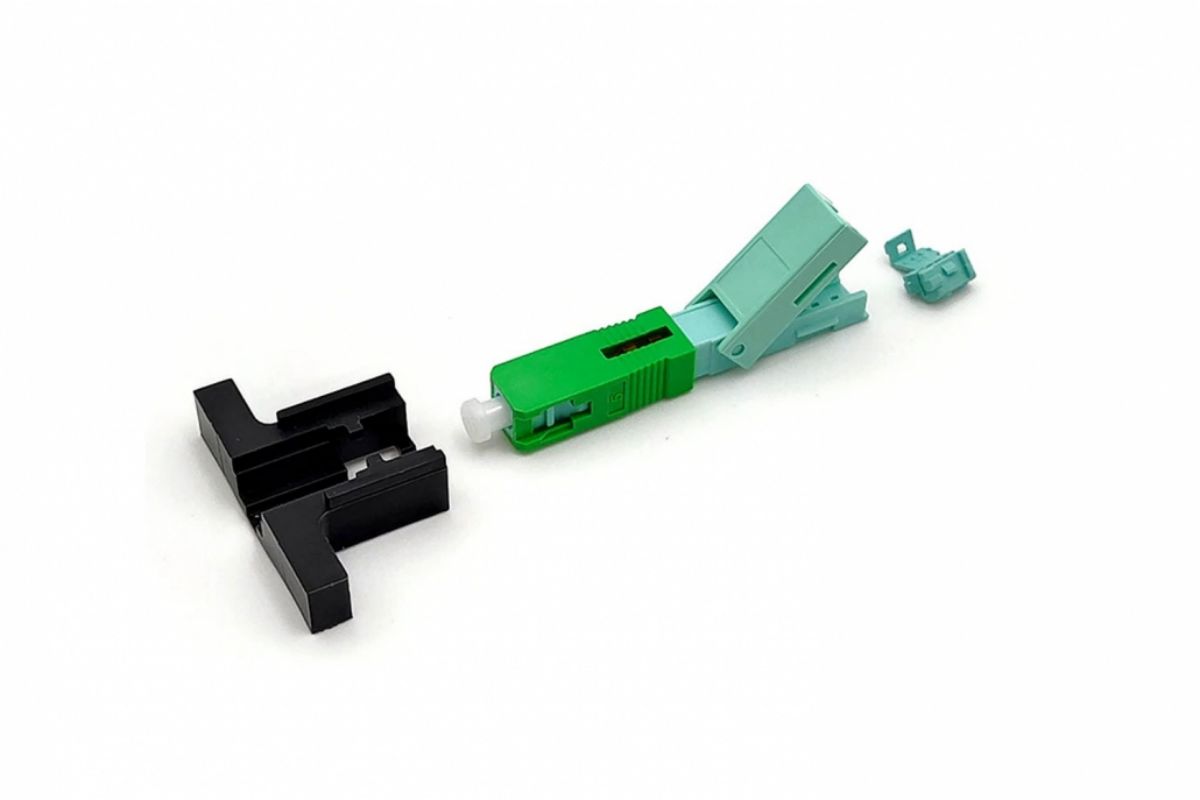

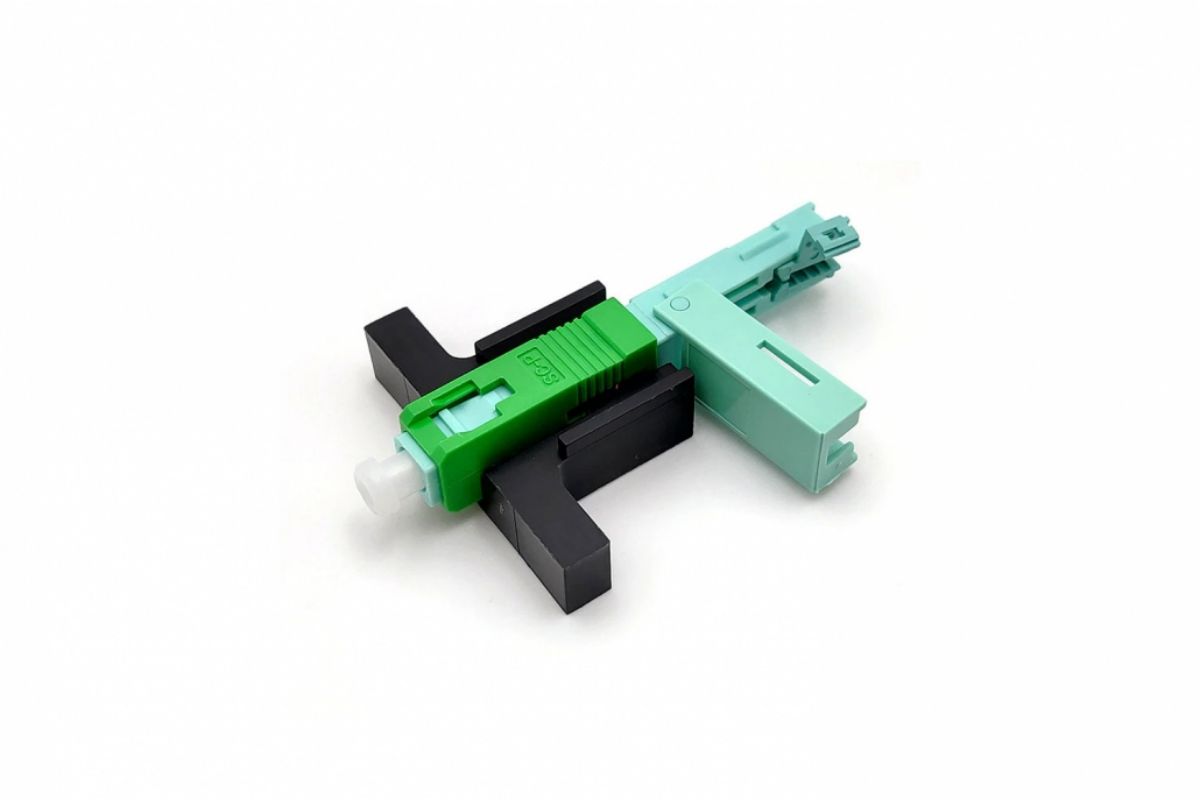

Fiber SC/APC Wedge Type Fast Connector SP-3CW Model-B

Product Model

SP-3CS-SC/UPC

Product Description

Fiber optic fast connector designed for FTTH. It is a new generation of fiber connector used in assembly. It can provide open flow and precast type, which optical and mechanical specification meets the standard optical fiber connector. It is designed for high quality and high eddiciency for installation, the structure of crimping position is a unique design.

Item Specification
Insertion Loss Average≤0.2dB,Max≤0.4dB
Return Loss PC:≥40dB,APC:≥55dB
One-Time Assembly Yield ≥97%
Assembly Repeatability ≥5 times
Average Assembly Time ≤3minute
Life-Time ≥30years
Tensile Strength ≥30N(2.0×3.0 drop cable.)
Operation Temperature -40℃~+85℃

GETTING MORE DETAILS AND SPECIAL PRICE FROM US
