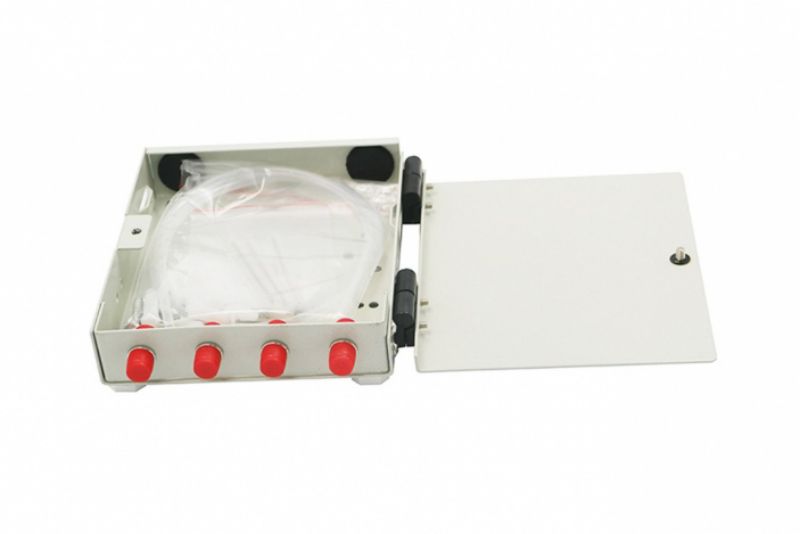

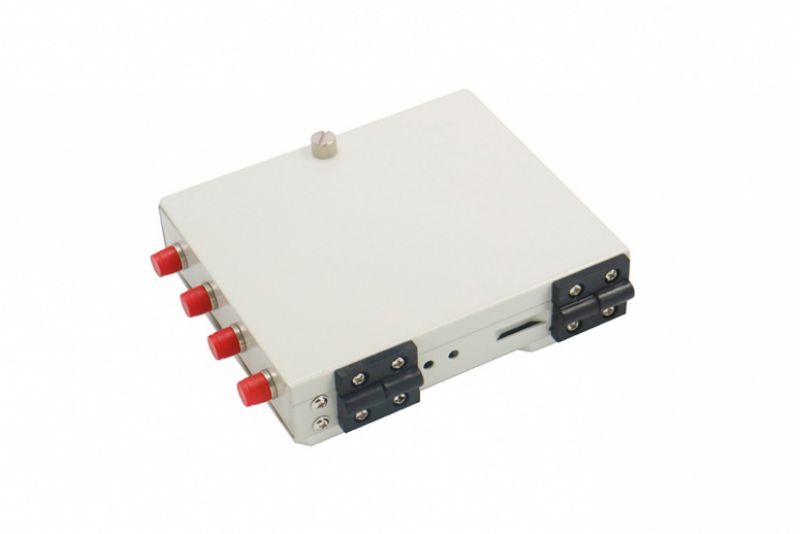

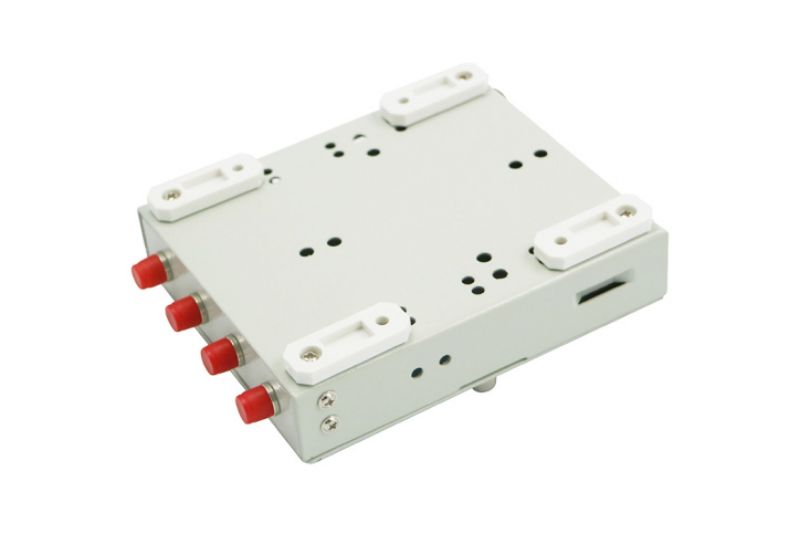

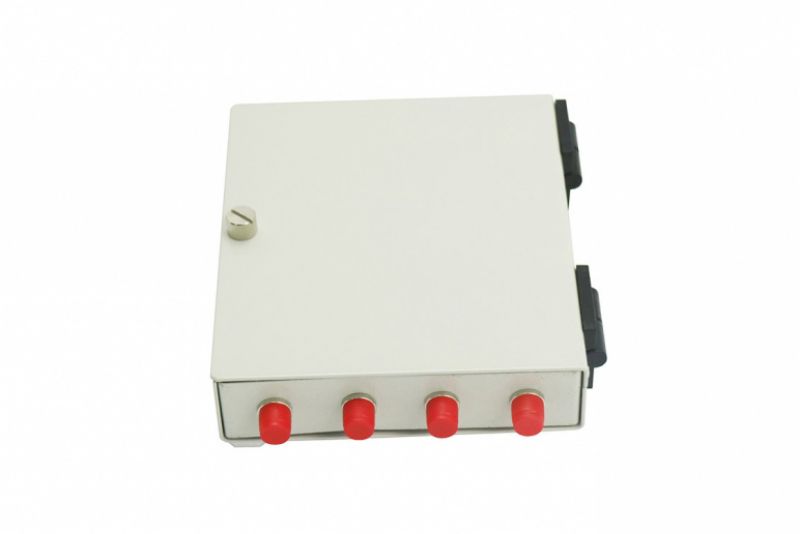

FTB FTTH 4 Port Wall Mounted Fiber Optic Termination Box

Product Model

FTB-104A

Product Description

FTB Series FTTH customer terminal box is used in the end termination of residential buildings and villas, to fix and splice with pigtails. We offer the full set of plastic terminal box as distribution box, including 0.9um pigtail and related adapter. 4 Fiber wall mounted terminal box can install with 4 pieces 0.9mm pigtails and Standard adapter, SC, LC, FC, ST all is available.

Features

Features:

  1. Small size, light weight, pleasing in appearance
  2. Wall mounted with mechanical protection function
  3. Max fiber capacity 4 fibers
  4. Available for 4 fibers SC adapters (Optional SM, MM or APC/SM)
  5. Material: Plastic
  6. Hinge and convenient press-pull button lock design
Applications

Applications

  1. Widely used in FTTH access network.
  2. Telecommunication Networks
  3. CATV Networks
  4. Data Communications Networks
  5. Local Area Networks
Specification

Specification:

Item Capacity Size
4 Core Fiber Terminal Box 4Port 117.8mm(W)x137.4mm(H)x30mm(D)

Packing Information:

Model Net Weight Dia. Of Outer Carton G.W Of outer Carton No.of Products
4 Core Fiber Terminal Box 0.5kg/pcs 750*340*295mm 27kg/ctn 50pcs/ctn
