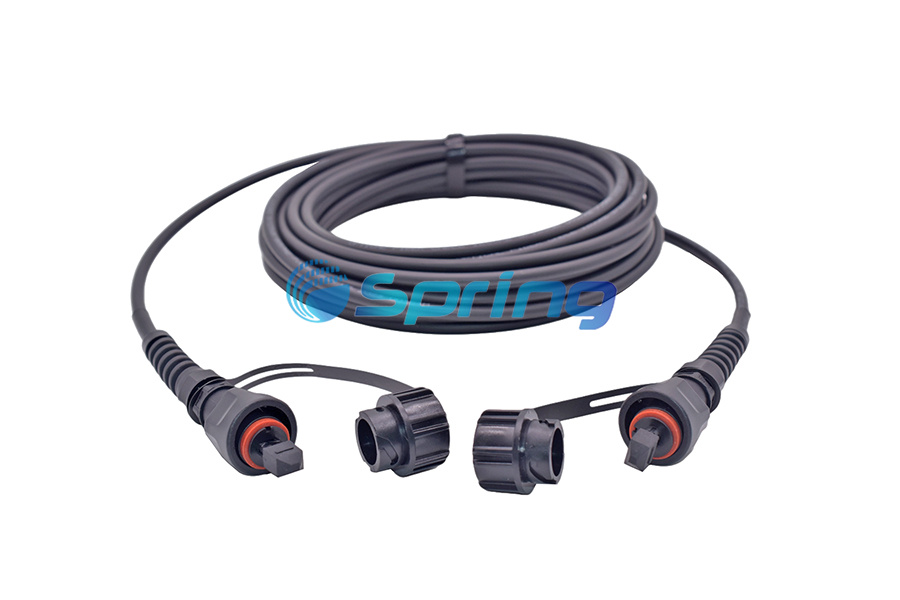

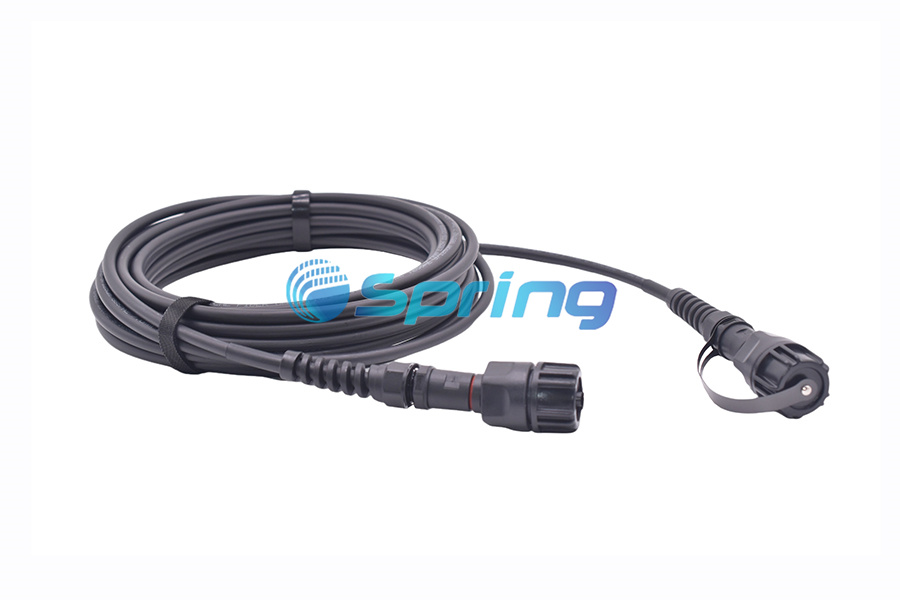

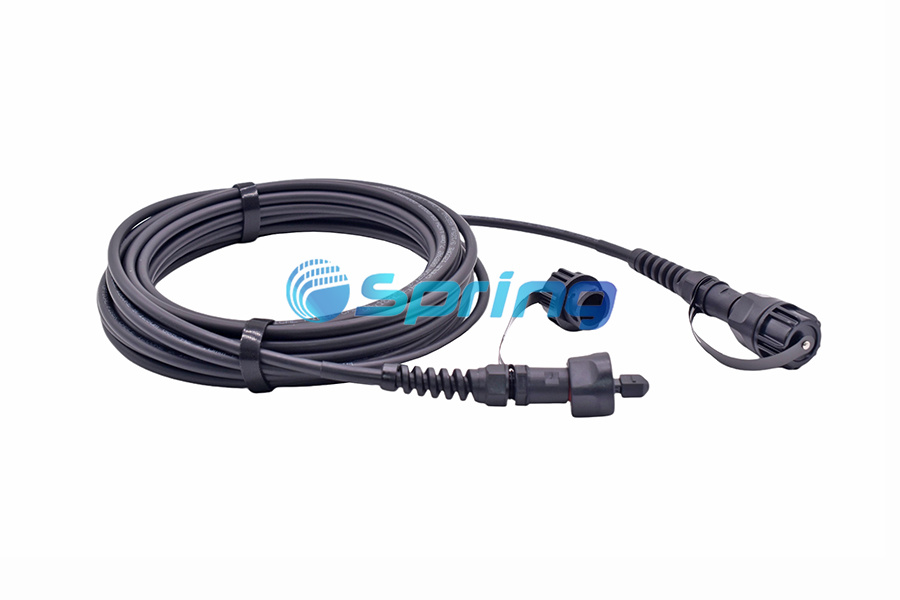

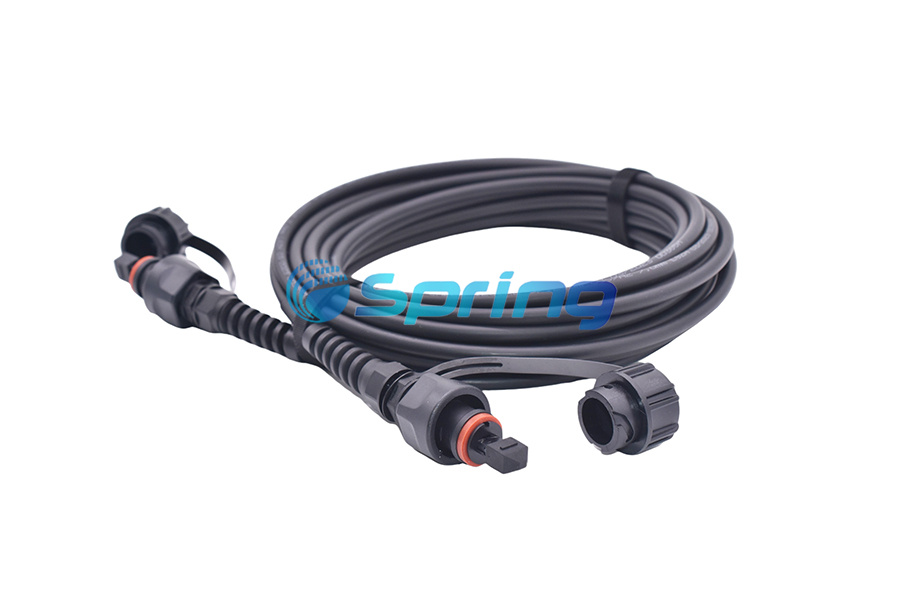

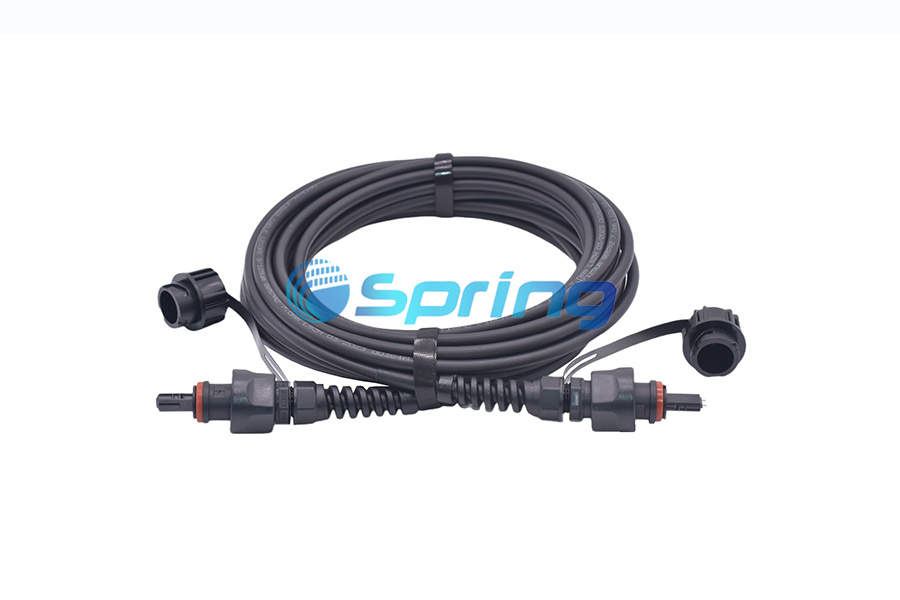

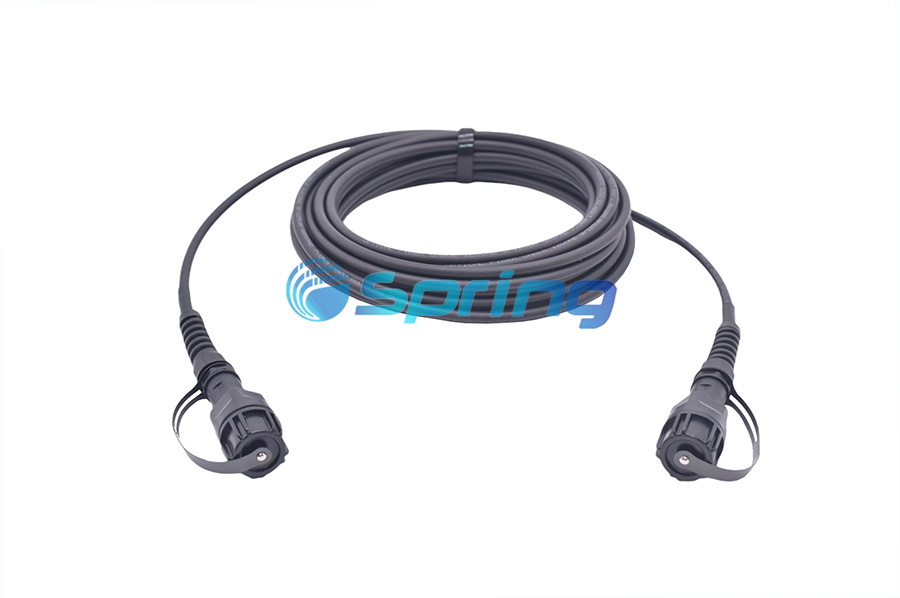

Outdoor IP67 ODVA-MPO Female To Male Fiber Patch Cables

Product Description

Sealed Circular IP67 ODVA-MPO fiber optic patch cable assemblies provides low cost ideal solution for CATV, RRH remote radio heads, FTTX harsh environment connectivity. This ODVA-LCDX, ODVA-SC and ODVA-MPO is a typical outdoor use fiber cable, suitable for different temperature and weather, especially ideal for FTTA and harsh environment use.

Features
  • 3 series optional: LC duplex,SC simplex,and MPO.
  • Low insertion and high return loss.
  • 5.0mm, 7.0mm cable optional.
  • Wide range of operational temperature from -40 to+85°C.
  • 100% optically tested to ensure quality performance assemblies.
  • IP67 Waterproof
Specification

Specifications:

Optical Characteristics
Item Parameter
Insertion loss Single mode Multimode
Typical value≤0.15dB;Maximum≤0.30 Typical value≤0.15dB;Maximum≤0.30
Return loss ≥ 60dB (APC); ≥ 50dB (UPC) ≥30dB (UPC)
Mechanical Characteristics
Test Conditions
Endurance 500 matings
Vibration Frequency: 10 to 55Hz,Amplitude: 0.75mm
Cable retention 400N (main cable); 50N (connector part)
Strength of coupling mechanism 80N for 2 to 3mm cable
Cable torsion 15N for 2 to 3mm cable
Fall 10 drops, 1m drop height
Static lateral load 1N for 1h (main cable); 0.2N for 5min (ranch part)
Cold -25°C, 96h duration
Dry heat +70°C, 96h duration
Change of temperature -25°C to +70°C, 12 cycles
Humidity +40°C at 93%, 96h duration
Application

Application:

  • FTTA,FTTH Application.
  • Horizontal and Vertical Cabling.
  • BBU,RRU,RRH,LTE
  • 4G,5G Base Station.
