5G FTTA IP67 FPM Waterproof Case Useable For Duplex LC Compatible Fullaxs Connector RRU BBU Connecting

Product Description

FPM for quick assembling cable from indoor to outdoor within 30seconds. It avoids making the assembly with the crimping, striping, gluing and polishing.Just inserting them directly into this outer waterproof connector easily and quickly. Enables pre-assembling of cables or connecting to cables already mounted in the field.It makes fiber and data cables possible for outdoor use and applicable for small cells, radio links, RRHs, and distribution boxes.


Product Description:

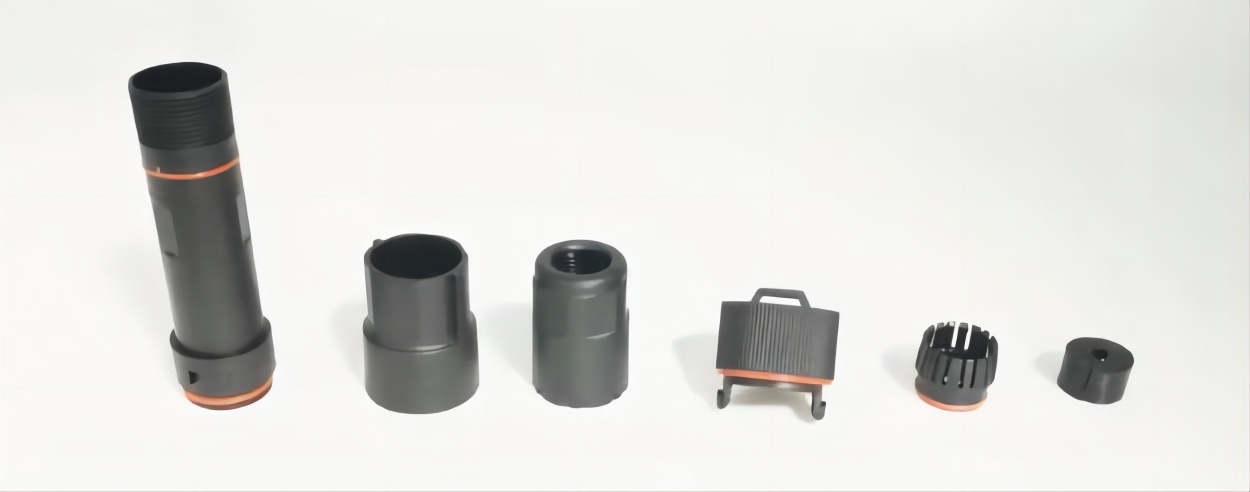

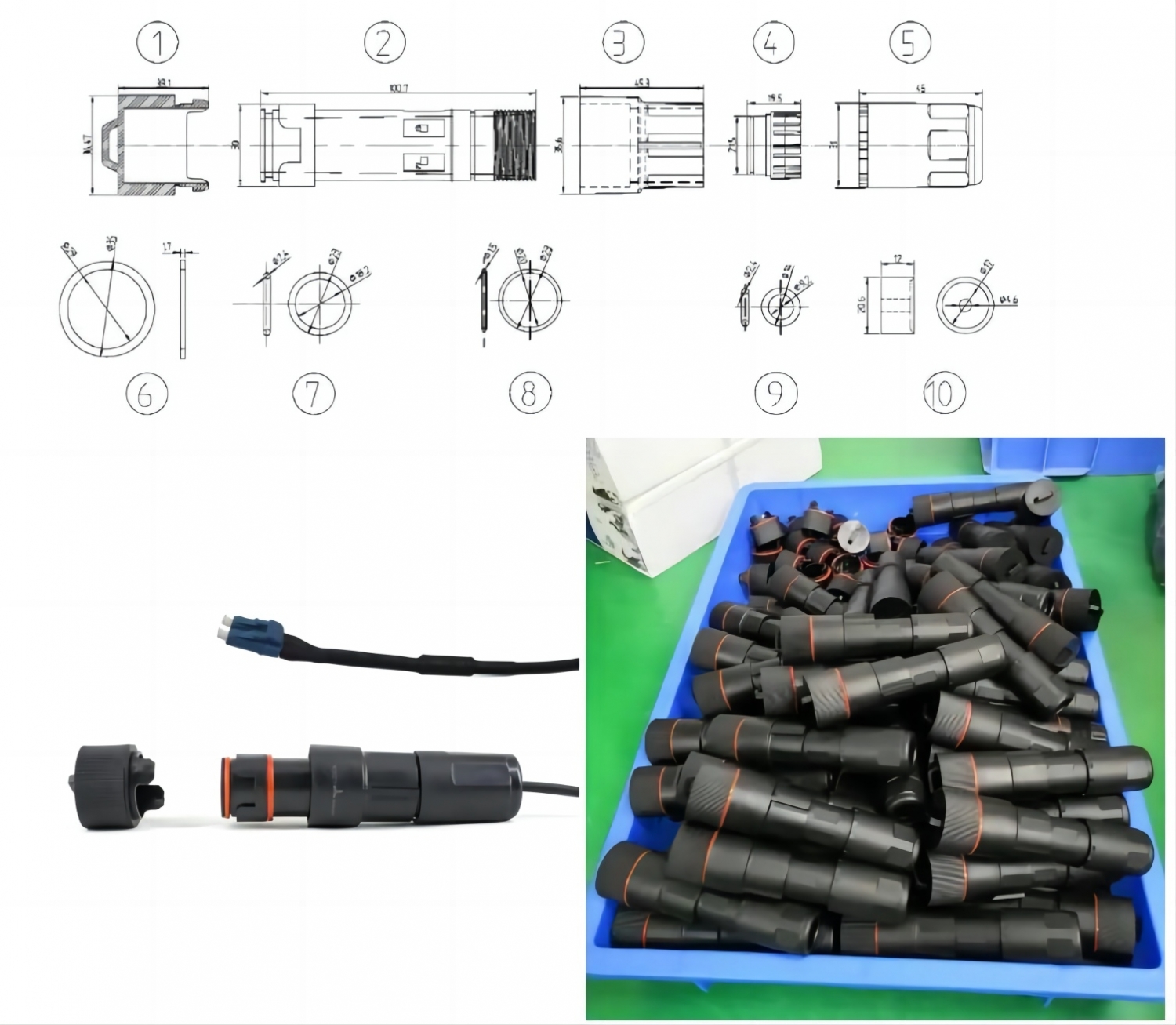

The FPM is a watertight and UV resistant enclosure for Duplex LC connectors and is compatible for Fullaxs foot print. Assemblies can be fed through the enclosure, therefore it is suitable for field installation. It has a self-blocking bayonet coupling mechanism which can’t be opened as long as the cable gland is not loosened to avoid damage to the fiber.

Features And Benifits:

  • For cable diameters from 4.5mm up to 9mm and the connectors with outer diameter of < 17.3mm. e.g. LC-Duplex, MPO, RJ45 and USB
  • Enables pre-assembling of cables or connecting to cables already mounted in the field
  • Easy to install by hand
  • Snap-on locking mechanism
  • Waterproof according to IP 67
  • UV resistant


  • FTTA,FTTH Application.
  • Horizontal and Vertical Cabling.
  • 4G,5G Base Station.


Port 2, 4, 5, 6, 8, 12
Product Type Access Terminal
IP Rate IP 68
Components Compliant RoHS
Operating Temperature -40 to +85℃
Adapter OptiTap SC, OptiTap LC Duplex, OptiTap MPO
Entrance Cable gland or OptiTap Adapter
Feed cable 1, 2, 4, 6, 8 coreS for options
Feed cable length Customized
Stub Type Stub Tail
Mounting Method Handhole, Pedestal, Pole, Strand, Aerial

Cable Specification:

Cable Type Flat drop cable
Cable Size 3.0×4.5mm; 4x7mm; 4.5×8.1mm; 4.5×9.8mm
Cable Quantity 1
Cable Stub Length 50meter to customized
Attenuation, maximum 0.30 dB/km @ 1550 nm    |   0.40 dB/km @ 1310 nm
Directivity, minimum 60 dB
Wavelength Range 1260–1635 nm
Insertion Loss, Terminal Connector, max 0.4dB
Return Loss, Connector, minimum 65dB


  • FTTH Projects
  • FTTA Projects
  • Truck cable connectings
  • Prospecting or military communication
