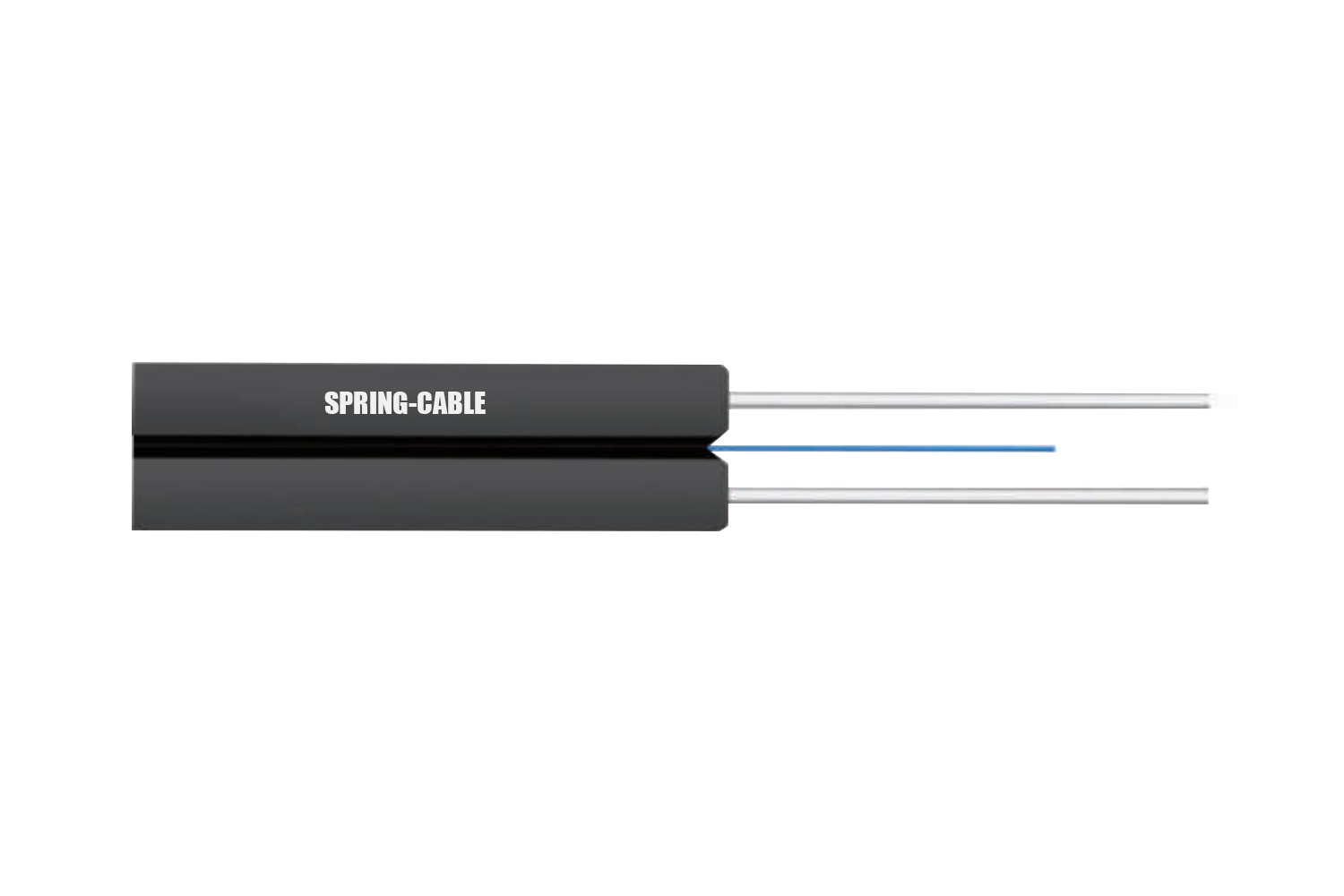

1core 2cores 4cores FTTH GJXFH Flat Drop Cable Reinforced With Steel Wire Strength Member

Product Model

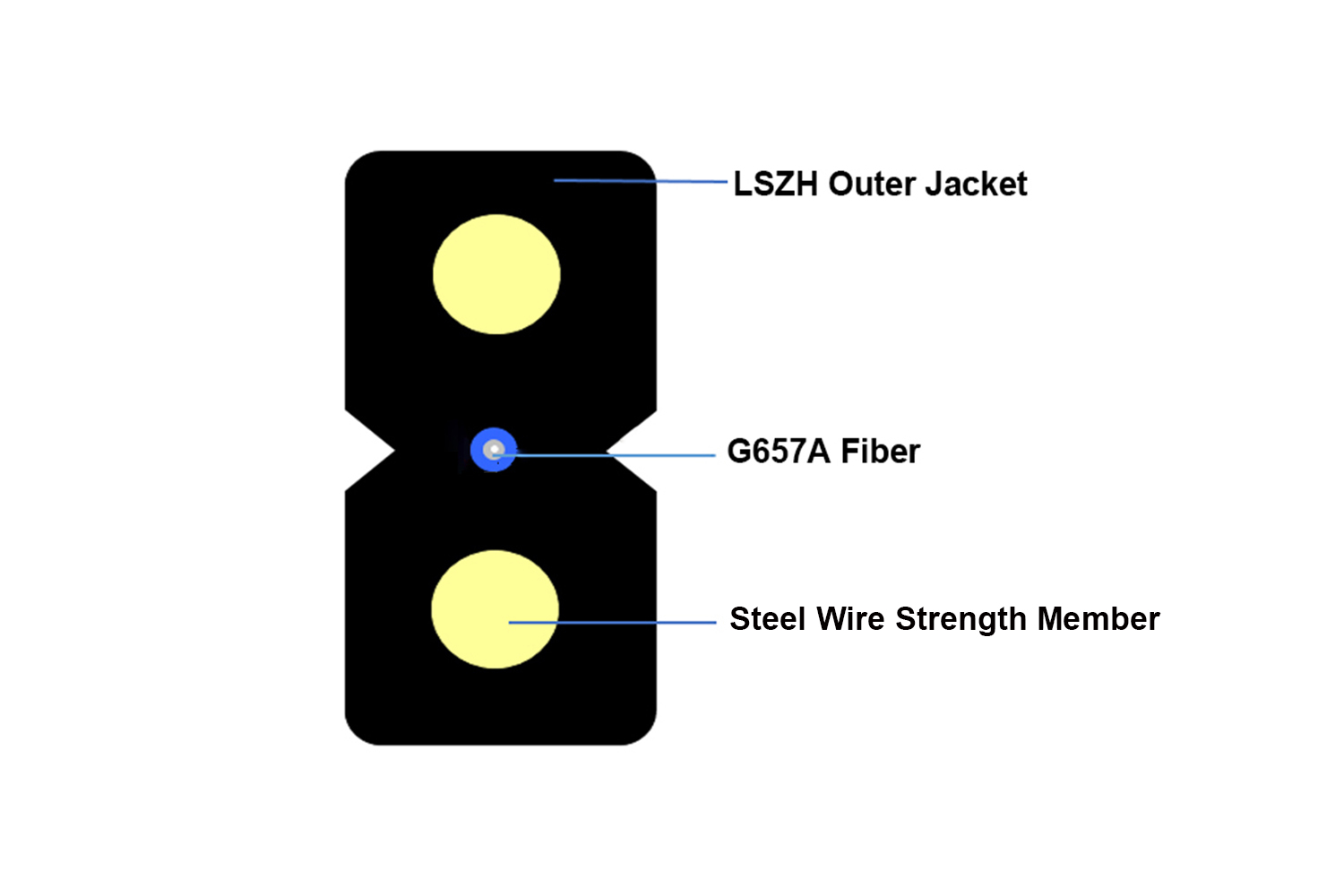

GJXFH reinforced with Steel Wire Strength Member

Product Description

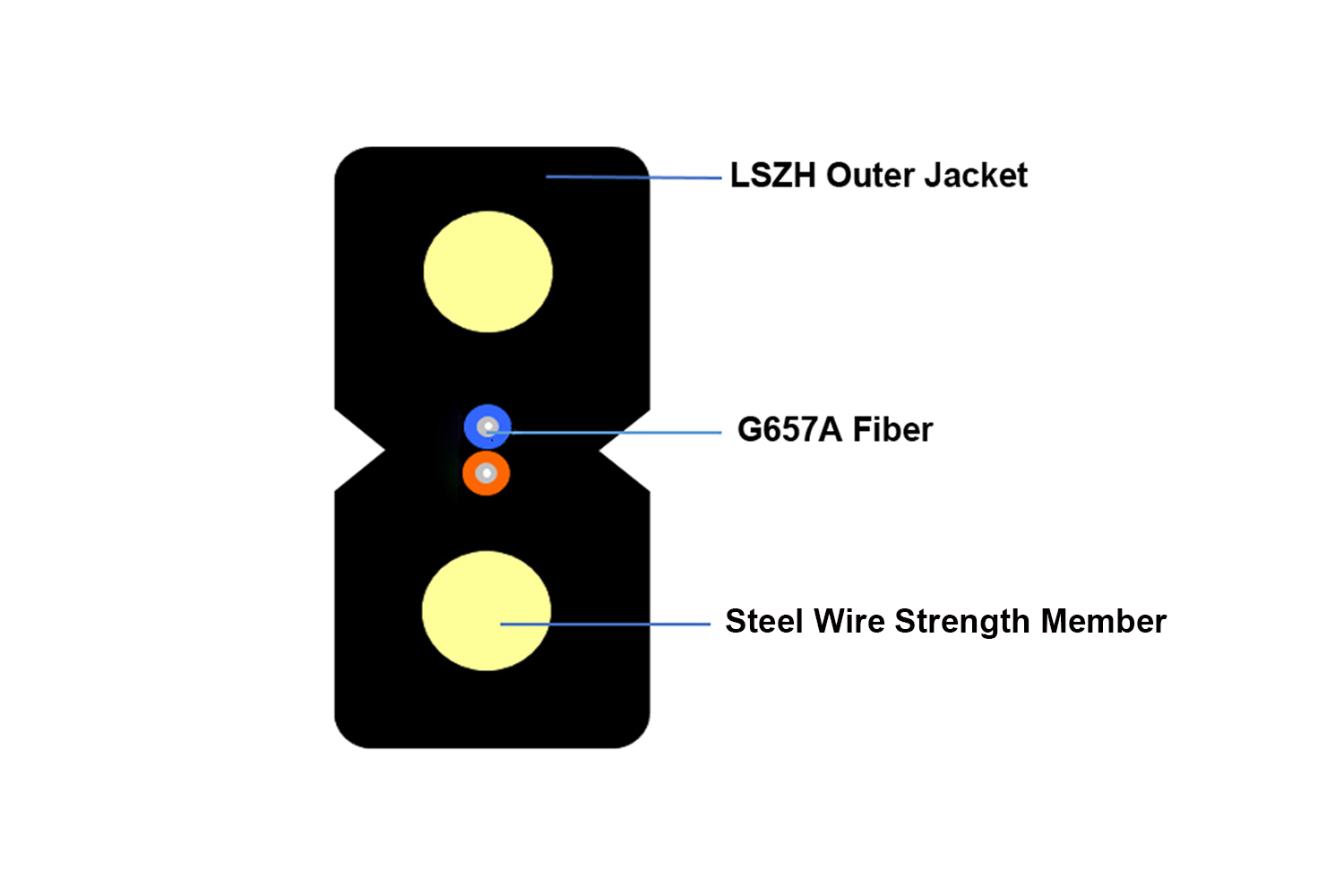

Flat Type Drop Cable, also known as flat drop cable, with a flat out-looking, usually consists of a polyethylene jacket, several fibers and two dielectric strength members to give high crush resistance.

Features

Features:

Good mechanical and environmental characteristics;

Flame retardant characteristics meets the requirements of relevant standards;

The mechanical characteristics meets the requirements of relevant standards;

Soft, flexible, easy to splice, and with big capacity data transmission;

Meet various requirements of market and clients.

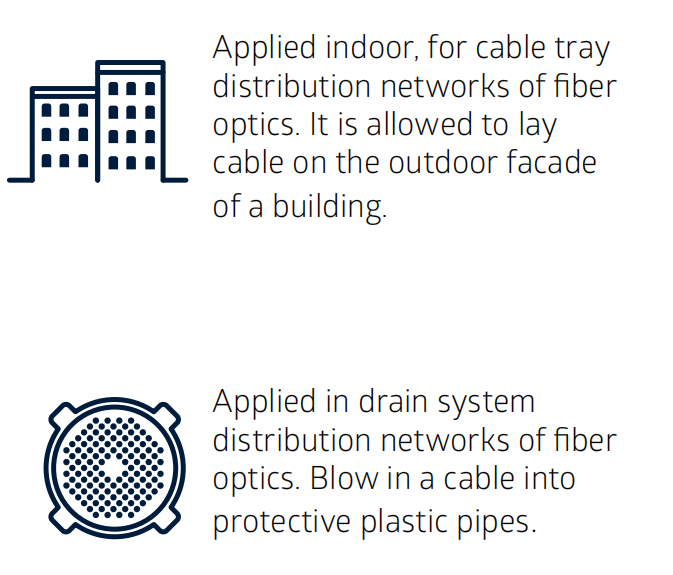

Applications:

Specification
Item 1fiber 2fibers 4fibers
Strength Member Material Steel Wire Steel Wire Steel Wire
Strength Member Diameter (mm) 0.4 0.4 0.4
Sheath Thickness(mm) ≥0.40 ≥0.40 ≥0.40
Cable Diameter (mm) 2.0*3.0 2.0*3.0 2.0*3.0
Cable Weight(kg/km) 10 10.5 11.55
Operating Temperature Range() -50~+70 -50~+70 -50~+70
Tensile Strength Short/Long term (N/100mm) 600/300 600/300 600/300
Crush Resistance Short/Long term(N/100mm) 1000/500 1000/500 1000/500
Min.bending radius (mm) 10/25 30/60
