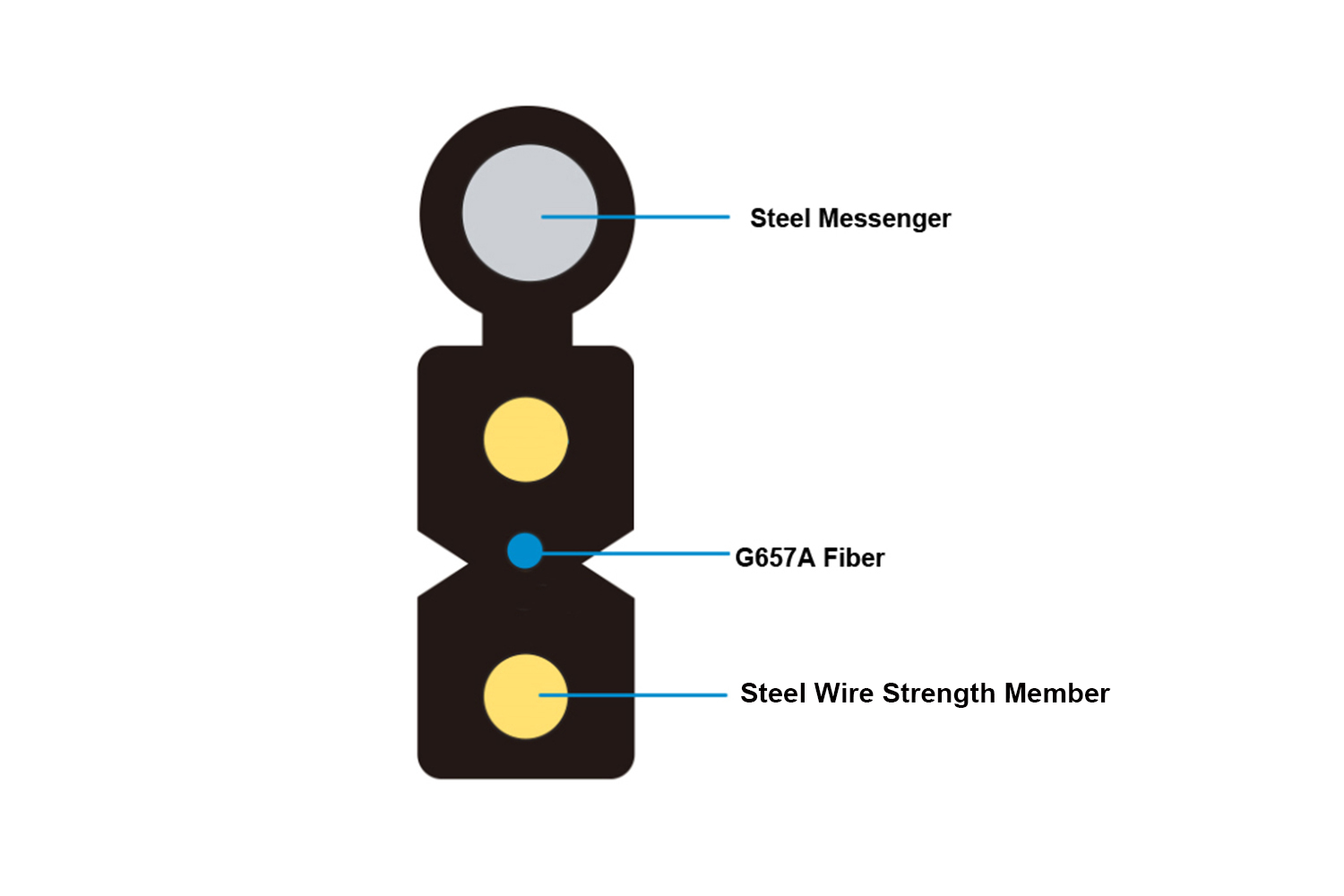

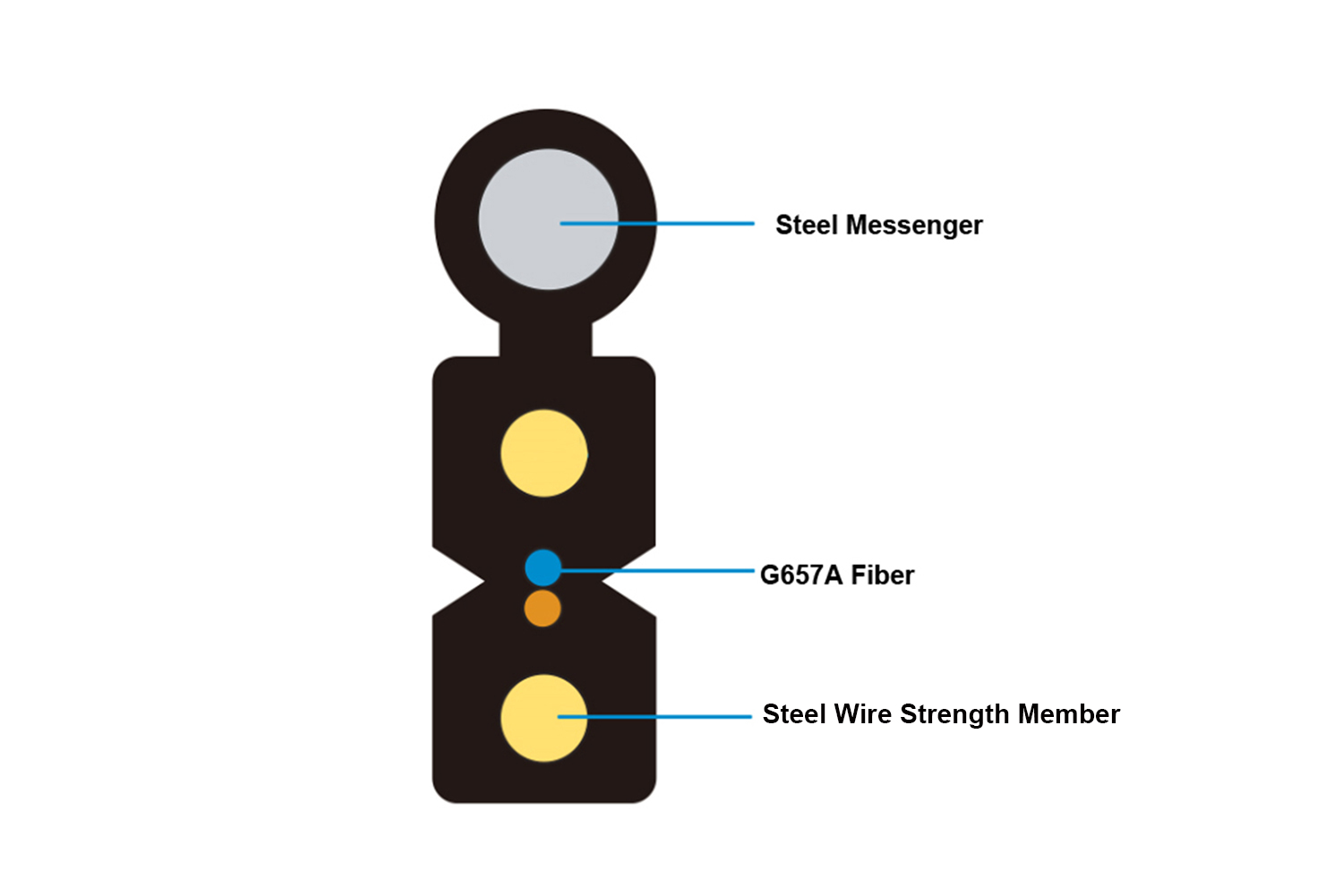

GJYXFCH self-support Flat Drop Cable Reinforced with Steel Wire Strength Member

Product Model

GJYXFCH self-support Flat Drop Cable

Product Description

Figure-8 Aerial Drop Cable is self-supporting cable, with the cable fixed to a steel wire, designed for easy and economical aerial installation for outdoor applications.

Features

Features:

Good mechanical and environmental characteristics;

Flame retardant characteristics meets the requirements of relevant standards;

The mechanical characteristics meets the requirements of relevant standards;

Soft, flexible, easy to splice, and with big capacity data transmission;

Meet various requirements of market and clients.

Applications:

Specification

Item	1fiber	2fibers	4fibers
Self-support Strength Member Material	Steel Wire	Steel Wire	Steel Wire
Self-support Strength Member Diameter (mm)	1.0	1.0	1.0
Strength Member Material	Steel Wire	Steel Wire	Steel Wire
Strength Member Diameter (mm)	0.4	0.4	0.4
Sheath Thickness(mm)	≥0.40	≥0.40	≥0.40
Cable Diameter (mm)	2.0*5.0	2.0*5.0	2.0*5.0
Cable Weight(kg/km)	20.0	20.5	21.5
Operating Temperature Range(℃)	-50~+70	-50~+70	-50~+70
Tensile Strength Short/Long term (N/100mm)	2000/800	2000/800	2000/800
Crush Resistance Short/Long term(N/100mm)	2200/1000	2200/1000	2200/1000
Min. Bending Radius(mm)	120	120
Min.bending radius (mm)	10/25	30/60
