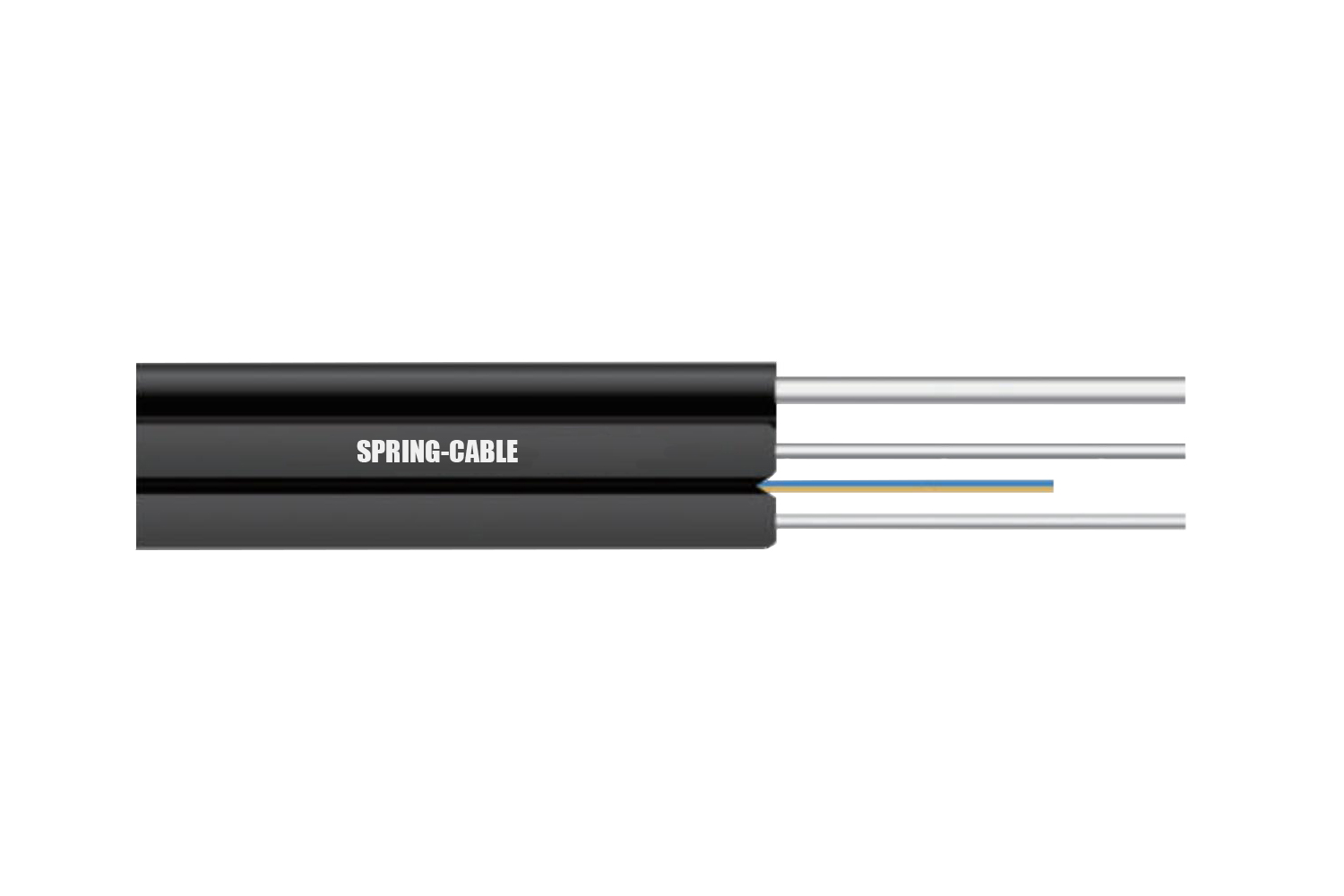

Outdoor Flat Fiber Optical Self-support FTTH Cables Reinforced FRP Strength Member

Product Model

GJYXFCH self-support Flat Drop Cable Reinforced with FRP Strength Member

Product Description

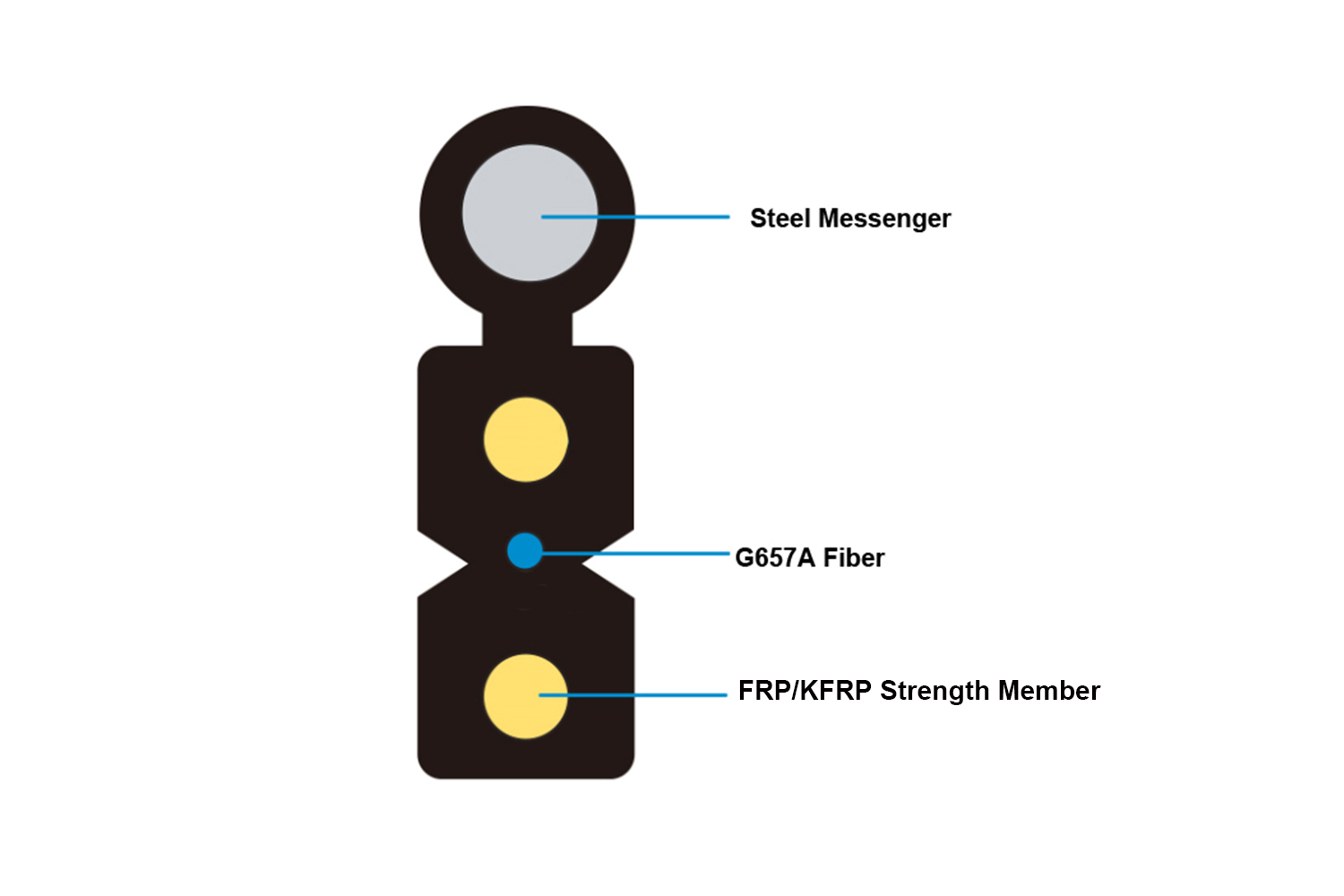

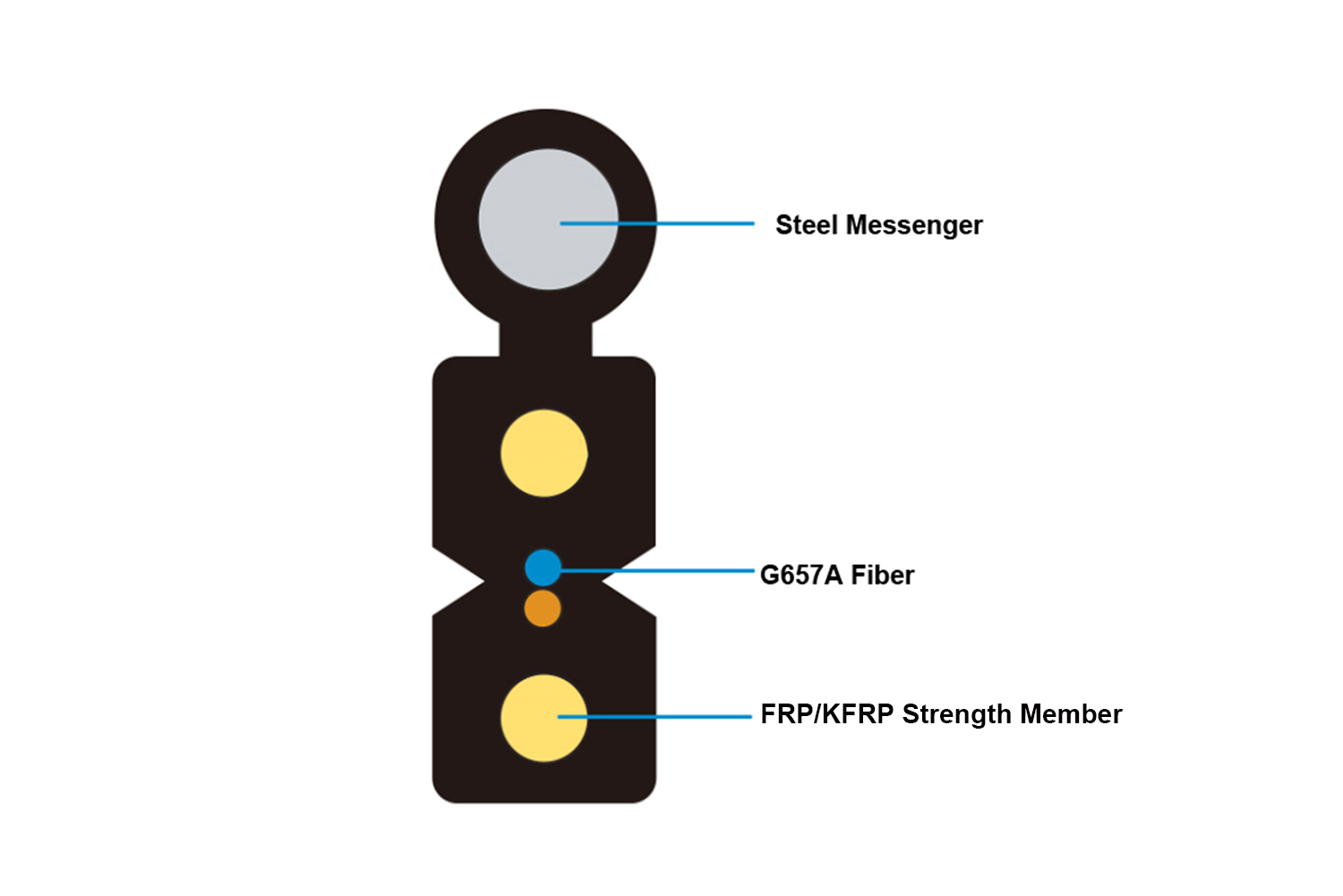

Figure-8 Aerial Drop Cable is self-supporting cable, with the cable fixed to a steel wire, designed for easy and economical aerial installation for outdoor applications.

Features

Features:

Good mechanical and environmental characteristics;

Flame retardant characteristics meets the requirements of relevant standards;

The mechanical characteristics meets the requirements of relevant standards;

Soft, flexible, easy to splice, and with big capacity data transmission;

Meet various requirements of market and clients.

Application

Application:

Specifications
Item 1fiber 2fibers 4fibers
Strength Member Material FRP FRP FRP
Strength Member Diameter (mm) 0.5 0.5 0.5
Sheath Thickness(mm) ≥0.40 ≥0.40 ≥0.40
Cable Diameter (mm) 2.0*3.0 2.0*3.0 2.0*3.0
Cable Weight(kg/km) 9.5 10.0 10.5
Operating Temperature Range() -50~+70 -50~+70 -50~+70
Tensile Strength Short/Long term (N/100mm) 80/40 80/40 80/40
Crush Resistance Short/Long term(N/100mm) 1000/500 1000/500 1000/500
Min.bending radius (mm) 10/25 30/60
