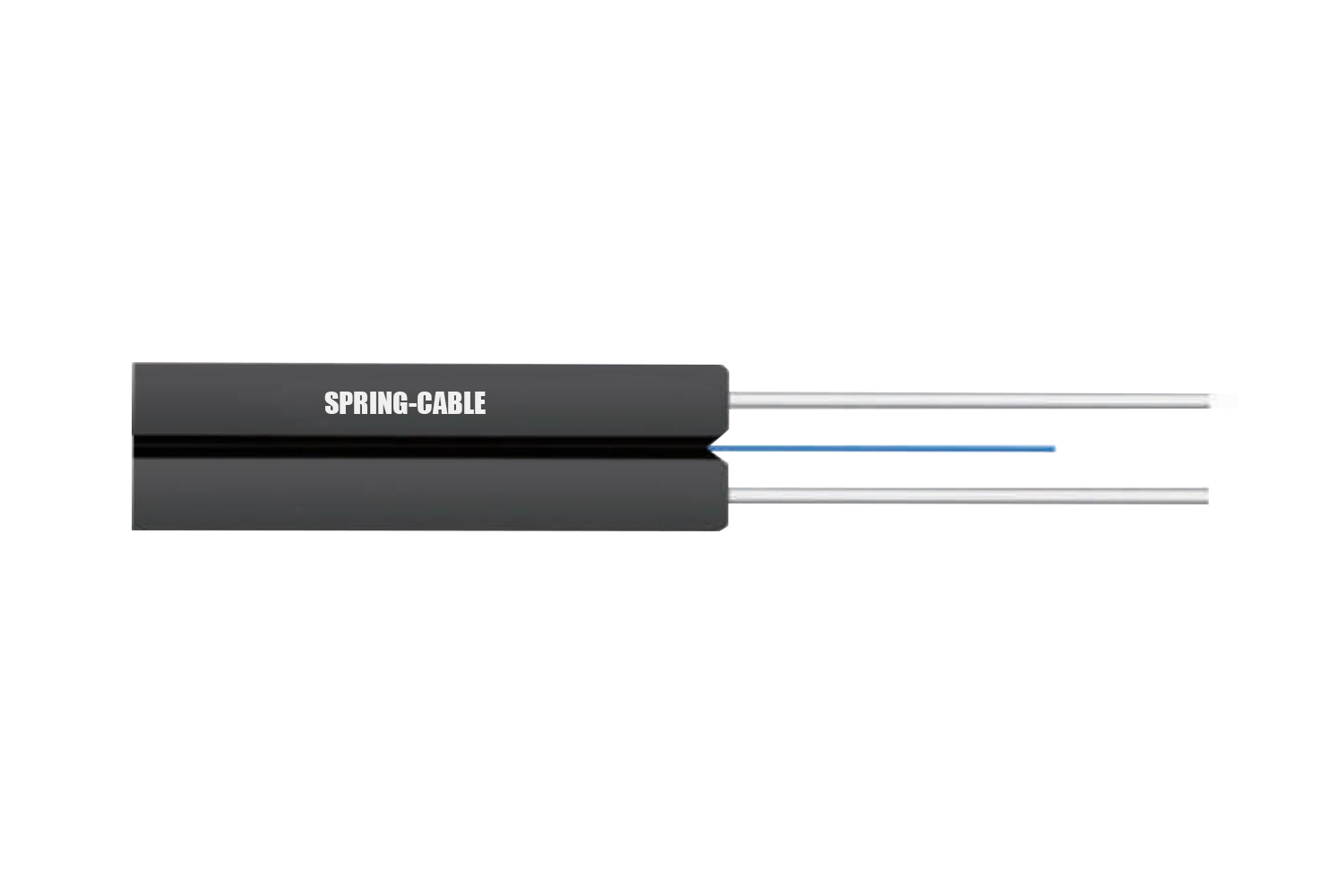

Indoor Bow Type Optical Fiber Drop Cable Flat 1core 2cores 4cores Reinforced with FRP Strength Member

Product Model

 GJXFH

Product Description

Flat Type Drop Cable, also known as flat drop cable, with a flat out-looking, usually consists of a polyethylene jacket, several fibers and two dielectric strength members to give high crush resistance.

Features

Features:

Good mechanical and environmental characteristics;

Flame retardant characteristics meets the requirements of relevant standards;

The mechanical characteristics meets the requirements of relevant standards;

Soft, flexible, easy to splice, and with big capacity data transmission;

Meet various requirements of market and clients.

Applications:

Specification
Item 1fiber 2fibers 4fibers
Strength Member Material FRP FRP FRP
Strength Member Diameter (mm) 0.5 0.5 0.5
Sheath Thickness(mm) ≥0.40 ≥0.40 ≥0.40
Cable Diameter (mm) 2.0*3.0 2.0*3.0 2.0*3.0
Cable Weight(kg/km) 9.5 10.0 10.5
Operating Temperature Range() -50~+70 -50~+70 -50~+70
Tensile Strength Short/Long term (N/100mm) 80/40 80/40 80/40
Crush Resistance Short/Long term(N/100mm) 1000/500 1000/500 1000/500
Min.bending radius (mm) 10/25 30/60
