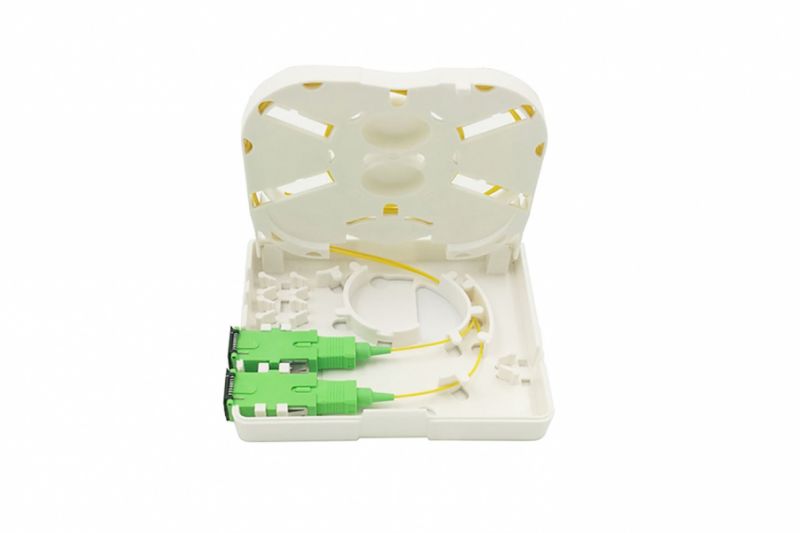

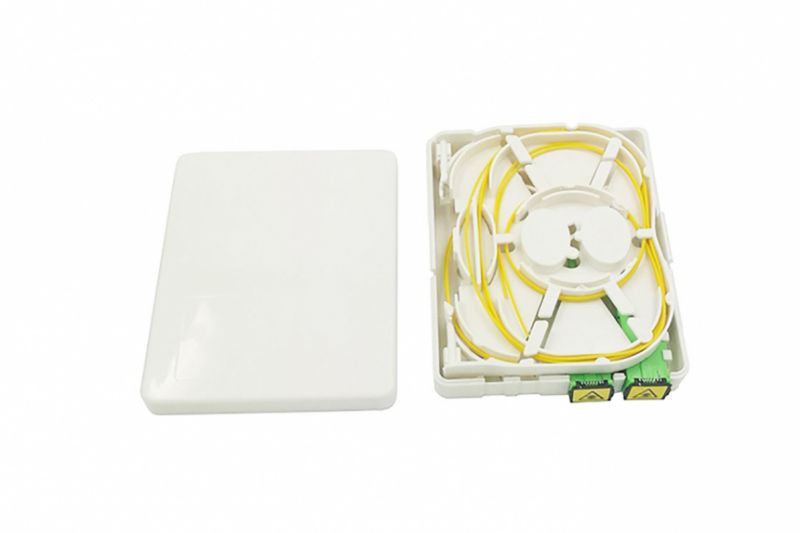

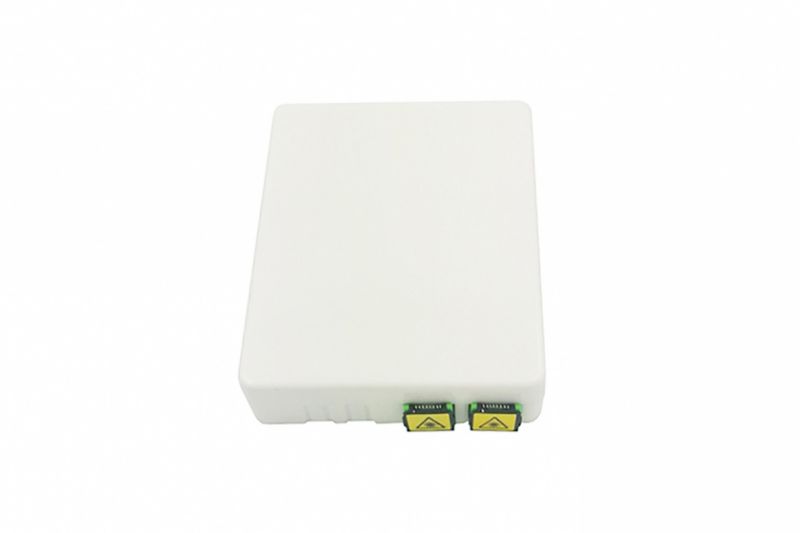

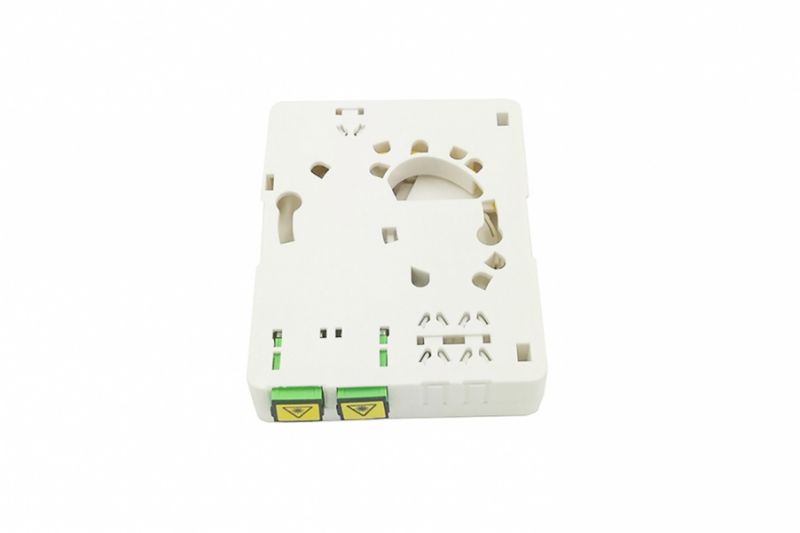

2 Port Indoor Outlet Fiber Optic Terminal Box

Product Model

SP-1601-2B

Product Description

SP-160-2B Fiber termination boxes wall mount outlets is able to hold up 2 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber splicing, termination, storage and cable connection in one solid protection box.

Features

Features:

Dust-proof design with IP-45 Protection Level.
Integrated with splice cassette and cable management rods.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Suitable for the fusion splice or mechanical splice.
Embedded type surface, easy for installation and removal.
2 ports cable entrance for patch cable.

Specification

Type	SP-1602-2B
Size(mm) WDH	1008022
Material	ABS
Cable Ports	SC 2ports, LC 4ports
Scope of Application	3.0*2.0mm drop cable or indoor cable
Max capacity of splice	4(single fiber)
Adapter type	SC Simplex Adapter; LC Duplex Adapter
Pigtail Type	SC/LC 0.9mm Pigtails
Color	White
Weight	0.4KG
