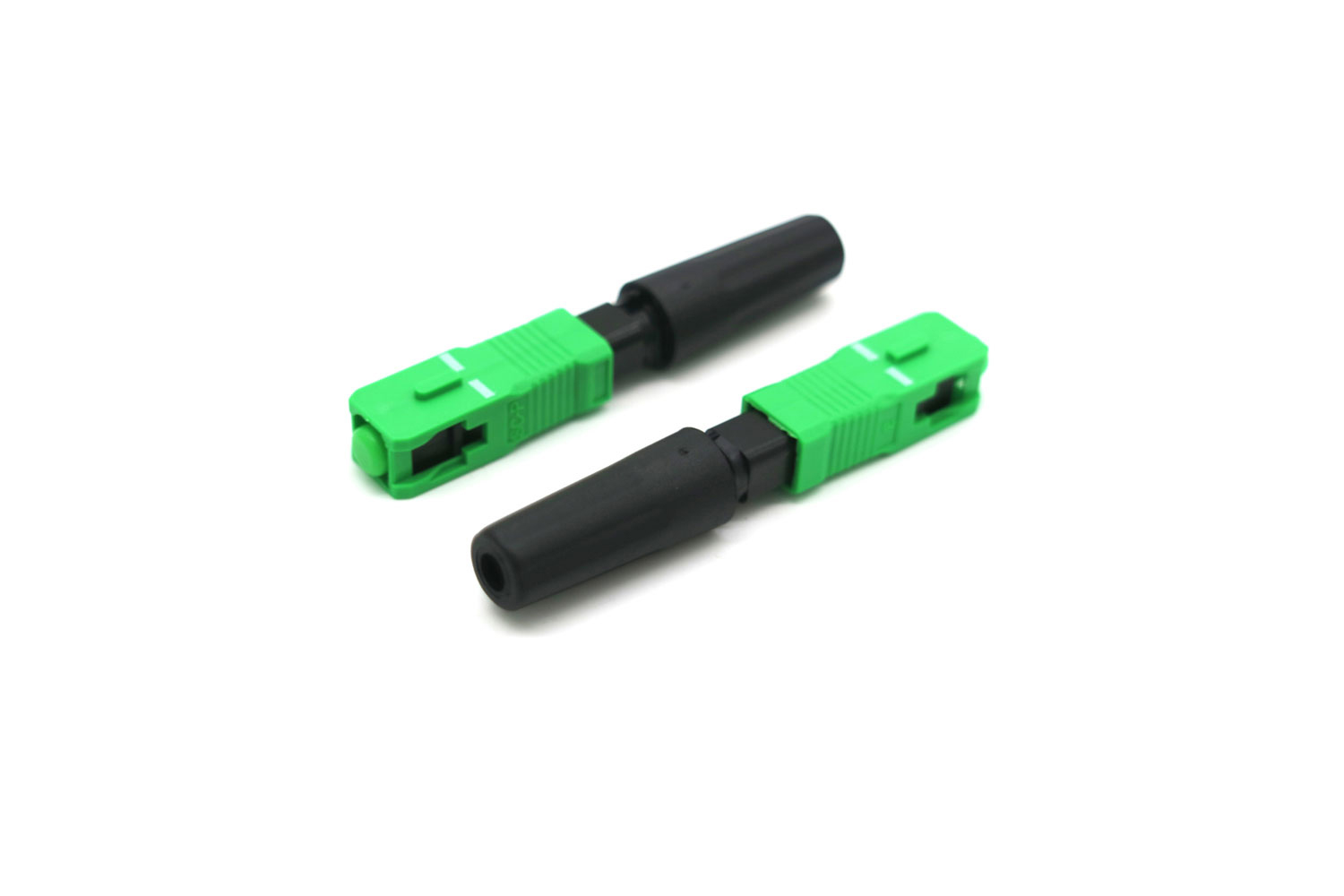

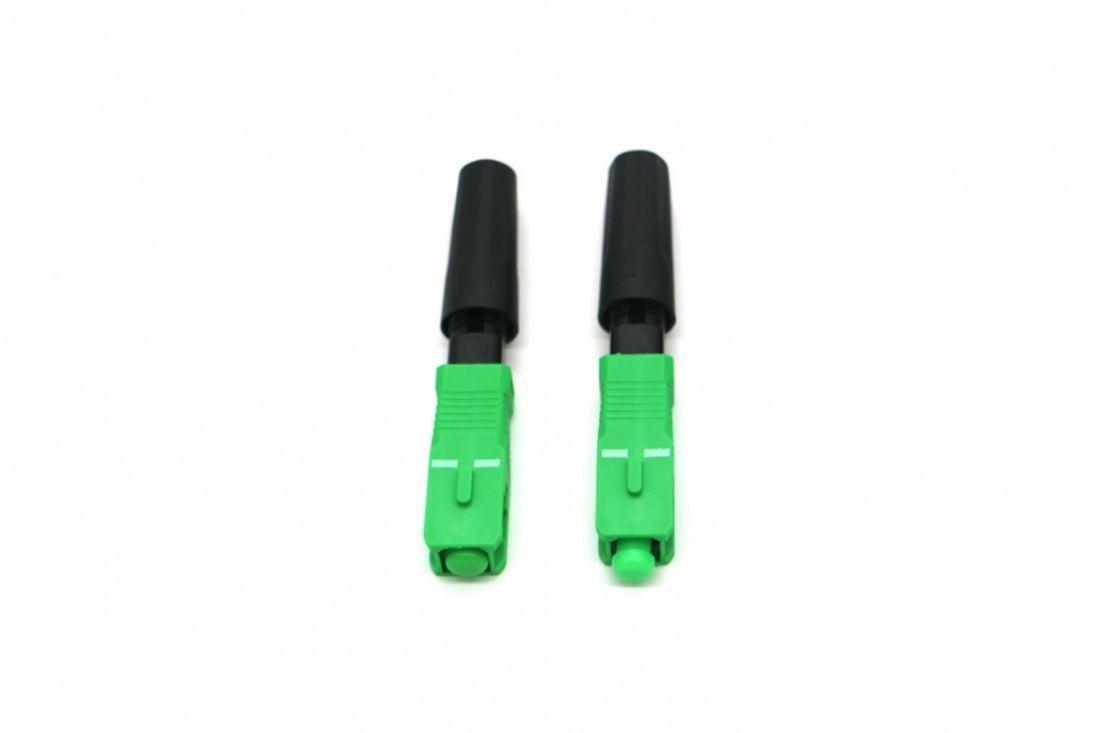

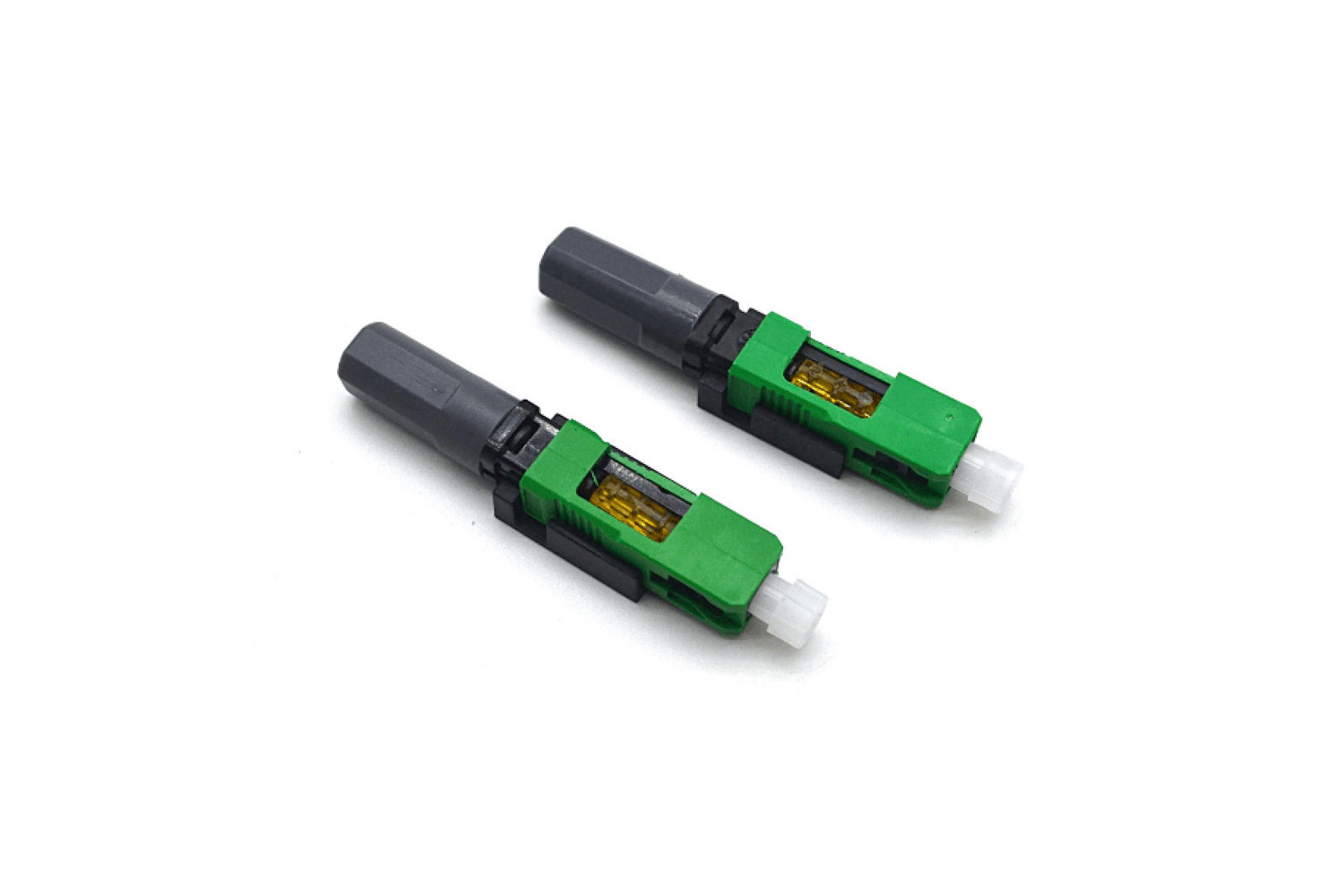

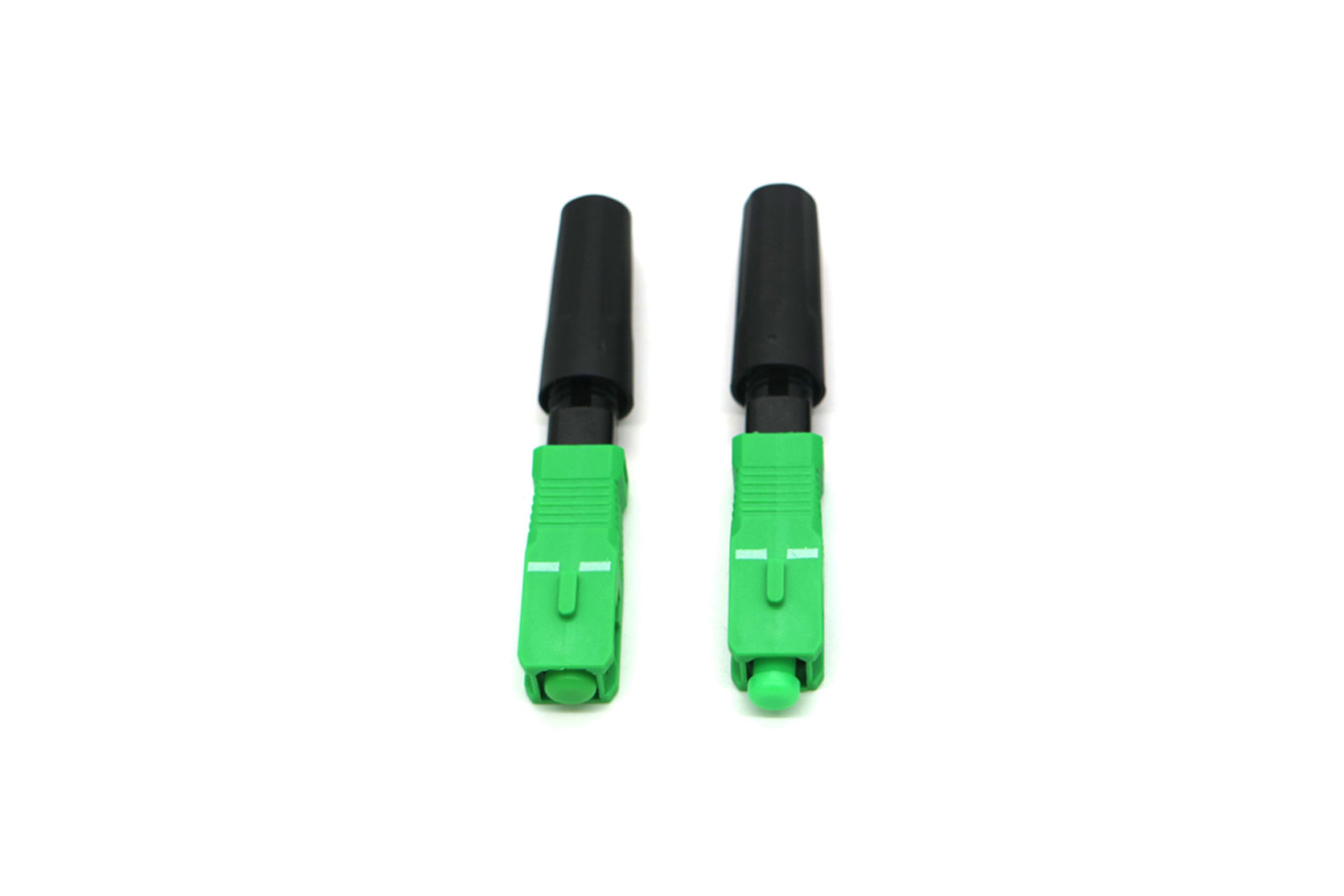

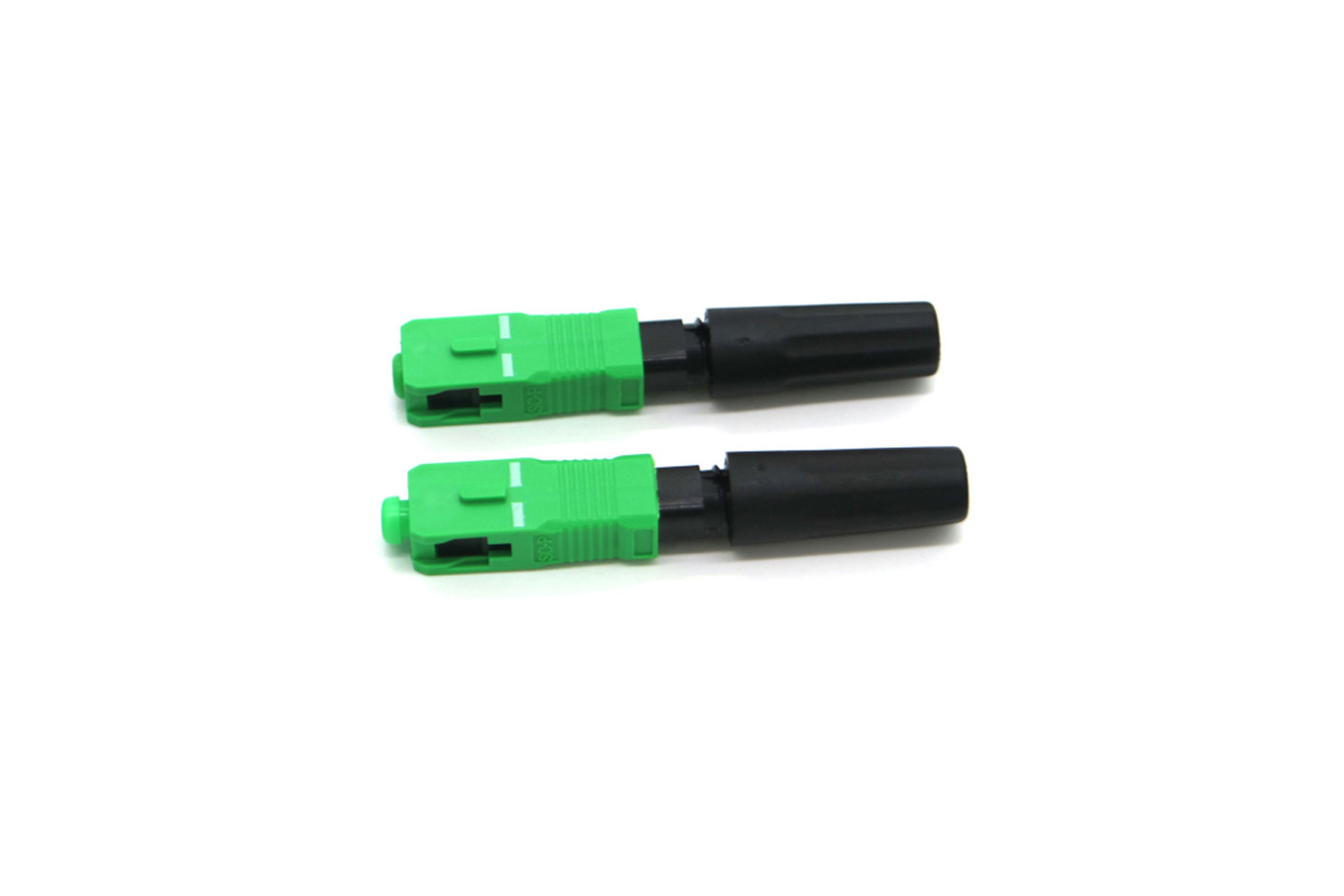

0.9/2.0/3.0mm SC APC Fast Connector

Product Model

 SP-552-SC-APC Fast-Connector

Product Description

The SC/APC fast connector are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either Single-mode or Multimode optical fibers.

The Field Assembly Connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents, municipalities, utilities & alternative carriers. Our Field Assembly Optical Connector series are now available in SC, LC, or FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and Multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with SPC or APC ferrules.

Features
  1. No epoxy and polishing required;
  2.  No expensive tools required;
  3. Quick and easy fiber termination;
  4. Precision mechanical alignment insures low insertion loss;
  5. Superior optical performance;
  6. Streamlined component design, convenient operation;
  7. Pre-installed, on-site assembly without end face grinding and consideration;
  8. Uses proven, molded v-groove technologies;
  9. Allow optical continuity to be verified by use of visual fault locator (VFL);
  10. Fiber optic communication system and telecommunication networks;
  11. Fiber optic data transmission;

    √ CATV;

    √ Optical access.

Specification

Category

Specification

Applicable for

Drop cable Indoor cable

Fiber mode

Single-mode

Polish Type

APC

Housing

Green PC Plastic

Operation time

S

About 50(no fiber cut)

Insertion Loss

dB

≤ 0.50

Insertion Loss Typical value

dB

≤ 0.30

Return Loss

dB

≥ 45.0

Fastening strength of naked fiber

N

≥ 5

Tensile strength

N

≥ 50

Reusable

Time

≥ 10 times

Operating Temperature

-40~+85

On-line tensile strength(20N)

dB

ΔIL≤ 0.3

Mechanical durability(500 times)

dB

ΔIL≤ 0.3

Drop-off test

(drop-off height4m,once per direction,totally 3 times)

dB

ΔIL≤ 0.3
