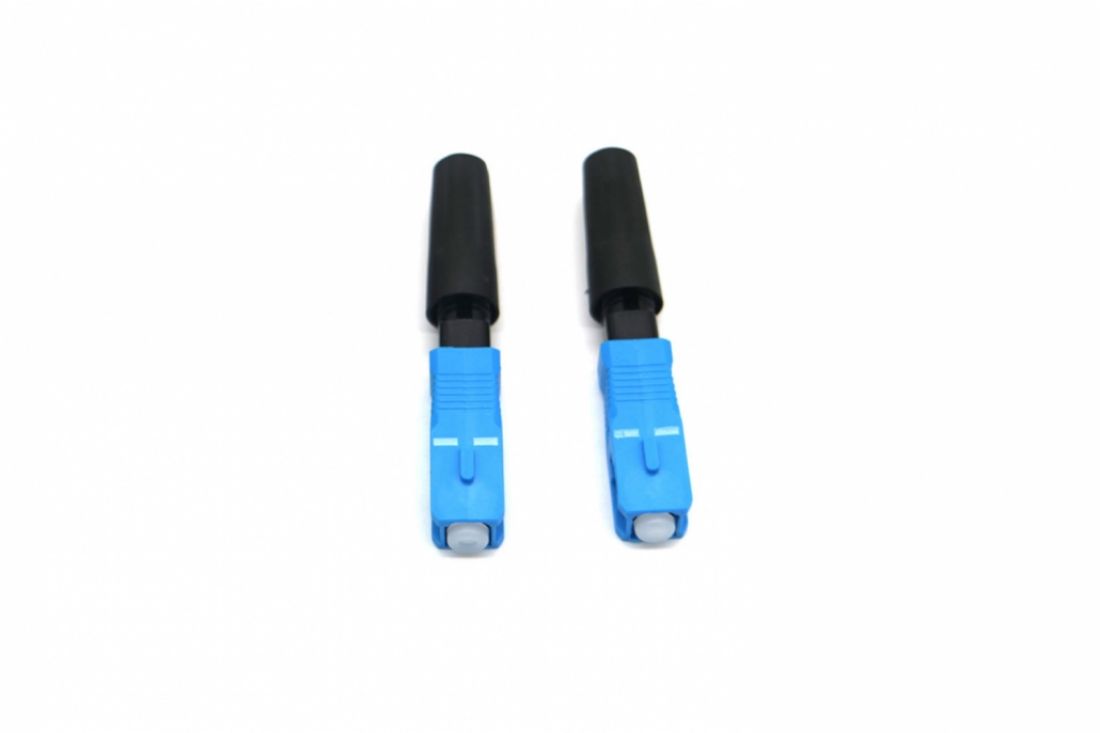

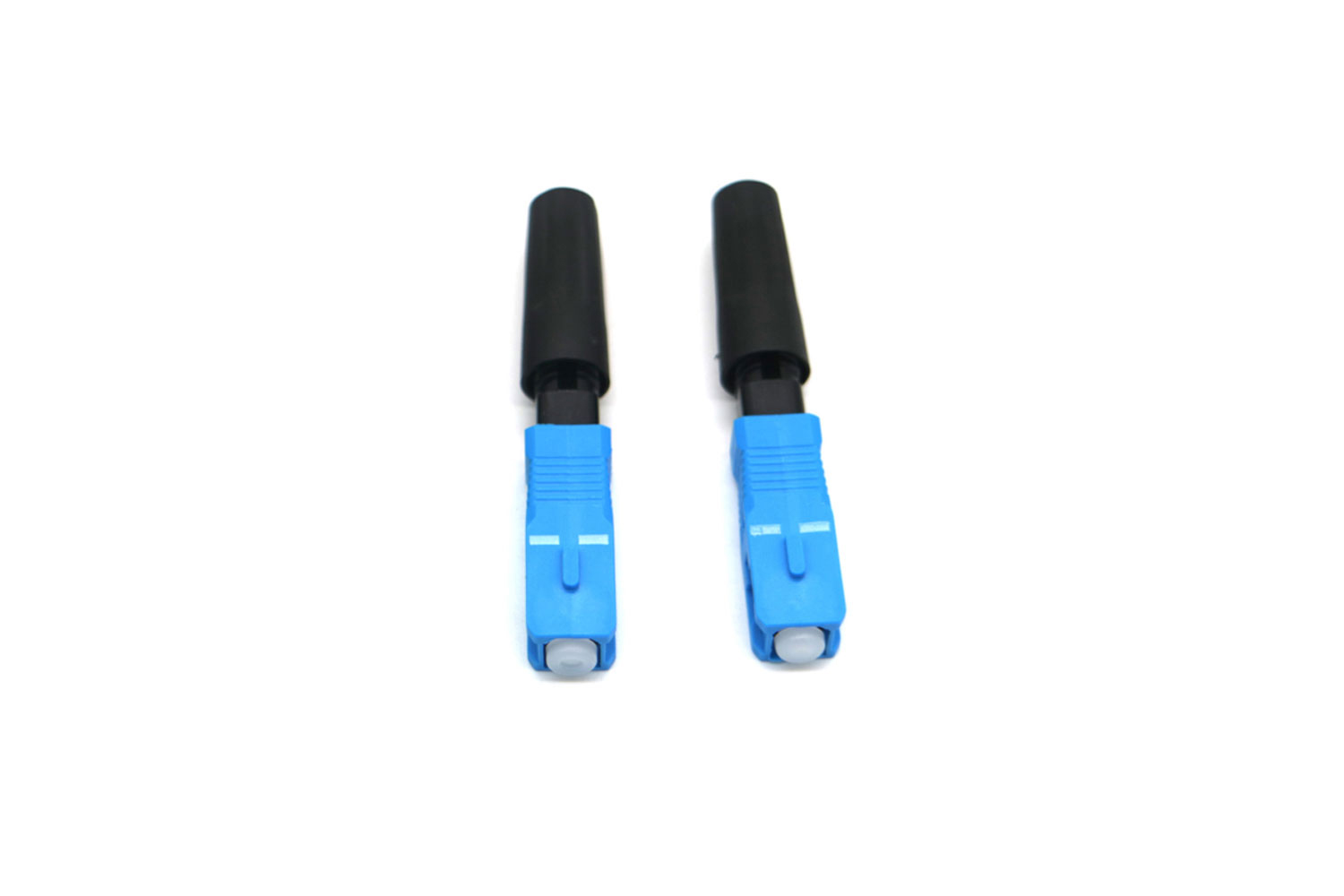

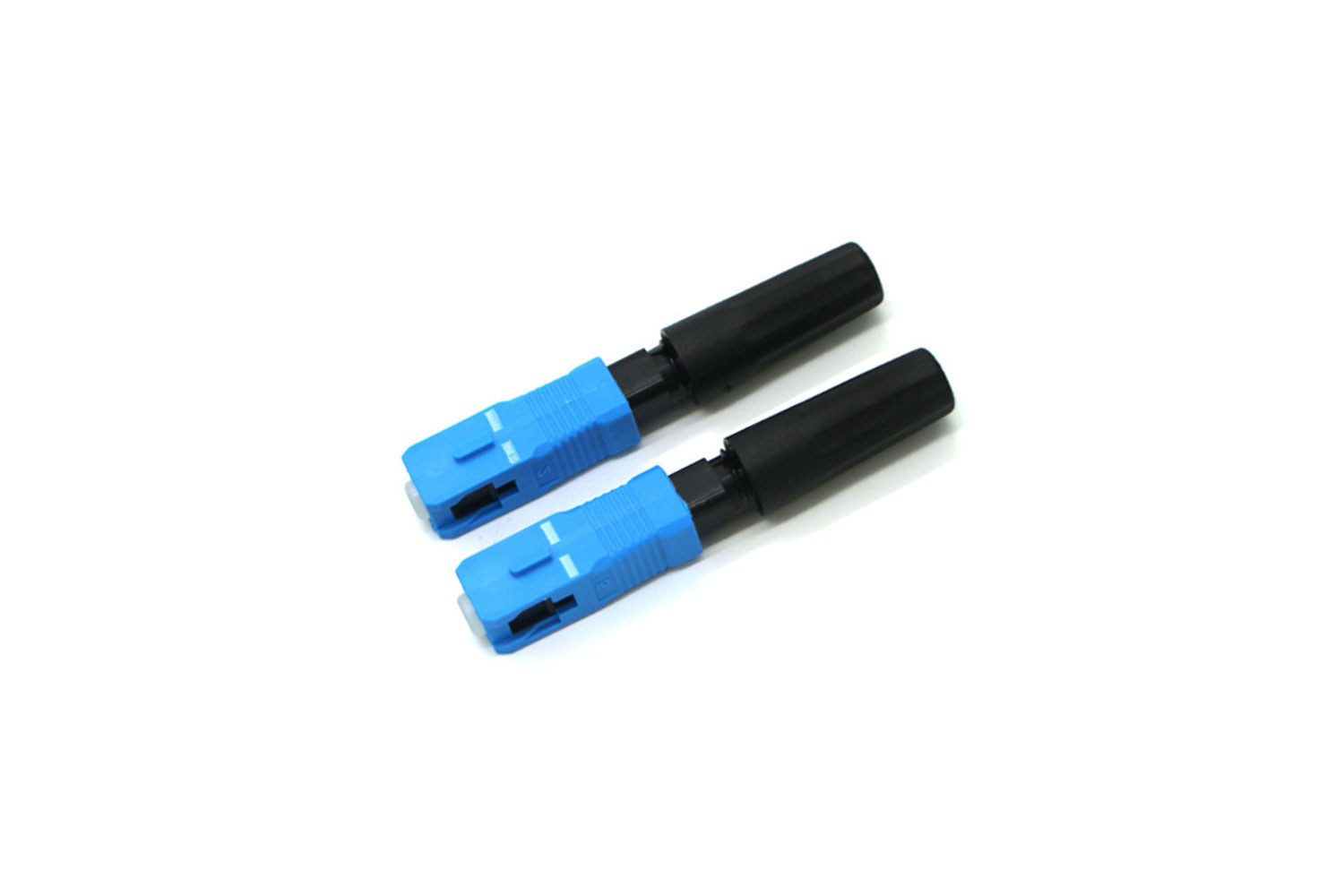

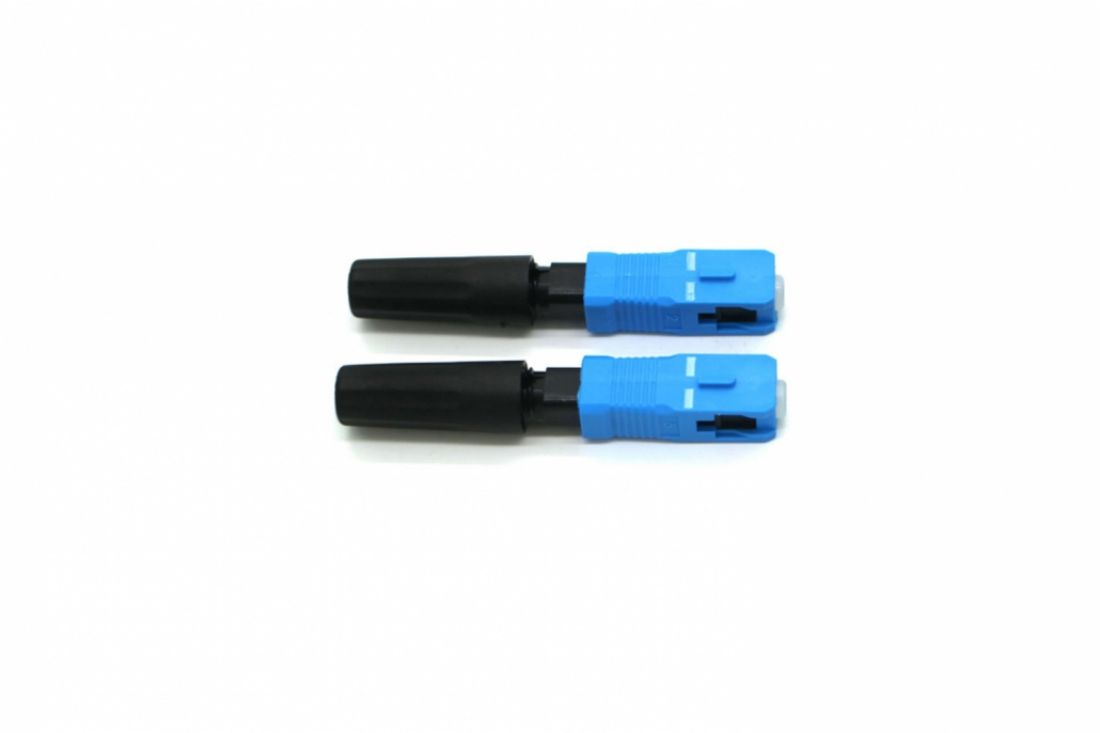

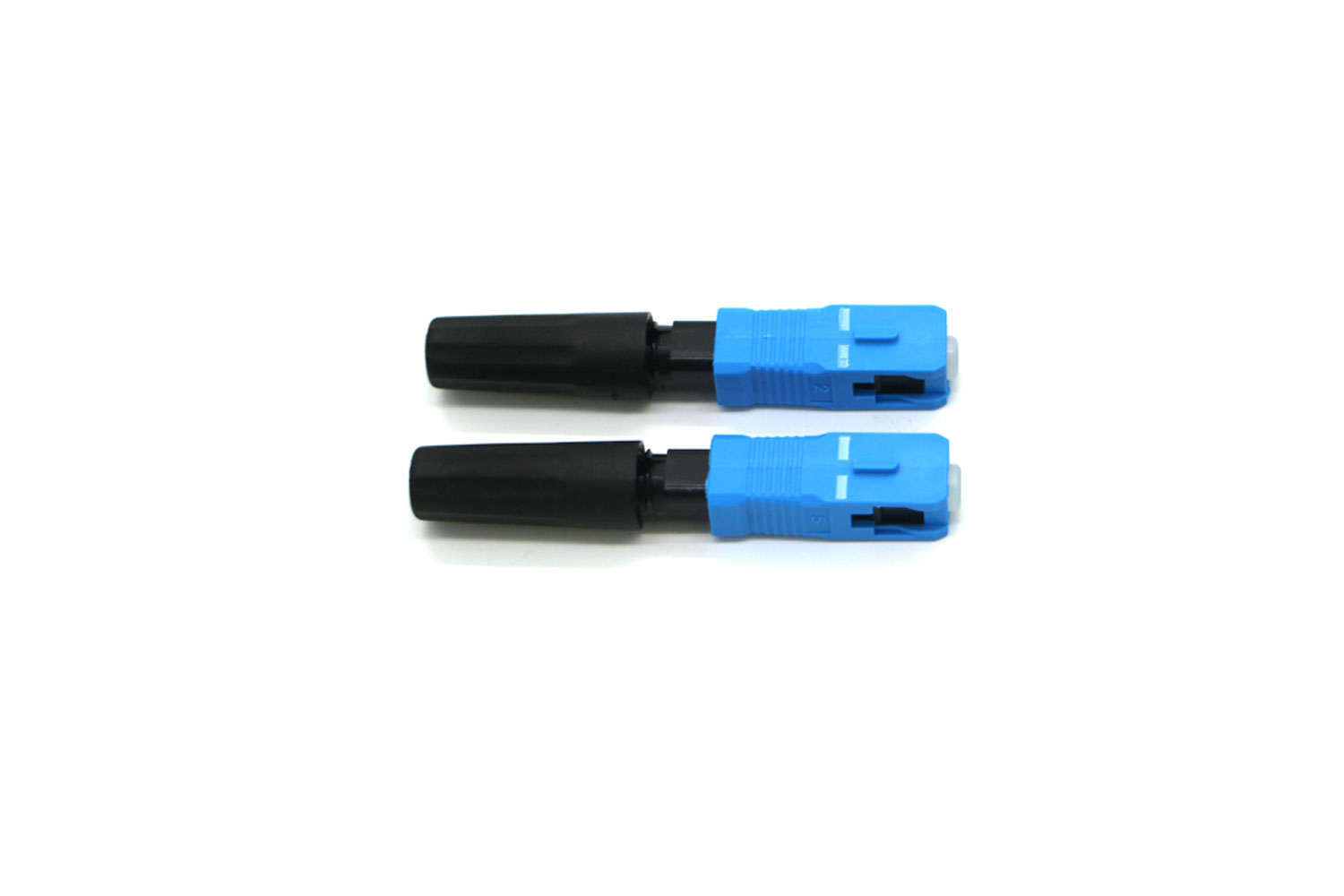

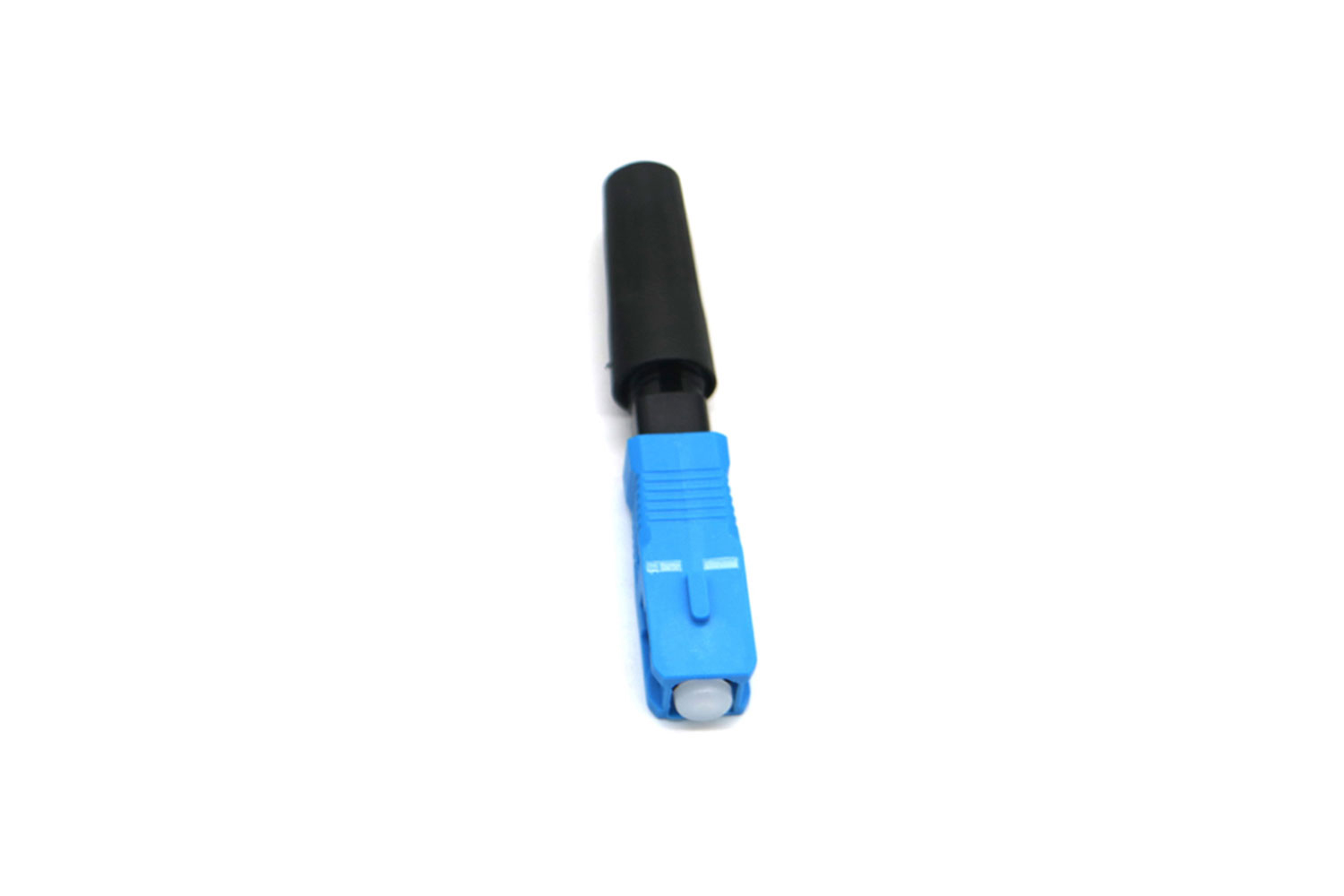

SC/UPC Fiber Optic Quick Connector Field-Installable Fast Connector

Product Model

SP-552-SC-UPC

Product Description

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Mini PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It’s mainly used for various connection and distribution boxes or network cabinets.

Features

No epoxy and polishing required;
No expensive tools required;
Quick and easy fiber termination;
Precision mechanical alignment insures low insertion loss;
Superior optical performance;
Streamlined component design, convenient operation;
Pre-installed, on-site assembly without end face grinding and consideration;
Uses proven, molded v-groove technologies;
Allow optical continuity to be verified by use of visual fault locator (VFL);
Fiber optic communication system and telecommunication networks;
Fiber optic data transmission;
CATV;
Optical access.

Specification

Category	Specification
Applicable for	Drop cable Indoor cable
Fiber mode	Single-mode
Polish Type	APC
Housing	Green PC Plastic
Operation time	S	About 50(no fiber cut)
Insertion Loss	dB	≤ 0.50
Insertion Loss Typical value	dB	≤ 0.30
Return Loss	dB	≥ 45.0
Fastening strength of naked fiber	N	≥ 5
Tensile strength	N	≥ 50
Reusable	Time	≥ 10 times
Operating Temperature	℃	-40～+85
On-line tensile strength(20N)	dB	ΔIL≤ 0.3
Mechanical durability(500 times)	dB	ΔIL≤ 0.3
Drop-off test (drop-off height4m,once per direction,totally 3 times)	dB	ΔIL≤ 0.3
