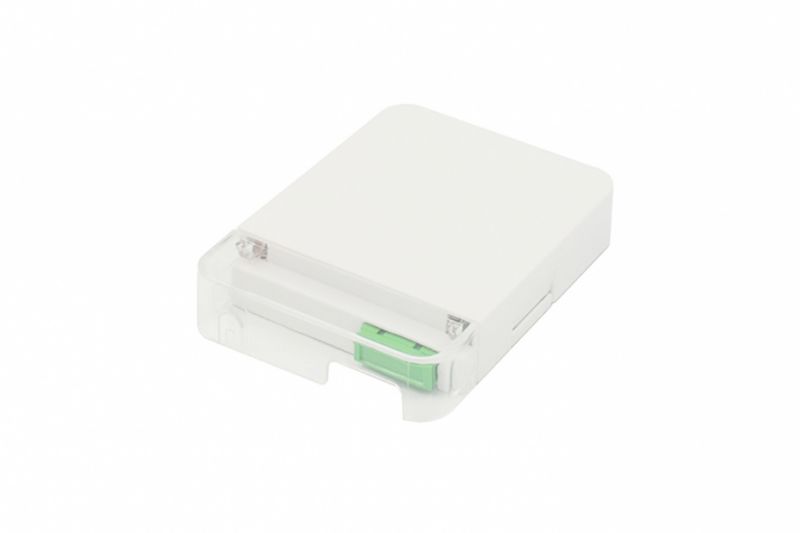

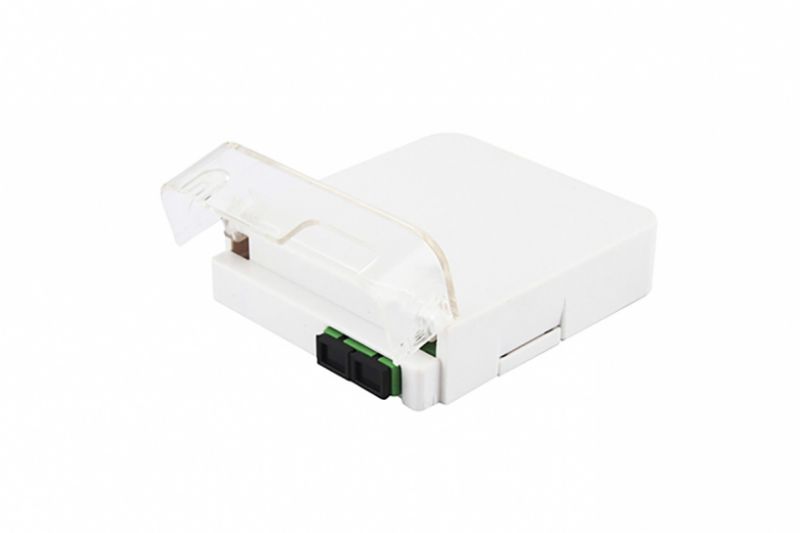

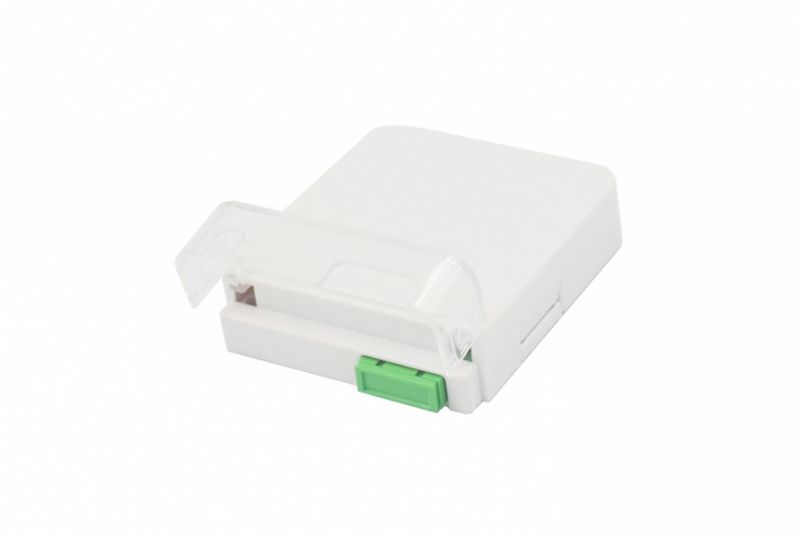

2 Port FTTH Indoor Socket Panel Fiber Optic Terminal Box

Product Model

SP-1601-2C

Product Description

SP-1601-2C-2 provides Customer Premises Equipment applications with a compact and secure enclosure for connecting fiber cables within building entrance locations, communications closets, and other indoor environments. This mini style distribution box is widely applied in the FTTX network to connect drop cable and ONU devices through fiber port.

Features

Features:

Used for different kinds of modules and applied to the working area
Embedded surface frame, easy to install and
With protective door and dusty
With application of fiber SC/LC simplex, duplex and other differentenvironment
installed plate or flush
All modules are free of
Can do OEM for any customers and print requestedLOGO

Specification

Dimension	86mm155mm23mm
Adapter Capacity	2 fiber with SC duplex adapter 4 fibers with LC quad adapters
Application	2.0×3.0mm drop cable or indoor cable
Tensile strength	> 50 N
Output	2

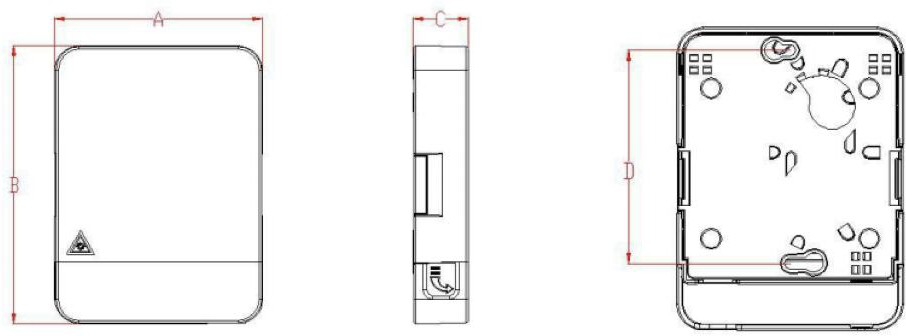

Drawing:

Size	86mm155mm23mm	Max Capacity	Installation Size
ABC mm	SC	LC	D mm
8611523	1	2	81

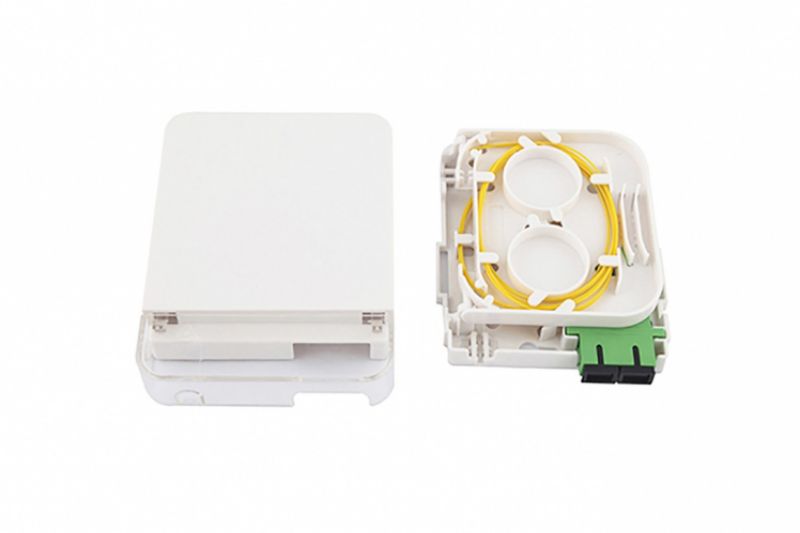

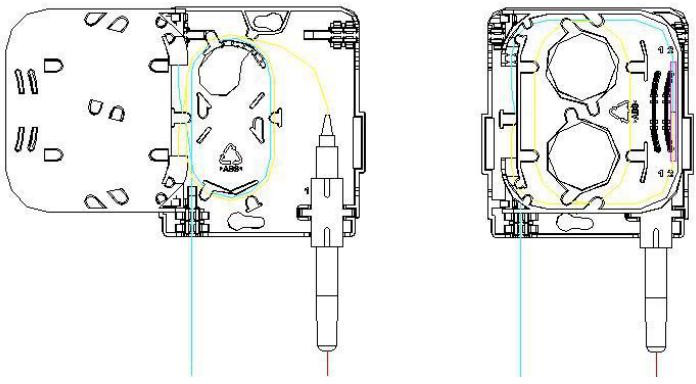

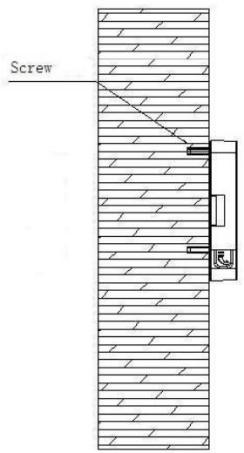

Inside Structure and Cable Ways, Installation:

Application

Application:

The telecommunication network, metropolitan area network, optical fiber communication
Optical testingequipment/instrument.
CATV optical fiber, optical fiber
Optical fiber broadband access network, FTTH optical
Optical fiber distribution frame, frame type and wall type optical fiber distribution unit
