03A Dome Closure
03A Dome Closure Spring Closure Fiber Optic Splice Dome Splice Closure

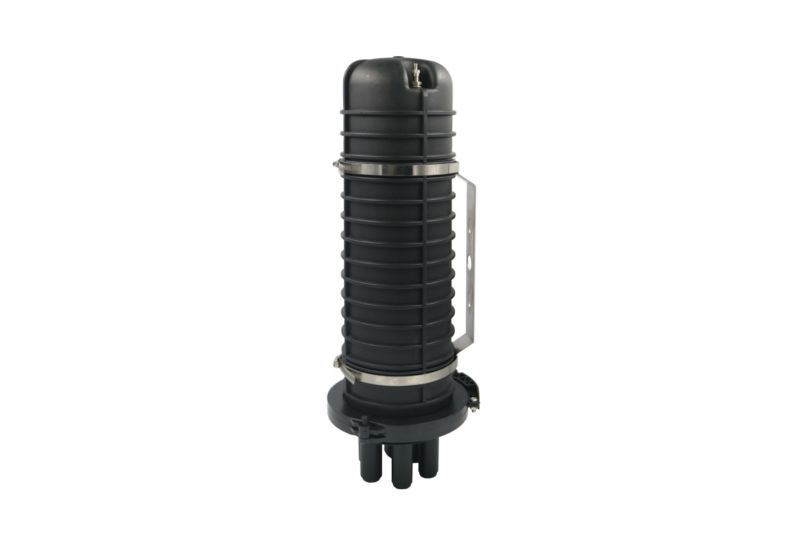

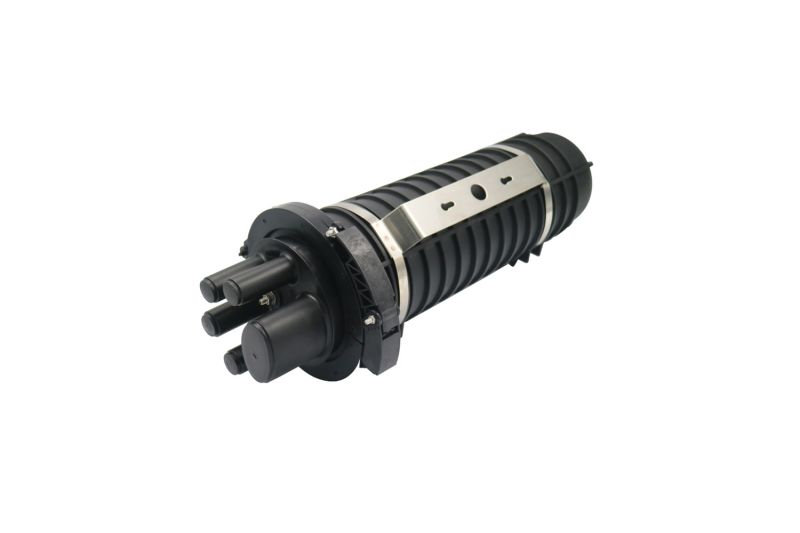

SP-GJS-03A Dome 24/48/96/144Core Fiber Splice Closure

Product Model

SP-GJS-03A

Product Description

 24/48/96/144 Core Fiber Optic Splice Closure manufactured by Spring Optical Communication, one of the largest and best sp-gjs-03A fiber optical vertical joint splice closure box manufacturers and suppliers with rich experience. Welcome to buy our high-quality products or wholesale our customized sp-gjs-03A fiber optical vertical joint splice closure box in stock with our factory. Also, the sample is also available if necessary.

Introduction

24/48/96/144Core Fiber Optic Splice Closure

This product is used to connect the distribution cable and the incoming cable, is widely applied in communication, network systems, CATV cable TV and so on. It adopts scientifically formulated engineering plastic and be shaped by injection molding, with anti-aging, anti-corrosion, flame retardant, waterproof, anti-vibration and anti-shock effects. Can effectively prevent the optic fibers from the influence of outdoor environment.

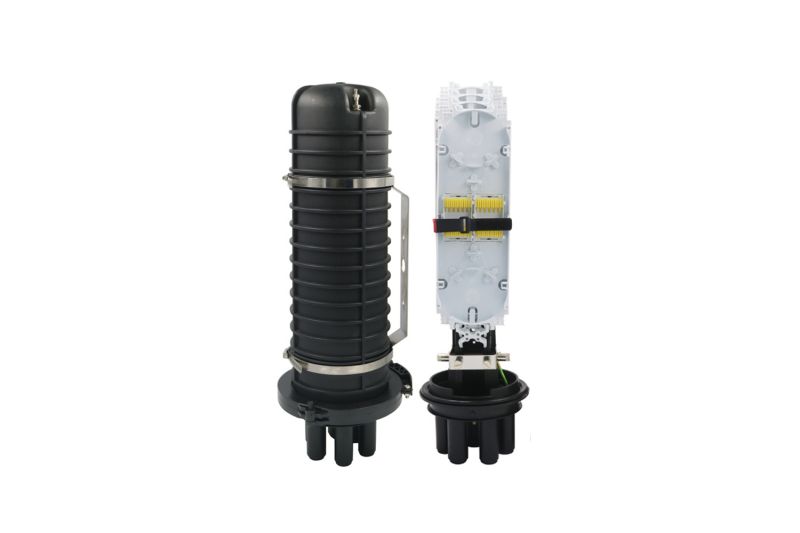

Dome-to-base design; up to 6 pieces splice trays, hinge for access of any splice without disturbing others trays; Fast and reliable sealing performance, easy to package multiple times. With lightning protection grounding device, it can be applied in overhead, wall mounting or directly buried.

Specification
Model: SP-GJS03A -Dome
Size: 531*185mm Raw material Dome,clamp,base：modified PP

Tray: ABS

Metal parts：Stainless steel
Entry ports number: 1 oval port，

4 round ports

 Available cable dia. Oval port：available for 2 pcs, 10~25mm cables

Round ports：Each available for 1pc 6-19mm cable
Max. tray number 6 trays Base sealing method Heat-shrink
Tray capacity： 24F Applications: Aerial, directly buried, Wall / pole mounting
Max. closure splice capacity 144 F Upgrade 68

Technical Parameter:
1. Working Temperature: -40 degrees centigrade~+65 degrees centigrade
2. Atmospheric Pressure: 62~106Kpa
3. Axial Tension: >1000N/1min
4. Flatten Resistance: 2000N/100 mm (1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV(DC)/1min, no arc over or breakdown
7. Temperature recycle: under -40℃~+65℃，with 60(+5)Kpa inner pressure, in 10cycles; Inner pressure shall decrease less than 5 Kpa when closure turn to normal temperature.
8. Durability：25 years

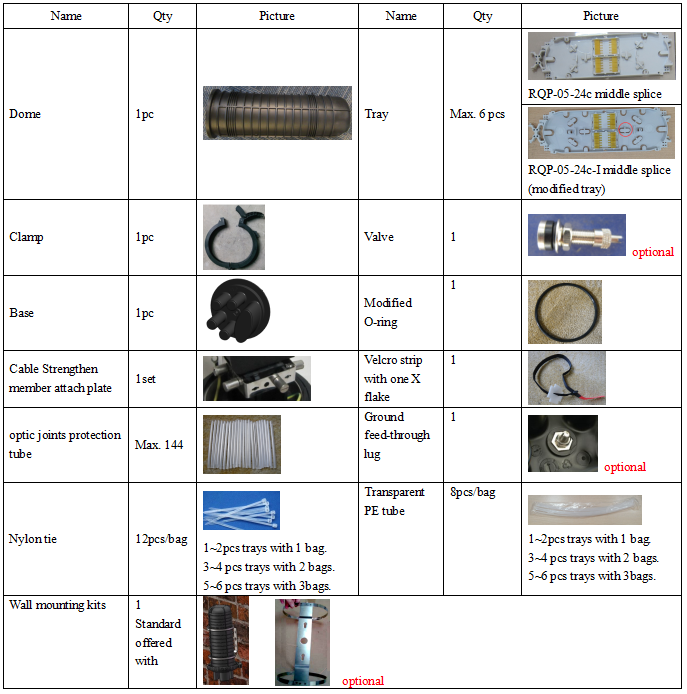

Main components:

03A Splice Closure

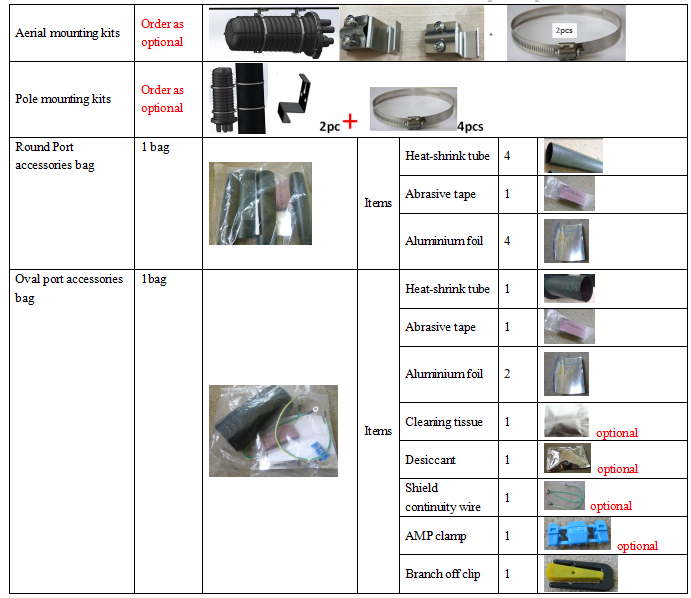

03A FOSC

Download

24/48/96/144Core Fiber Optic Splice Closure

Specification Download
