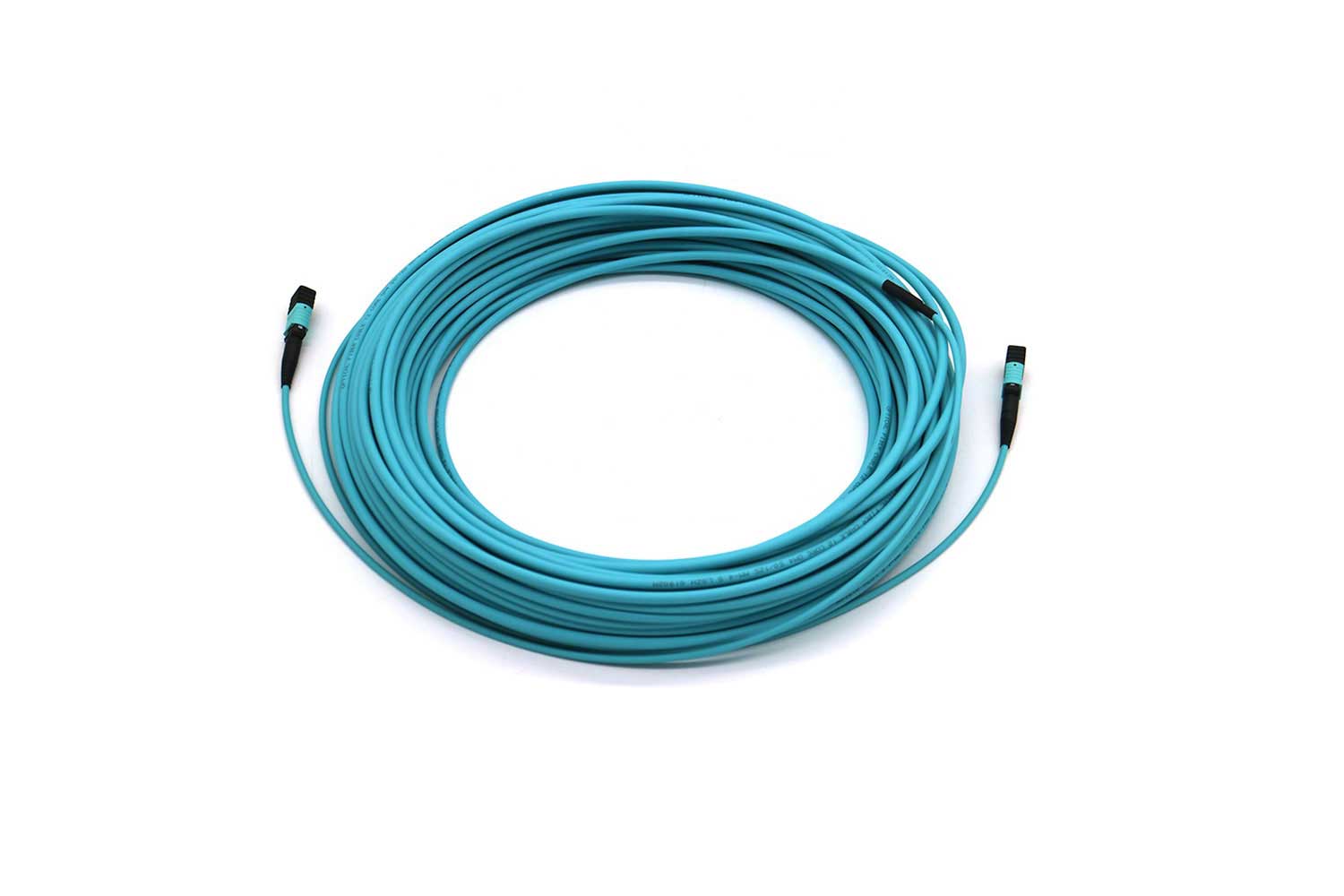

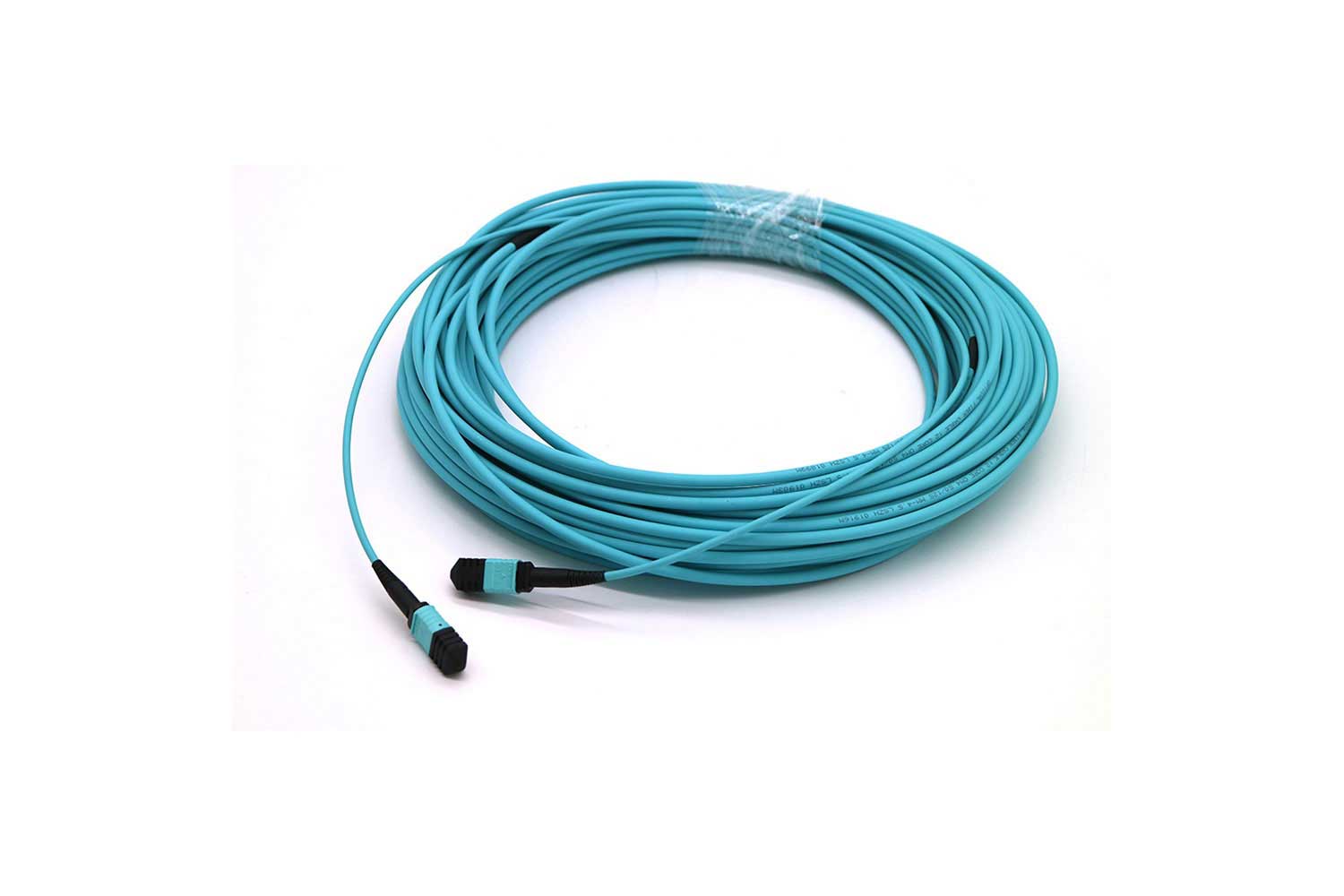

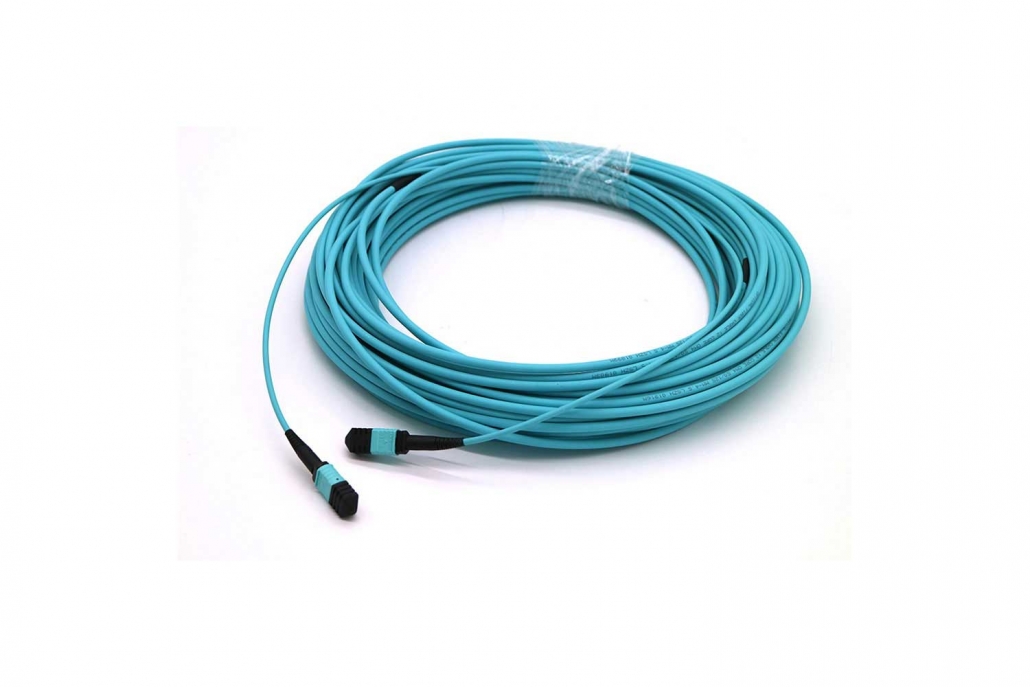

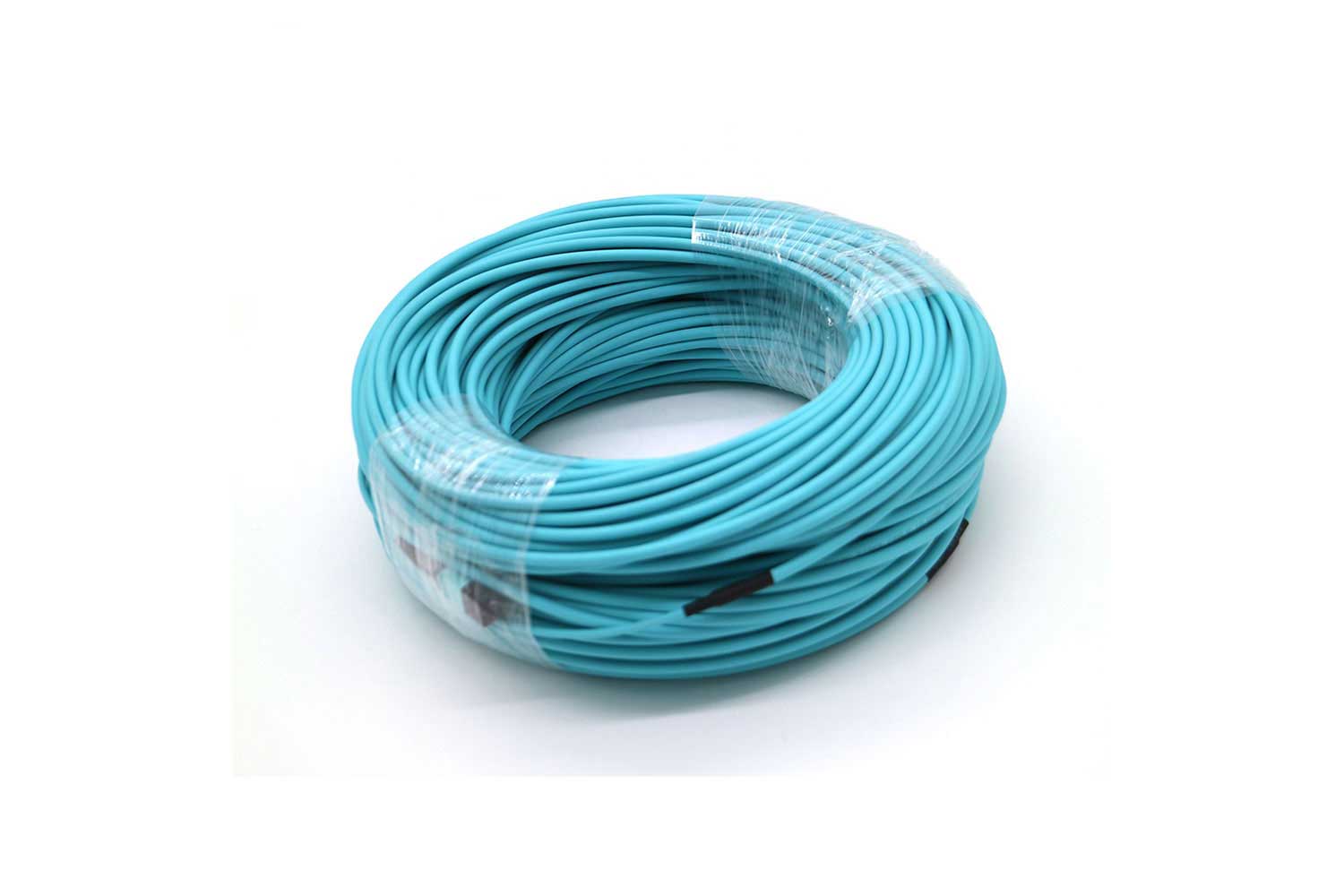

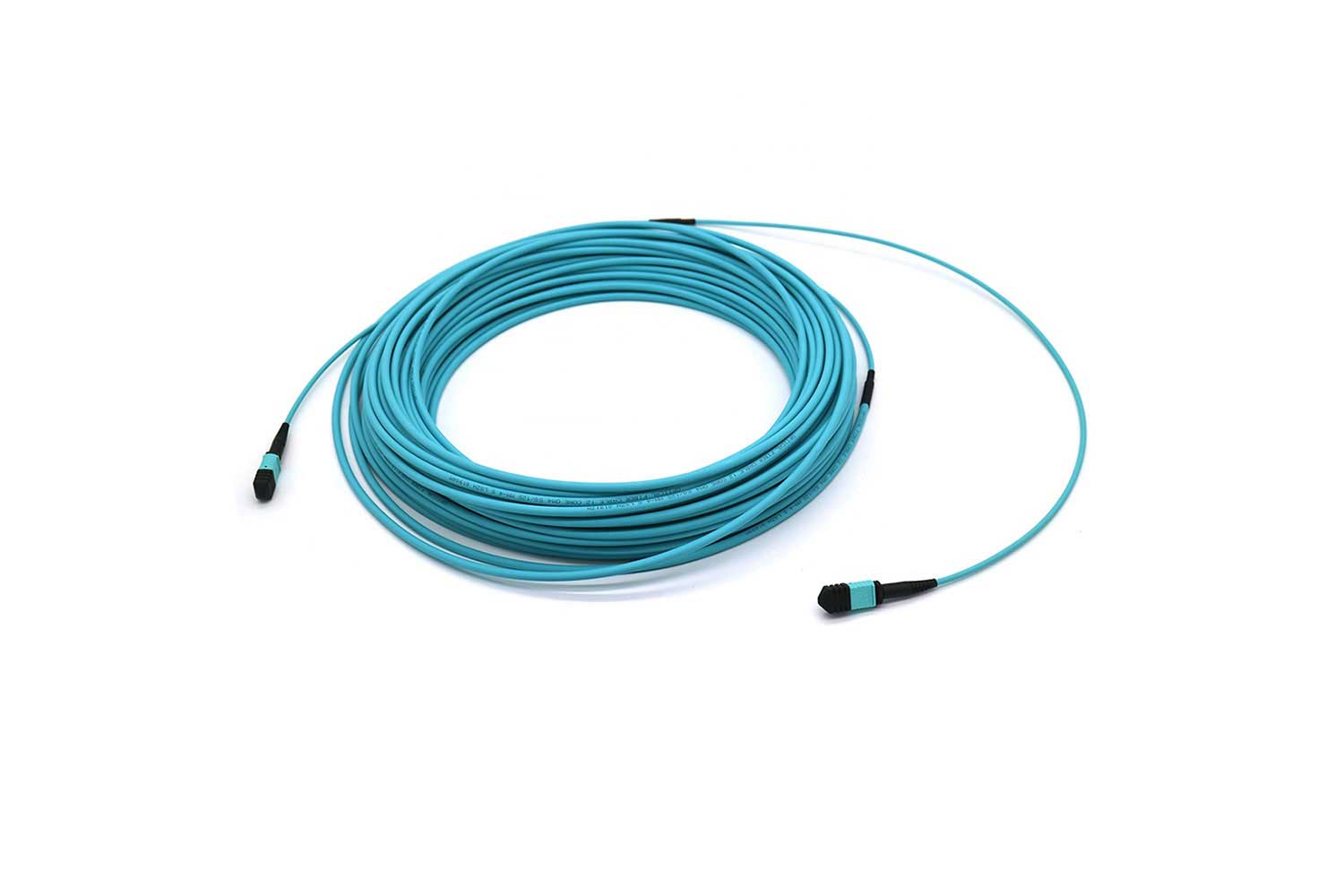

We springoptic supply MTP and MPO OM3 fiber optic patch cables. These are available in Female to female or a male to male and male to female configurations. The male version has MTP pins. Available in ,8,12 and 24 fiber array configurations. We use USConec MTP fiber optic connectors for all of our MTP and MPO terminations so that the highest performance is accomplished. Many additional options and combinations are available. All multi fiber optic cables are customizable. The MTP Elite connector is a mtp angle polished connector to reduce back reflection and minimize the insertion loss of the fiber connector. Choice of jacket type are Round 3mm jacket or flat jacketed ribbon cable or bare ribbon mtp cables. Also the jackets are available in plenum or riser rated jackets.
Features
Features:
MTP/MPO 10GB OM3 3.0mm Fiber Optical Trunk cable are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. Trunk cables serve as a permanent link connecting the MTP/MPO modules to each other. Theoretically, trunk cables are available with 12, 24, 48 and 72 fibers. Their ends are terminated with the customer’s choice of 12-fiber or 24-fiber MTP/MPO connectors
Specification
Type | Single Mode | Single Mode | Multi Mode | |||
(APC Polish) | (UPC Polish) | (PC Polish) | ||||
Fiber Count | 8,12,24 etc. | 8,12,24 etc. | 8,12,24 etc. | |||
Fiber Type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. | |||
Maximum Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
Low Loss | Low Loss | Low Loss | ||||
≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.60dB | |
Return Loss | ≥60 dB | ≥60 dB | NA | |||
Durability | ≥500 times | ≥500 times | ≥500 times | |||
Operating Temperature | -40℃ ~ +80℃ | -40℃ ~ +80℃ | -40℃ ~ +80℃ | |||
Test Wavelength | 1310nm | 1310nm | 1310nm |
Application
Pre-terminated MTP Technology-Polarity:
The three polarity methods Type A, Type B ,Type C and Type D are used to guarantee the right bi-directional allocation.
