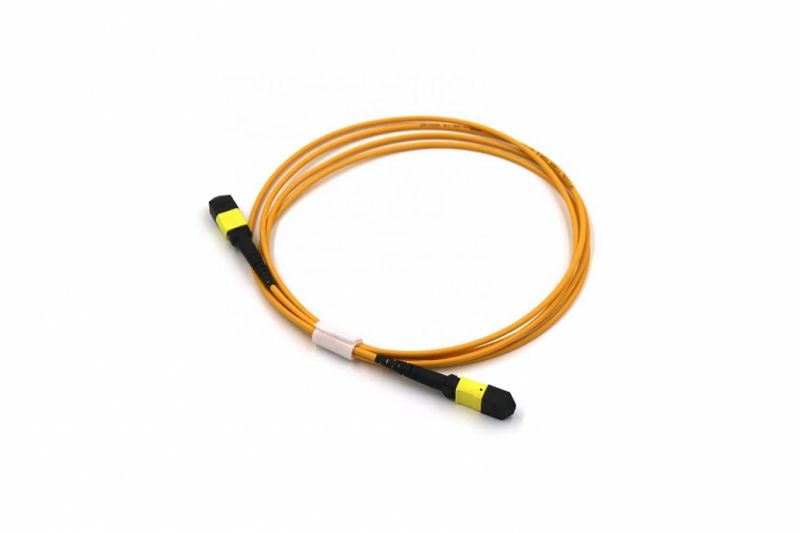

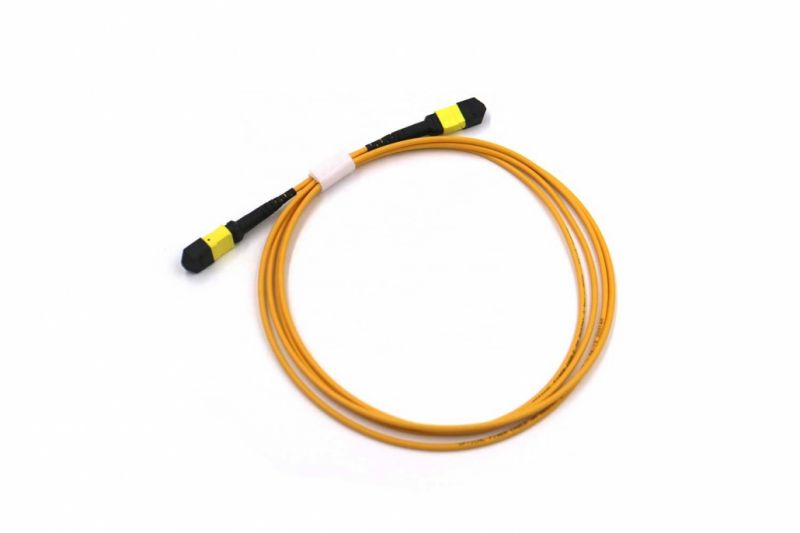

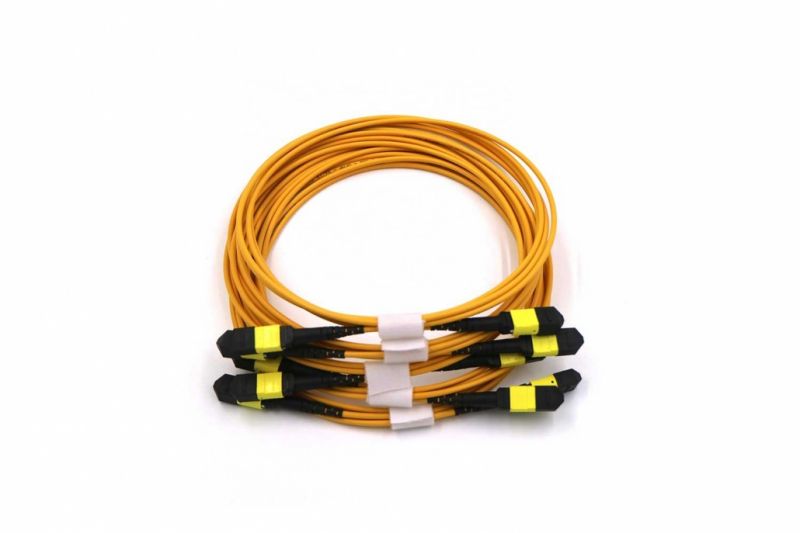

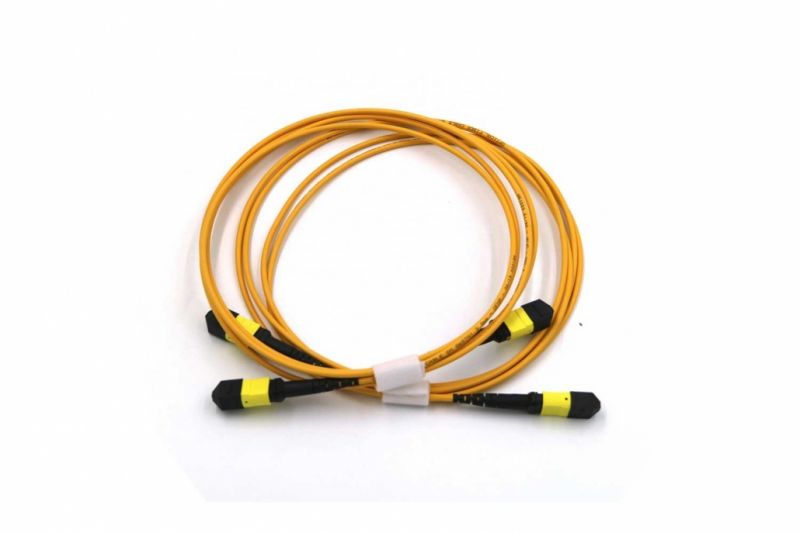

MTP/MPO Singlemode 3.0mm Trunk Cable Patch Cord

Product Model

 SP-MPO-12C-SM

Product Description

MPO/MTP trunk cables are used to interconnect cassettes, panels or ruggedized MPO fan-outs, spanning MDA, HAD and EDA zones, and easy to rapid deployment of high density backbone cabling in data centers and other high fiber environments reducing network installation or reconfiguration.

MPO/MPT trunk cables using a compact and rugged microcable structure, according to different colors divided into SM, MM and 10G MM. The fiber ranges from 12 to 144, MTP polarity options are TIA way is Style A(up), Style B(down) and Style C(up/up). The cable length belongs to a custom product.

Features

Features
· With 12-fiber and 24-fiber MPO/MTP connector standard
· Available in OS1/2, OM2, OM3 and OM4
· Available in FC,LC, SC, ST, MU, and MTP
· Interface polished type has PC, UPC and APC
· Available in 12 / 24 / 36 / 48 / 72 / 96 / 144-fibers
· 100% factory tested
· Discrete connectors are heat-cured and use ceramic ferrules and sleeves
· Fan-out fibers from MPO/MTP connectors into individual simplex or duplex
· Customized for length, staggering, connector type, breakout style, fiber count, and labeling fiber

Specification
MPO/MTP Termination
Type Single mode(APC polish) Multi mode(PC polish)
Fiber count 8, 12, 24 etc. 8, 12, 24 etc.
Fiber type G652D, G657A1 etc. OM1, OM2, OM3, OM4 etc.
Maximum Insertion Loss Standard Elite Low Loss Standard Elite Low Loss
≤0.75 dB ≤0.35 dB  ≤0.75 dB ≤0.35dB
Return Loss ≥55 dB N/A
Working Temperature -40℃ ~ 80℃ -40℃ ~ 80℃
Test Wavelength 1310nm 850nm
All MM SM shall be tested for IL

Mpo Trunk Cable

Application

Pre-terminated MPO/MTP Technology-Polarity

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
