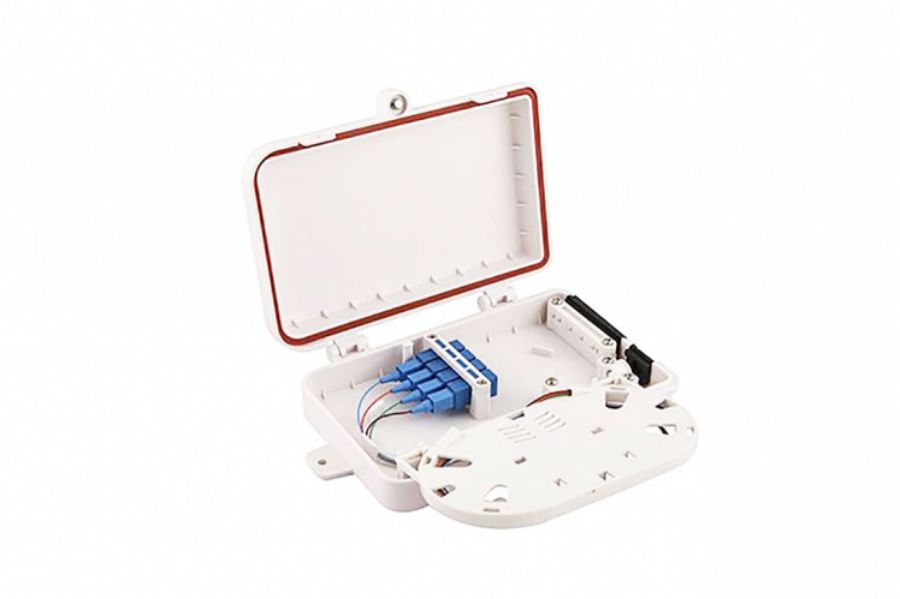

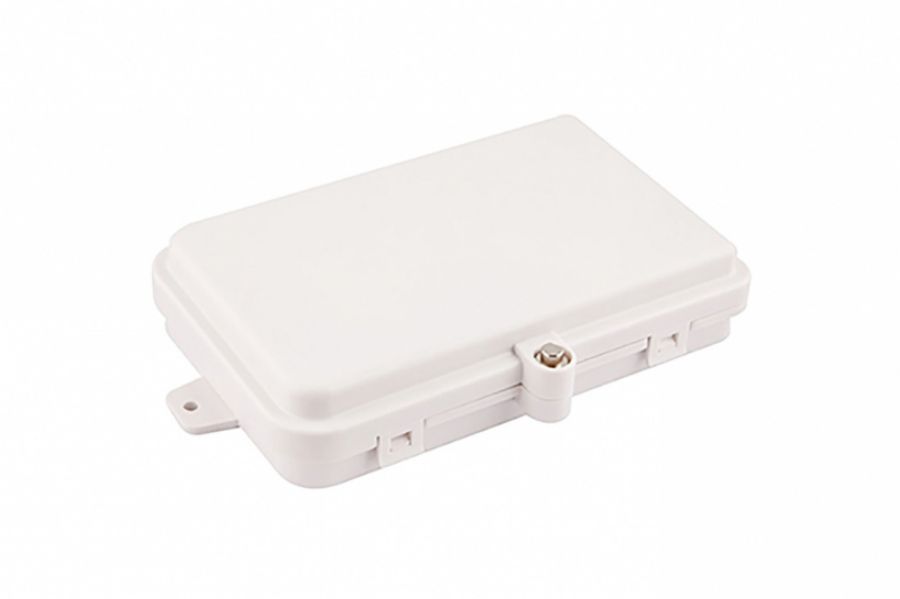

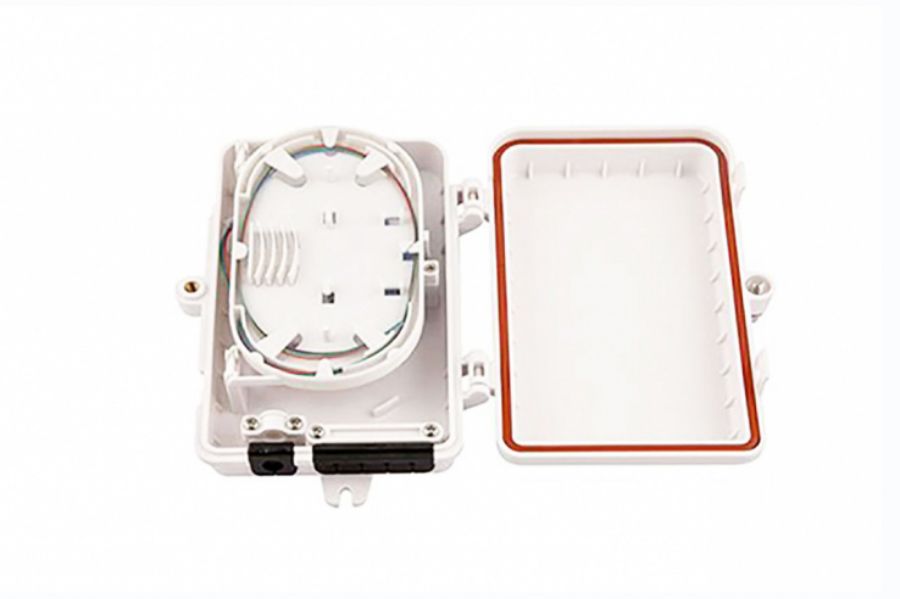

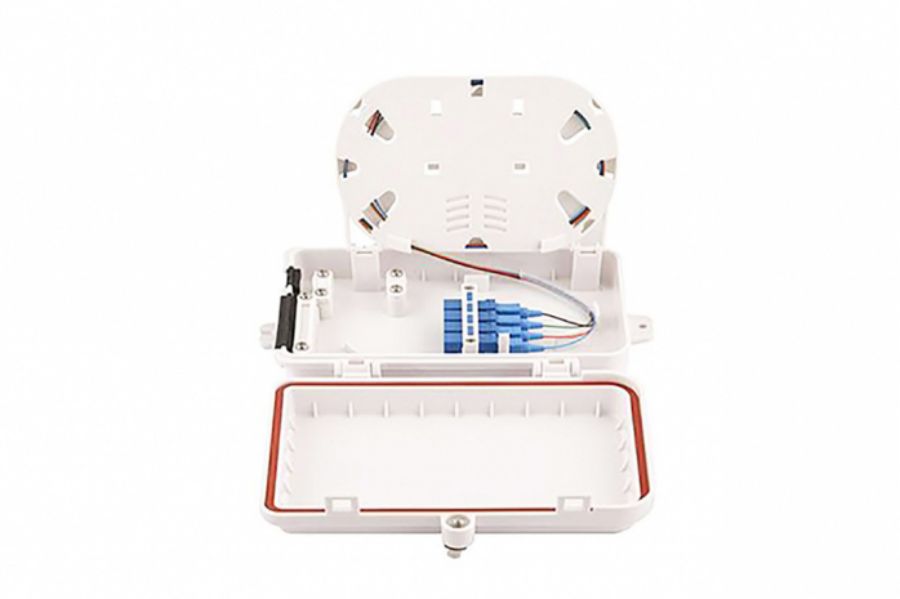

4 Core FTTH Fiber Optic Distribution Splitter Box

Product Model

SP-1602-4B

Product Description

SP-1602-4B Fiber termination boxes are used in the end termination of residential building and villas, to fix and splice with pigtails; can be installed in the wall; may adapt variety of optical connection styles; optical fiber can be managed effectively. Reasonable design for fiber arrangement, bend radius more than 30mm. Suitable for 1pc 4 way splitter or 1pc 8 way splitter with LC connector (Steel tube type).

Features

Features:

Operate temperature: -5℃+40℃
Relative humidity: ≤90%(+30℃)
Atmospheric pressure: 70Kpa-106Kpa
Storage Temperature: -40℃+70℃
Optical parameter: Insertion loss≤0.3dB;
Excess loss: ≤0.2B;
Return loss≥50Db
IP standard: IP55

Specification

Specification:

Type	SP-1602-4B
Size(mm) WDH	18513040
Cable diameter(mm)	7.0~10.0mm
Cable Ports	1
Max capacity of splice	4(single fiber)
Adapter type	SC/UPC, SC/APC
PLC Splitter type	1×4 steel tube 0.9mm PLC Splitters
