4 Core Fiber Optic Distribution Box for FTTx Net Work

Product Model

SP-1602-4C

Product Description

SP-1602-4C fiber termination box adopts a compact plug-in design, combines a Integration, Multi-function, Modern design concept. It is of a graceful appearance and applicable for FTTX network, and easy use in different installation environments. The clasp design of the cover has greatly reduced the installation strength. The box fit for FC, SC, ST, LC (duplex) adaptor, with good bending protection.

Features

Features:

Wall-mounted or Desktop
Small Size,light weight,Pleasing in appearance
Self-clip design,easy to operate
Hinge and convenient press-pull button lock design
Color: White
Material: ABS+PC
Suitable for SC,FC adapters
Capicity(cores):4(SC Simplex),8(LC Duplex)
Working Temperature：－25℃～60℃

Specification

Specification:

Type	SP-1602-4C
Size(mm) WDH	15011030mm
Color	White
Cable Ports	4
Max capacity of splice	4(single fiber) for SC, 8port for LC
Carton qty/pc	40
G.W./kg	8

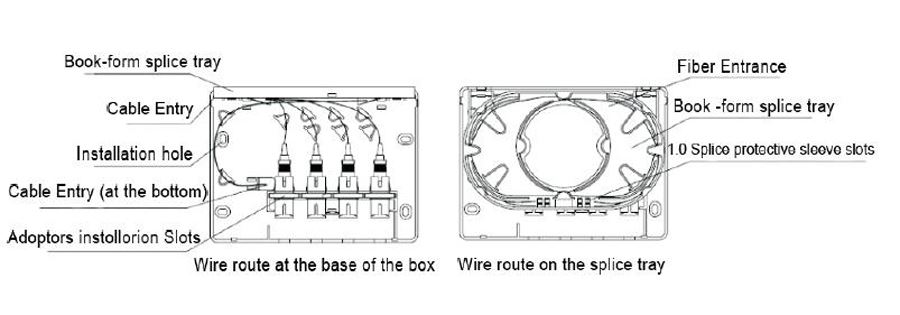

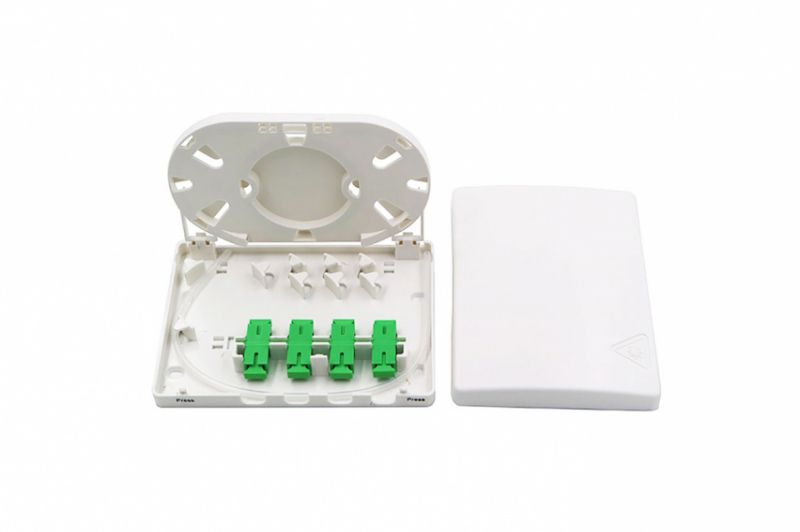

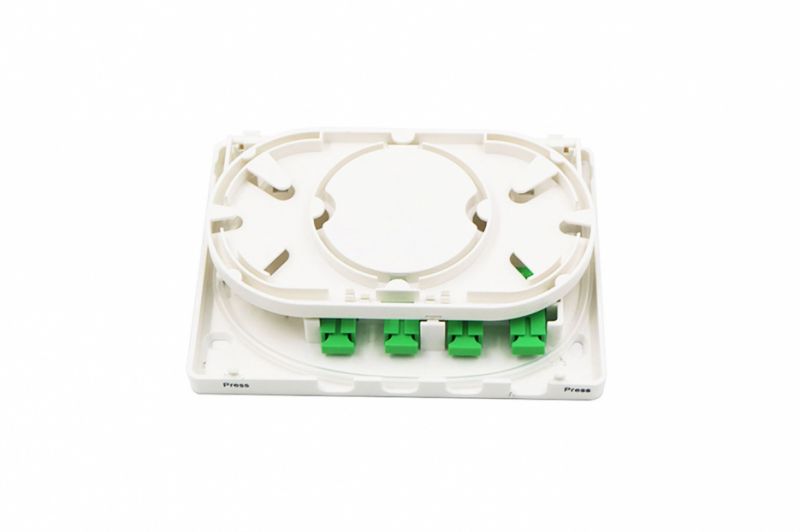

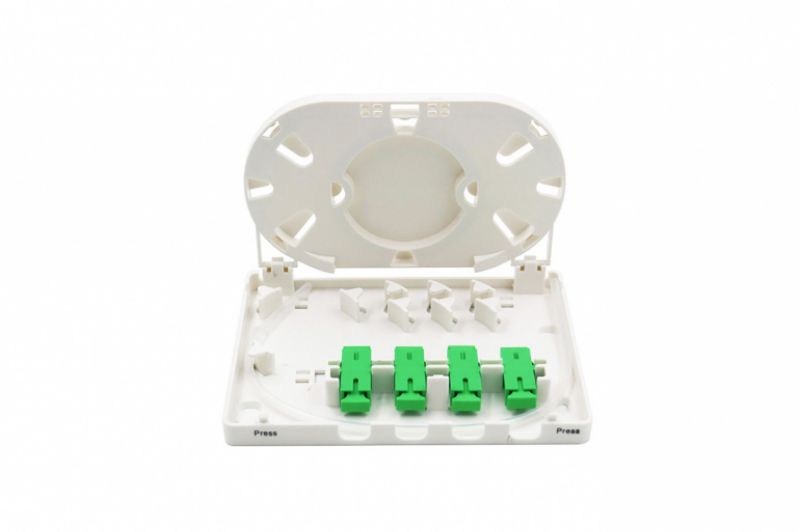

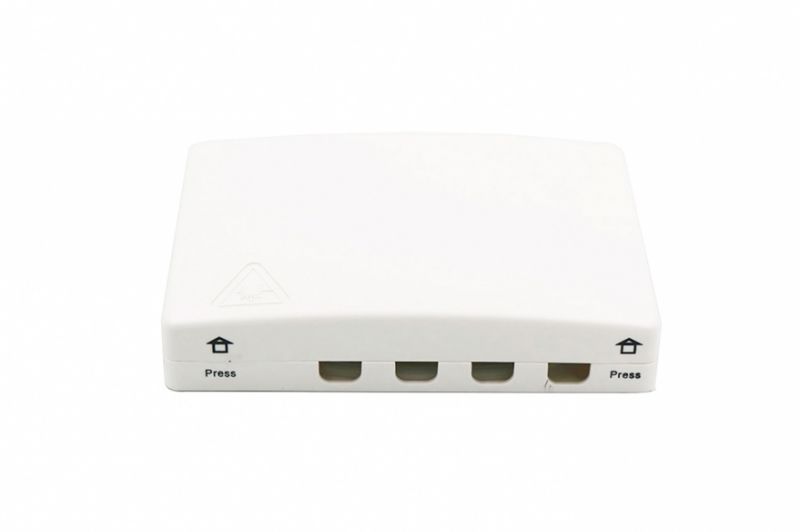

Details for SP-1602-4C Fiber Terminal Box:

Application

Application:

Widely used in FTTH Access Network
Telecommunication Networks
CATV Networks
Data Communications Networks
Local Area Networks

Download

Specification Download
