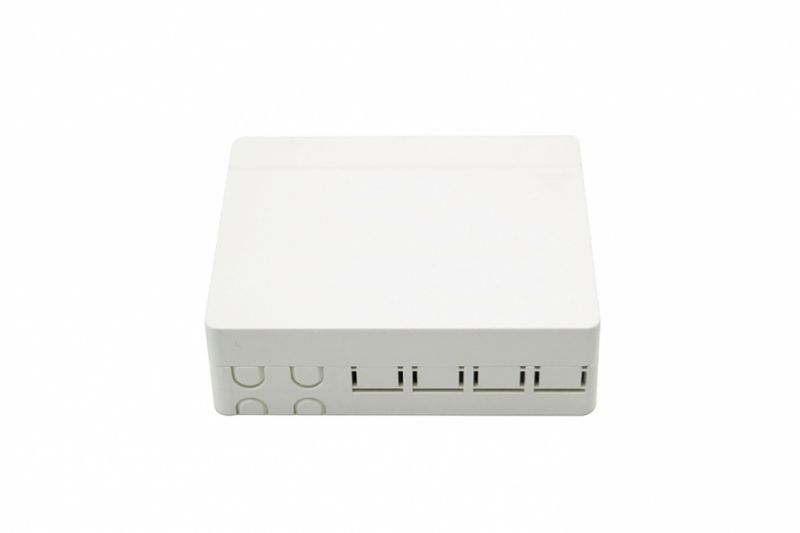

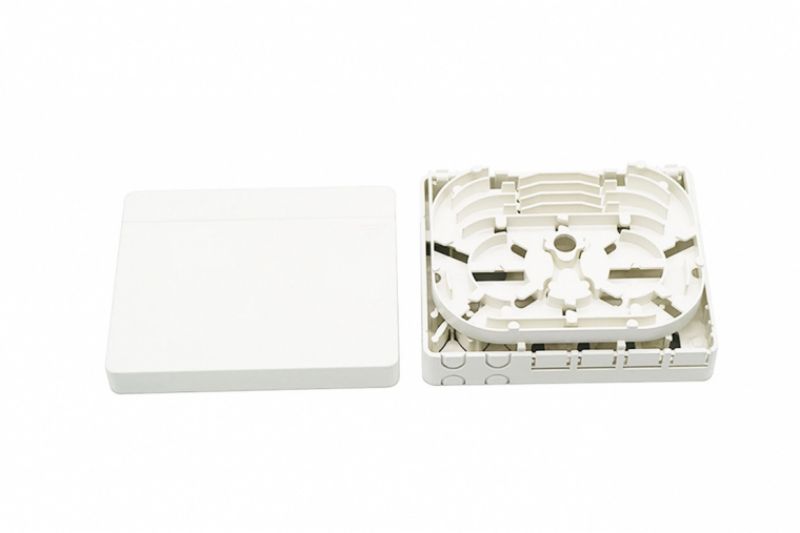

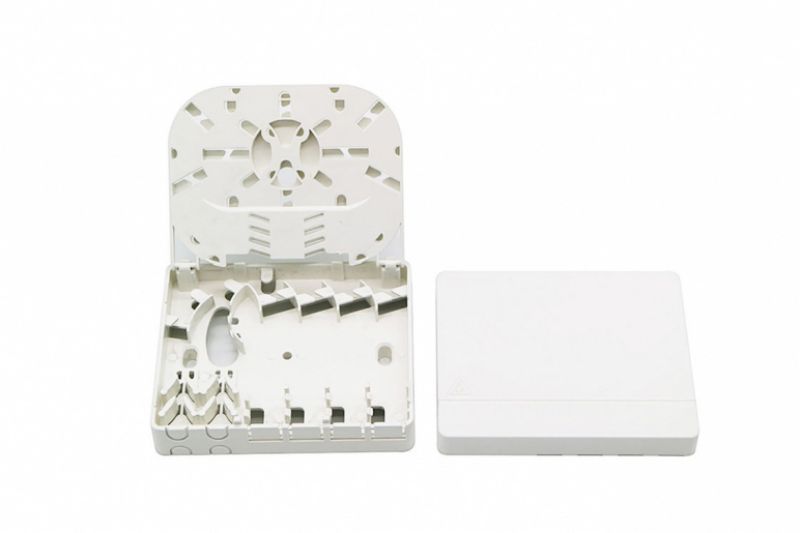

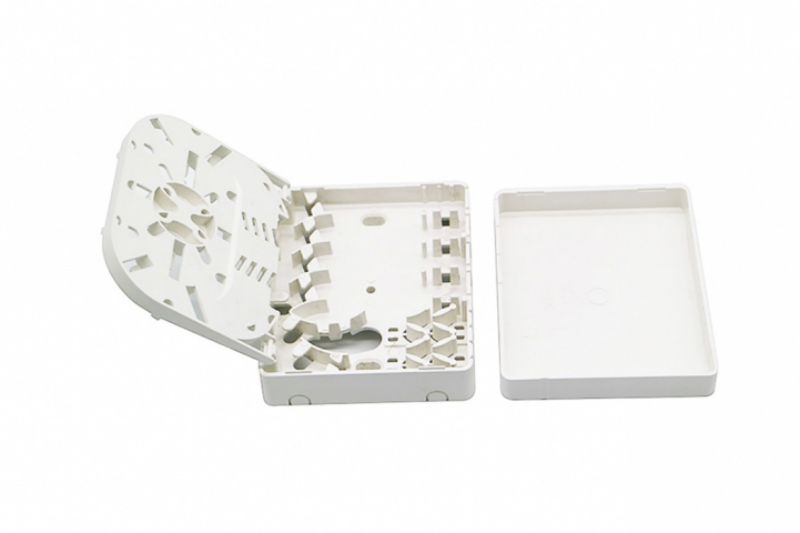

Optical Fiber 4 Core FTTH Termination Box

Product Model

SP-1602-4D

Product Description

SP-1602-4D fiber termination box is able to hold up to 4 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber termination, storage and cable connection in one solid protection box.

Features

Features:

Dust-proof design with IP-45 Protection level.

Integrated with cable termination and management rods.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Suitable for the wall mounted installation.
Embedded type surface, easy for installation and removal.
4 port cable entrance for drop cable or patch cable.

Specification

Specification:

Type	SP-1602-4D
Size(mm) WDH	100.580.529
Color	White
Cable Ports	4
Max capacity of splice	4(single fiber) for SC, 8port for LC
Adapter type	SC/UPC, SC/APC,LC/UPC,LC/APC
Material	PC+ABS
