FTTH Fiber Optic Four Corner Pressure Polishing Machine

Product Model

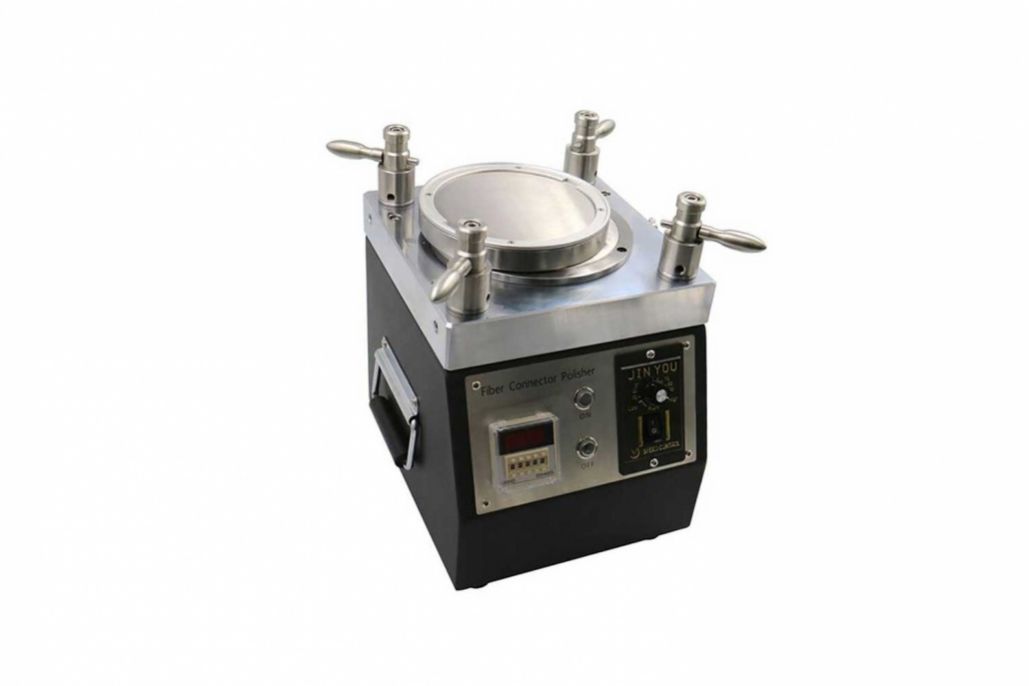

Four corner Pressure Polishing Machine

Product Description

The Fiber Optical Polishing Machine On The Base Of International Universal Standards And Long-Term Hands-On Experience, It Exceeds Requirements For Gr-326 End Face Geometry, And This Fiber Optical Polishing Machine Adapt To Four Corners Compression And New I. P. C. Holder Technology Yields The Best Results In The Industry. No Variability In Result When Polishing 1 Or 24 Connectors, Jig Will Be Installed Stable, And Compact Size.
This Fiber Optical Polishing Machine Can Process Excellent Connector End Force Polishing Quality. Our This Type Of Fiber Optical Polishing Machine Designed For Volume Production, High Productivity. For More, The Fiber Optical Poslishing Machine Can Save Material And Low Cost For Polishing.

Features

Features:

Compatibility Of 0ther Equipments When We Designed This Polishing Machine, Taken Full Account Of The Consumables (Abrasive Film), Jig & Fixture Used Currently The Most Widely Used 127mm And Corner Positioning, Compression Work. Fixture Can Be With Other Manufacturers Equipment Exchange, And Do Not Make Any Adjustments.
Applies To A Wide Range Of Equipment, With No Need Of Any External Equipment, An Area Of Less Stable Production. As Long As Necessary In Accordance With The Replacement Of Fixtures, It Can Produce Different Types Of Connectors, Suitable For Production And Scientific Research Trial Orders.
The Polishing Machine Is Versatile And Be Efficient And Fast Produced All Kinds Of Standard Fiber Optic Connectors Type With Dedicated
Fixture: Fc / Pc Fc / Apc Sc / Pc Sc / Apc St / Pc St / Apc Lc / Mu Mt-Rj 8 Deg. Or 0 Deg Mpo Mpx Mtp, E2000, D4 Etc Bd. In Addition, The Polishing Machine Is Able To Polish Sm, Mm And Pm Optical Fiber Connectors And Other Specialized Types.
Special Circumstances, Can Be Customized According To User’s Request Special Connector Fixture. This Equipment Can Be Used Not Only The Production Of Ceramic-Core Connector, The Same Can Be Used For Energy-Coupled Fiber-Optic Connector, Dark Fiber And The Optical Fiber Connectors Made Of Glass Or Plastic And Other Tiny Elements As Well And Production.
Operation Simple, Convenient To Simplify Production Processes, Improve Work Efficiency. Fixture Cleaning, Replacement Of Convenient And Quick.
Equipment Maintenance Equipment In The Use Of Easy Just To Avoid The Process Of Polishing Paste And Cleaning Of The Residue To Get Jig Polishing Machine Platform.
Connectors Produced By This Polishing Machine Are Of Low Insert Loss And Low Return Loss, Good Interchangeability And Good Repeatability.
Our This Fiber Optical Polishing Machine Also Have Other Striking Strengths Such As: High Quality Reliability And Versatilit, Heat-Treated, Stainless Steel For Amazing Precision, Durability And Easy Operation.
Well-Chosen Polishing Films Can Improve Productivity, Lower Production Cost And Enhance Product Quality As Well.

Dimension


Pressure way	4 coil spring	Insert Loss	0.3 dB (SM) 0.2 dB (MM)
polishing capacity(max)	SC, FC, ST: 20, 48 units LC: 24, 48units	Return Loss	50 dB (PC) 60 dB (APC)
polishing connector type	FC, SC, ST, LC, MU, MTP, MPO, MTRJ and so on	Radius	10~25mm
motor speeed	90rpm rotation, 2rpm revolution	Offset	50 μ M
dimension	230230255mm	Under cut	50nm
film size	5′ ‘	Repeatability	0.1dB
weight	24KG	Interchangeability	0.2 dB
Input voltage	100-120VAC, 50/60Hz or 220-240VAC, 50/60Hz	Working Situation Temperature	-10_ +40º C
polishing cycle	2.83mins	Heavy punch	500g or 250g
Polishing chassis diameter	130mm
Polishing time setting	0-3min
Counterweight pressure	2.1~3.6kgf/cm
Time Range	0-300S
Polishing Time	2 min. (quick assembly type)
	3-4 min. (standard connectors)
Pressure Range	0~5kg
Precession Speed	1.5rpm

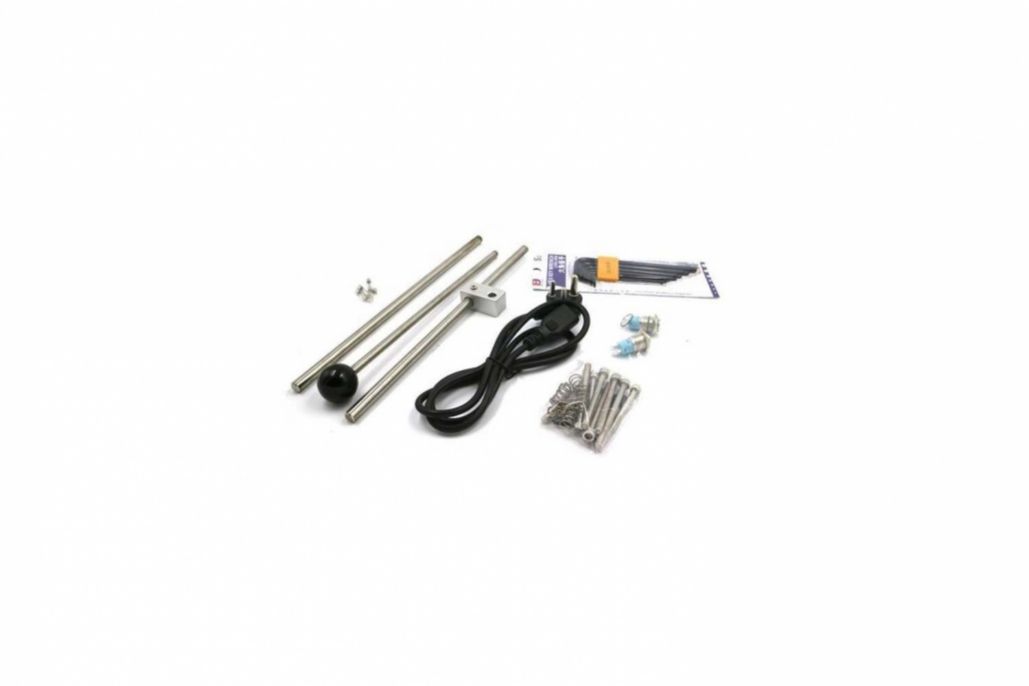

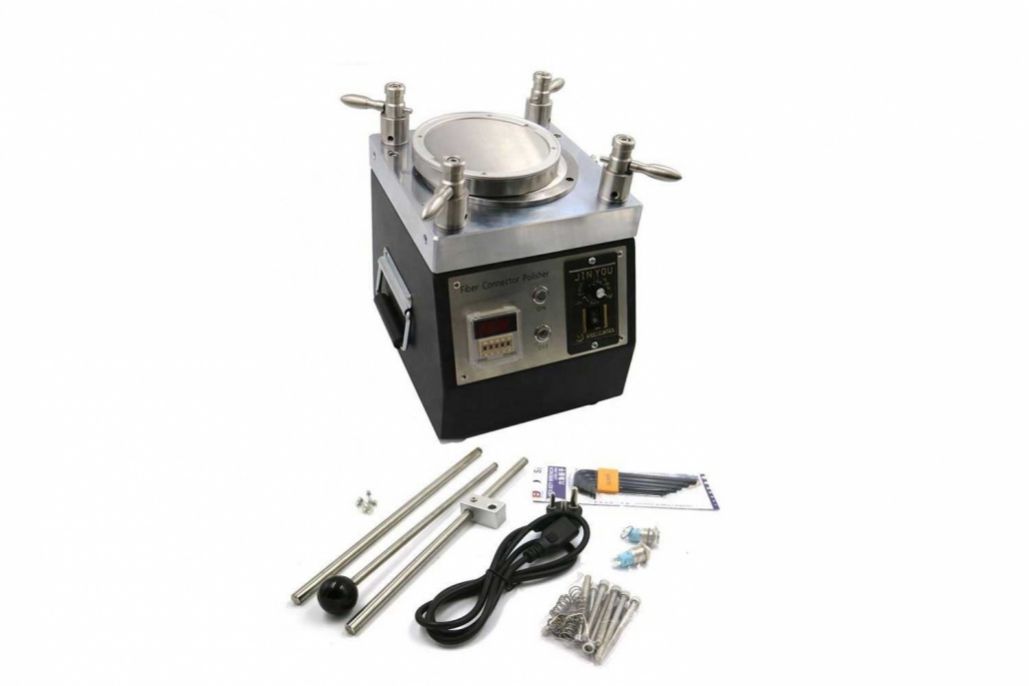

Accessory

Spring Optical Communication is one of the largest and best FTTH Fiber Optic Four Corner Pressure Polishing Machine manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized FTTH Fiber Optic Four Corner Pressure Polishing Machine in stock with our factory. Also, free sample is also available if necessary.
