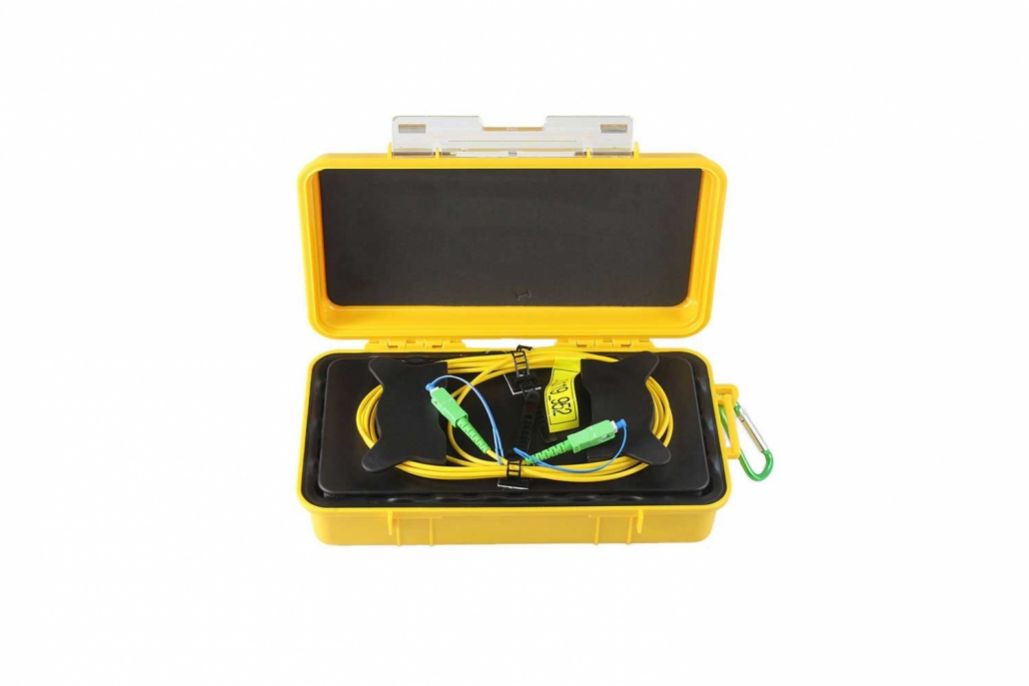

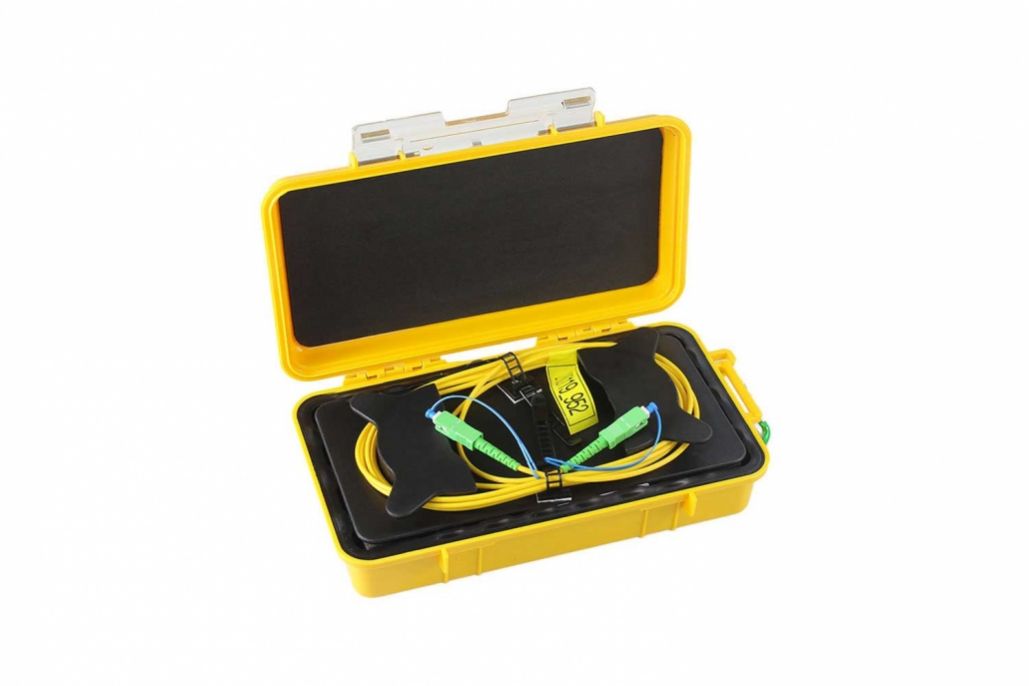

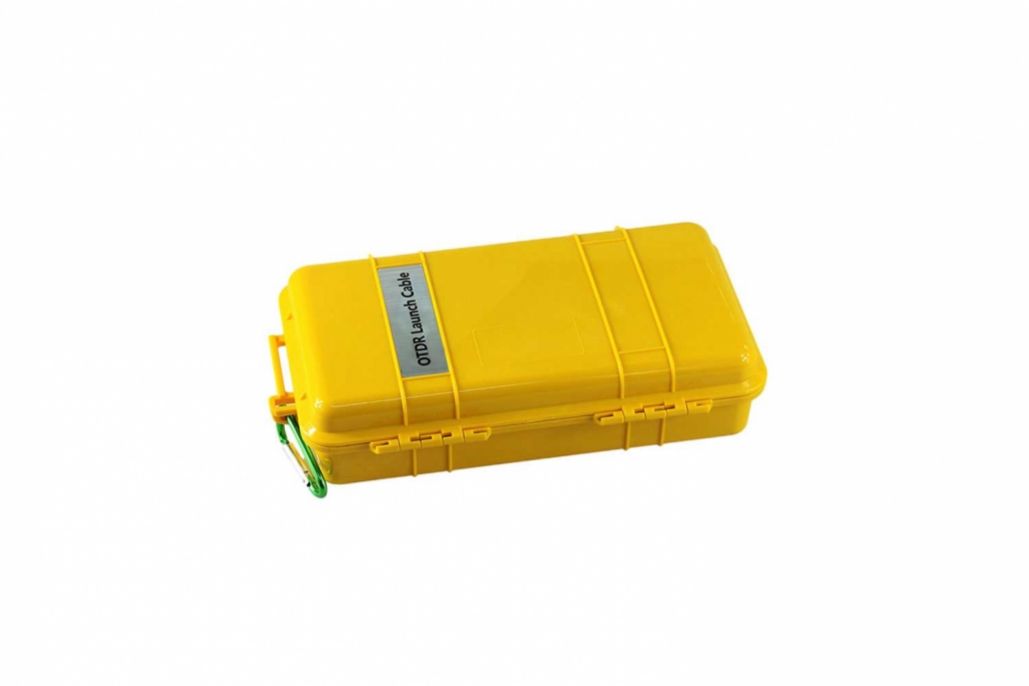

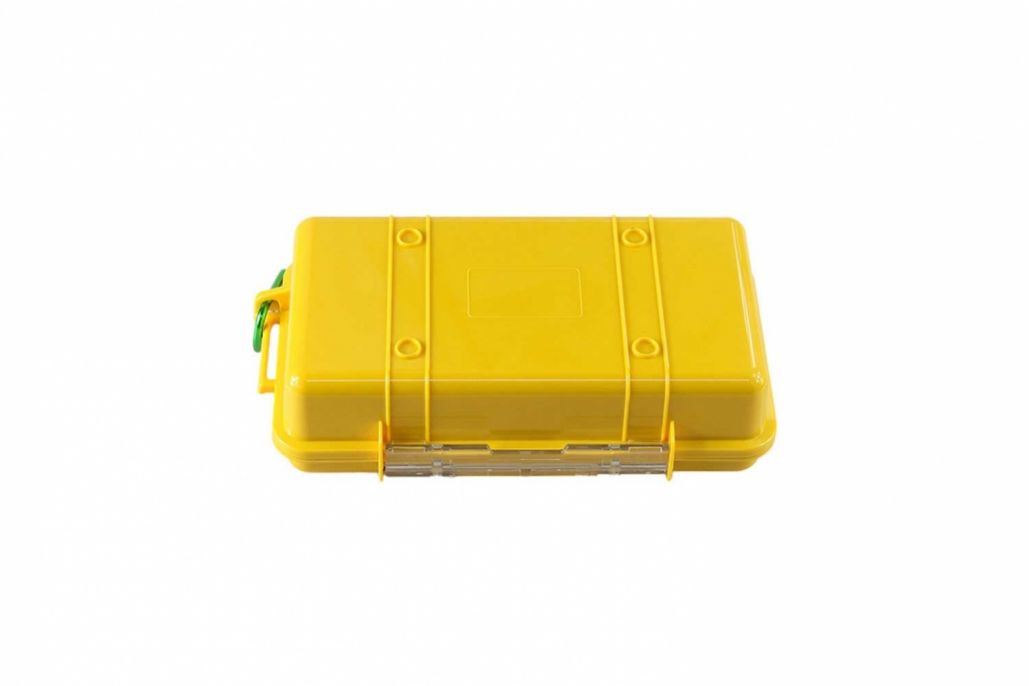

Optical OTDR Launch Cable Box Distance 2km With SC Connector

Product Model

OTDR-SC/APC

Product Description

Fiber Optic OTDR Lauch Cable Box Singlemode with SC/APC Connector,2km

Fiber Optic OTDR Launch Cable Box/Fiber Rings/OTDR Dead Zone Eliminator with Length of 2km

Designed to aid in the testing of fiber optic cable when using an OTDR.The OTDR
Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR’s to
help minimize the effects of the OTDR’s launch pulse on measurement uncertainty.
Available in many different configurations and fiber lengths.

Features

Features:

Pulse Suppressor,Launch Box,Delay Line,Installation/Testing,Training,Calibration.
Compound Latch for positive seal and easy opening with locking feature.
Nonmetal construction will not dent, corrode, or conduce electricity.
Water and dust prove allowing the unit to be taken into almost any environment.
Case can house up to 2,000 meters of fiber.
Auto Purge Valve for changes in altitude and temperature .

Dimension

LengthWidthHeight	23.8 x 14.1 x 6.7 cm / 13.5 x 9 x 4.3 cm
Material	SR Polypropylene
Color	Black/Yellow
Net Weight	0.75 kg (without fiber)
Operating temperature	Operating temperature
Typical Loss	< 1dB @ 1310nm for 1000 meters

Accessory

Ordering Information
LB-[A]-[B]-[C]-[D]

A = Input connector	B = Output connector	C = Fiber	D = Length(km)
FC-FC/UPC	FC-FC/UPC	S–Single mode fiber	0.5=0.5km
ST-ST/UPC	ST-ST/UPC	M6–Multi mode fiber (62.5/125)	1.0=1km
SC-SC/UPC	SC-SC/UPC	M5–Multi mode fiber (50/125)	2.0=2km
FCA – FC/APC	FCA – FC/APC	OM3 – Corning 50/125 (350)
SCA – SC/APC	SCA – SC/APC	G657A – TKH G.657A 9/125
LC-LC/UPC	LC-LC/UPC
LCA-LC/APC	LCA-LC/APC
MU-MU/UPC	MU-MU/UPC
