Optical Splitter Distribution Box 8 Port FTTH Terminal Box

Product Model


Product Description

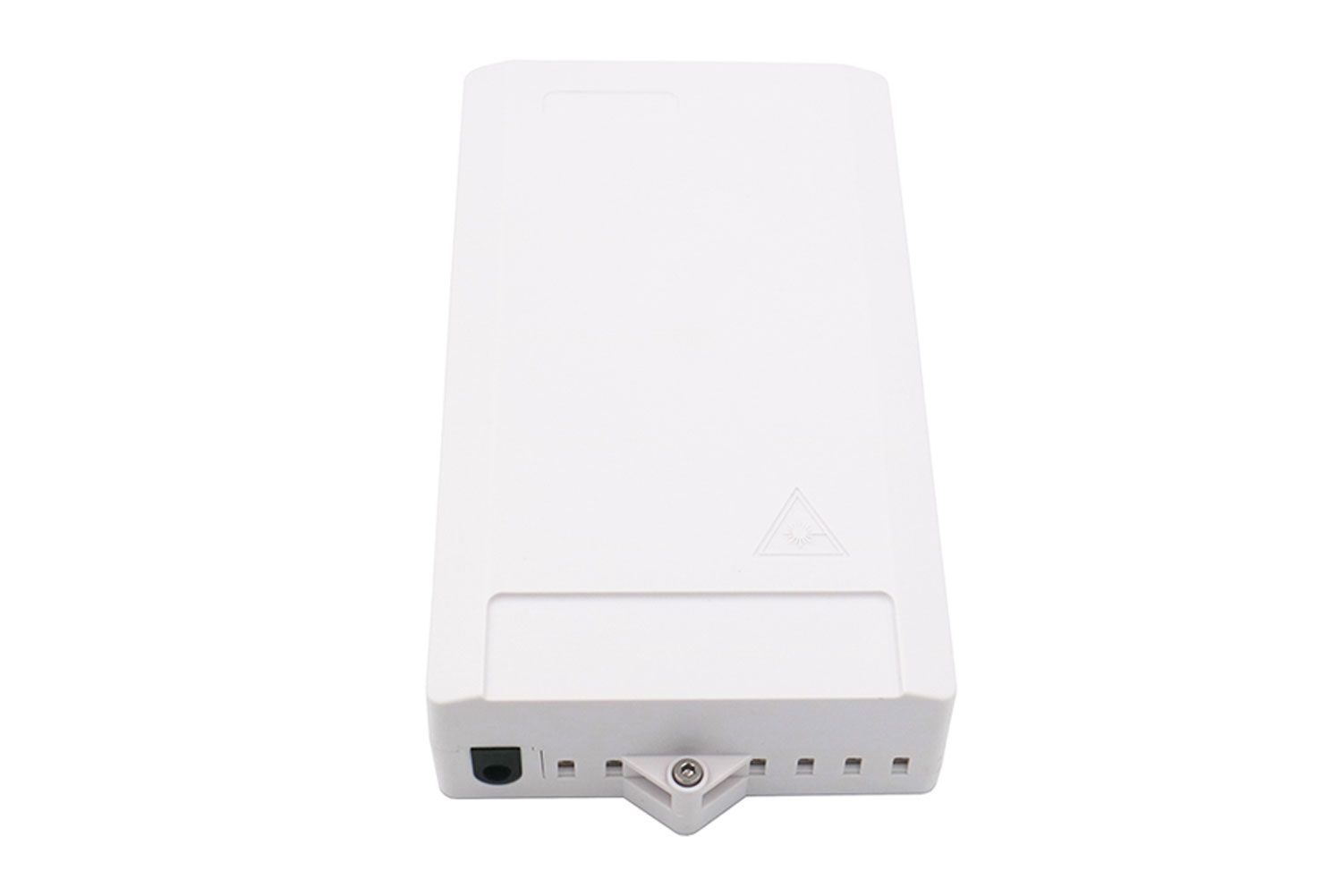

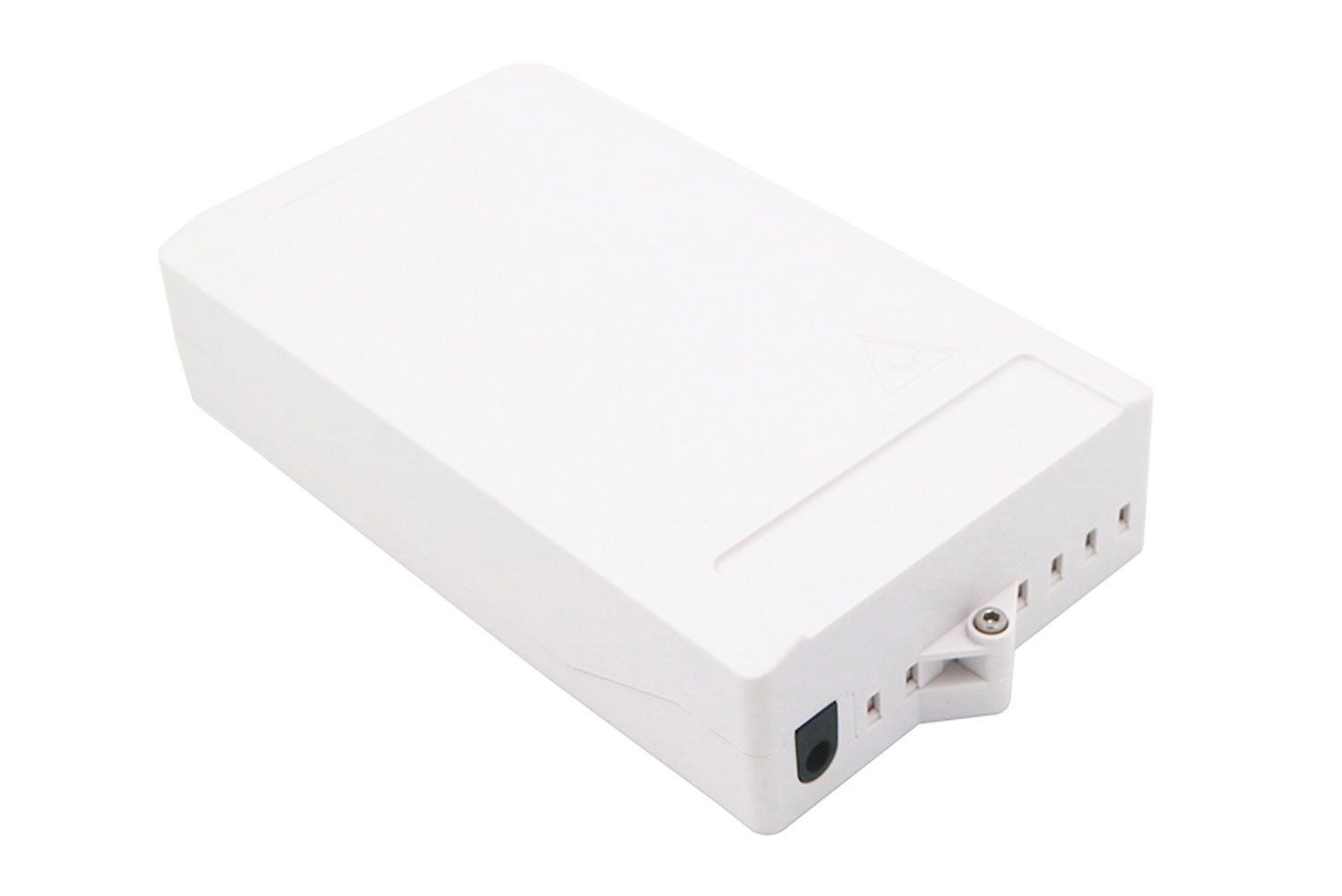

8port Optical Splitter Distribution Box model SP-1602-8F is a fiber access termination box is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with the drop cable in the FTTx network system. It integrates fiber splicing, splitting, distribution, storage, and cable connection in one solid protection box.


Optical Splitter Distribution Box 8 Port FTTH Terminal Box


  1. Thescreen printing can be customized according to customer requirements silk screen / die-cast exclusive LOGO;
  2. The cover fastening screw is a cross-shaped universal loose-fitting screw or a hexagonal loose-fitting screw (can be changed according to customer requirements), and can be opened with a Phillips screwdriver and a flat-blade screwdriver, or equipped with a special hexagonal tool.
  3. It can meet the installation of 8 2X3mm butterfly cables
  4. Two 7.6±0.4mm diameter cables can be assembled at the upper and lower ends of the box.

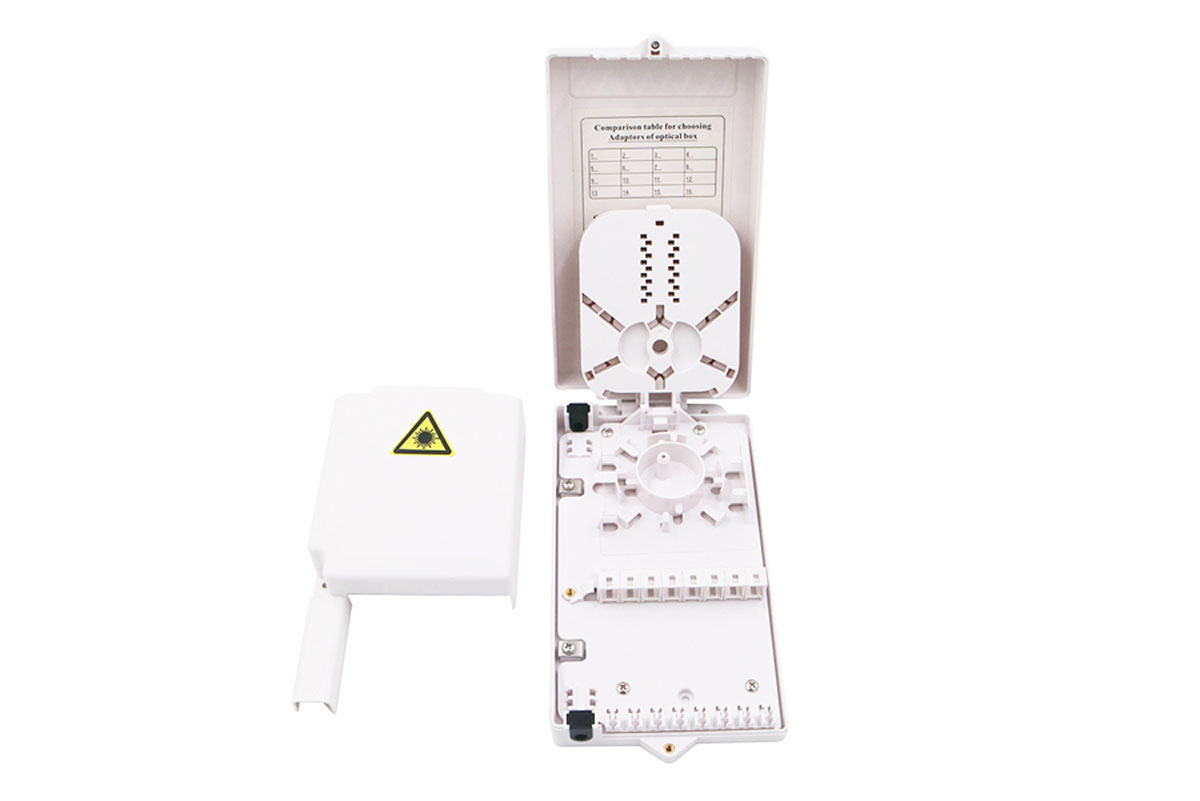

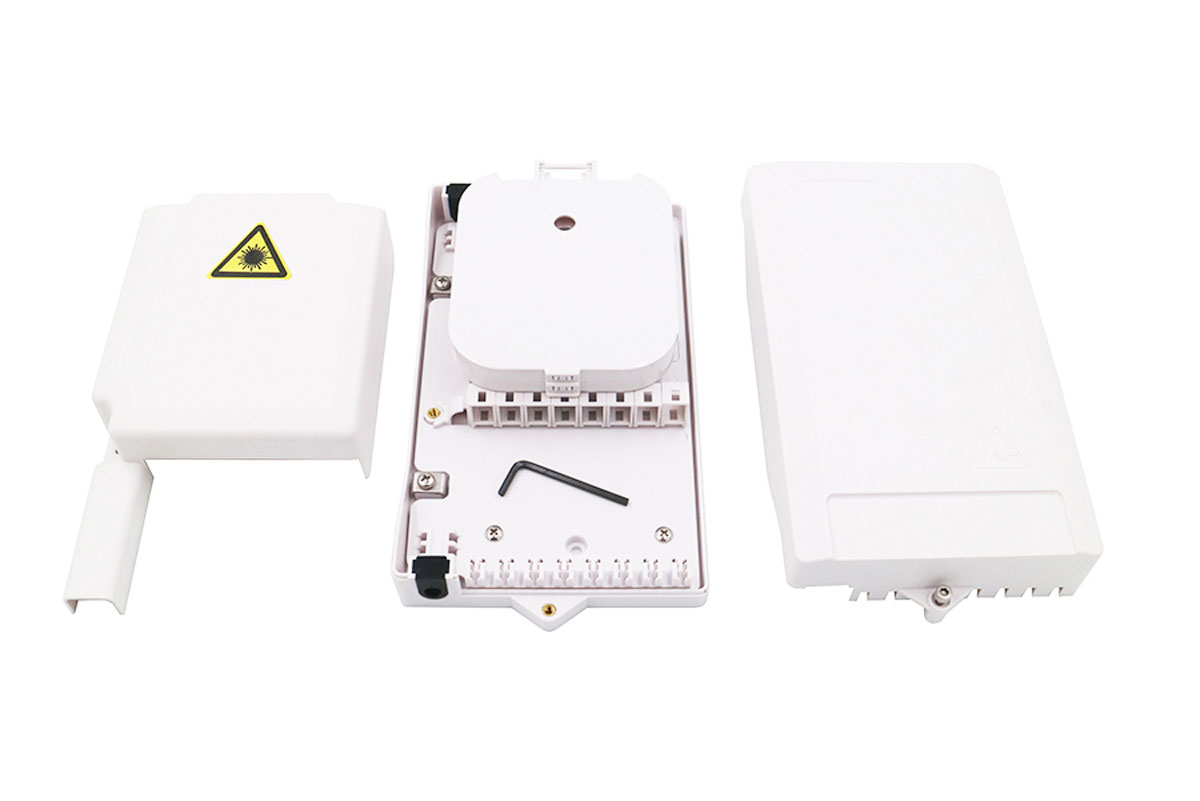

  5. It can support 16-core welding, which can meet the installation of 8 adapters, and the adapter card holder can be flipped (convenient to be easily inserted into the adapter when the customer uses);
  6. The product only contains the box body, does not include the splitter, adapter, pigtail and other devices. If you need to be fully equipped, you need to consider adding a splitter, adapter, pigtail, etc. when placing the order;

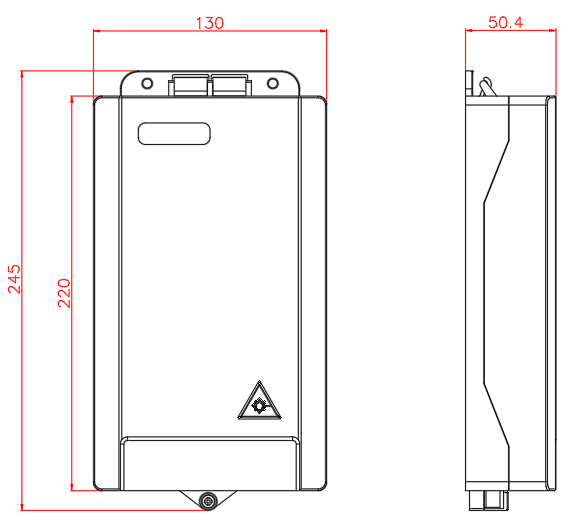

Size: 245*130*50.4mm
Materials: PC/ABS,Metal parts: SUS304
Color: RAL7035 Fine sand
Install Way: Wall mounted
Salt spray: More than 48hours
Flame retardant: Material meets UL94-V0

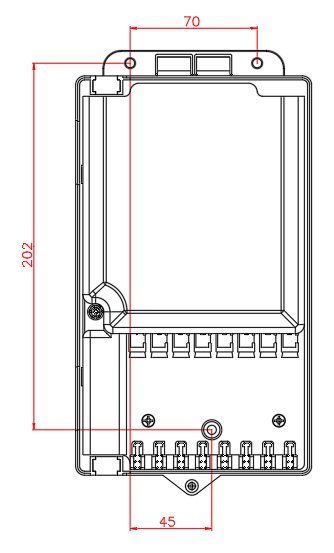

InstallationInstallation 1


1) A single product is placed in a film bag and loaded into a three-layer corrugated box;

2) Multiple products are placed in a cardboard box with five layers of corrugated paper;


1 piece Bare fiber protection sleeve EVA Ф4

1 piece Serpentine wound tube Ф4

12pcs 3*120mm Nylon cable tie

24pcs Heat shrinkable protective sleeve 1.5*40mm

1 bag Desiccant

3pcs ST4.0*25 pan head tapping screw SUS304

3pcs Plastic expansion casing

1 piece open tool


Optical Splitter Distribution Box 8 Port FTTH Terminal Box
