Waterproof IP66 Fiber Optic Distribution Box 8 Core

Product Model

SP-1603-8B

Product Description

SP-1603-8B fiber optic termination box is able to hold up to 8 fibers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

} .template-page.content.av-content-full.alpha.units{ padding-top: 50px; }

Features

Features:

IP66 Rated Water-proof design,Prepared for outdoor environments
Integrated with splice cassette and cablemanagement rods.
Manage fibers in a reasonable fiber radius condition.
Panel for accommodating SC optical adapters, which must be purchased separately
Easy to maintain and extend the capacity.
Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice.
1*8 Splitter can be installed as an option.
Efficient cable management.
3 ports cable entrance for feeder cable and drop cable.

Specification

Specification:

Material	PC+ABS
Dimension	A199B160C46mm
Max Capacity	8 ports SC, 16ports LC or 1×8 splitter
Installation Size	D173*E136mm
Weight	1.2kg
Color	Light Gray

Application

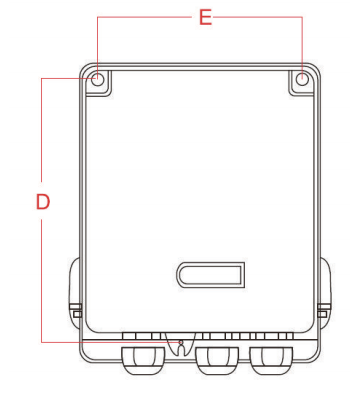

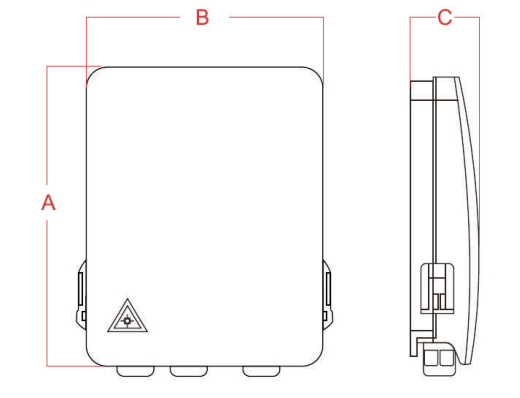

Dimension:

Standard Accessories:

SP-160308C Splice cassette, cable management tool, installation nuts and bolts, protection splice sleeves, hose clamp, rubber steel for cable entrance.

Download

Specification Download
