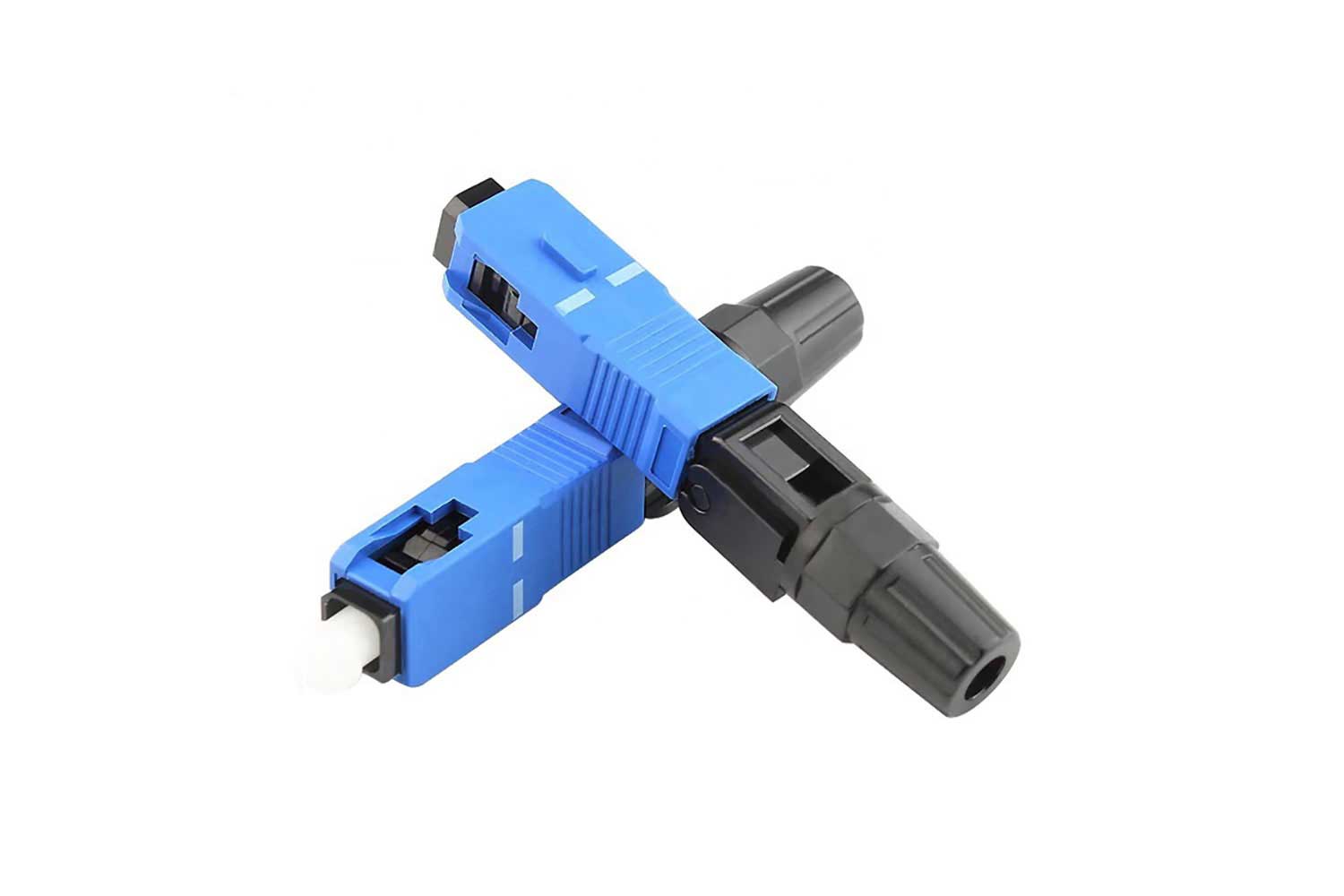

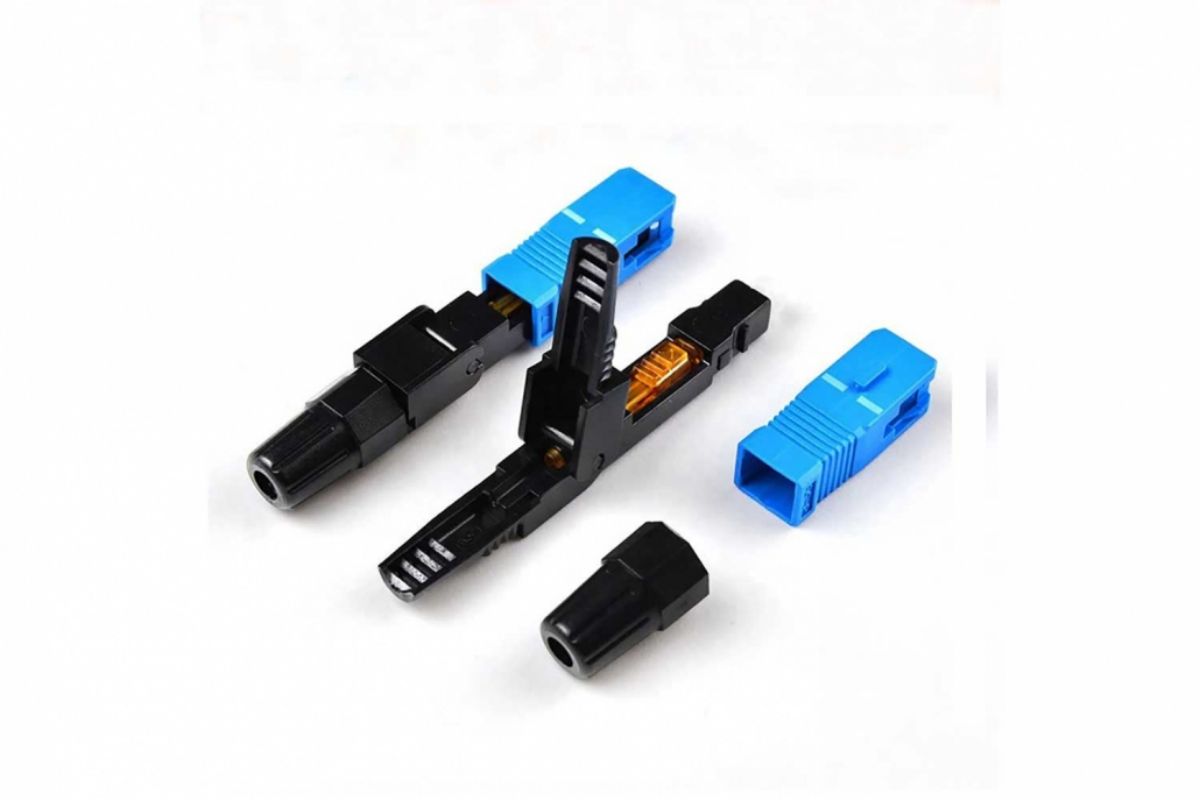

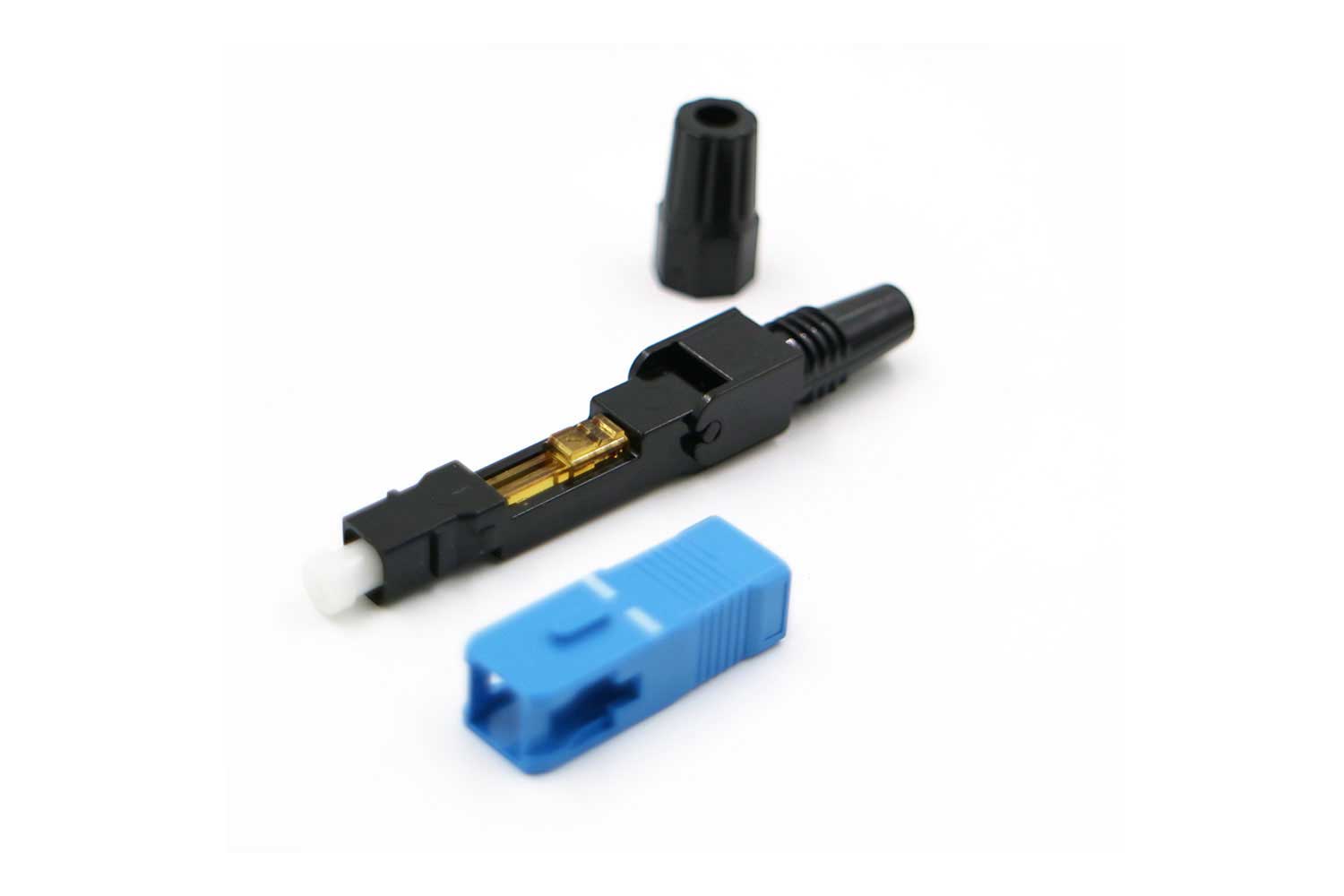

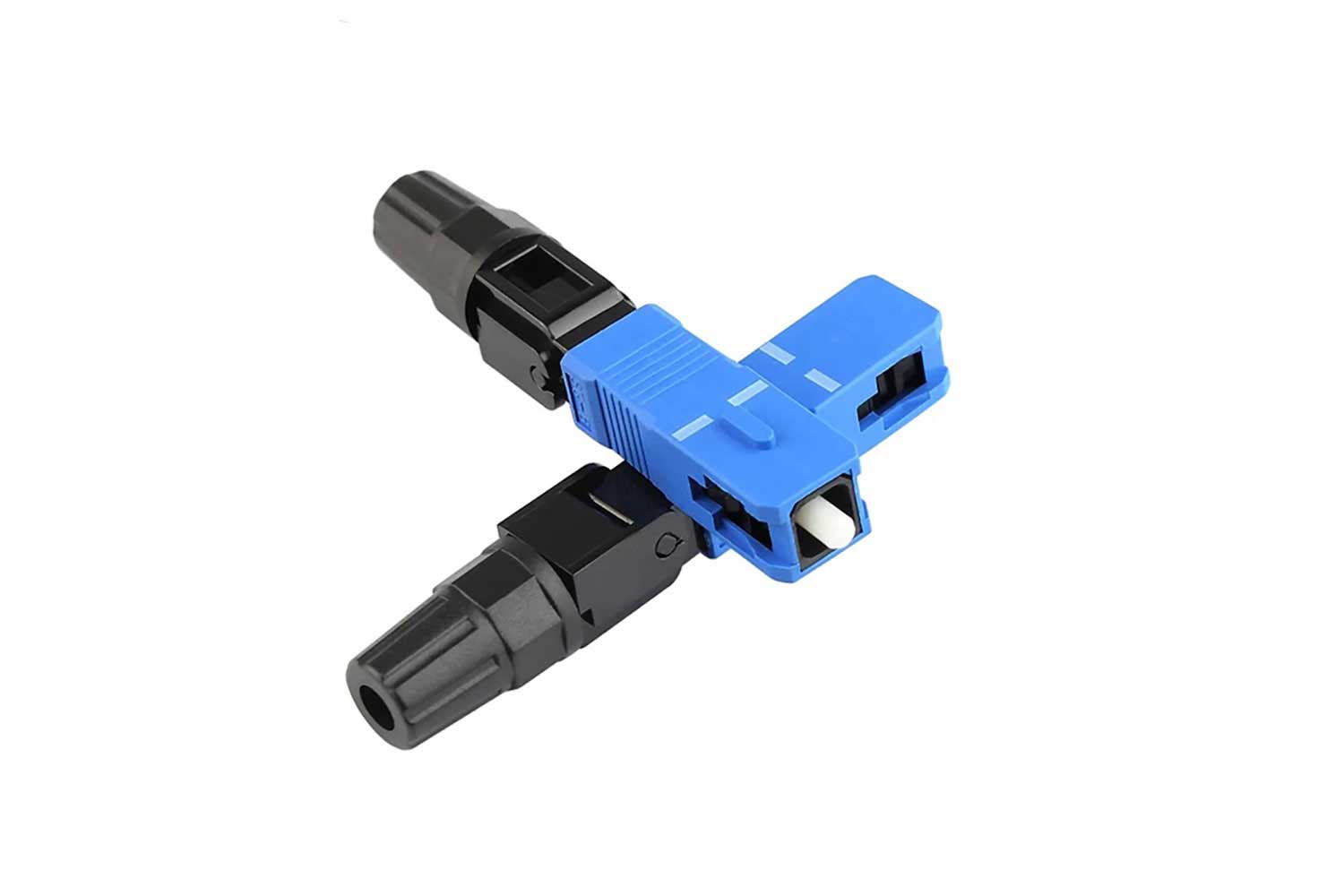

SP-601 SC UPC Field Assembly Fast Connector

Product Model

 SP-601

Product Description

This kind of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application. The SC type is available with 250/900um buffed fiber, 2.0mm,1.6mm x 2.0mm, 2.0mm x 3.0mm and 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mm x3.0mm cable diameter

Features
  1. Features:
  2. Comply with TIA/EIA Telcoria GR-326-Core and IEC61754;
  3. Quick and easy fibertermination;
  4. RoHScompliant;
  5. Reusable termination capability up to 10times;
  6. Easy to deploy fibersolution;
  7. High success rate ofconnections;
  8. Low Insertion & BackReflection;
  9. No special tools
  10. OEM Printing, packing and label is okay.
Specification
Applicable for Drop cable
Fiber Mode Single-mode
Polish Type APC
Housing Green PC Plastic
Insert Loss ≤ 0.30dB
Return Loss ≥ 45.0dB
Fastening strength of naked fiber ≥5N
Tensile strength ≥50N
Reusable ≥ 10 times
Operating Temperature -40~+85℃
On-line tensile strength(20N) IL≤ 0.3dB
Mechanical durability(500 times) IL≤ 0.3dB
Drop-off test

(drop-off height4m,once per direction, totally 3 times)

IL≤ 0.3dB
Application
  • All finerinterconnection;
  • Telecom distribution and Local AreaNetworks;
  • FTTH &FTTx;
  • Passive OpticalNetworks;
  • Broadband,
