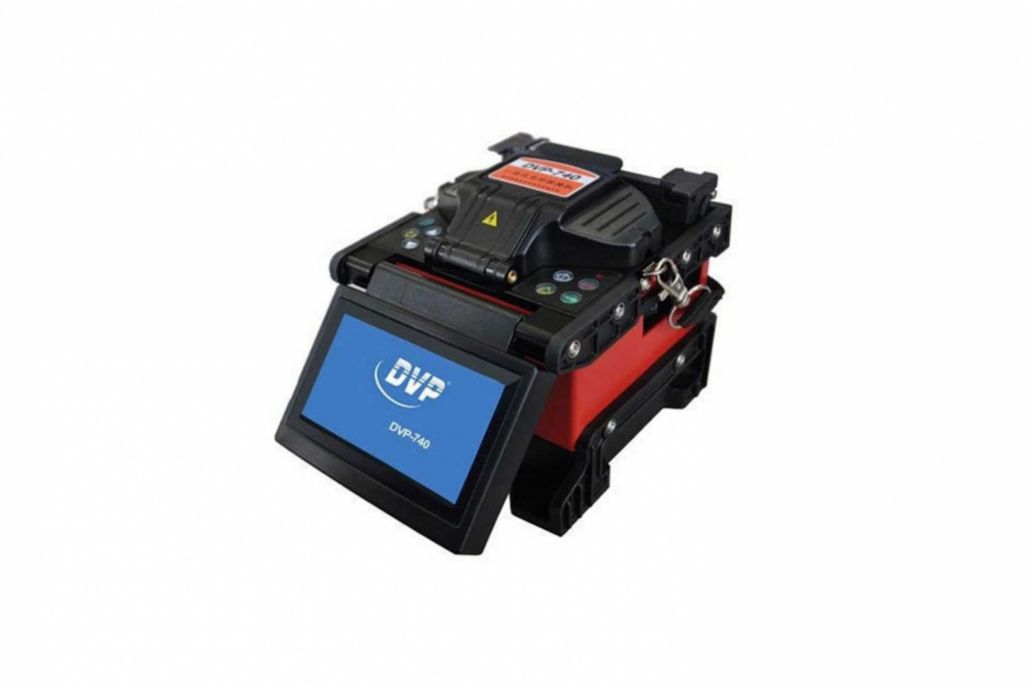

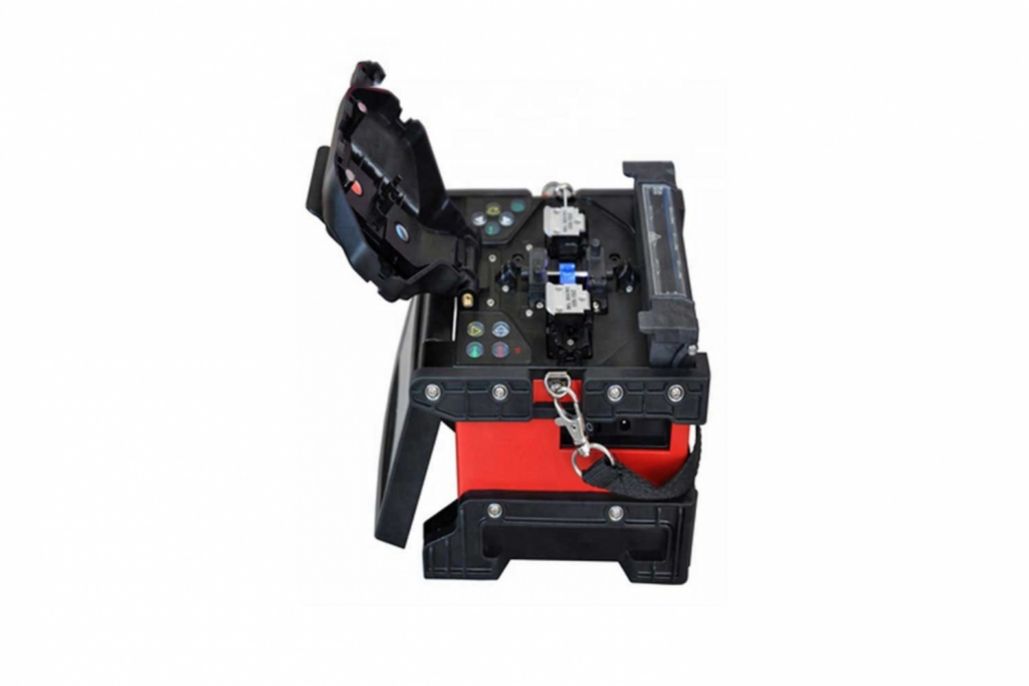

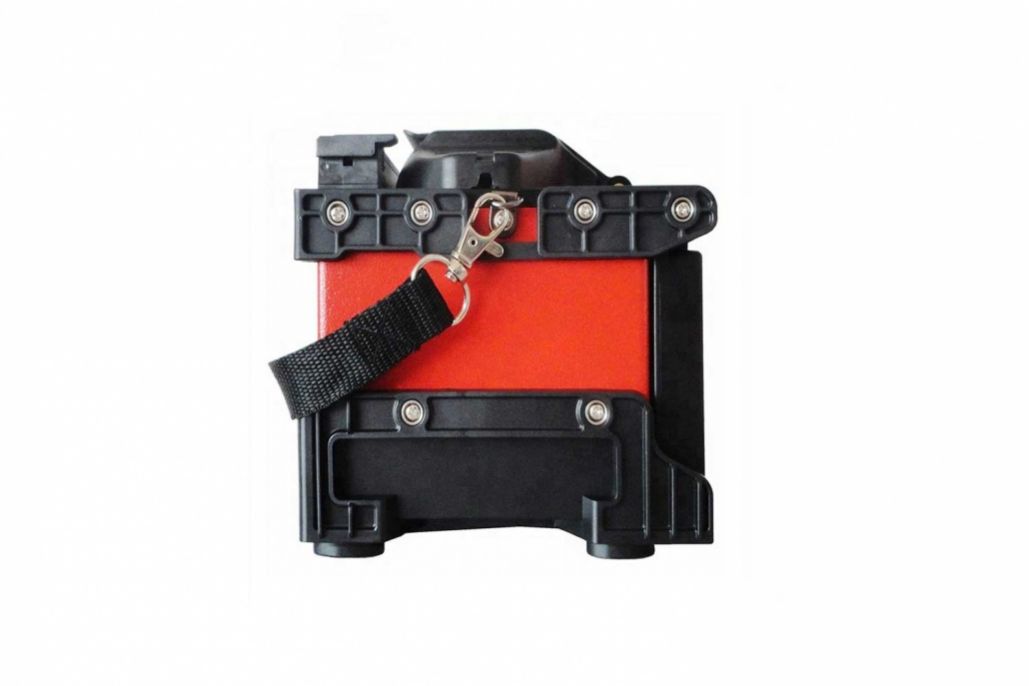

DVP-740 Fiber Optic Fusion Splicer FTTH Fusion Machine

Product Model

DVP-740

Product Description

DVP-740 Fiber Optic Fusion Splicer FTTH Fusion Machine. Spring Optical Communication is one of the largest and best dvp-740 fiber optic fusion splicer machine manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized dvp-740 fiber optic fusion splicer machine in stock with our factory. Also, free sample is also available if necessary.

Features

Features:

Compact & Light weight
Applied for Fibers, Cables and SOC (splice- on connector)
Integrated Holder Design
Fully Automatic, Semi-automatic and Manual Operation
Shockproof, Drop resistance
Power saving Function
4.3 inch Color LCD monitor
USB&DC interface

Dimension

Product Dimension:

Applicable fibers	SM, MM, DS, NZ-DS(G655), EDF, Bending Loss Insensitive fiber(G657), Pigtail, Drop cable and connector.
Fiber cleaved length	8-22mm
Average splice loss	0.02dB(SM)、0.01dB(MM)、0.04dB(DS)、0.04dB(NZDS)
Return loss	≥60dB
Tension test	2.0N(200gf)(Standard)
Protection sleeve length	20mm, 40mm, 60mm
Splice Program	5 groups of preset programs, 75 group of manual setting
Language	English, Chinese, Russian, Spanish, Portuguese.
Environment conditions	-25～＋50℃ (operation temperature), 0～95%RH (humidity), 0～5000m (altitude)
Storage environment	-40～ +80℃ (temperature) , 0～95％RH (humidity)
Power supply	AC adaptor： 85～260V input voltage Internal battery: 12V, 6Ah, up to 120 times of continuous splice and heat
Dimensions/Weight	142（D）×122（W）×138（H）mm/1.95kg

Accessory

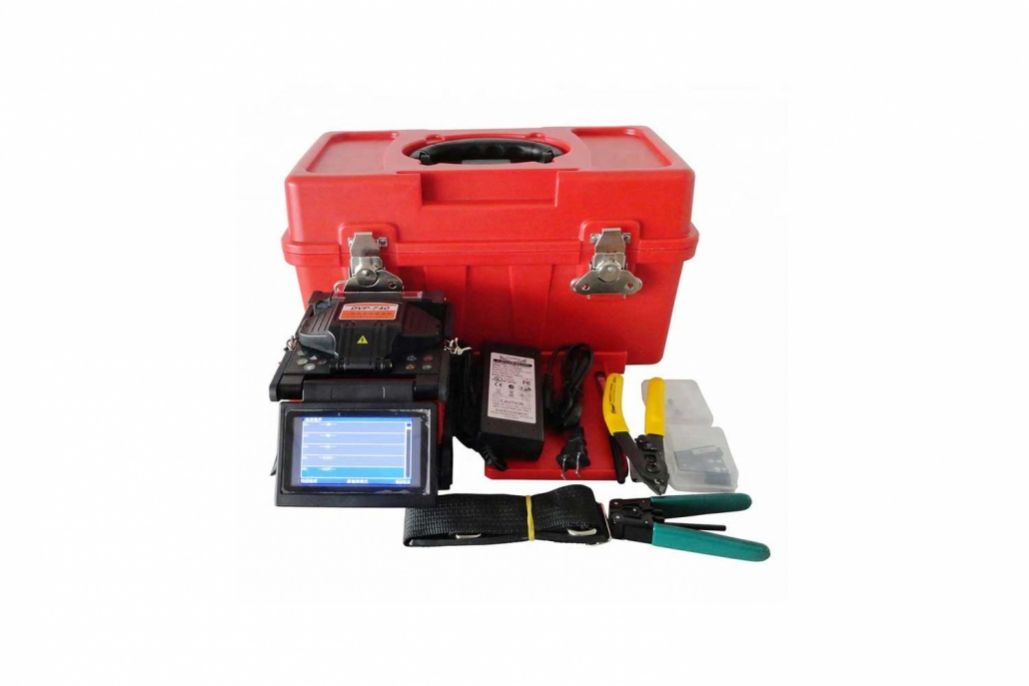

STANDARD PACKAGE
Fusion Splicer, Fiber Cleaver, Drop Cable Stripper, Connector holder, Heater Device for Connector, Spare Electrodes, Charger, Cooling Tray, Manual Instruction, Carry Box/ Bag.
